Product code: MT-171808-NF

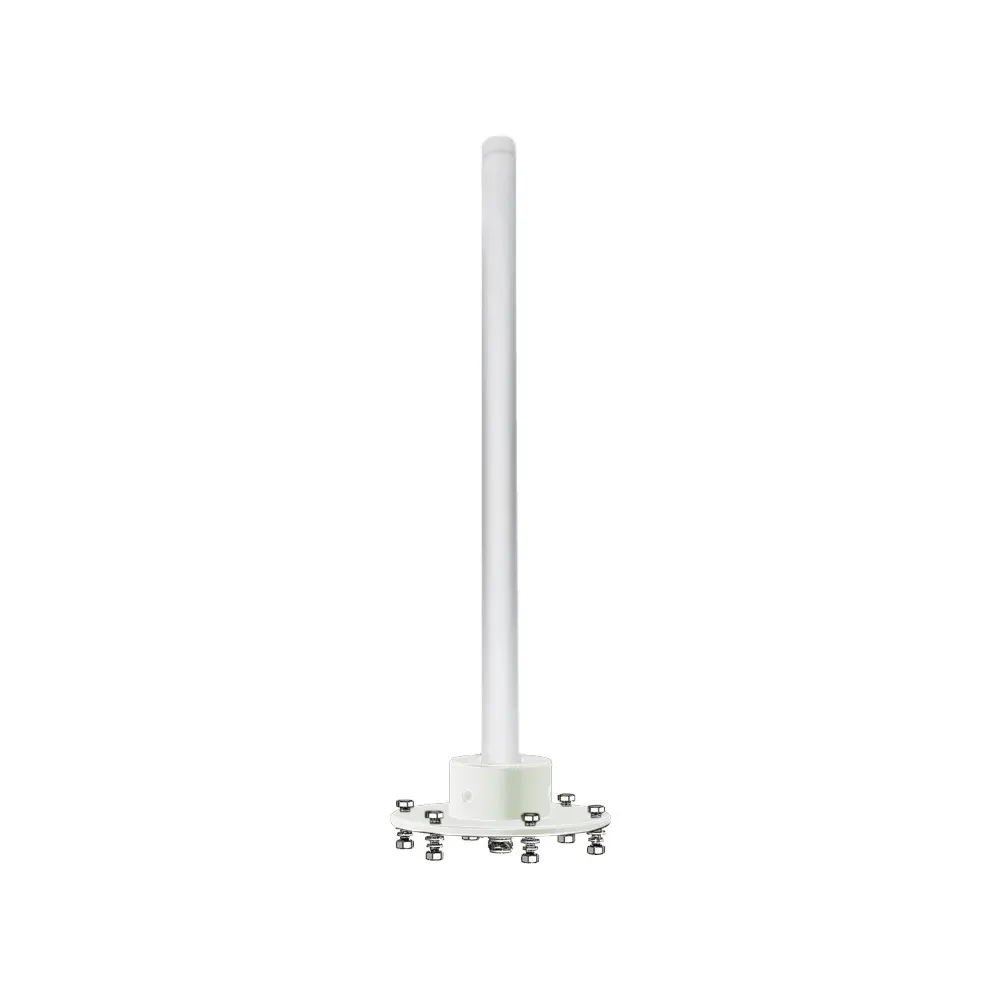

1.71GHz to 1.88GHz 8dBi Vertical Omni Directional Outdoor Antenna

Product Overview
Part Number MT-171808-NF
Gain 8 dBi
Dimension 750x70x55mm
Weight 620g
Connector N-Female
Beam-width Horz.360 deg Vert.13 deg



WhatsApp Chat
Skype
Product Part Number
MT-171808-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range1710 to 1880MHz
V.S.W.R (MAX)1.3:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)8 dBi
PolarizationVertical
Maximum Power50 Watts
Vertical Beam-width13 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array Dipole
Internal MaterialCopper
ConnectorN-Female
Mechanical
Length (MAX)750 mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)550 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium

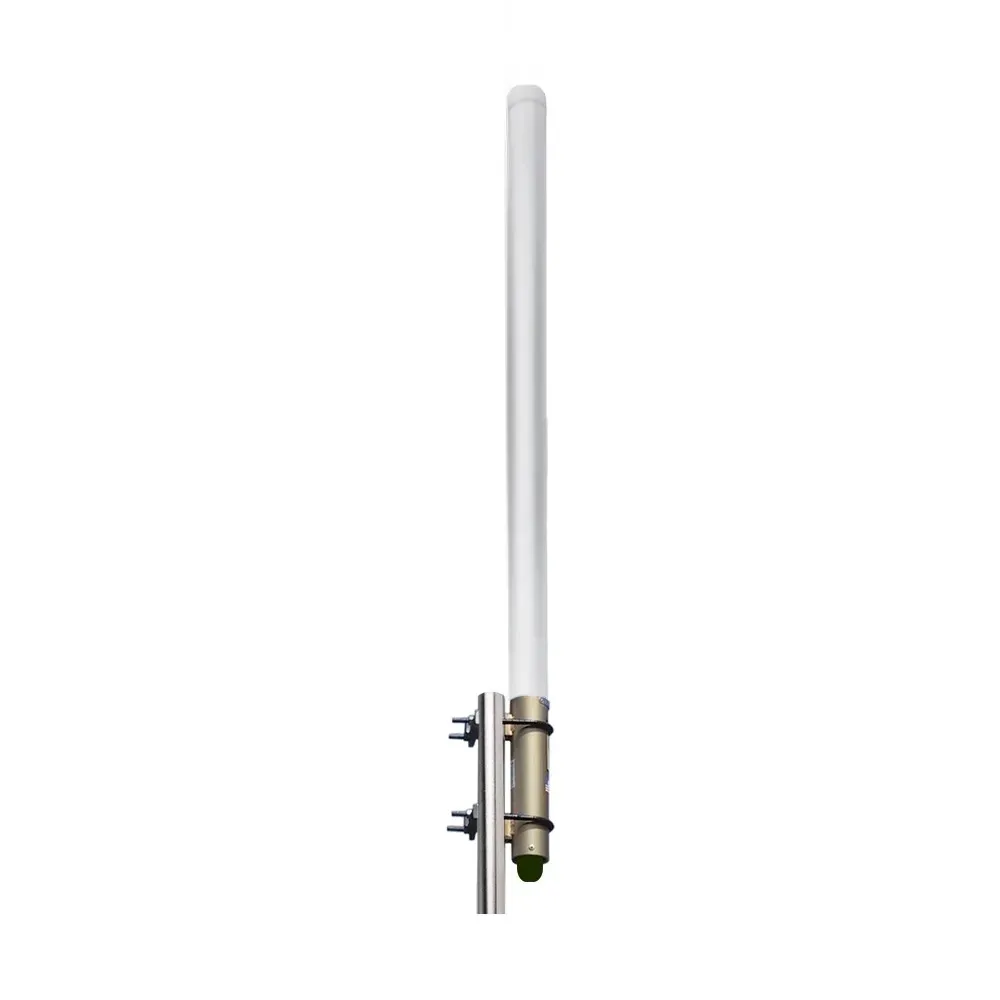

Mount StylePole Mount / Wall Mount
Pole Mounting32mm to 45mm
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
