Product code: MT-181903-NF

1.85GHz to 1.99GHz 3dBi Vertical Omni Directional Outdoor Antenna N-Female

Product Overview
Part Number MT-181903-NF
Gain 3 dBi
Dimension 240x70x55mm
Weight 260g
Connector N-Female
Beam-width Horz.360 deg Vert.67 deg



WhatsApp Chat
Skype
Product Part Number
MT-181903-NF
Electrical & Mechanical Specification
Specification
Electrical
Frequency Range1850 to 1990MHz
V.S.W.R (MAX)1.3:1
Antenna TypeCollinear
RadiationOmni Directional
Gain (MAX)3 dBi
PolarizationVertical
Maximum Power100 Watts
Vertical Beam-width67 Deg
Horizontal Beam-width360 Deg
Impedance50 Ohm
Antenna DesignDipole Array Dipole
Internal MaterialCopper
ConnectorN-Female
Mechanical

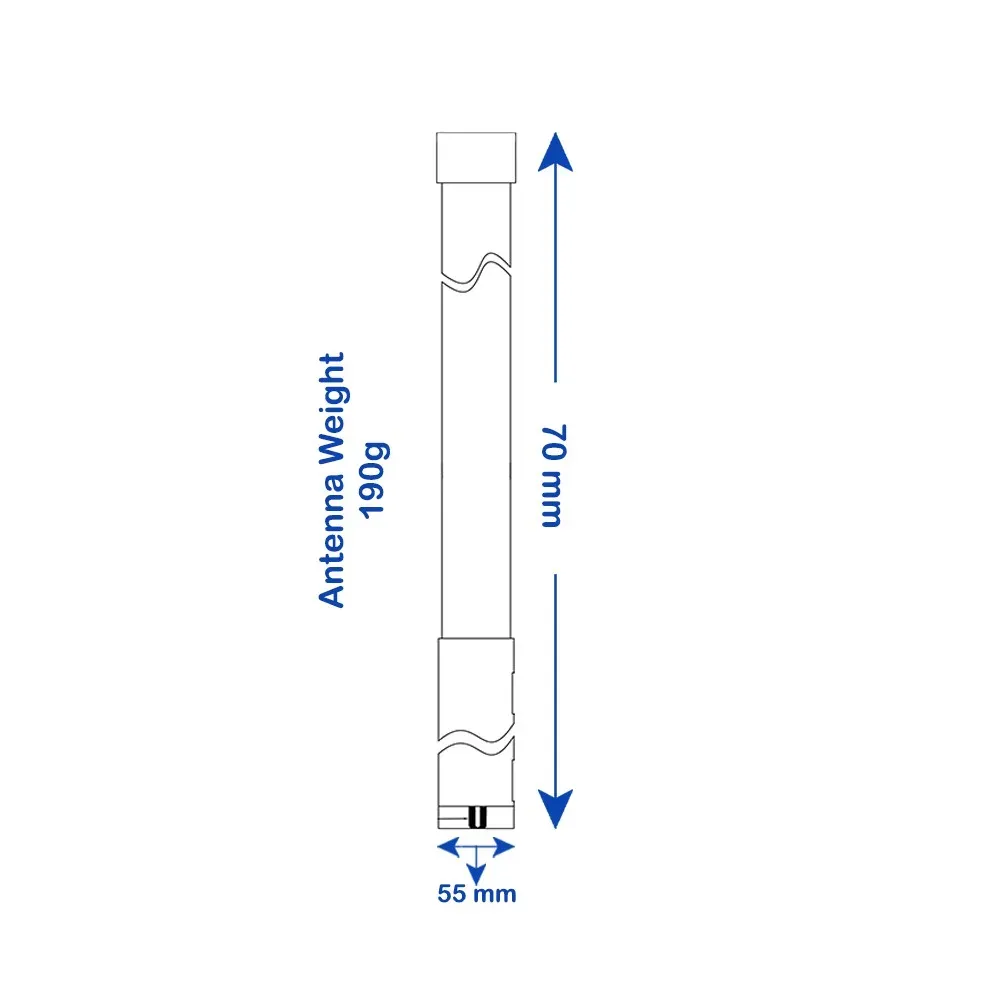

Length (MAX)240 mm
Diameter (MAX)70 x 55mm
Antenna Weight (G.W)190 g
Accessories (G.W)70 g
ApplicationIndoor / Outdoor
Radome MaterialWhite Fiberglass
Parts MaterialAluminium
Mount StylePole Mount / Well Mount
Pole Mounting32mm to 45mm
MountingStainless Steel
Wind SurvivalGreater than 150MPH
Storage Temperature-40 to +80
Operating Temperature-40 to +60
Operating Humidity10%~90% non-condensing
Storage Humidity5%~90% non-condensing
Safety, Emission and otherCE, FCC, RoHS
