10-Port, Hybrid Panel Split-Beam Sector Antenna, 65°/35°/35°/35°/35° HBW, (5x) 1710-2690 MHz, 18/19/19/19/19 dBi, 2-12°T, 1.997 m

Product code: 10P-1710-2690F-18G-65H8V

10-Port, Hybrid Panel Split-Beam Sector Antenna, 65°/35°/35°/35°/35° HBW, (5x) 1710-2690 MHz, 18/19/19/19/19 dBi, 2-12°T, 1.997 m

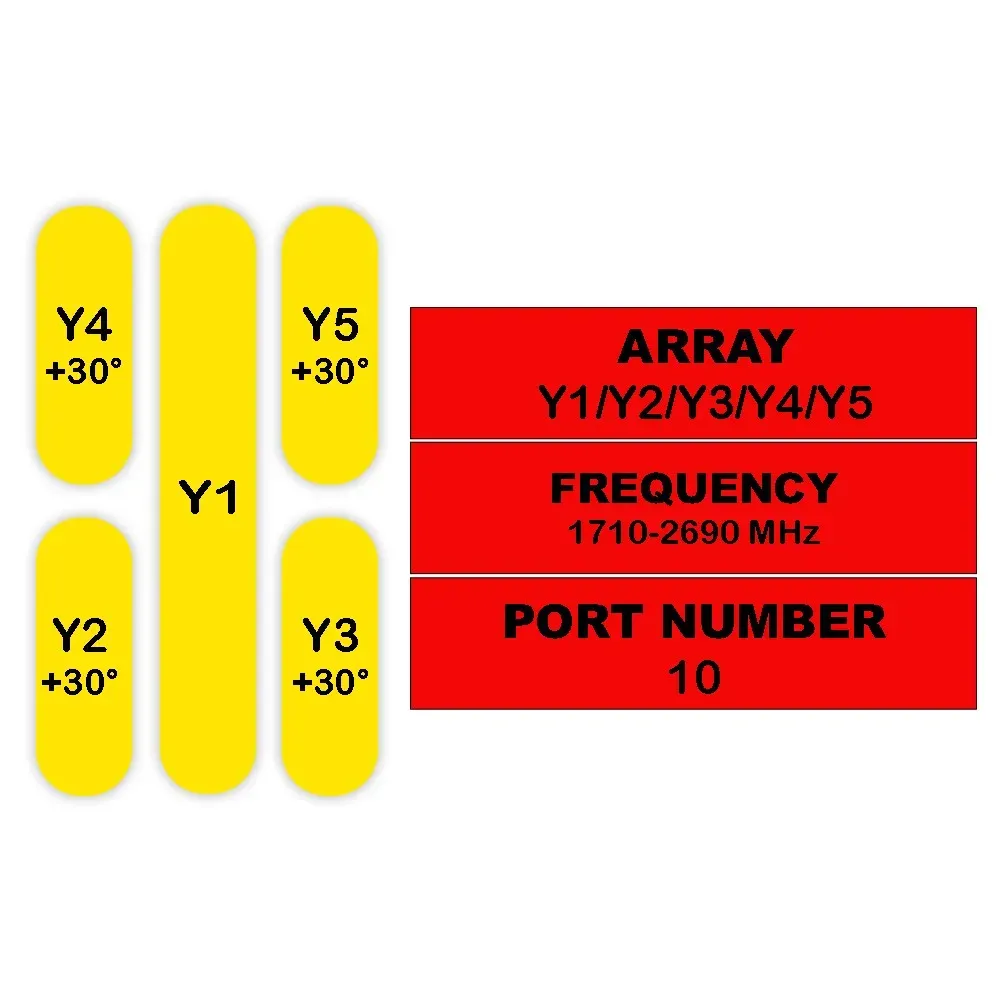

10-Port Antenna	Y1	Y2	Y3	Y4	Y5
Frequency Range (MHz)	1710-2690	1710-2690	1710-2690	1710-2690	1710-2690
HBW	65°	35°	35°	35°	35°
Gain	18 dBi	19 dBi	19 dBi	19 dBi	19 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

10P-1710-2690F-18G-65H8V

Electrical & Mechanical Specification

Electrical Specifications
			Y1					Y2 / Y3 / Y4 / Y5
		MHz	1710-2690					1710-2690
Frequency Range		MHz	1710-1880	1850-1990	1920-2170	2300-2500	2500-2690	1710-1880	1850-1990	1920-2170	2300-2500	2500-2690
Polarization		—	±45°					±45°
	at Mid Tilt	dBi	16.5	16.8	17.1	17.6	17.5	17.5	17.9	18.3	18.9	18.8
Gain	Over All Tilts	dBi	16.4 ± 0.6	16.7 ± 0.6	17.0 ± 0.6	17.5 ± 0.6	17.4 ± 0.6	17.4 ± 0.6	17.8 ± 0.6	18.2 ± 0.6	18.8 ± 0.6	18.7 ± 0.6
Horizontal Beamwidth		degree	67 ± 5	65 ± 5	63 ± 5	60 ± 5	58 ± 5	41 ± 3	39 ± 3	36 ± 3	32 ± 3	30 ± 3
Azimuth Beam Pointing		degree	0					Y2 / Y4: +30 ± 3; Y3/Y5: -30 ± 3
Vertical Beamwidth		degree	7.5 ± 0.8	7.0 ± 0.7	6.6 ± 0.7	5.8 ± 0.6	5.5 ± 0.6	9.9 ± 1.0	9.3 ± 0.9	8.7 ± 0.9	7.8 ± 0.8	6.9 ± 0.7
Electrical Downtilt, Continuously Adjustable		degree	2-Dec					2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio CO-Pol, ±30°		dB	> 26	> 26	> 26	> 26	> 26	> 25	> 25	> 25	> 25	> 25
Cross Polar	at Boresight	dB	> 19	> 20	> 20	> 20	> 19	> 18	> 18	> 18	> 18	> 18
Discrimination	Over Sector	dB	> 7	> 7	> 7	> 5	> 5	> 25
	Intraband	dB	> 25					> 25
Isolation	Interband	dB	> 25					> 25
Impedance		Ohm	50					50
VSWR		—	< 1.5					< 1.5
Return Loss		dB	> 14					> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150					< -150
Lightning Protection		—	DC Ground					DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200					200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications

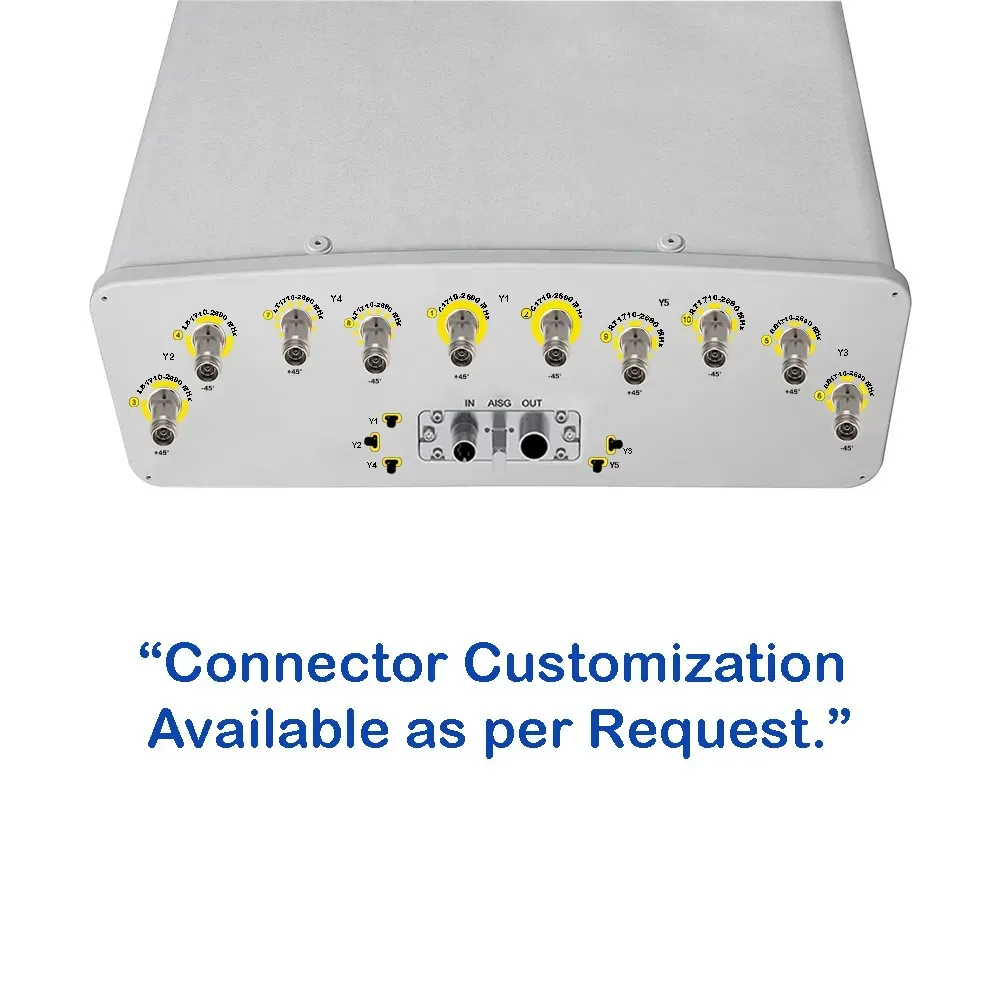

Connector Type		—	(10x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

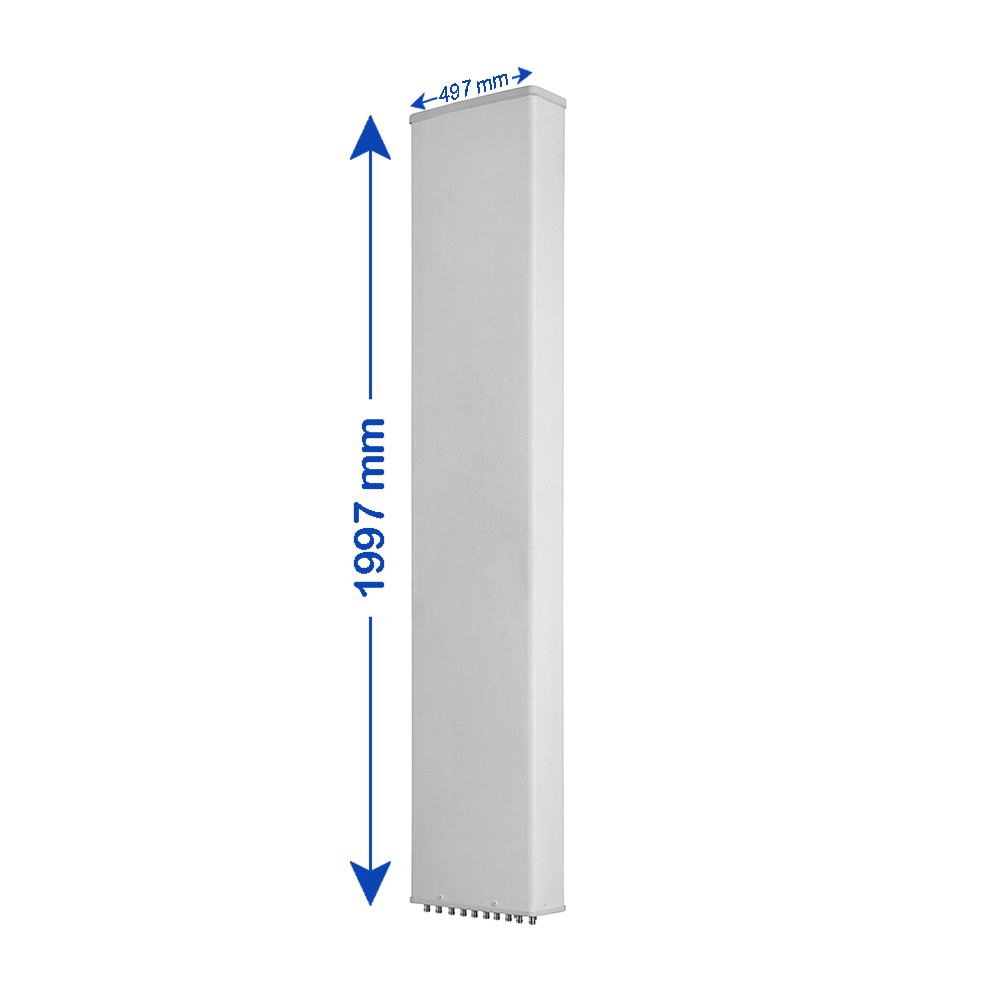

Antenna Dimensions (H x W x D)		mm (in)	1997 x 497 x 197 (78.6 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	33 (72.8)
Antenna Weight	with Clamps	kg (lbs)	38.5 (84.9)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	915 (205.7)
at 150 km/h	Rear	N (lbf)	1025 (230.4)
	Lateral	N (lbf)	450 (101.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
