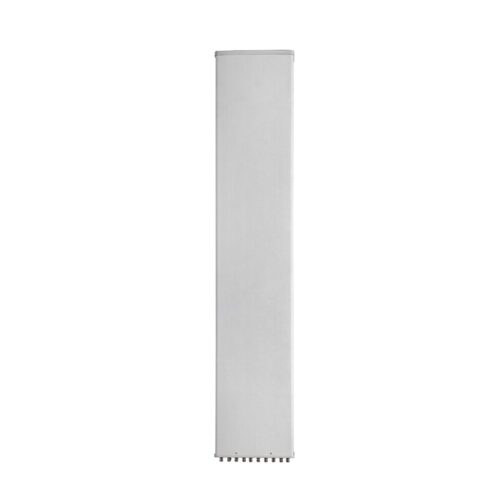

10-Port, Hybrid Panel Split-Beam Sector Antenna, 65°/35° HBW, 1710-2170/(4x) 2490-2690 MHz, 17.5/18.5/18.5/18.5/18.5 dBi, 2-12°T, 1.997 m

Product code: 10P-1710-2690F-17G-65H7V

10-Port, Hybrid Panel Split-Beam Sector Antenna, 65°/35° HBW, 1710-2170/(4x) 2490-2690 MHz, 17.5/18.5/18.5/18.5/18.5 dBi, 2-12°T, 1.997 m

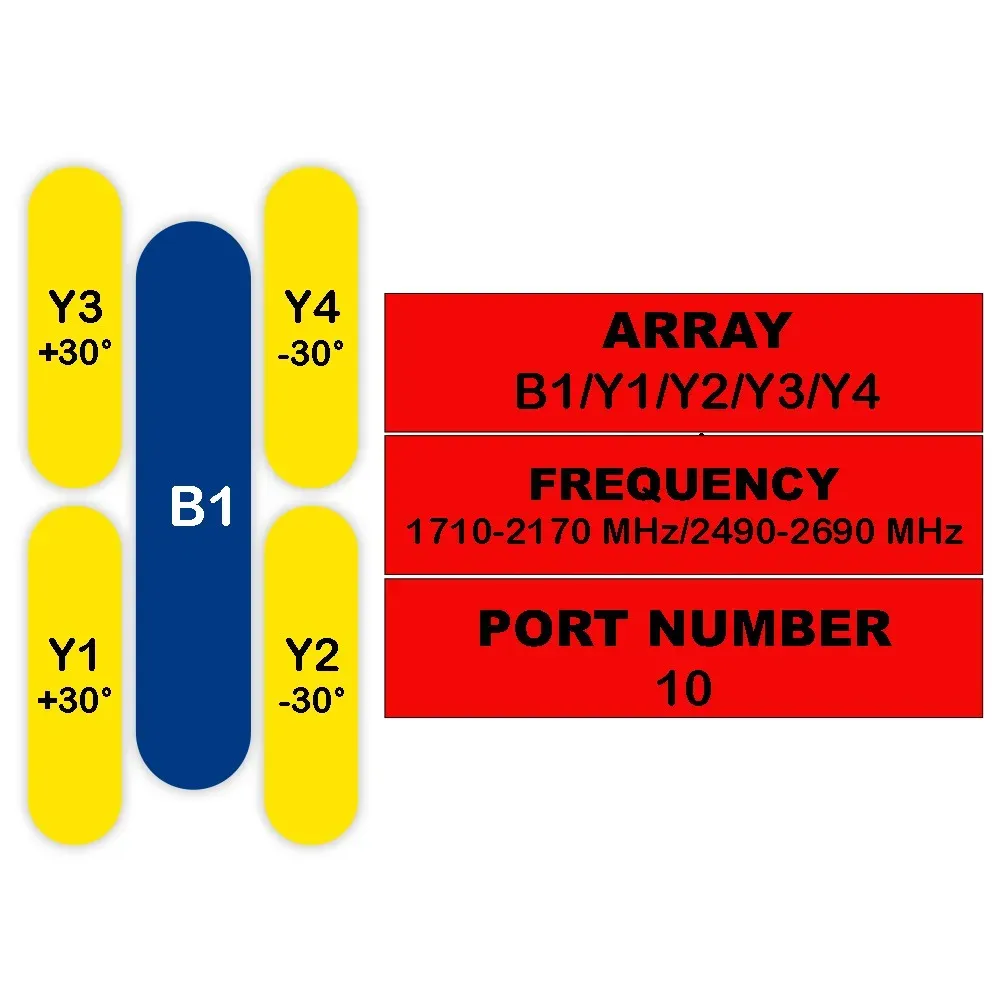

10-Port Antenna	B1	Y1	Y2	Y3	Y4
Frequency Range (MHz)	1710-2170	2490-2690	2490-2690	2490-2690	2490-2690
HBW	65°	35°	35°	35°	35°
Gain	17.5 dBi	18.5 dBi	18.5 dBi	18.5 dBi	18.5 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

10P-1710-2690F-17G-65H7V

Electrical & Mechanical Specification

Electrical Specifications
			B1		Y1 / Y2 / Y3 / Y4
		MHz	1710-2170
Frequency Range		MHz	1710-1920	1920-2170	2490-2690
Polarization		—	±45°		±45°
	at Mid Tilt	dBi	17.3	17.6	18.6
Gain	Over All Tilts	dBi	17.2 ± 0.5	17.5 ± 0.5	18.5 ± 0.6
Horizontal Beamwidth		degree	65 ± 8	63 ± 6	31 ± 3
Horizontal Beam Pointing		degree	0		±30 (±3)
Vertical Beamwidth		degree	6.8 ± 0.7	6.3 ± 0.6	7.0 ± 0.7
Electrical Downtilt, Continuously Adjustable		degree	2-Dec		2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°		dB	> 25	> 25	> 25
Cross Polar	at Boresight	dB	> 18	> 18	> 15
Discrimination	Over Sector	dB	> 10	> 10	—
	Intraband (Same-Beam)	dB	> 25		> 25
Isolation	Beam-To-Beam	dB	—		> 25
	Interband	dB	> 25		> 25
Impedance		Ohm	50		50
VSWR		—	< 1.5		< 1.5
Return Loss		dB	> 14		> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150		< -150
Lightning Protection		—	DC Ground		DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200		200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications

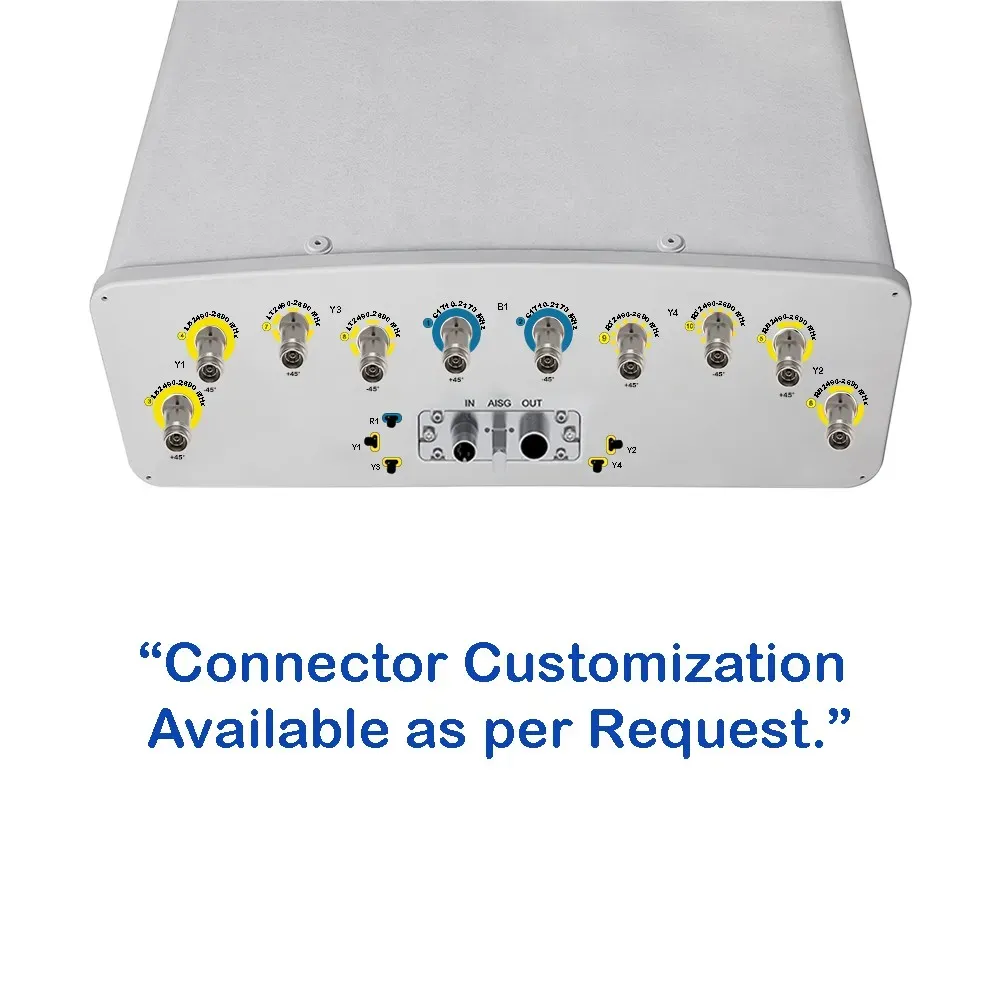

Connector Type		—	(10x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

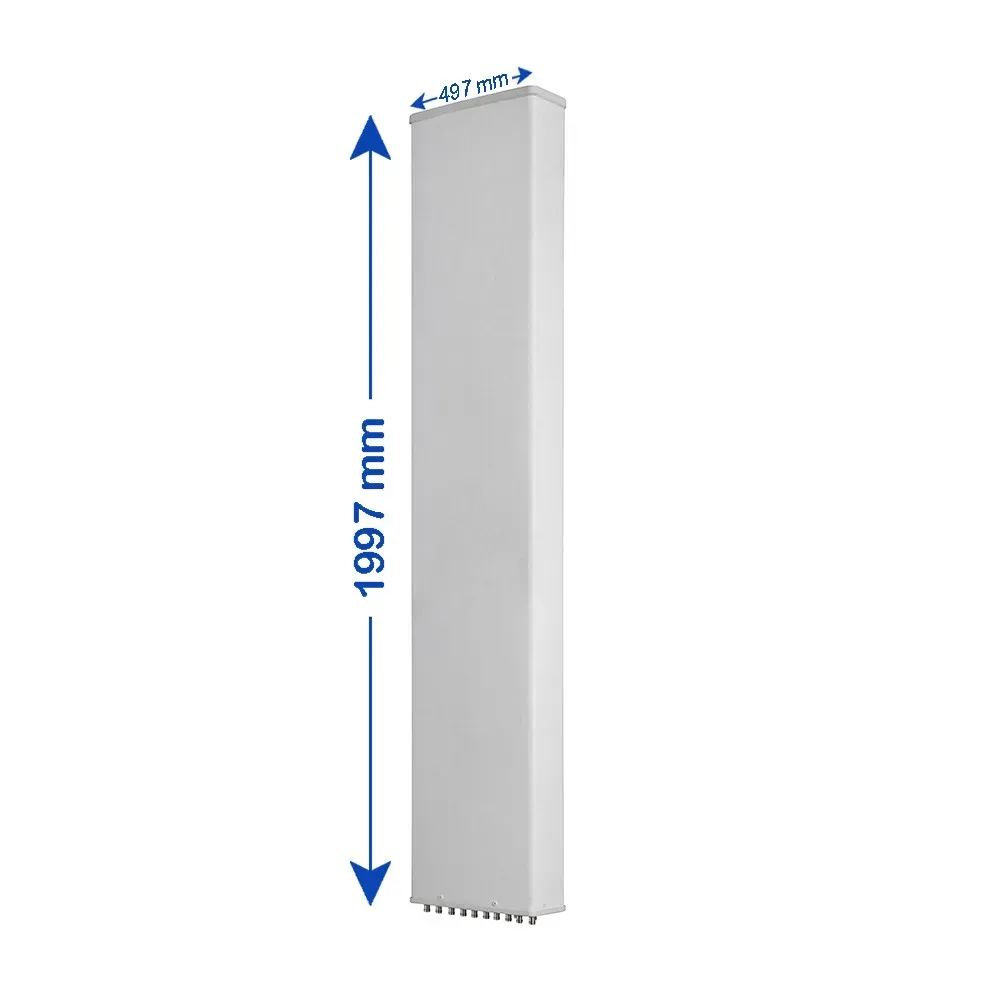

Antenna Dimensions (H x W x D)		mm (in)	1997 x 497 x 197 (78.6 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	32 (70.5)
Antenna Weight	with Clamps	kg (lbs)	37.5 (82.7)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	915 (205.7)
at 150 km/h	Rear	N (lbf)	1025 (230.4)
	Lateral	N (lbf)	450 (101.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
