Product code: 10P-698-2690F-20G-35H7V

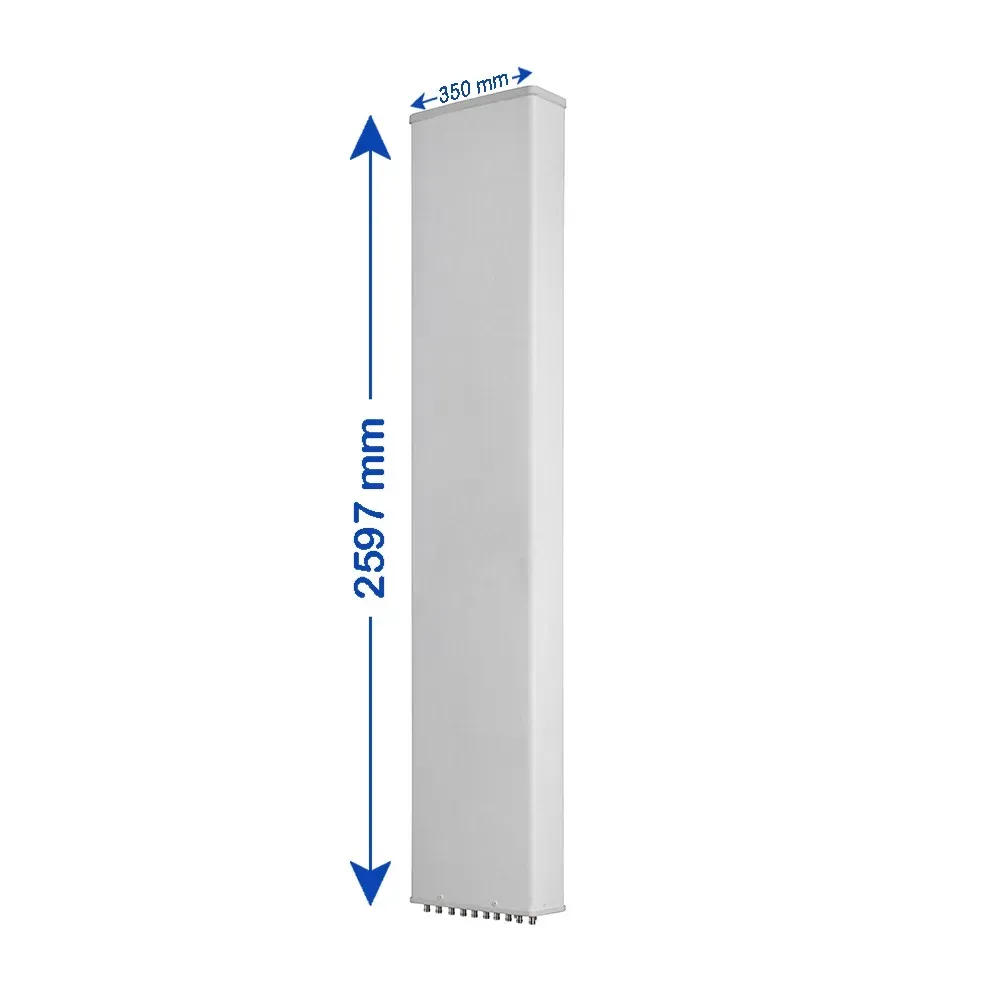

10-Port, Hybrid Panel Split-Beam Sector Antenna, 65°/ (4x) 33° HBW, 698-960 MHz/(4x) 1710-2690 MHz, 17/20/20/20/20 dBi, 2-12°T, 2.597 m

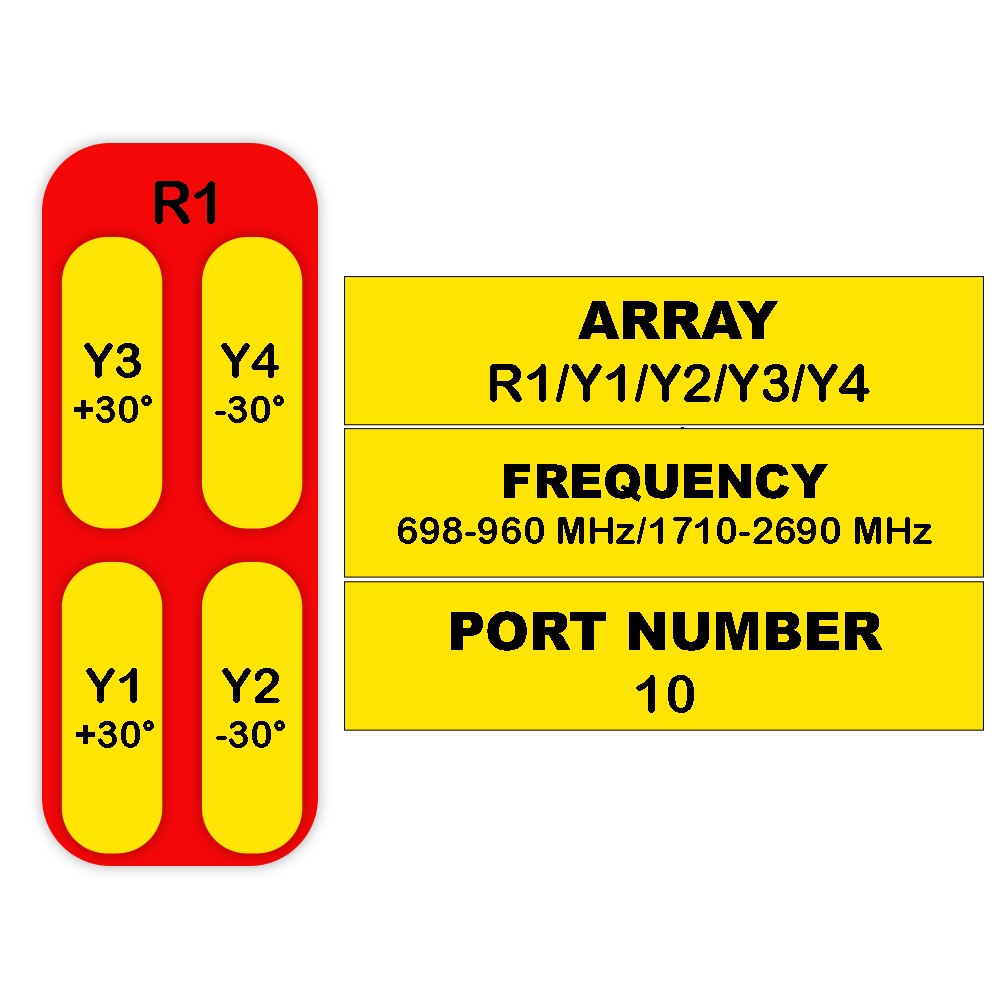

| 10-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 33° | 33° | 33° | 33° |
| Gain | 17 dBi | 20 dBi | 20 dBi | 20 dBi | 20 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

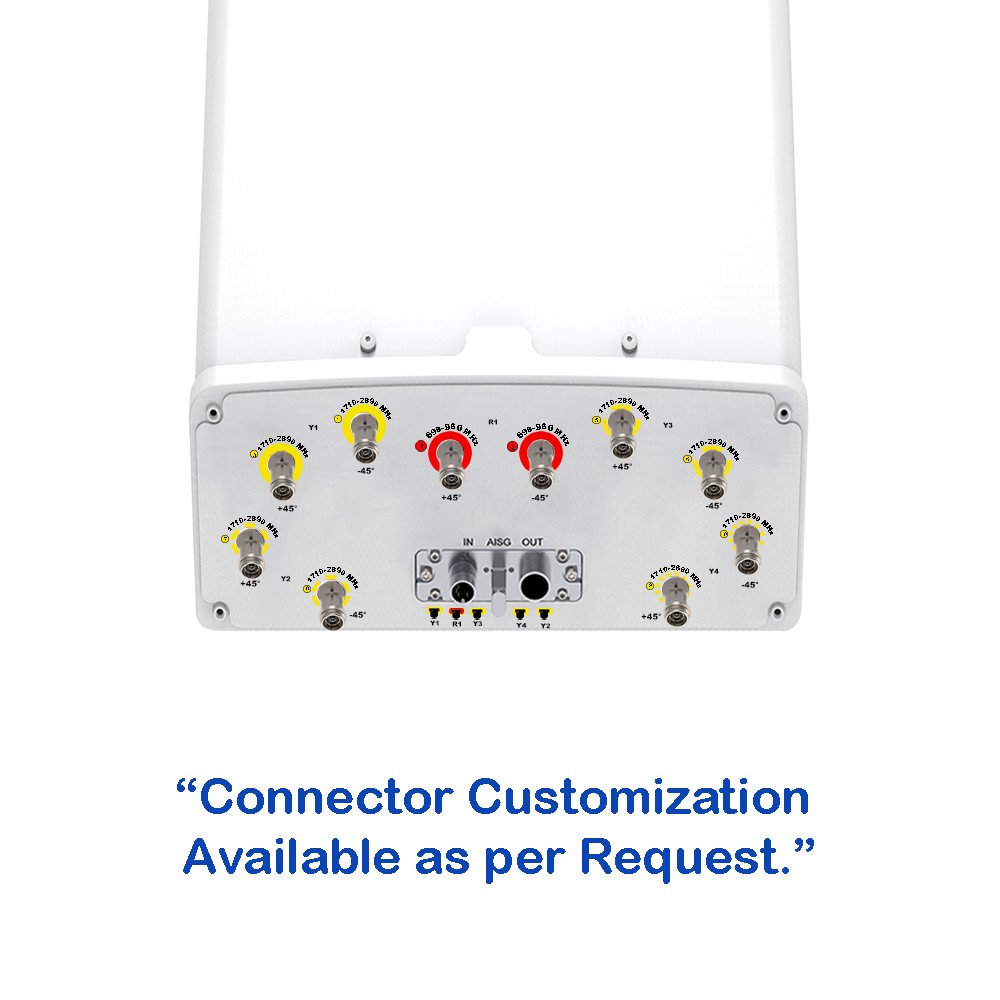

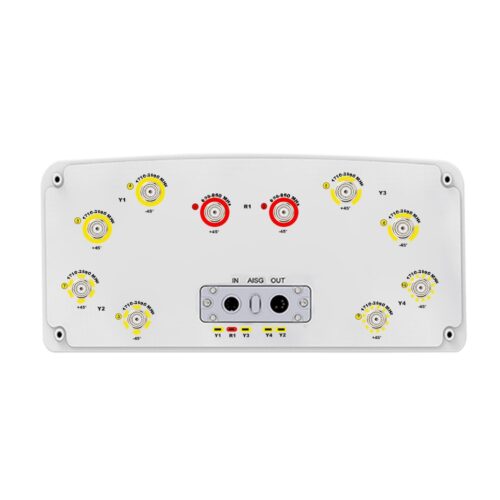

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
