Product code: 10P-690-3800F-16G-65H12V

10-Port, Panel Antenna, 65° HBW, 690-960/(2x) 1695-2690/(2x) 3300-3800 MHz, 16/16/16/18/18 dBi, 2-12° T, 1.997 m

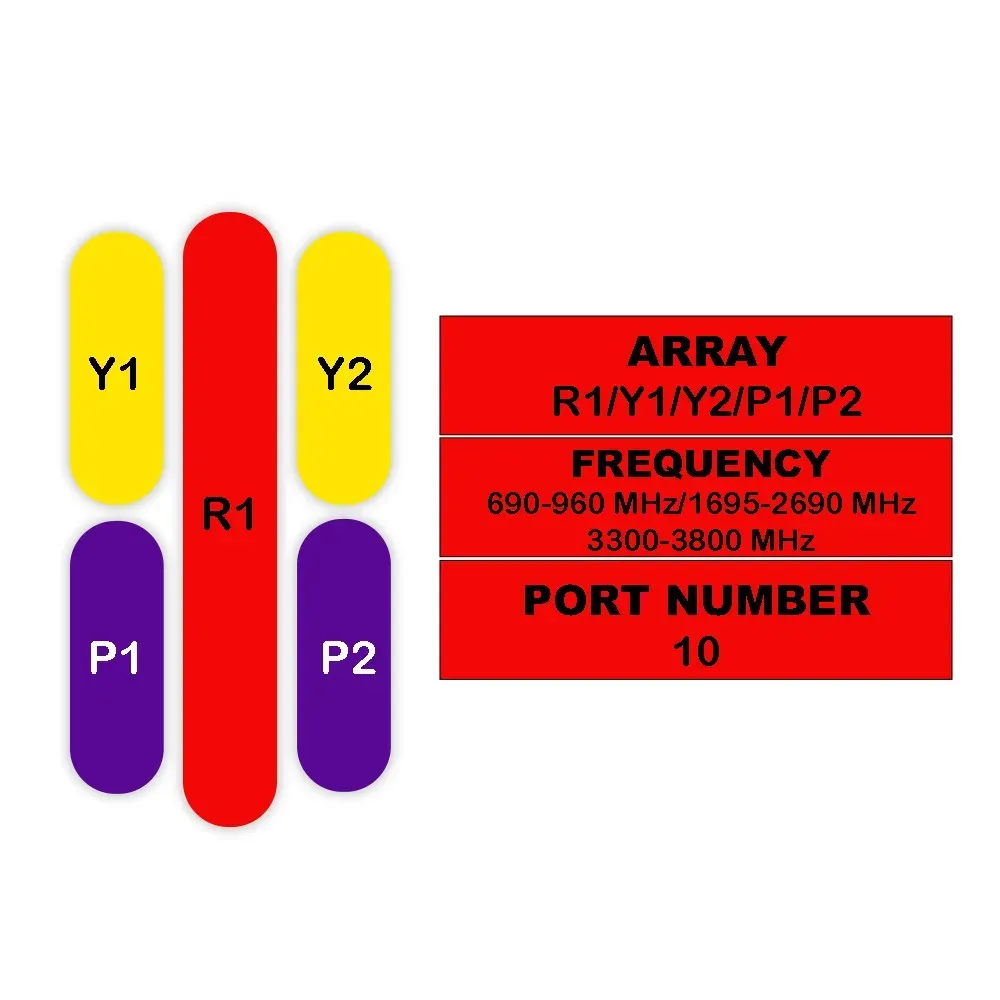

10-Port Antenna R1 Y1 Y2 P1 P2
Frequency Range (MHz) 690-960 1695-2690 1695-2690 3300-3800 3300-3800
HBW 65° 65° 65° 65° 65°
Gain 16 dBi 16 dBi 16 dBi 18 dBi 18 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12°

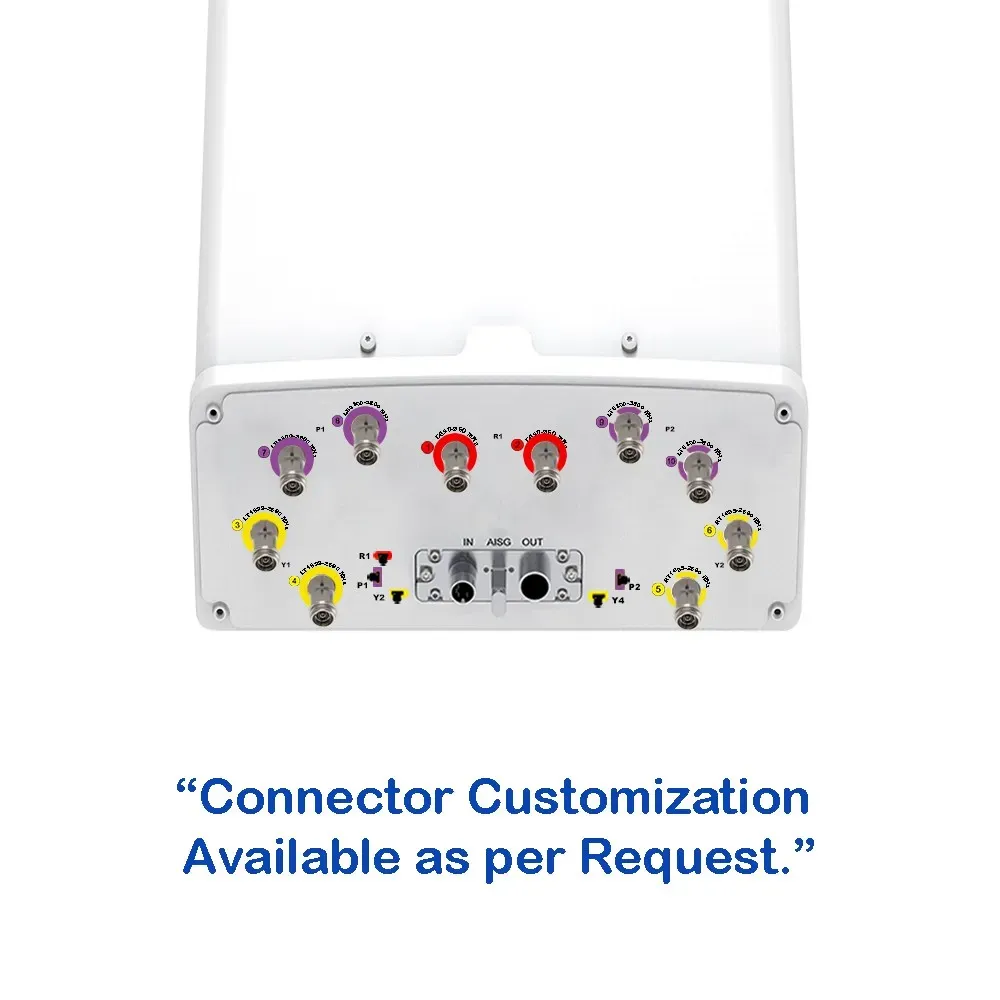

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
10P-690-3800F-16G-65H12V
Electrical & Mechanical Specification
Electrical Specifications
R1Y1 / Y2P1 / P2
Frequency RangeMHz690-9601695-26903300-3800
MHz690-806790-894880-9601695-18801850-19901920-21702300-24002490-26903300-35903600-3800
Polarization—±45°±45°±45°
Gainat Mid TiltdBi1515.515.815.515.816.116.416.417.417.6
Over All TiltsdBi14.8 ± 0.615.3 ± 0.615.6 ± 0.615.3 ± 0.615.6 ± 0.515.9 ± 0.516.2 ± 0.616.2 ± 0.617.2 ± 0.717.4 ± 0.7
Horizontal Beamwidthdegree69 ± 4.567 ± 4.165 ± 4.568 ± 6.566 ± 6.164 ± 6.162 ± 5.162 ± 5.964 ± 6.560 ± 6.5
Vertical Beamwidthdegree11.6 ± 1.110.4 ± 0.99.3 ± 0.89.5 ± 0.68.8 ± 0.68.2 ± 0.67.2 ± 0.56.5 ± 0.45.5 ± 0.95.0 ± 0.8
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec2-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side Lobe SuppressionFirst Upper LobedB≥ 16≥ 16≥ 16> 15> 15> 15> 15> 15> 15> 15
20° Sector Above Main BeamdB> 15> 15> 15> 14> 14> 14> 14> 14——
Front-To-Back Ratio ±30°dB≥ 23≥ 24≥ 25> 25> 25> 25> 26> 26> 25> 25
Cross Polarat BoresightdB≥ 17≥ 18≥ 17> 16> 16> 16> 17> 17> 15> 15
DiscriminationOver SectordB≥ 8≥ 7≥ 6> 7.0> 8.0> 8.0> 6.0> 4.0> 5> 5
IsolationCross-PolardB> 28> 26> 28
Port-to-PortdB> 28> 28> 28
ImpedanceOhm505050
VSWR—< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150< -150
Lightning Protection—DC GroundDC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200150
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(10x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

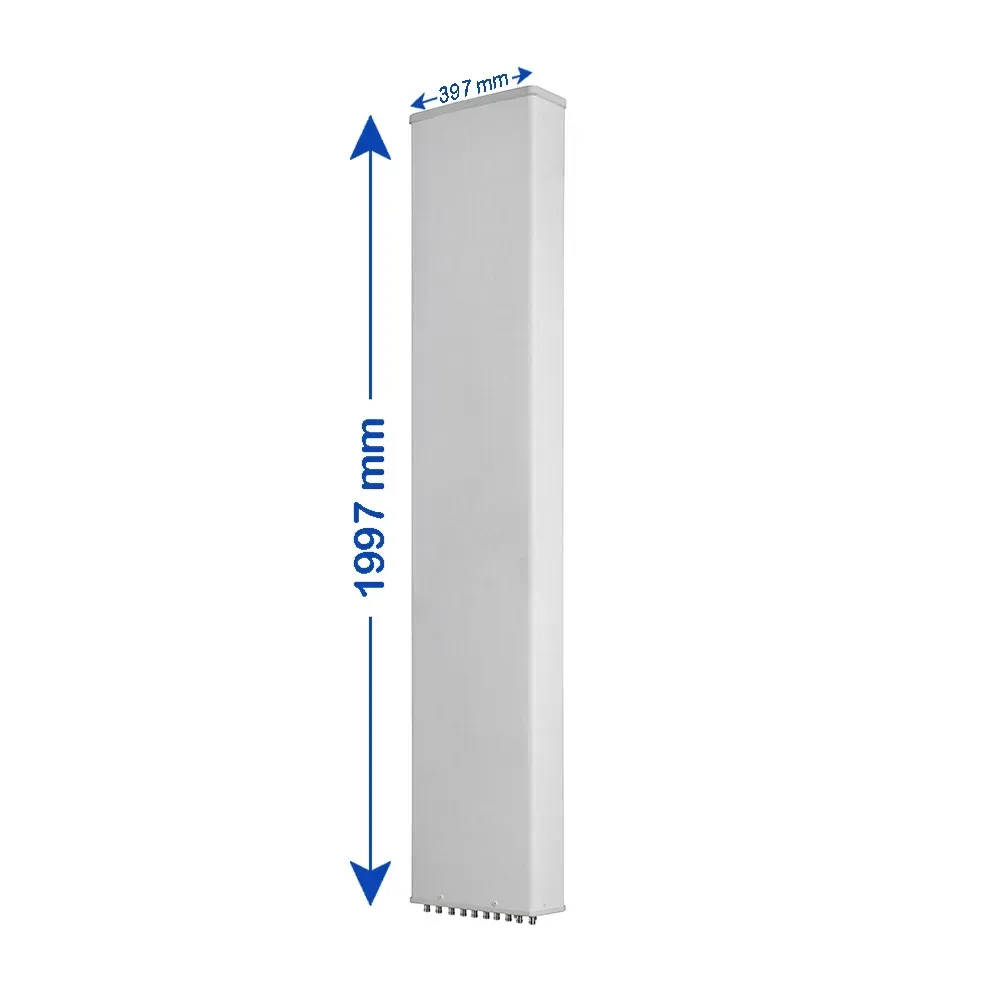

Antenna Dimensions (H x W x D)mm (in)1997 x 397 x 157 (78.6 x 15.6 x 6.2)
Antenna WeightAntenna Onlykg (lbs)27.5 (60.6)
with Clampskg (lbs)33 (72.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)735 (165.2)
at 150 km/hRearN (lbf)820 (184.3)
LateralN (lbf)360 (80.9)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
