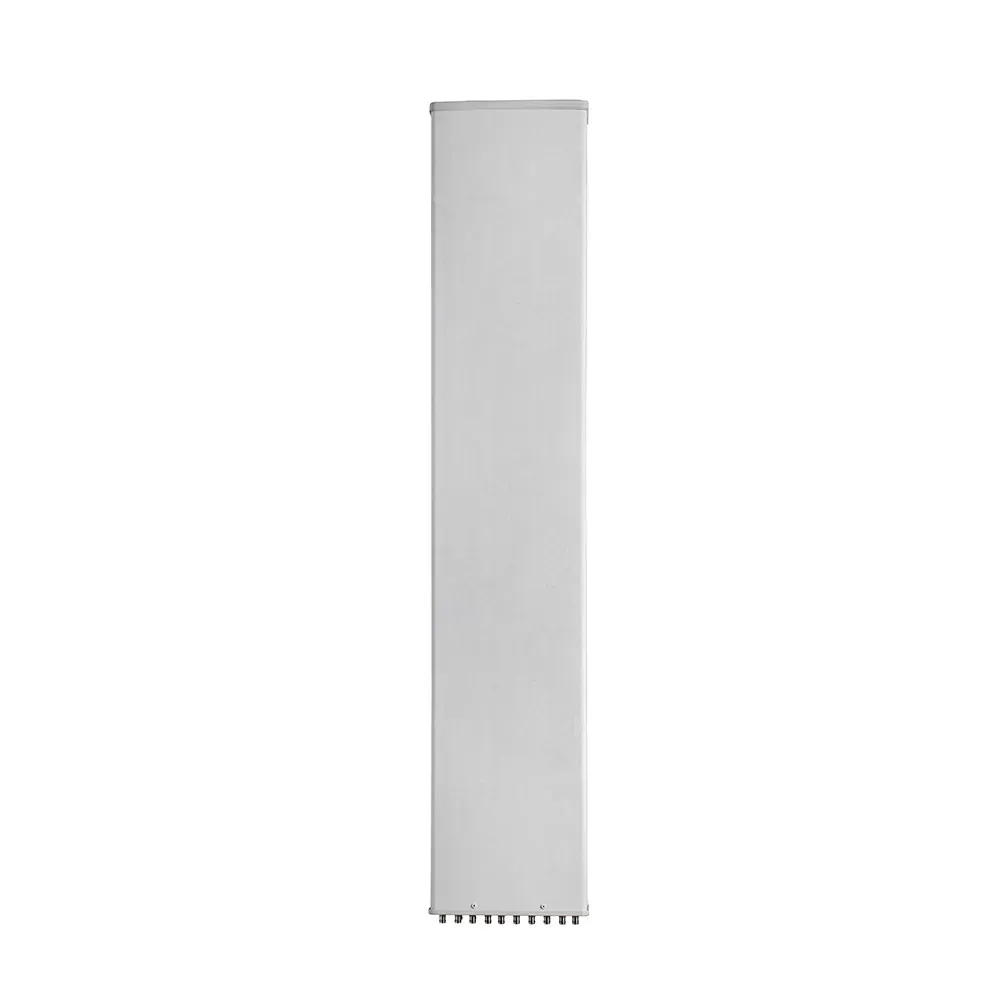

Product code: 10P-698-3800F-17G-65H9V
10-Port, Panel Antenna, 65° HBW, 698-960/(2x) 1695-2690/(2x) 3300-3800 MHz, 17/17.5/17.5/18/18 dBi, 2-12° T, 2.497 m

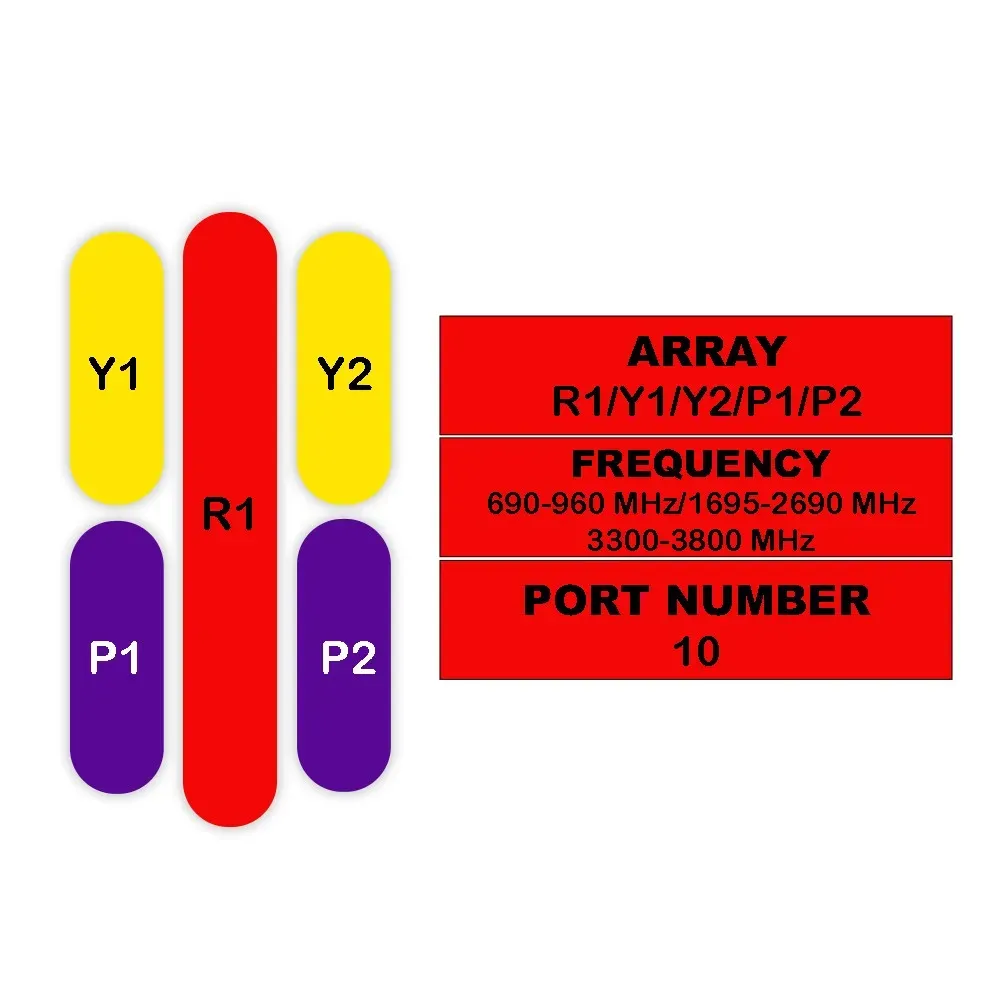

| 10-Port Antenna | R1 | Y1 | Y2 | P1 | P2 |
| Frequency Range (MHz) | 698-960 | 1695-2690 | 1695-2690 | 3300-3800 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 17 dBi | 17.5 dBi | 17.5 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

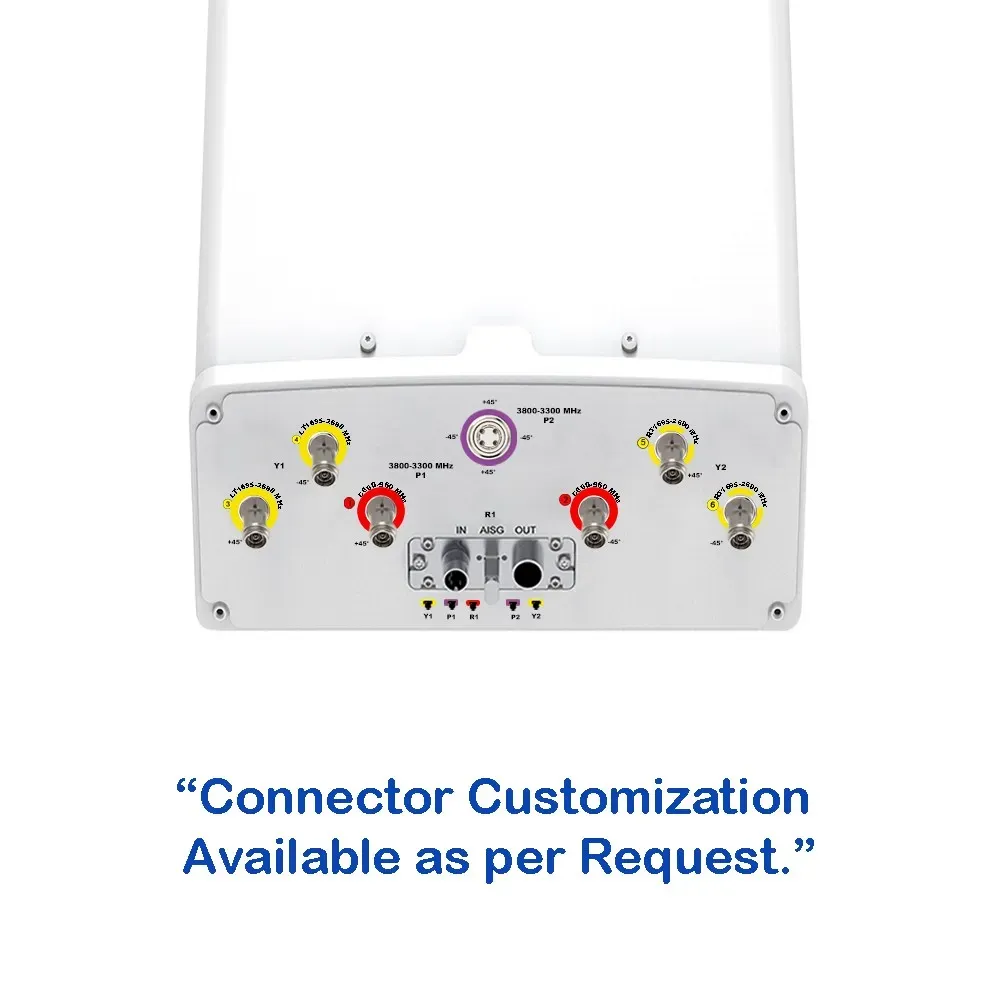

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(1x) MQ4 Male | |
Product Part Number
10P-698-3800F-17G-65H9V
Electrical & Mechanical Specification
| Electrical Specifications | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | Y1 / Y2 | P1 / P2 | ||||||||||
| Frequency Range | MHz | 698-960 | 1695-2690 | 3300-3800 | ||||||||
| MHz | 698-806 | 790-894 | 880-960 | 1695-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | 3300-3590 | 3600-3800 | ||
| Polarization | — | ±45° | ±45° | ±45° | ||||||||
| Gain | at Mid Tilt | dBi | 16 | 16.5 | 17 | 16 | 16.4 | 16.8 | 17.2 | 17.2 | 17.4 | 17.6 |
| Over All Tilts | dBi | 15.8 ± 0.6 | 16.3 ± 0.4 | 16.8 ± 0.6 | 15.8 ± 0.6 | 16.2 ± 0.5 | 16.6 ± 0.6 | 17.0 ± 0.6 | 17.0 ± 0.6 | 17.3 ± 0.6 | 17.5 ± 0.6 | |
| Horizontal Beamwidth | degree | 70 ± 4.5 | 68 ± 4.5 | 66 ± 4.1 | 68 ± 6.1 | 66 ± 6.1 | 65 ± 6.5 | 64 ± 6.0 | 61 ± 6.5 | 61 ± 5 | 56 ± 5 | |
| Vertical Beamwidth | degree | 8.8 ± 0.9 | 7.8 ± 0.6 | 7.2 ± 0.6 | 6.8 ± 0.6 | 6.4 ± 0.5 | 6.0 ± 0.5 | 5.4 ± 0.4 | 4.8 ± 0.6 | 5.5 ± 0.6 | 5.1 ± 0.5 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | 2-Dec | 2-Dec | ||||||||
| Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
| Upper Side Lobe | First Upper Lobe | dB | > 16 | > 16 | > 16 | > 16 | > 16 | > 16 | > 16 | > 16 | > 18 | > 18 |
| Suppression | 20° Sector Above Main Beam | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 8 | > 7 |
| Front-To-Back Ratio ±30° | dB | > 23 | > 24 | > 25 | > 24 | > 24 | > 25 | > 25 | > 25 | > 25 | > 25 | |
| Cross Polar | at Boresight | dB | > 17 | > 18 | > 17 | > 17 | > 16 | > 17 | > 17 | > 17 | > 18 | > 18 |
| Discrimination | Over Sector | dB | > 7 | > 8 | > 8 | > 6.0 | > 7.0 | > 7.0 | > 5.0 | > 4.0 | > 8 | > 7 |
| Isolation | Cross-Polar | dB | > 25 | > 25 | > 25 | |||||||
| Port-to-Port | dB | > 28 | > 28 | > 28 | ||||||||
| Impedance | Ohm | 50 | 50 | 50 | ||||||||
| VSWR | — | < 1.5 | < 1.5 | < 1.5 | ||||||||
| Return Loss | dB | > 14 | > 14 | > 14 | ||||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | < -150 | ||||||||
| Lightning Protection | — | DC Ground | DC Ground | DC Ground | ||||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | 150 | ||||||||
| Integrated RET Specifications | ||||||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | |||||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||||||||
| Power | Standby | < 2 W | ||||||||||
| Consumption | In Motion | < 10 W | ||||||||||
| Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG Daisy Chain In: Male; Daisy Chain Out: Female | |||||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||||||||
| Hardware Interfaces | RS485 and Power | |||||||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | |||||||||||
| Adjustment Cycles | > 20,000 | |||||||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | |||||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | ||||||||||||
| Remote Control | Can manage from OMC, BTS/Node B | |||||||||||
| Daisy Chaining Method | Ready for daisy-chaining | |||||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||||||||
| Housing Material / Color | Aluminum / Grey | |||||||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | |||||||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | |||||||||||
| Humidity | Up to 95% | |||||||||||
| IP Rating | IP65 | |||||||||||
| Weight | ≤ 500 g | |||||||||||
| Mechanical Specifications | ||||||||||||

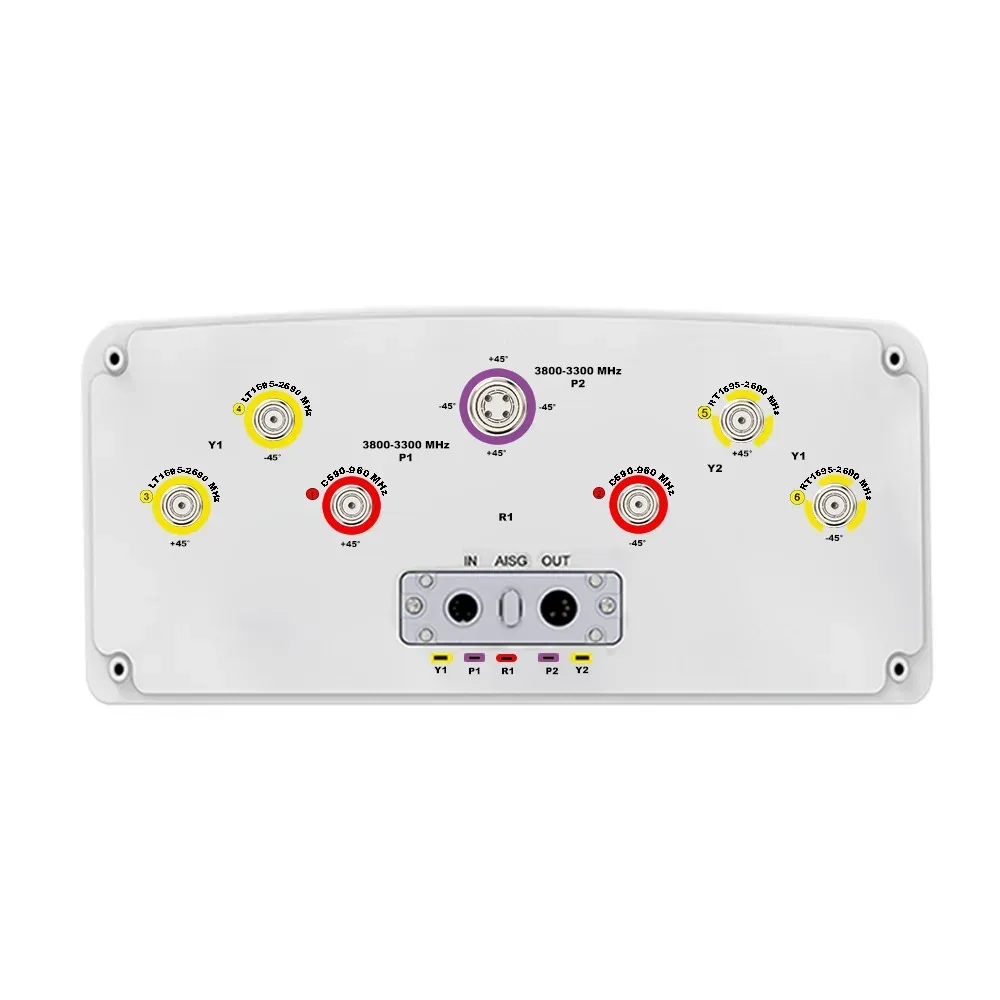

| Connector Type | — | (6x) 4.3/10 Female + (1x) MQ4 Male | ||||||||||
| Connector Position | — | Bottom | ||||||||||
| Electrical Tilt Control | — | Integrated RET | ||||||||||
| Radome Material | — | Fiberglass | ||||||||||

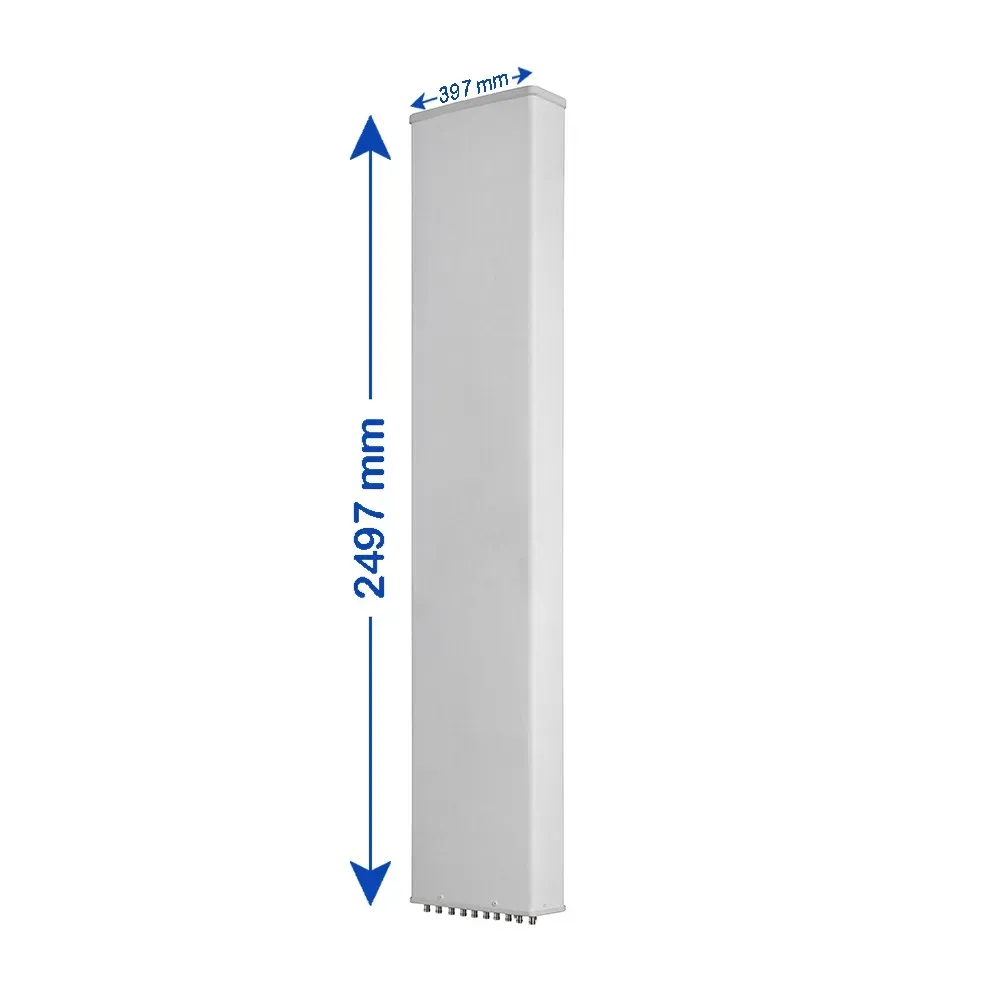

| Antenna Dimensions (H x W x D) | mm (in) | 2497 x 397 x 157 (98.3 x 15.6 x 6.2) | ||||||||||
| Antenna Weight | Antenna Only | kg (lbs) | 31 (68.3) | |||||||||
| with Clamps | kg (lbs) | 35 (77.2) | ||||||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||||||||
| Wind Load | Frontal | N (lbf) | 915 (205.7) | |||||||||
| at 150 km/h | Rear | N (lbf) | 1025 (230.4) | |||||||||
| Lateral | N (lbf) | 450 (101.2) | ||||||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to 140) | ||||||||||
