Product code: 10P-698-3800F-13G-65H24V

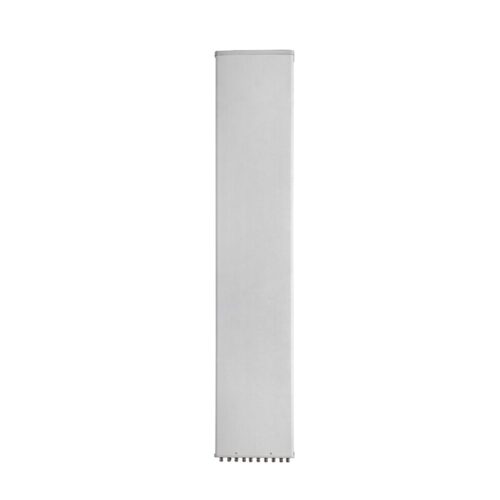

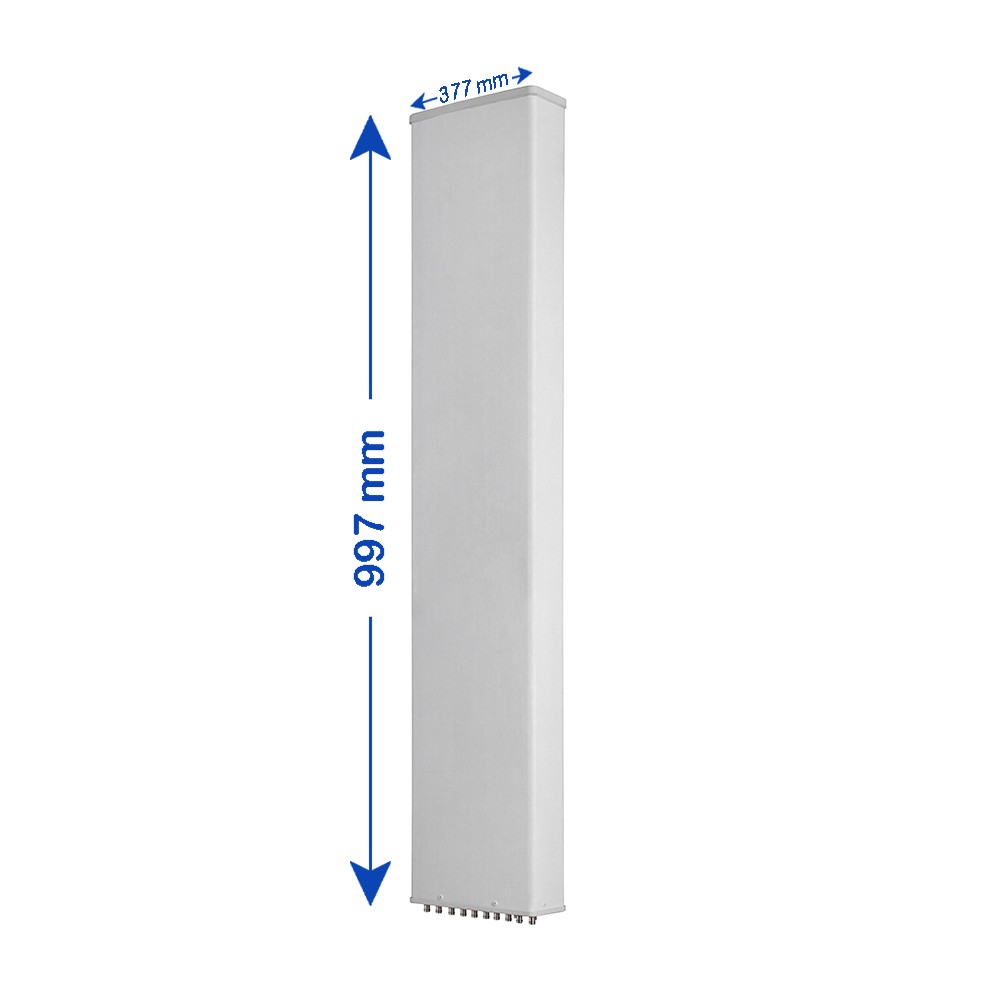

10-Port, Panel Antenna, 65° HBW, 698-960/(2x) 1710-2690/(2x) 3300-3800 MHz, 13/15/15/14/14 dBi, 3-16°/(4x) 2-12° T, 0.997 m

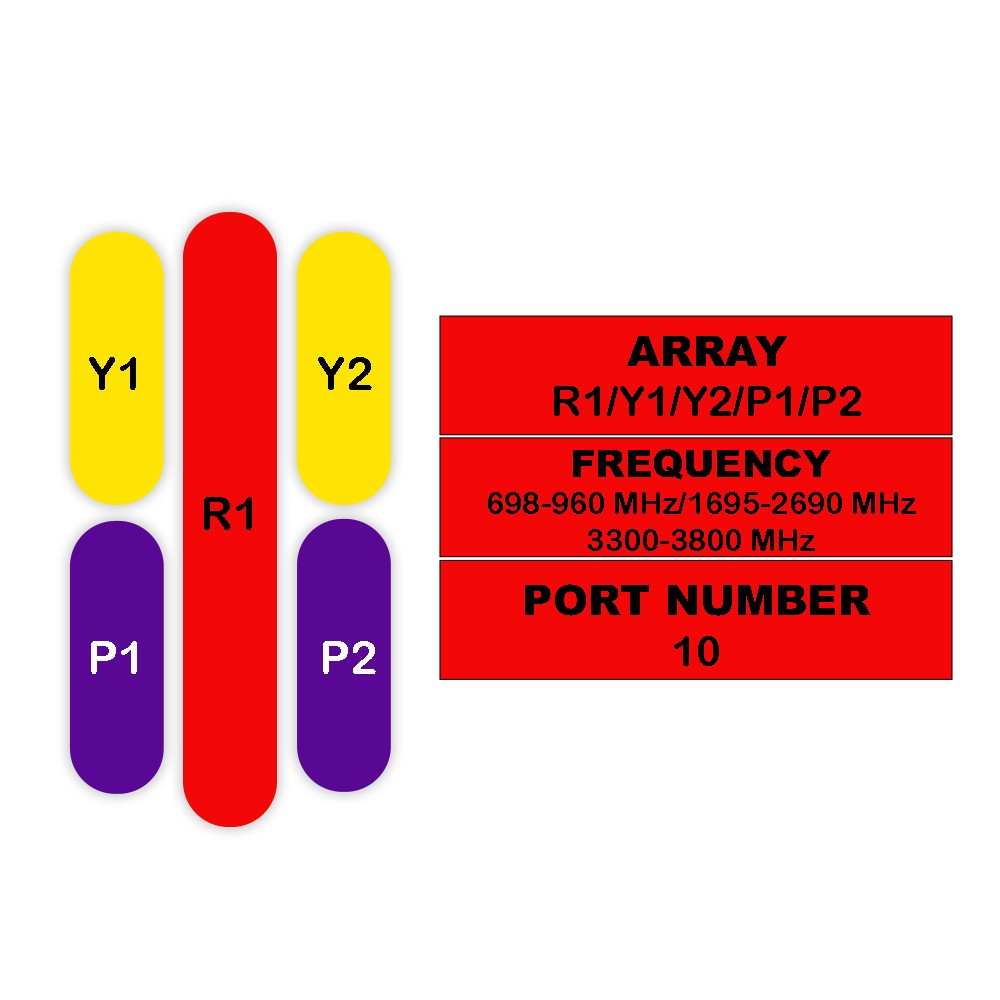

| 10-Port Antenna | R1 | Y1 | Y2 | P1 | P2 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 3300-3800 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 13 dBi | 15 dBi | 15 dBi | 14 dBi | 14 dBi |
| Tilt | 3-16° | 2-12° | 2-12° | 2-12° | 2-12° |

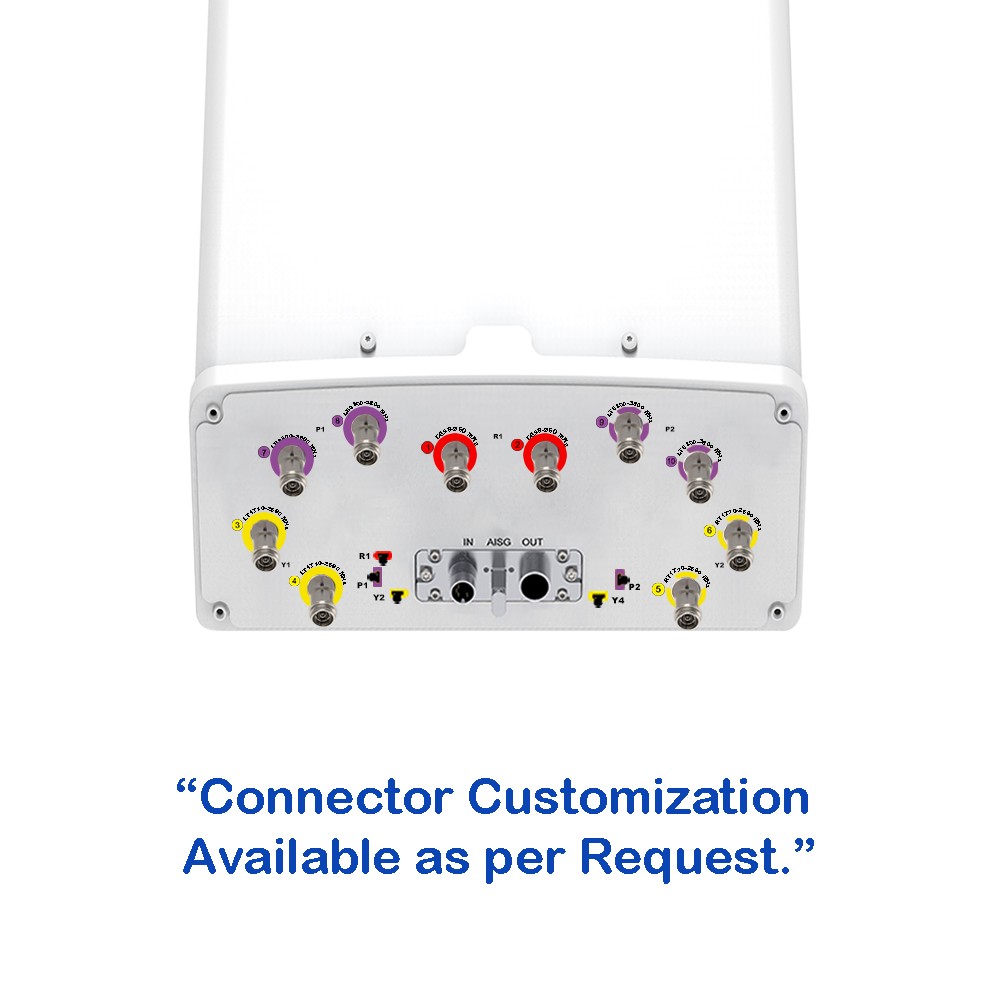

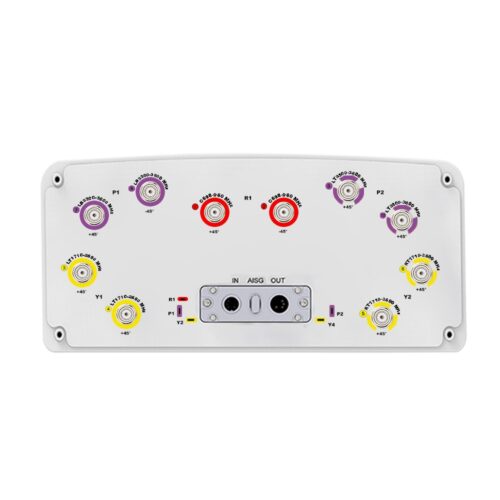

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
