Product code: 10P-698-2690F-17G-65H9V

10-Port, Panel Antenna, 65° HBW, 698-960/(4x) 1695-2690 MHz, 17/18/17.5/18/17.5 dBi, 2-12° T, 2.690 m

10-Port Antenna R1 Y1 Y2 Y3 Y4
Frequency Range (MHz) 698-960 1695-2690 1695-2690 1695-2690 1695-2690
HBW 65° 65° 65° 65° 65°
Gain 17 dBi 18 dBi 17.5 dBi 18 dBi 17.5 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12°

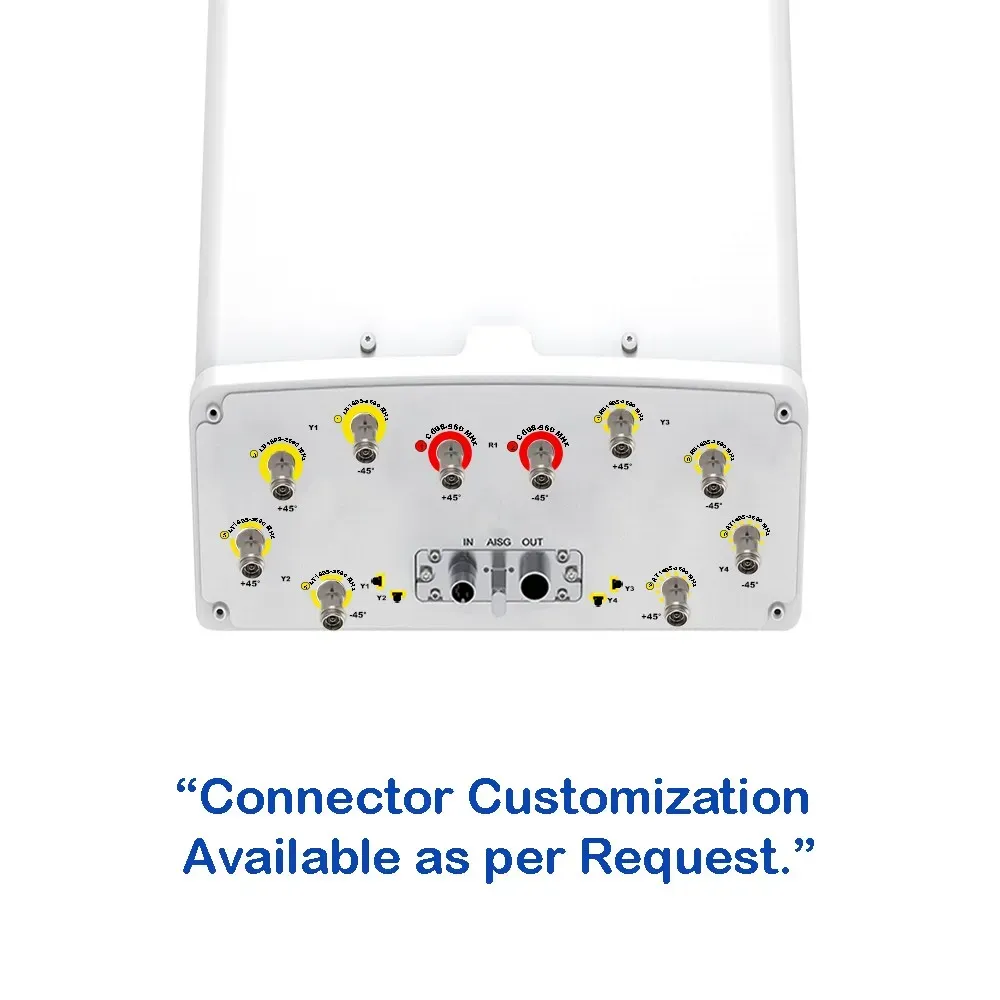

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
10P-698-2690F-17G-65H9V
Electrical & Mechanical Specification
Electrical Specifications
R1Y1 / Y3Y2 / Y4
Frequency RangeMHz698-9601695-26901695-2690
MHz698-806790-894880-9601695-18801850-19901920-21702300-24002490-26901695-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°±45°
Gainat Mid TiltdBi16.216.516.817.217.517.717.71816.817.117.717.717.6
Over All TiltsdBi16.0 ± 0.616.3 ± 0.416.6 ± 0.617.0 ± 0.617.3 ± 0.517.5 ± 0.517.6 ± 0.617.8 ± 0.616.6 ± 0.616.9 ± 0.517.5 ± 0.517.6 ± 0.617.4 ± 0.6
Horizontal Beamwidthdegree69 ± 4.567 ± 4.565 ± 4.168 ± 6.566 ± 6.564 ± 6.562 ± 5.562 ± 6.068 ± 6.566 ± 6.564 ± 6.562 ± 5.562 ± 6.0
Vertical Beamwidthdegree8.8 ± 0.97.8 ± 0.67.2 ± 0.67.1 ± 0.66.6 ± 0.56.2 ± 0.55.6 ± 0.45.1 ± 0.67.1 ± 0.66.6 ± 0.56.2 ± 0.55.6 ± 0.45.1 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec2-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side Lobe SuppressionFirst Upper LobedB> 16> 16> 16> 18> 18> 18> 18> 18> 16> 16> 16> 16> 16
20° Sector Above Main BeamdB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 23> 25> 25> 25> 25> 25> 26> 26> 25> 25> 25> 26> 26
Cross Polarat BoresightdB> 17> 18> 17> 16> 16> 16> 17> 17> 16> 16> 16> 17> 17
DiscriminationOver SectordB> 7.0> 8.0> 6.5> 6.0> 7.0> 7.0> 5.0> 4.0> 6.0> 7.0> 7.0> 5.0> 4.0
IsolationCross-PolardB> 28> 28> 28
Port-to-PortdB> 28> 28> 28
ImpedanceOhm505050
VSWR—< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -153< -153< -153
Lightning Protection—DC GroundDC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(10x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—UPVC

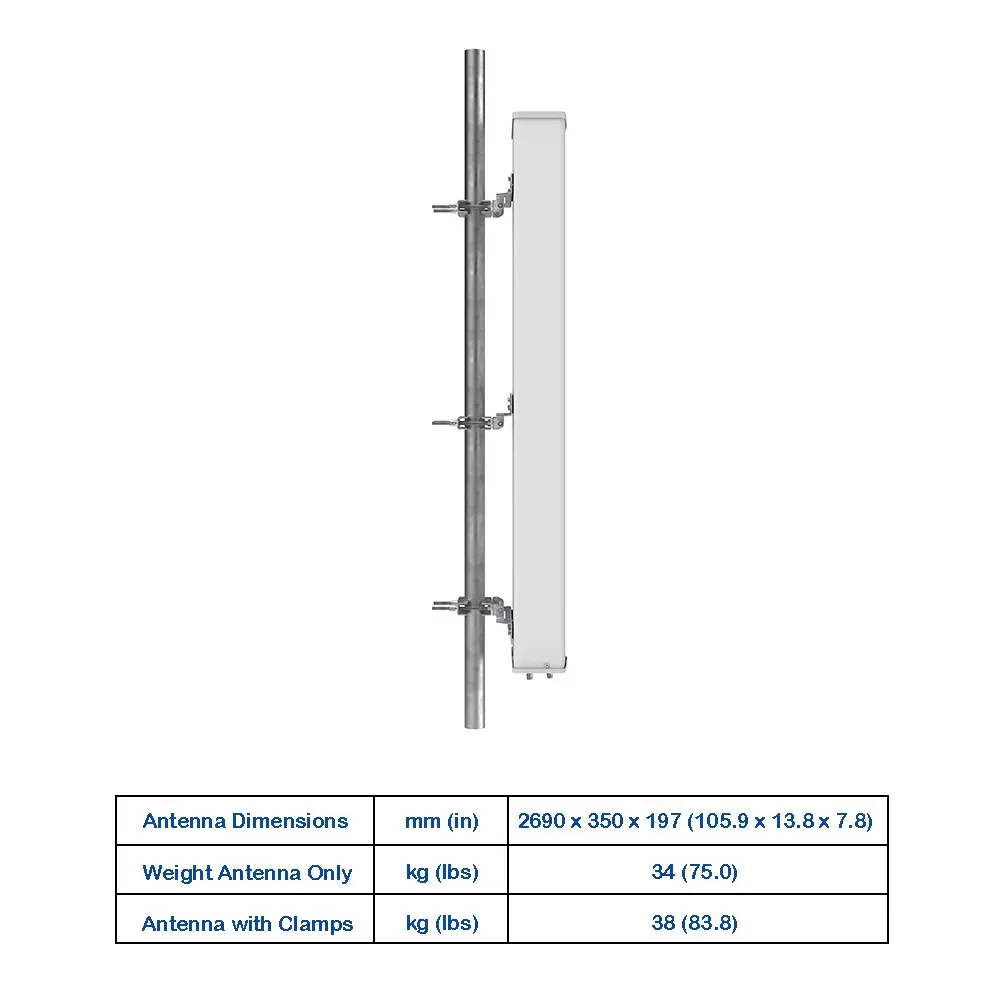

Antenna Dimensions (H x W x D)mm (in)2690 x 350 x 197 (105.9 x 13.8 x 7.8)
Antenna WeightAntenna Onlykg (lbs)34 (75.0)
with Clampskg (lbs)38 (83.8)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)870 (195.6)
at 150 km/hRearN (lbf)975 (219.2)
LateralN (lbf)605 (136.0)
Operating Temperature°C (°F)-40 to +60 (-40 to 140)
