Product code: 10P-698-2690F-18G-65H9V

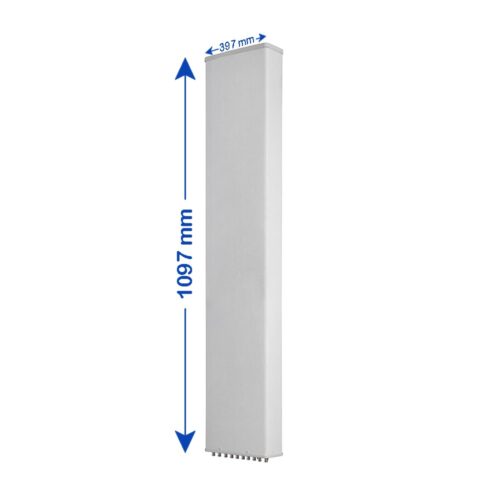

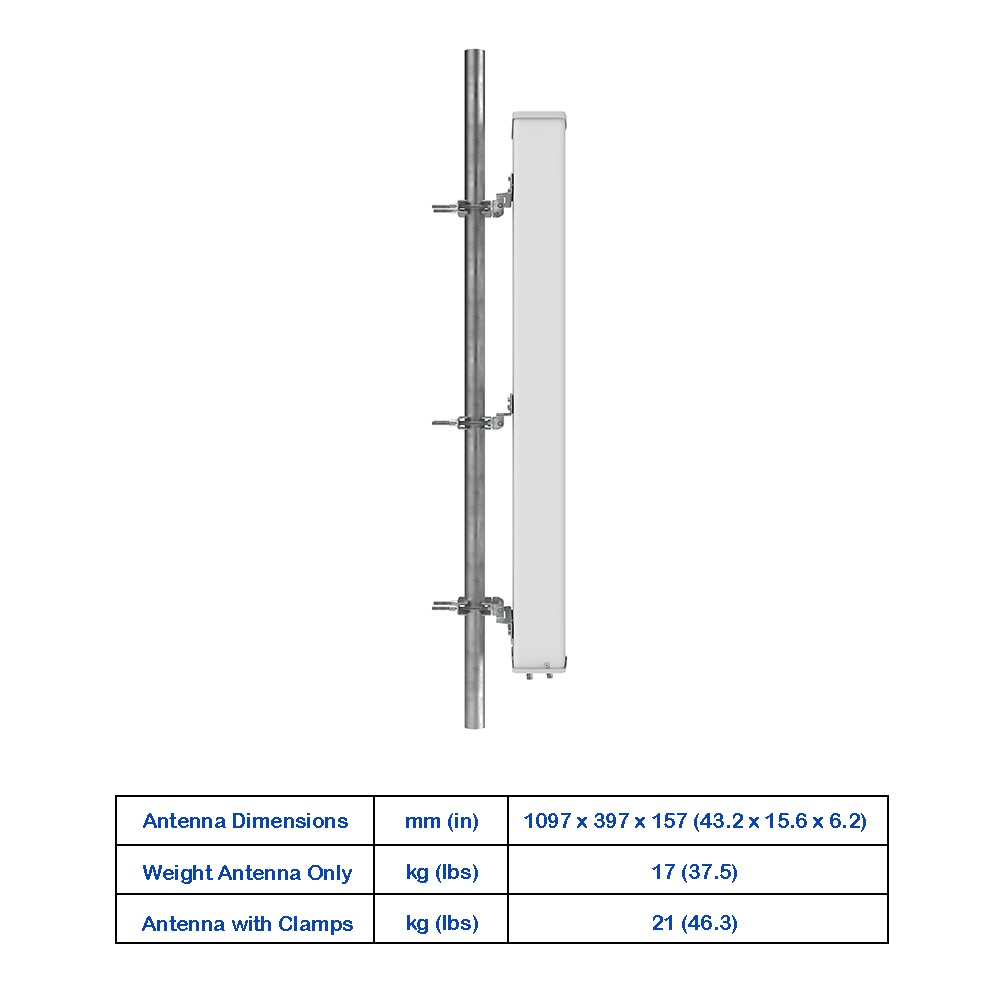

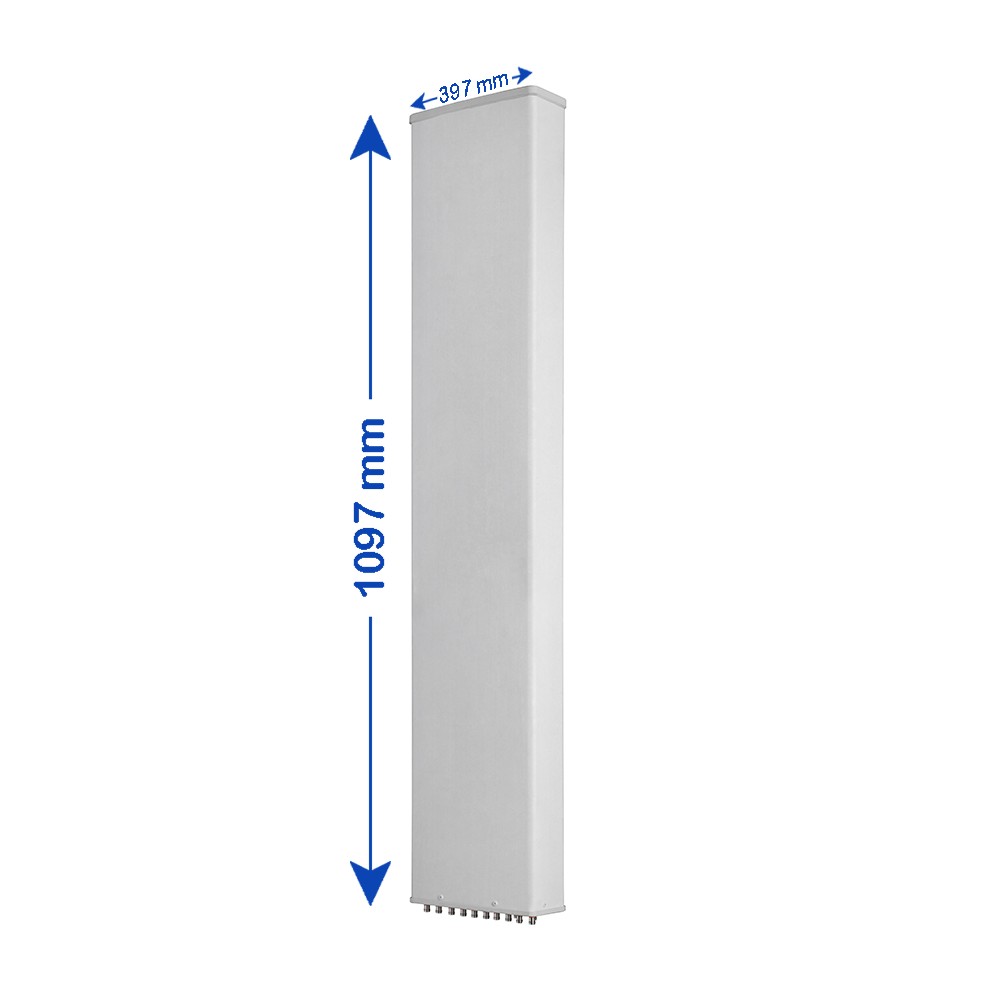

10-Port, Panel Antenna, 65° HBW, 698-960/(4x) 1695-2690 MHz, 17/18/17.5/18/17.5 dBi, 2-12° T, 2.750 m

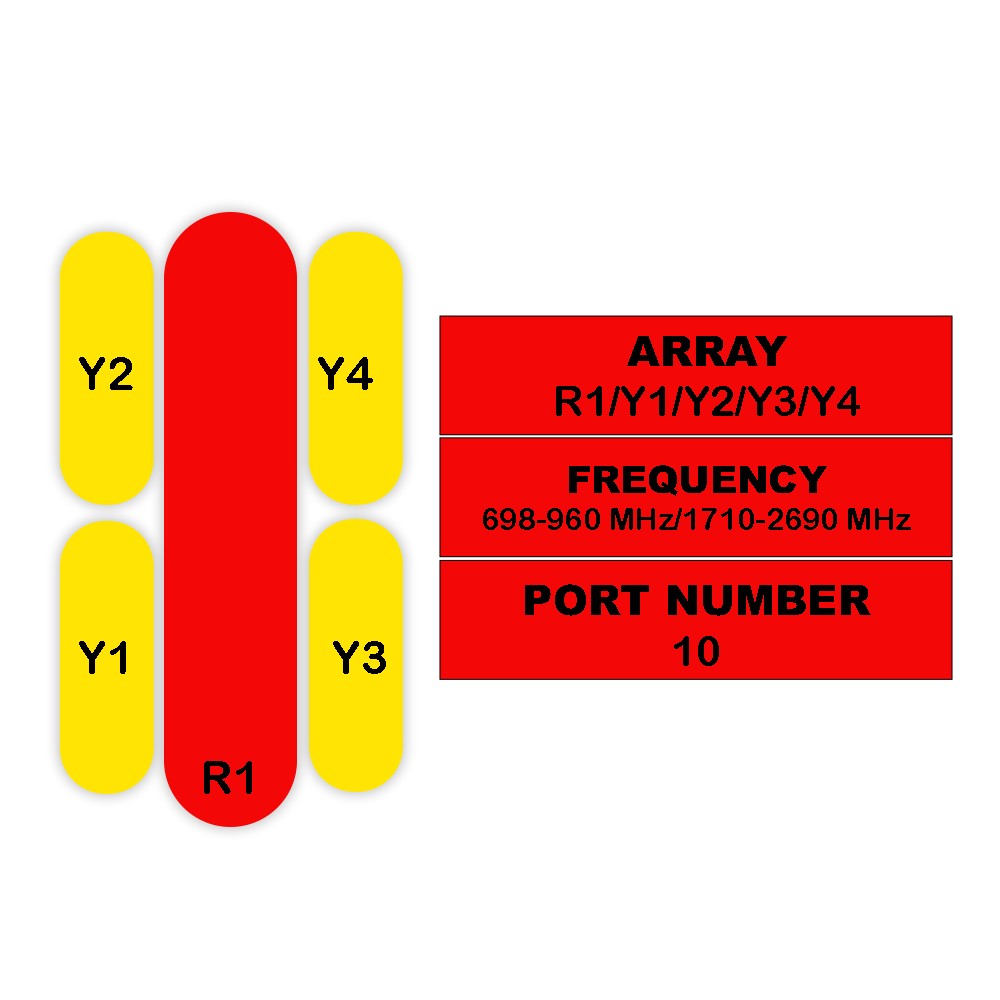

| 10-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 698-960 | 1695-2690 | 1695-2690 | 1695-2690 | 1695-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 17 dBi | 18 dBi | 17.5 dBi | 18 dBi | 17.5 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

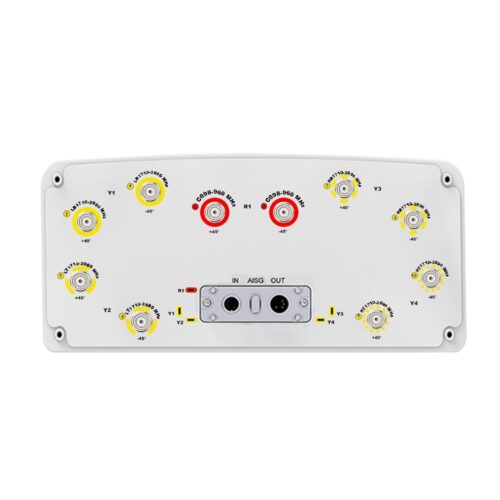

| Connectors

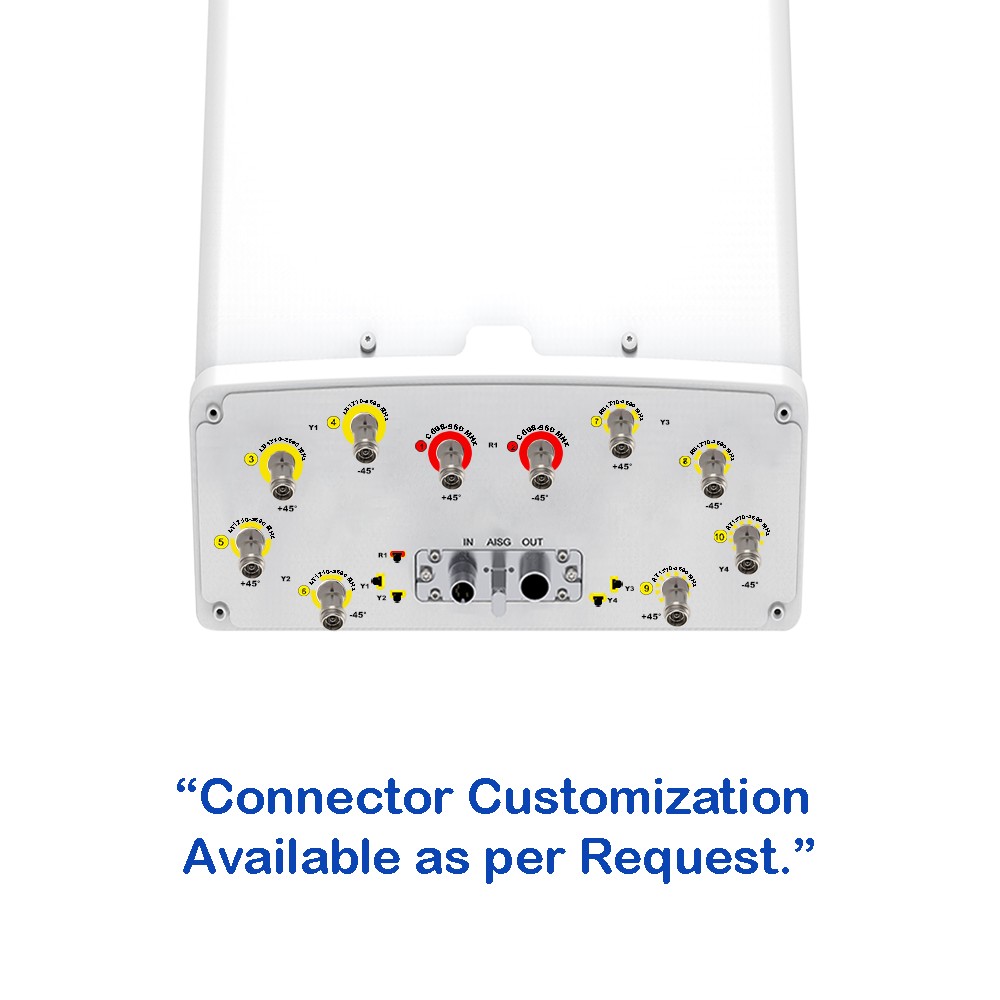

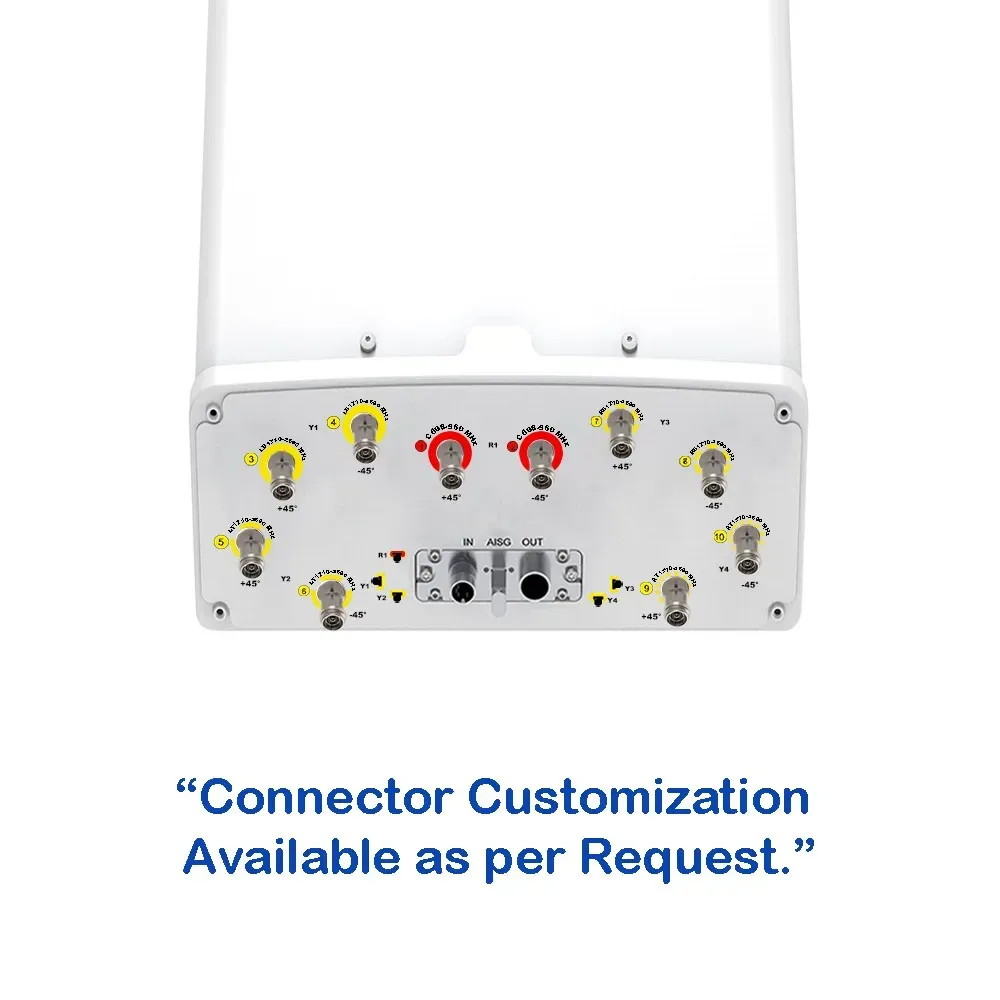

(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 18/18 dBi, 2-12°T, 1.590 m
4-Port, Panel Sector Antenna, 33° HBW, (2x) 1710-2690 MHz, 19/19 dBi, 2-12°T, 0.997 m
4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 20/20 dBi, 2-12°T, 2.497 m
Eco-friendly 4-Port, Panel Antenna, 40° HBW,90° VBW, 814-2690 MHz, 8.6 dBi
2-Port, Panel Sector Antenna, 90° HBW, 698-960 MHz, 14.5 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 20 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 18 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 15 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 16 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 15 dBi,
