10-Port, Panel Antenna, 65° HBW, 698-960/(4x) 1710-2690 MHz, 11/13/13/13/13 dBi, 4° FET/2-12° RET, 1.097 m

Product code: 10P-698-2690F-11G-65H36V

10-Port, Panel Antenna, 65° HBW, 698-960/(4x) 1710-2690 MHz, 11/13/13/13/13 dBi, 4° FET/2-12° RET, 1.097 m

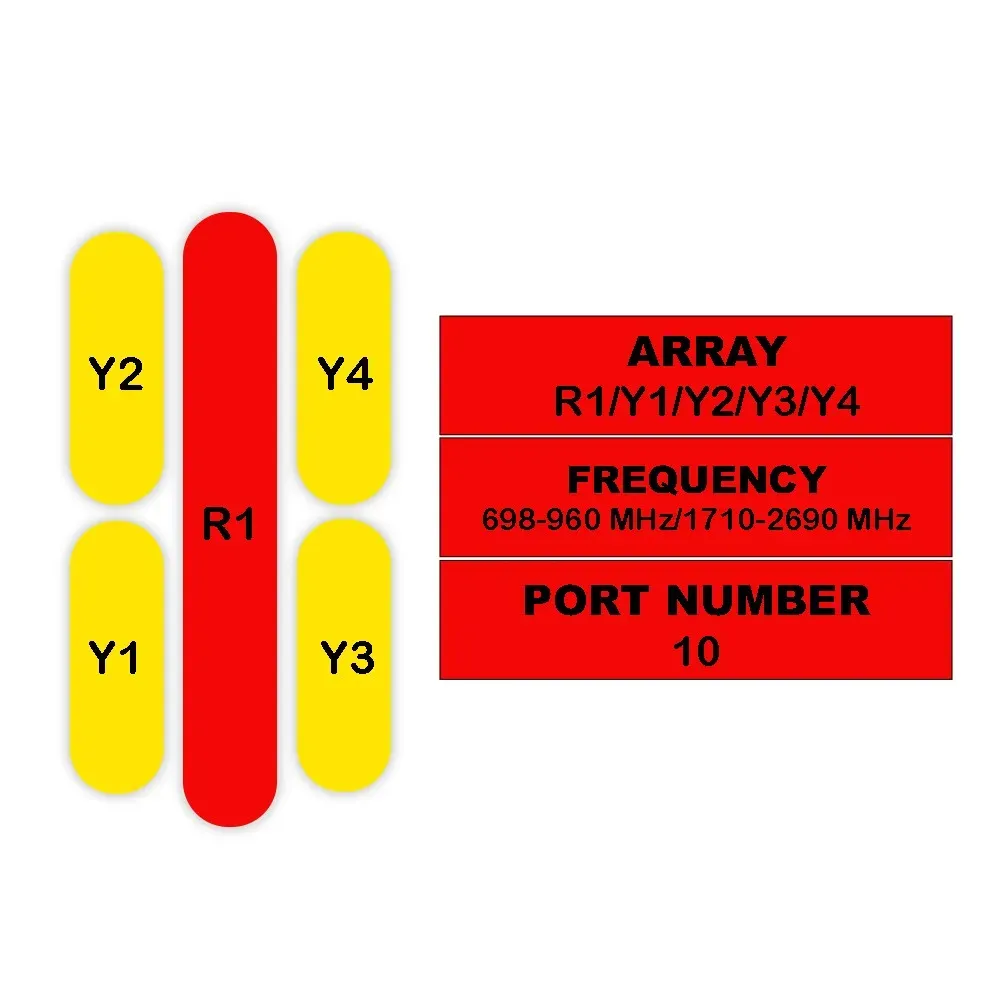

10-Port Antenna	R1	Y1	Y2	Y3	Y4
Frequency Range (MHz)	698-960	1710-2690	1710-2690	1710-2690	1710-2690
HBW	65°	65°	65°	65°	65°
Gain	11 dBi	13 dBi	13 dBi	13 dBi	13 dBi
Tilt	4°	2-12°	2-12°	2-12°	2-12°

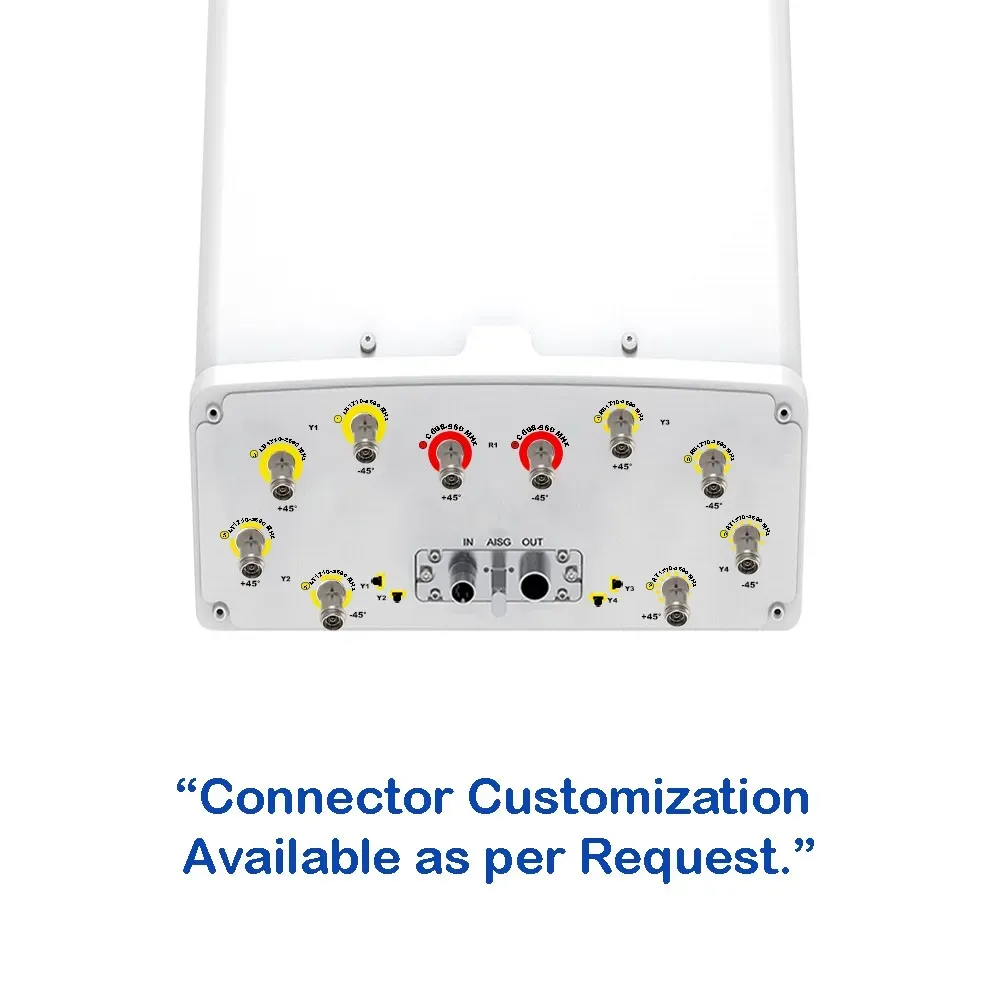

Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

10P-698-2690F-11G-65H36V

Electrical & Mechanical Specification

Electrical Specifications
			R1			Y1 / Y2 / Y3 /Y4
Frequency Range		MHz	698-960			1710-2690
Frequency Range		MHz	698-806	790-894	880-960	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	—	—	—	12.5	12.8	13.1	13.4	13.5
Gain	Over All Tilts		10.0 ± 1	10.5 ± 1	11.0 ± 1	12.4 ± 0.6	12.7 ± 0.6	13.0 ± 0.6	13.3 ± 0.6	13.4 ± 0.7
Horizontal Beamwidth		degree	70 ± 6	68 ± 6	65 ± 6	67 ± 6	66 ± 6	65 ± 6	62 ± 6	60 ± 6
Vertical Beamwidth		degree	36 ± 4	33 ± 4	30 ± 4	19.5 ± 20	18.1 ± 1.8	17.1 ± 1.7	14.7 ± 1.5	13.6 ± 1.5
Fixed Electrical Downtilt		degree	4			2-Dec
Upper Side Lobe Suppression, First Upper Lobe		dB	> 12	> 12	> 10	> 14	> 14	> 14	> 13	> 13
Front-To-Back Ratio Co-Pol, ±30°		dB	> 22	> 23	> 23	> 23	> 23	> 24	> 24	> 24
Cross Polar	at Boresight	dB	> 15	> 15	> 15	> 16	> 16	> 16	> 16	> 16
Discrimination	Over Sector	dB	> 8	> 7	> 6	> 8	> 8	> 7	> 6	> 5
Isolation	Intraband	dB	> 23			> 25
Isolation	Interband	dB	> 25			> 25
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications
Connector Type		—	(10x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	UPVC

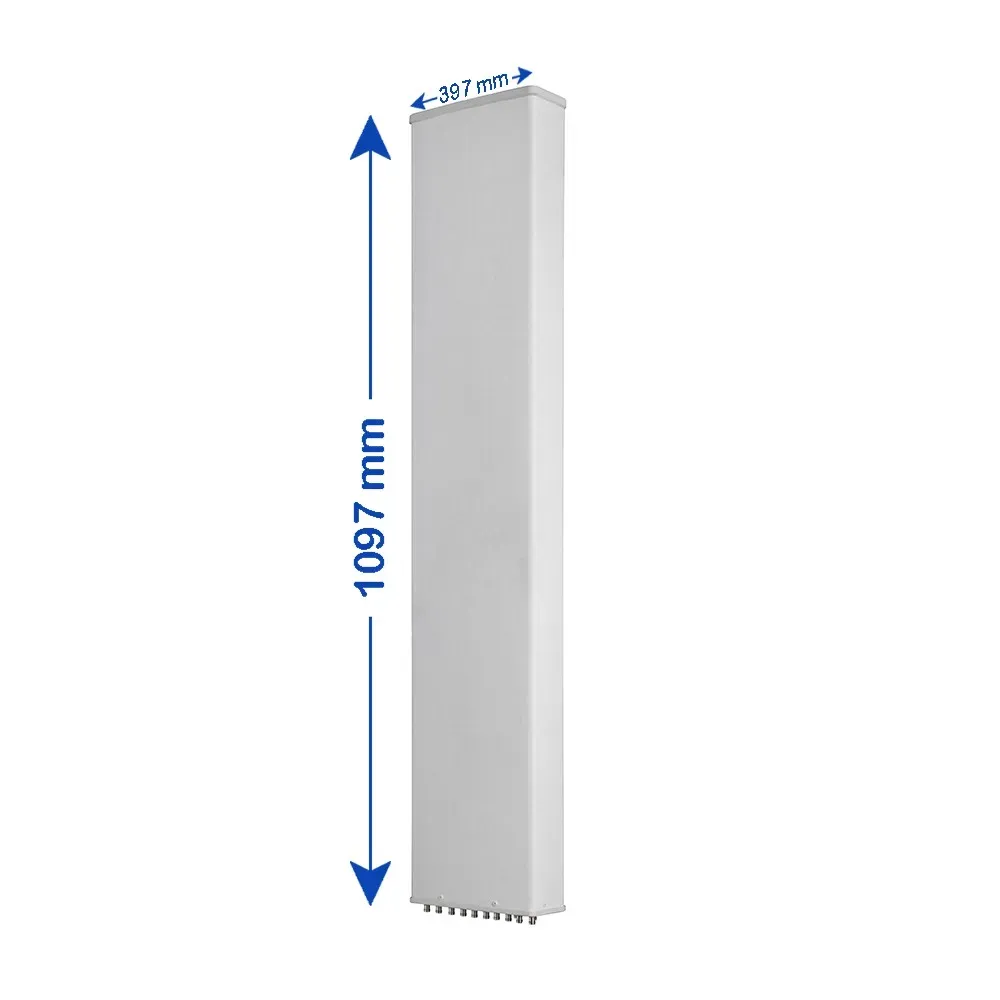

Antenna Dimensions (H x W x D)		mm (in)	1097 x 397 x 157 (43.2 x 15.6 x 6.2)
Antenna Weight	Antenna Only	kg (lbs)	17 (37.5)
Antenna Weight	with Clamps	kg (lbs)	21 (46.3)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load at 150 km/h	Frontal	N (lbf)	400 (89.9)
	Rear	N (lbf)	450 (101.2)
	Lateral	N (lbf)	195 (43.8)
Operating Temperature		°C (°F)	-40 to +60 (-40 to 140)
