Product code: 10P-698-2690F-13G-65H24V

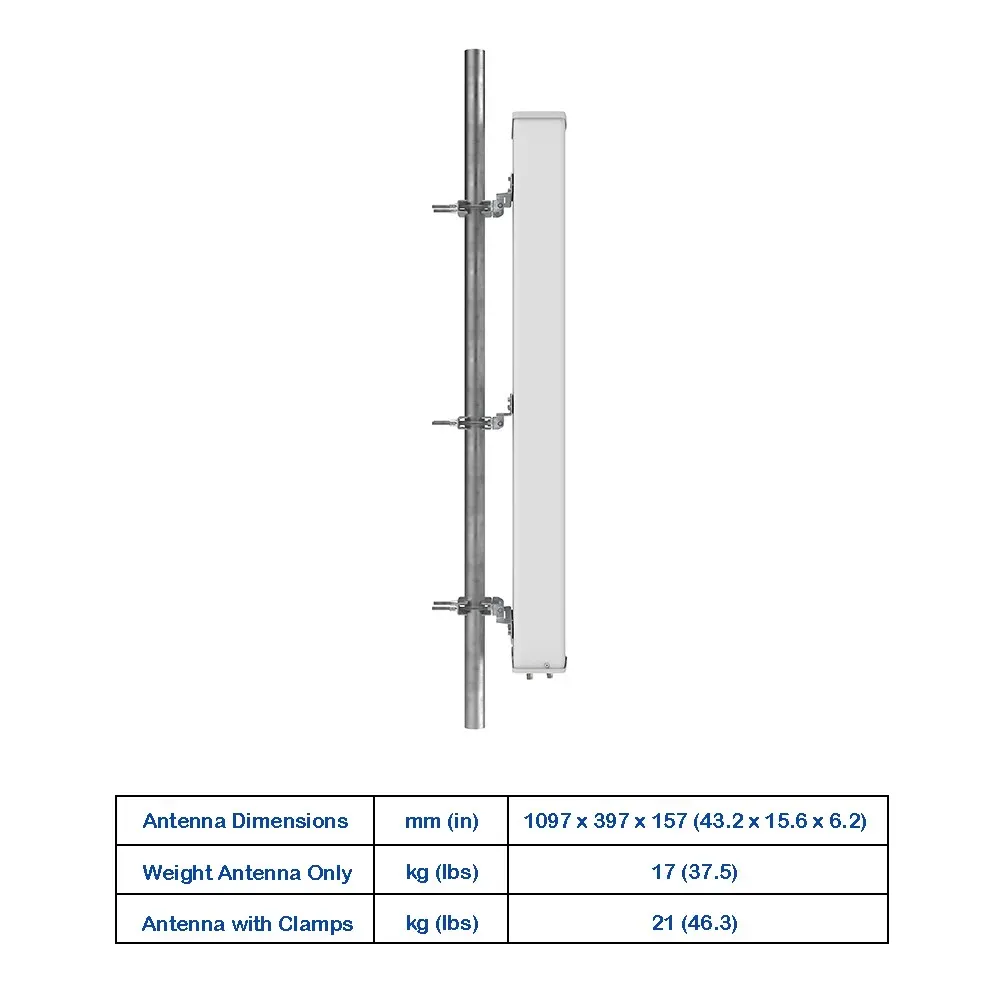

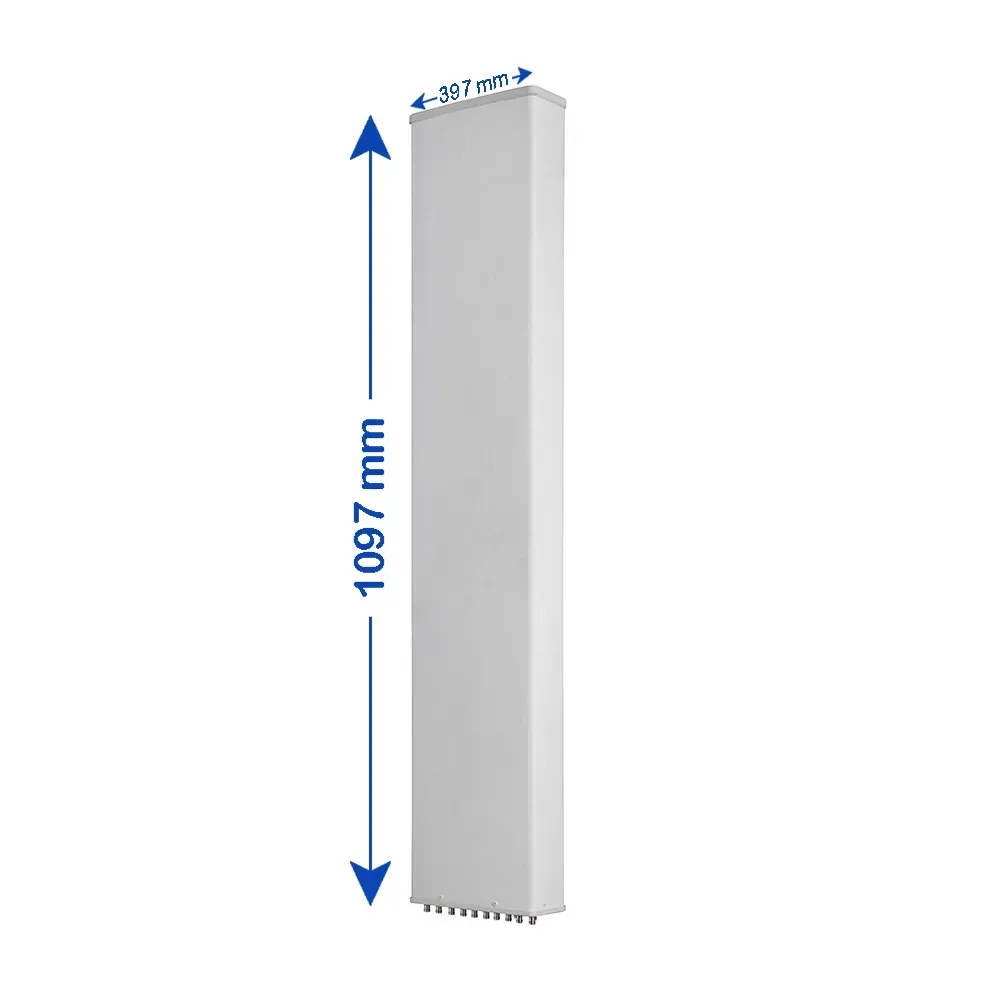

10-Port, Panel Antenna, 65° HBW, 698-960/(4x) 1710-2690 MHz, 13/13/13/13/13 dBi, 2-12° RET, 1.097 m

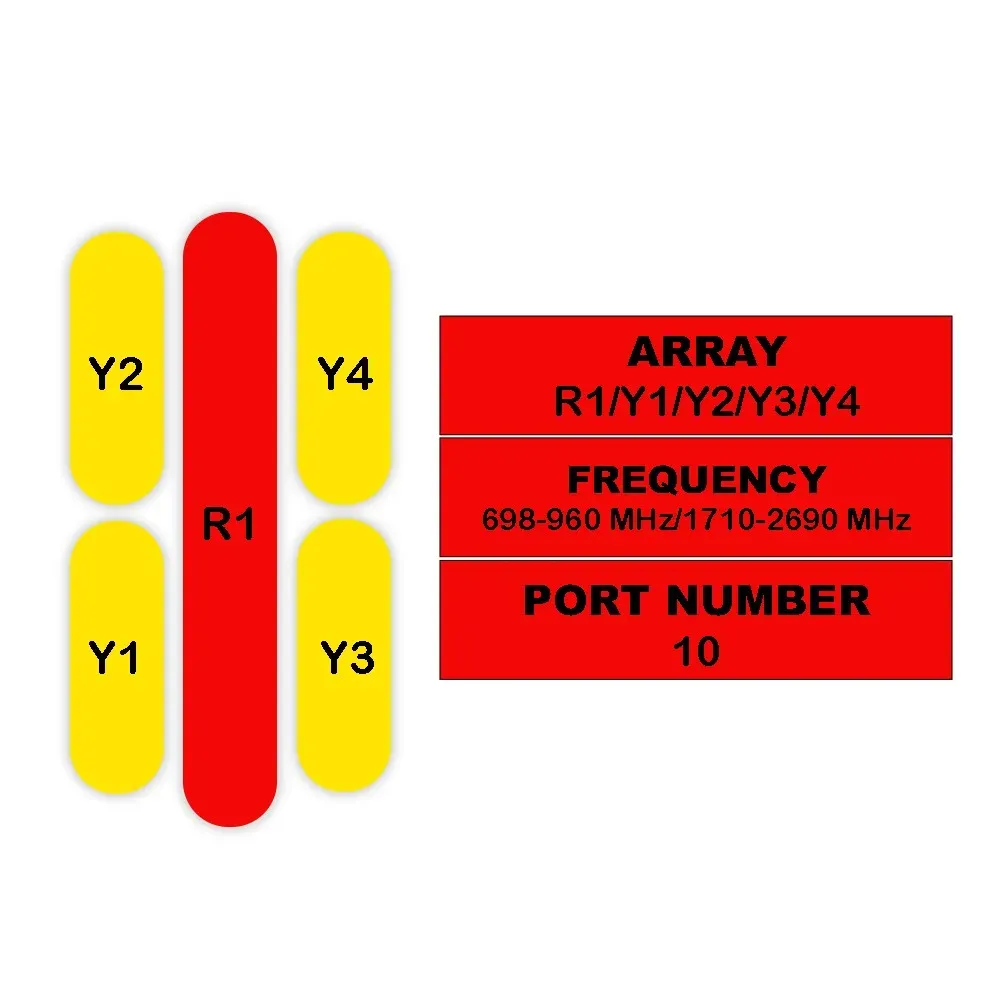

10-Port Antenna R1 Y1 Y2 Y3 Y4
Frequency Range (MHz) 698-960 1710-2690 1710-2690 1710-2690 1710-2690
HBW 65° 65° 65° 65° 65°
Gain 13 dBi 13 dBi 13 dBi 13 dBi 13 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12°

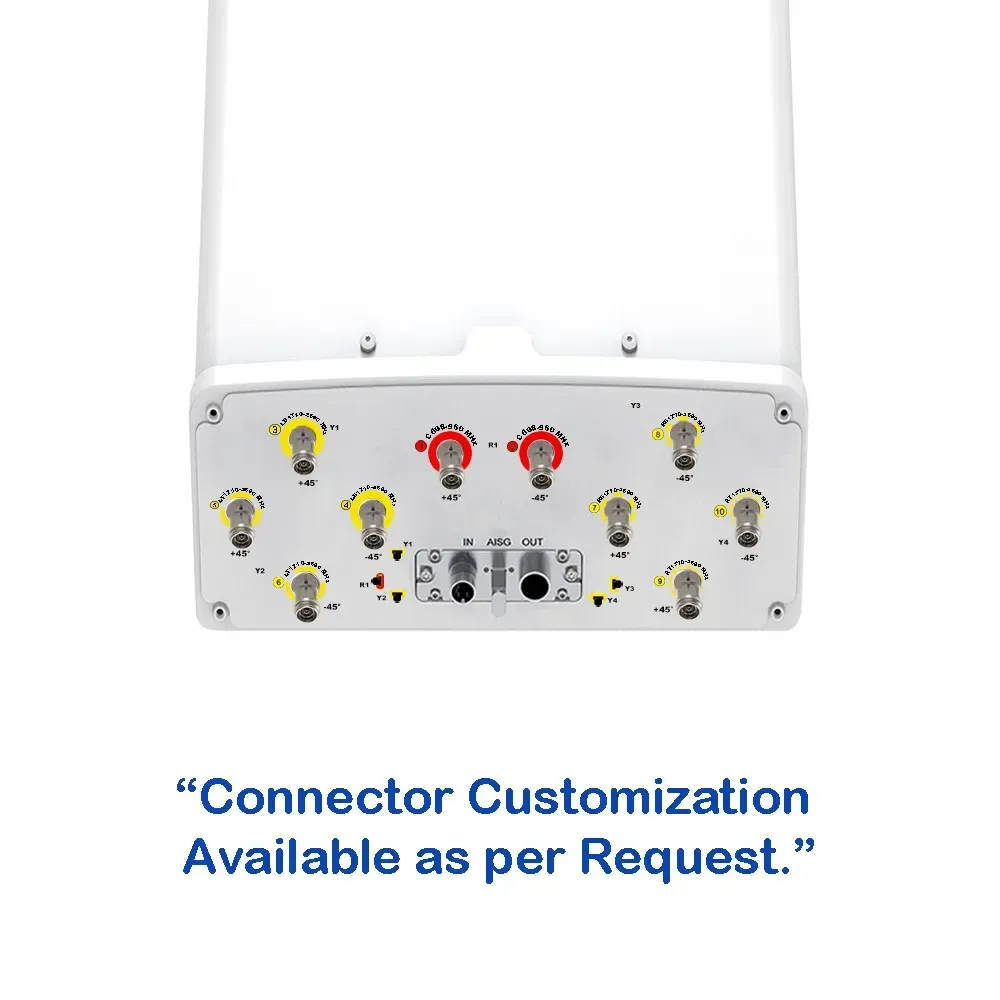

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
