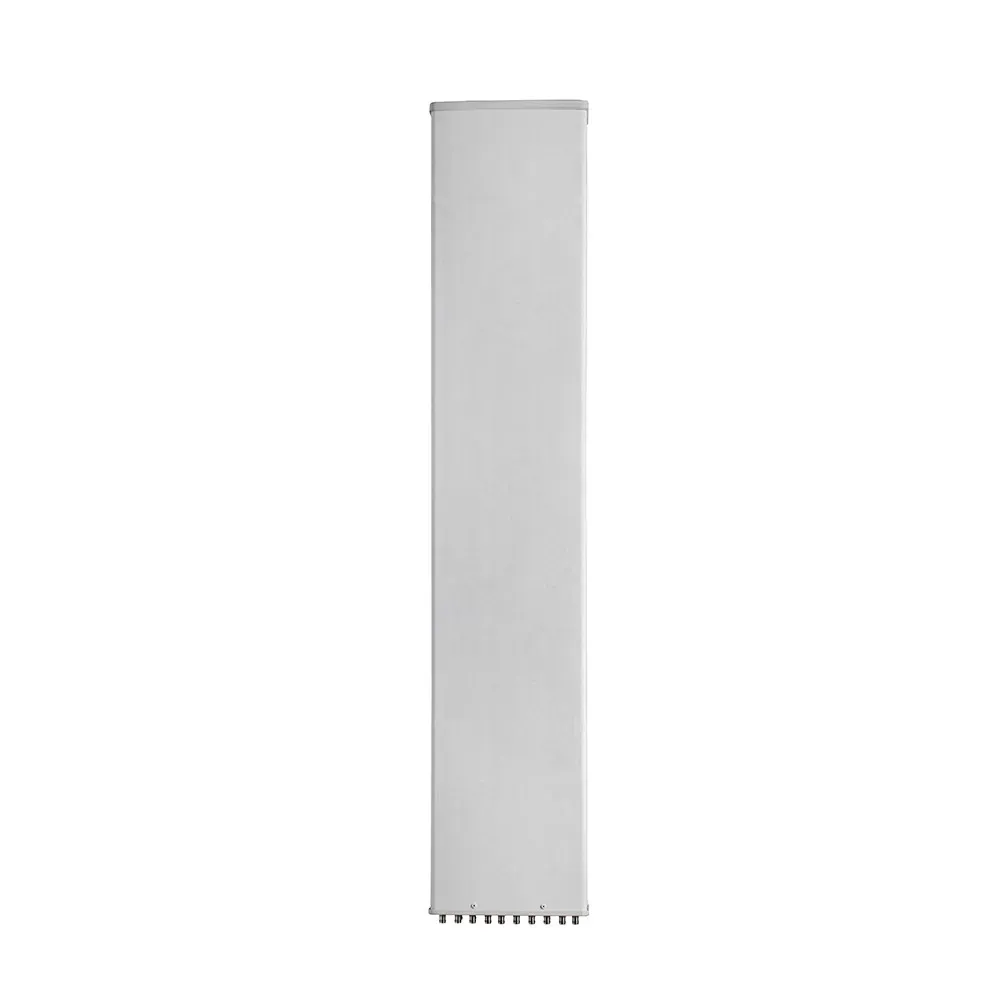

10-Port, Panel Antenna, 65° HBW, 790-862/880-960/1710-2170/(2x) 3300-3800 MHz, 14.5/14.5/16/14/14 dBi, 2-12°T, 1.397 m

Product code: 10P-790-3800F-15G-65H14V

10-Port, Panel Antenna, 65° HBW, 790-862/880-960/1710-2170/(2x) 3300-3800 MHz, 14.5/14.5/16/14/14 dBi, 2-12°T, 1.397 m

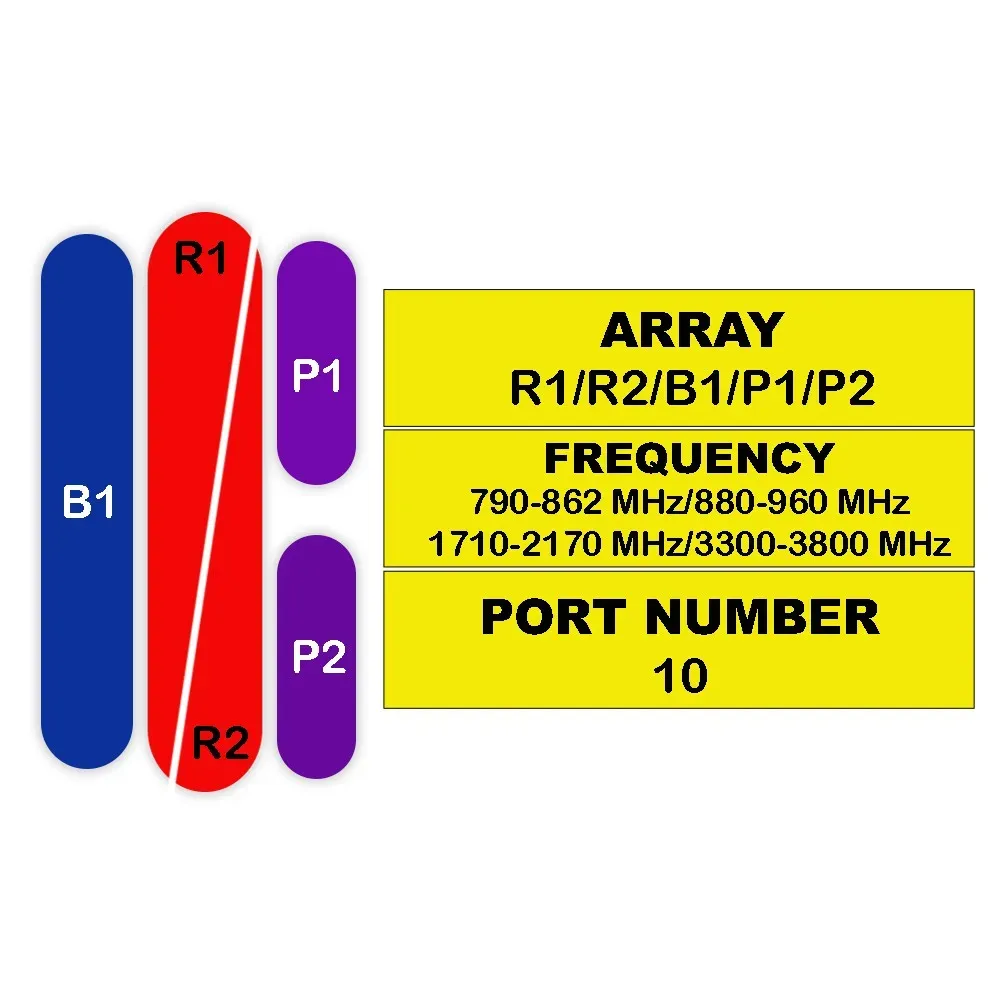

10-Port Antenna	R1	R2	B1	P1	P2
Frequency Range (MHz)	790-862	880-960	1710-2170	3300-3800	3300-3800
HBW	65°	65°	65°	65°	65°
Gain	14.5 dBi	14.5 dBi	16 dBi	14 dBi	14 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°

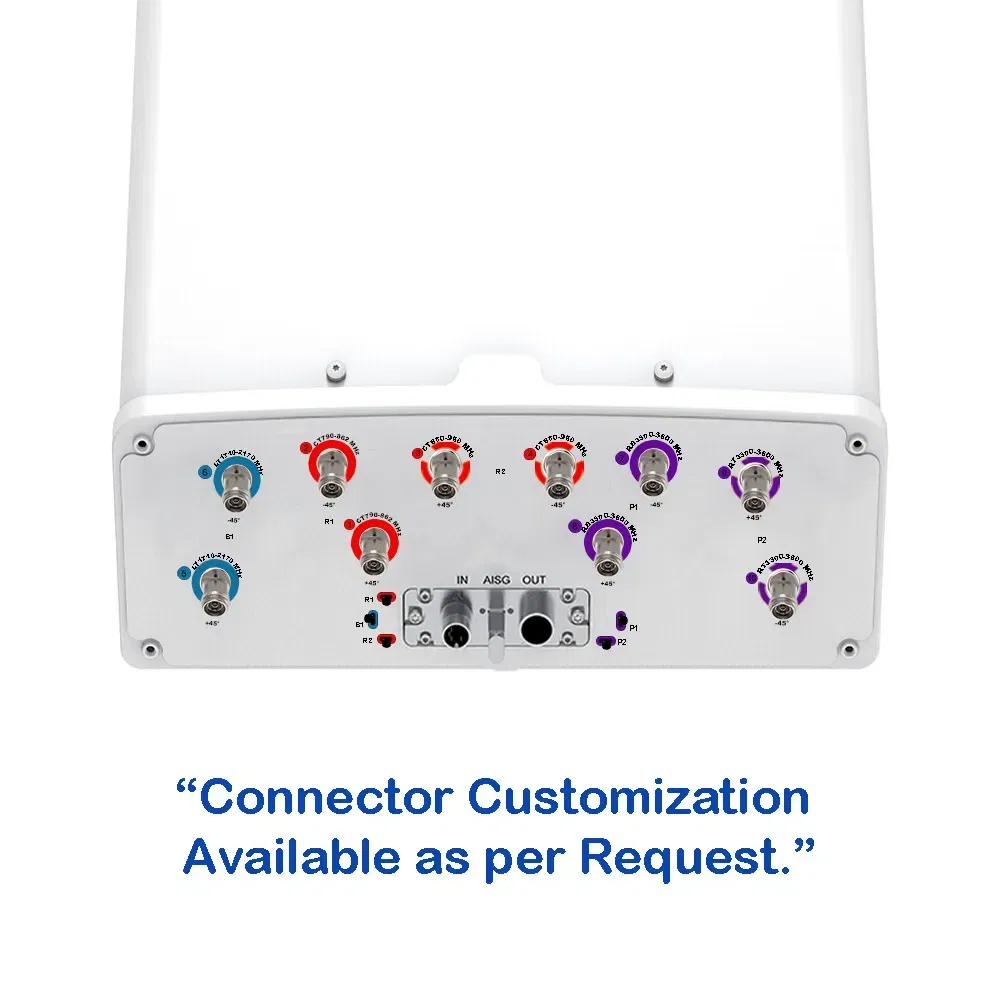

Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

10P-790-3800F-15G-65H14V

Electrical & Mechanical Specification

Electrical Specifications
			R1	R2	B1			P1, P2
Frequency Range		MHz			1710-2170
Frequency Range		MHz	790-862	880-960	1710-1880	1850-1990	1920-2170	3300-3800
Polarization		—	±45°	±45°	±45°			±45°
Gain	at Mid Tilt	dBi	13.8	14.3	15.4	15.8	16.2	14.5
Gain	Over All Tilts	dBi	13.6 ± 0.6	14.1 ± 0.6	15.2 ± 0.5	15.6 ± 0.5	16.0 ± 0.5	14.3 ± 0.5
Horizontal Beamwidth		degree	67 ± 4.1	65 ± 4.5	67 ± 6	64 ± 6	59 ± 6	65 ± 6
Vertical Beamwidth		degree	13.6 ± 0.9	12.4 ± 0.8	9.5 ± 0.8	8.8 ± 0.8	8.2 ± 0.8	10.9 ± 1.1
Electrical Downtilt, Continuously Adjustable		degree	2-Dec	2-Dec	2-Dec			2-Dec
Upper Side Lobe	First Upper Lobe	dB	≥ 16	≥ 16	> 16	> 16	> 16	> 15
Suppression	20° Sector Above Main Beam	dB	> 15	> 15	> 15	> 15	> 15	—
Front-To-Back Ratio ±30°		dB	≥ 24	≥ 25	> 24	> 25	> 25	> 24
Cross Polar	at Boresight	dB	≥ 18	≥ 17	> 17	> 17	> 17	> 17
Discrimination	Over Sector	dB	≥ 7	≥ 6	> 7	> 7	> 5	> 7
Isolation	Cross-Polar	dB	> 28	> 28	> 28			> 25
Isolation	Port-to-Port	dB	> 28	> 28	> 28			> 25
Impedance		Ohm	50	50	50			50
VSWR		—	< 1.5	< 1.5	< 1.5			< 1.5
Return Loss		dB	> 14	> 14	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150	< -150	< -150			—
Lightning Protection		—	DC Ground	DC Ground	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200	200	200			150

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications

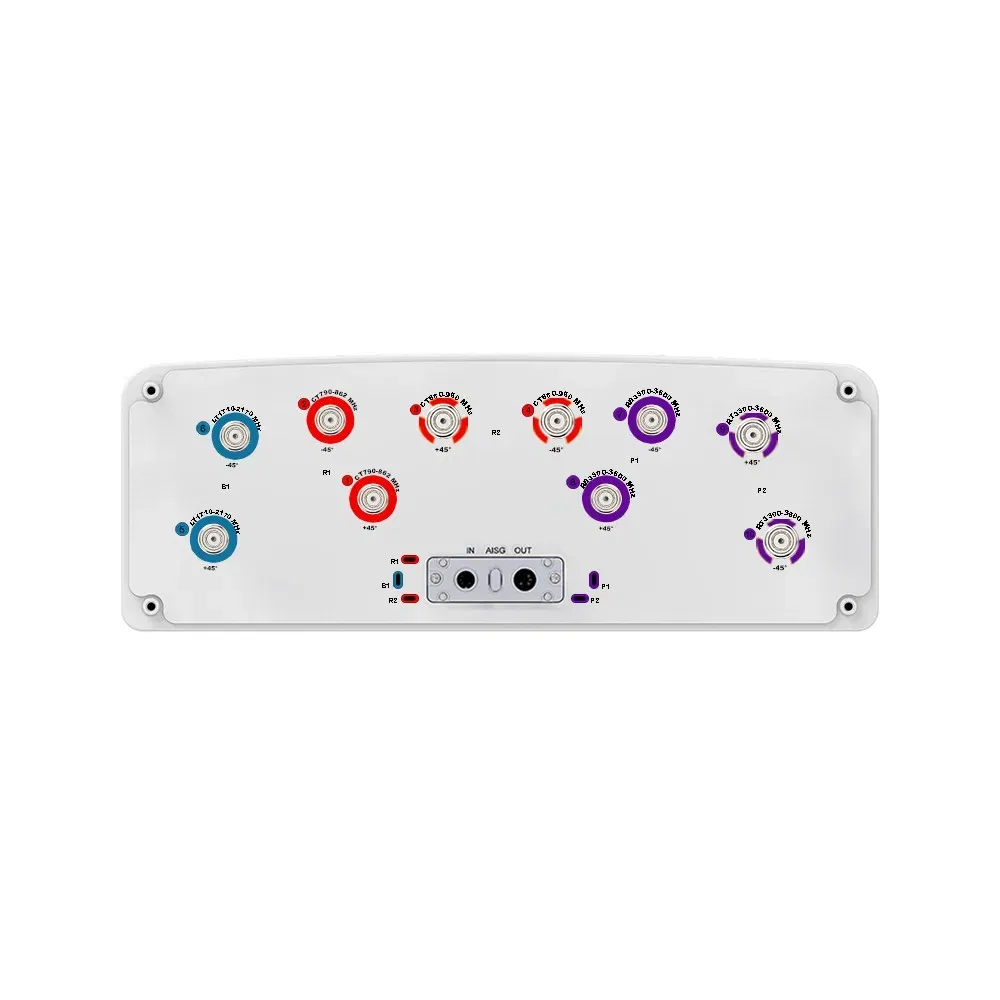

Connector Type		—	(10x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

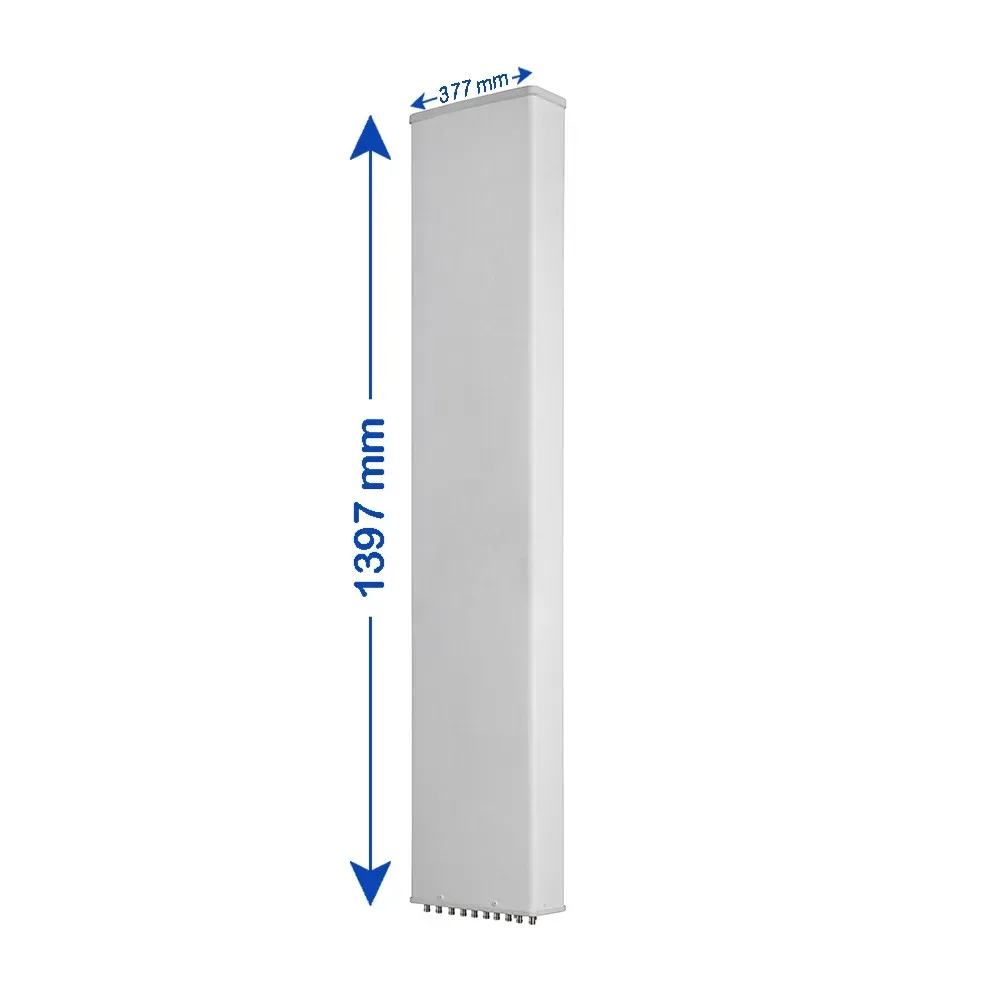

Antenna Dimensions (H x W x D)		mm (in)	1397 x 377 x 157 (55.0 x 14.8 x 6.2)
Antenna Weight	Antenna Only	kg (lbs)	27 (59.5)
Antenna Weight	with Clamps	kg (lbs)	32 (70.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	490 (110.2)
at 150 km/h	Rear	N (lbf)	545 (122.5)
	Lateral	N (lbf)	250 (56.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
