Product code: 10P-790-3800F-16G-65H10V

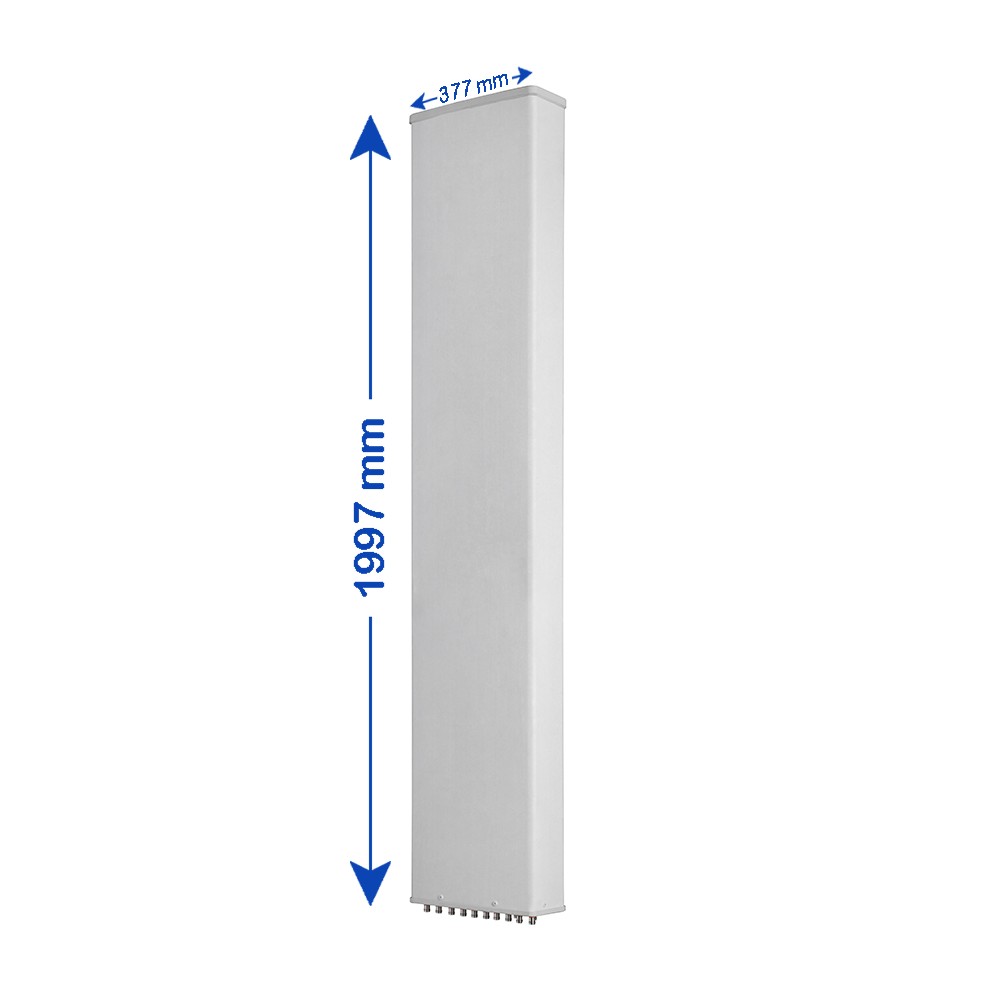

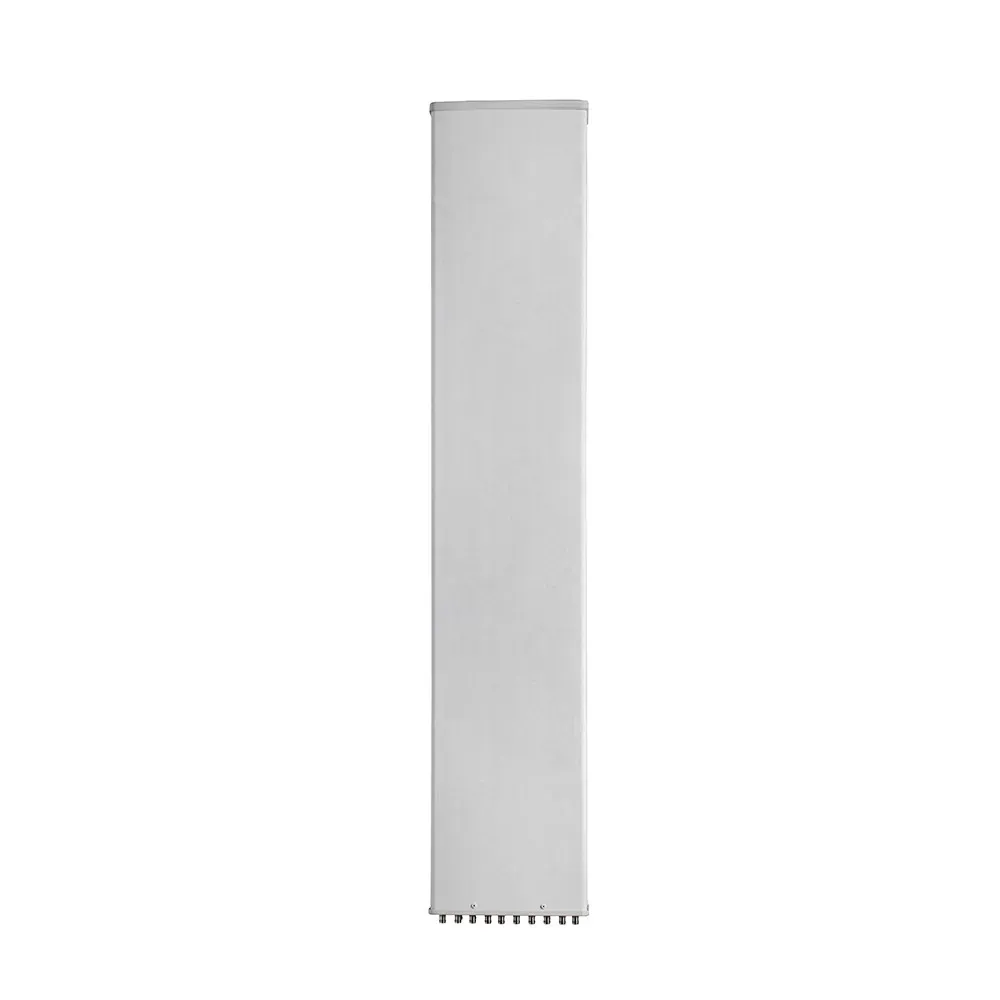

10-Port, Panel Antenna, 65° HBW, 790-862/880-960/1710-2170/(2x) 3300-3800 MHz, 15.5/15.5/16/14/14 dBi, 2-12°T, 1.997 m

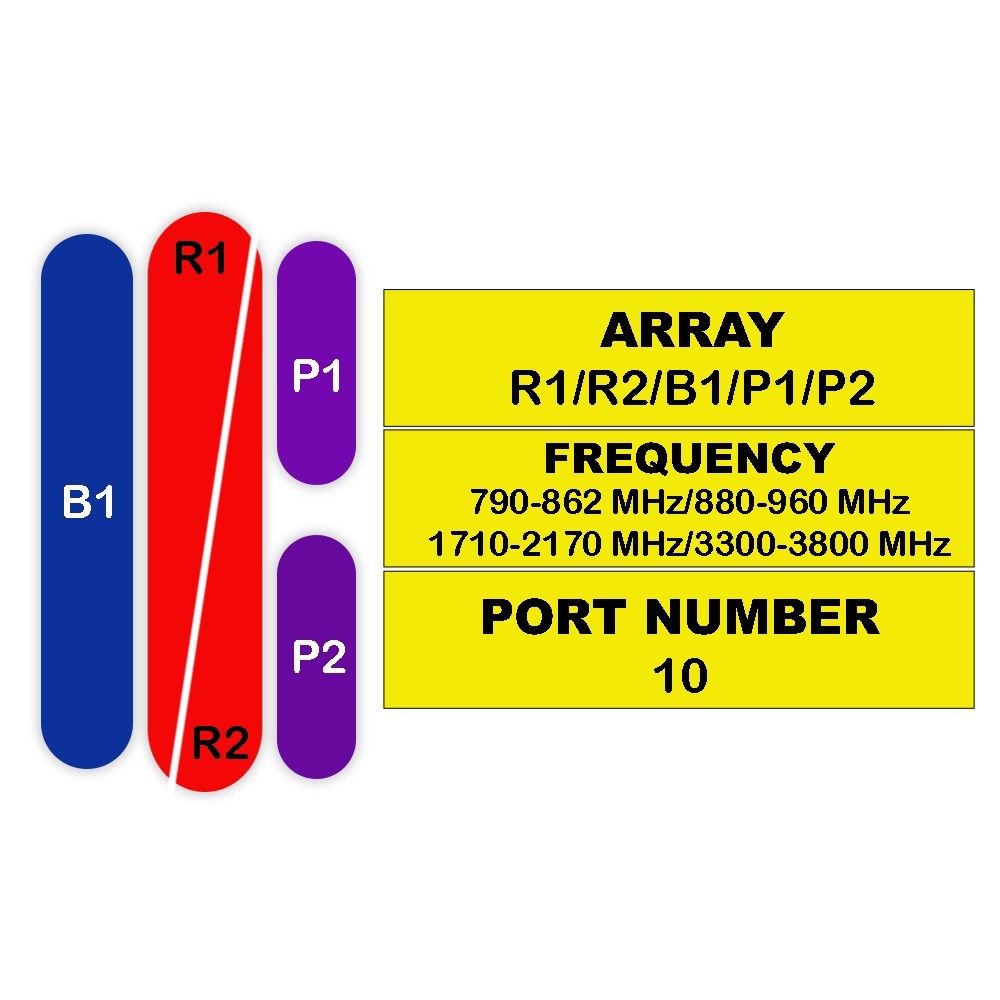

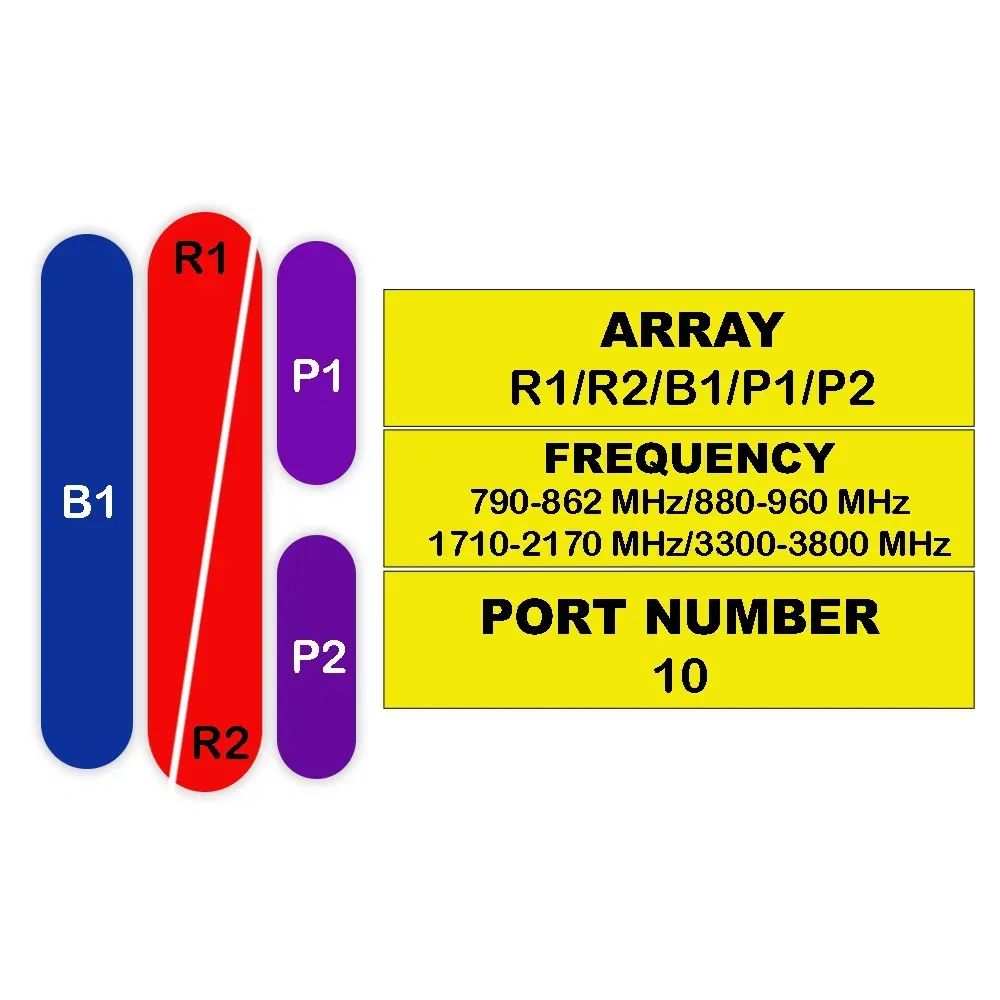

| 10-Port Antenna | R1 | R2 | B1 | P1 | P2 |
| Frequency Range (MHz) | 790-862 | 880-960 | 1710-2170 | 3300-3800 | 3300-3800 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 15.5 dBi | 16 dBi | 14 dBi | 14 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

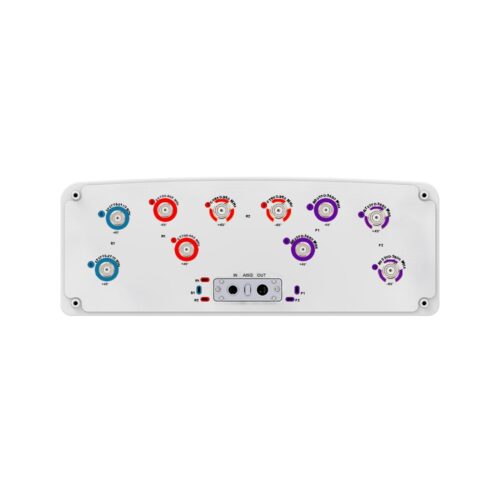

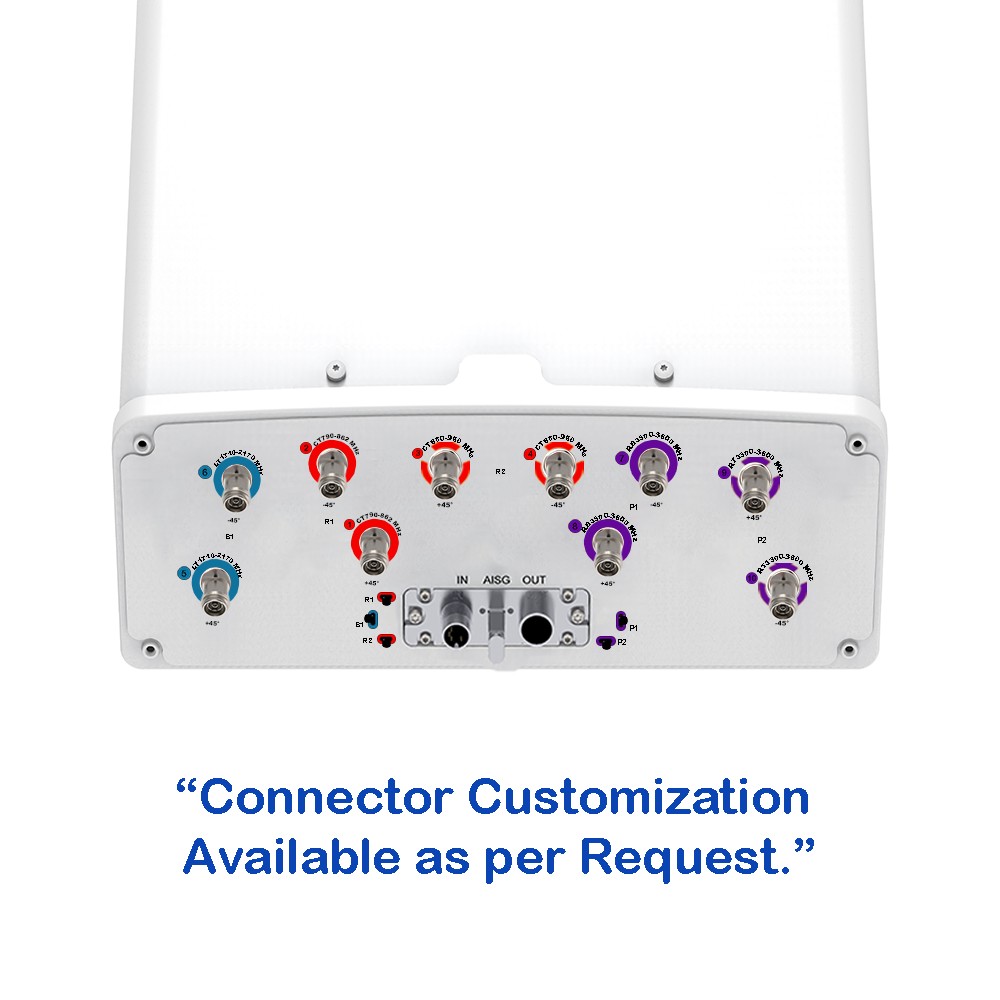

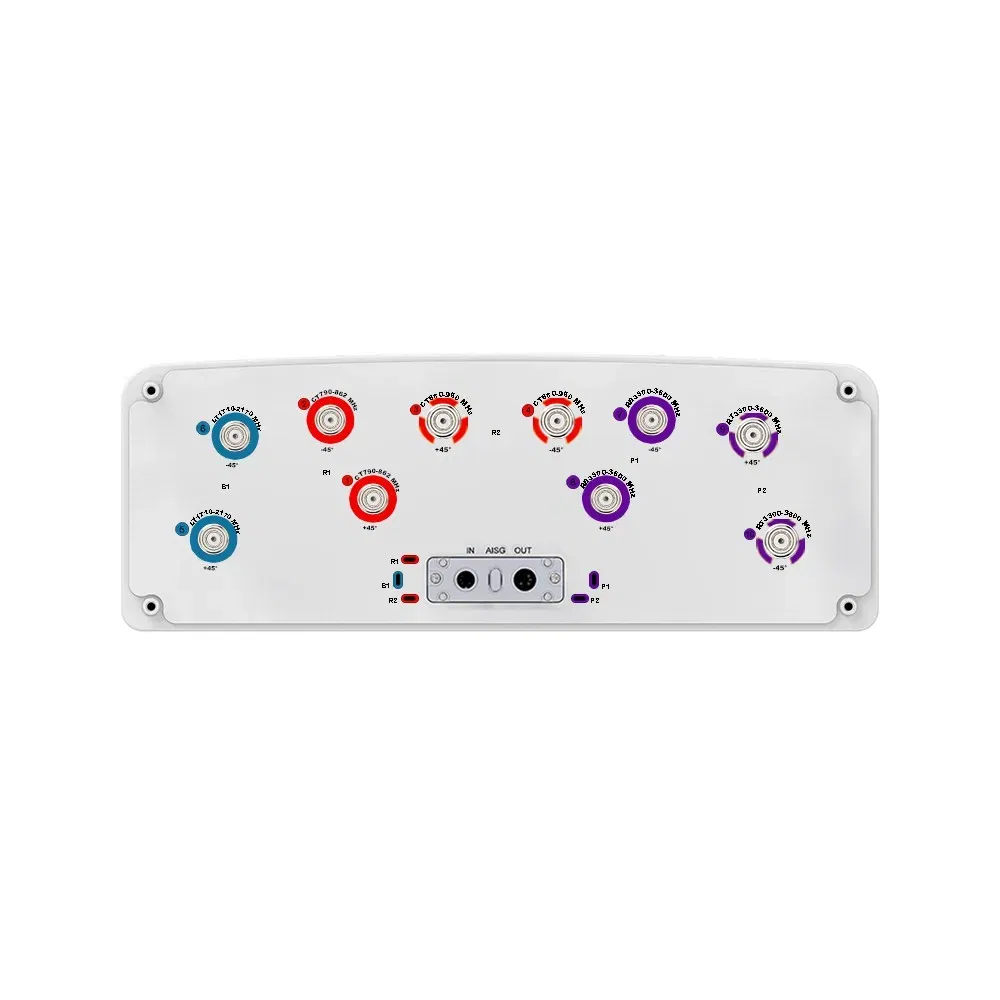

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 18/18 dBi, 2-12°T, 1.590 m
4-Port, Panel Sector Antenna, 35° HBW, 806-960/806-960 MHz, 16/16 dBi, 2-12°T, 1.515 m
4-Port, Panel Sector Antenna, 30° HBW, (2x) 1710-2690 MHz, 24/24 dBi, 0-6°T, 2.497 m
4-Port, Panel Sector Antenna, 33° HBW, (2x) 1710-2690 MHz, 19/19 dBi, 2-12°T, 0.997 m
4-Port, Panel Sector Antenna, 35° HBW, 690-960/690-960 MHz, 18.2/18.2 dBi, 2-10°T, 2.690 m
4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 20/20 dBi, 2-12°T, 2.497 m
2-Port, Panel Sector Antenna, 90° HBW, 698-960 MHz, 14.5 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 790-960/ 1710-2180 MHz, 17/17 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 17.6 dBi
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 16 dBi,
