Product code: 10P-690-2690F-15G-65H16V

10-Port, Panel Sector Antenna, 65° HBW, (2x) 690-960/1427-2170/(2x) 1695-2690 MHz, 14.5/14.5/18/18/18 dBi, 2-12°T, 1.497 m

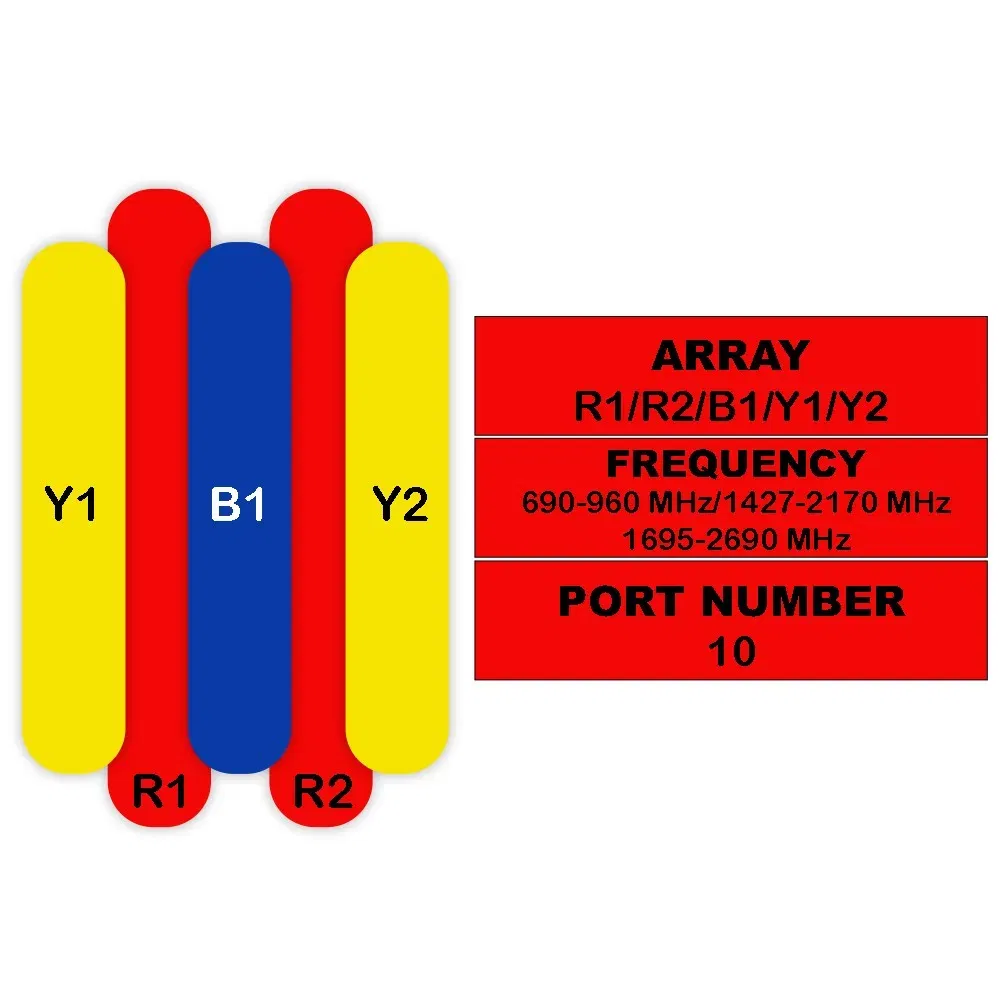

10-Port Antenna R1 R2 B1 Y1 Y2
Frequency Range (MHz) 690-960 690-960 1427-2170 1695-2690 1695-2690
HBW 65° 65° 65° 65° 65°
Gain 14.5 dBi 14.5 dBi 18 dBi 18 dBi 18 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

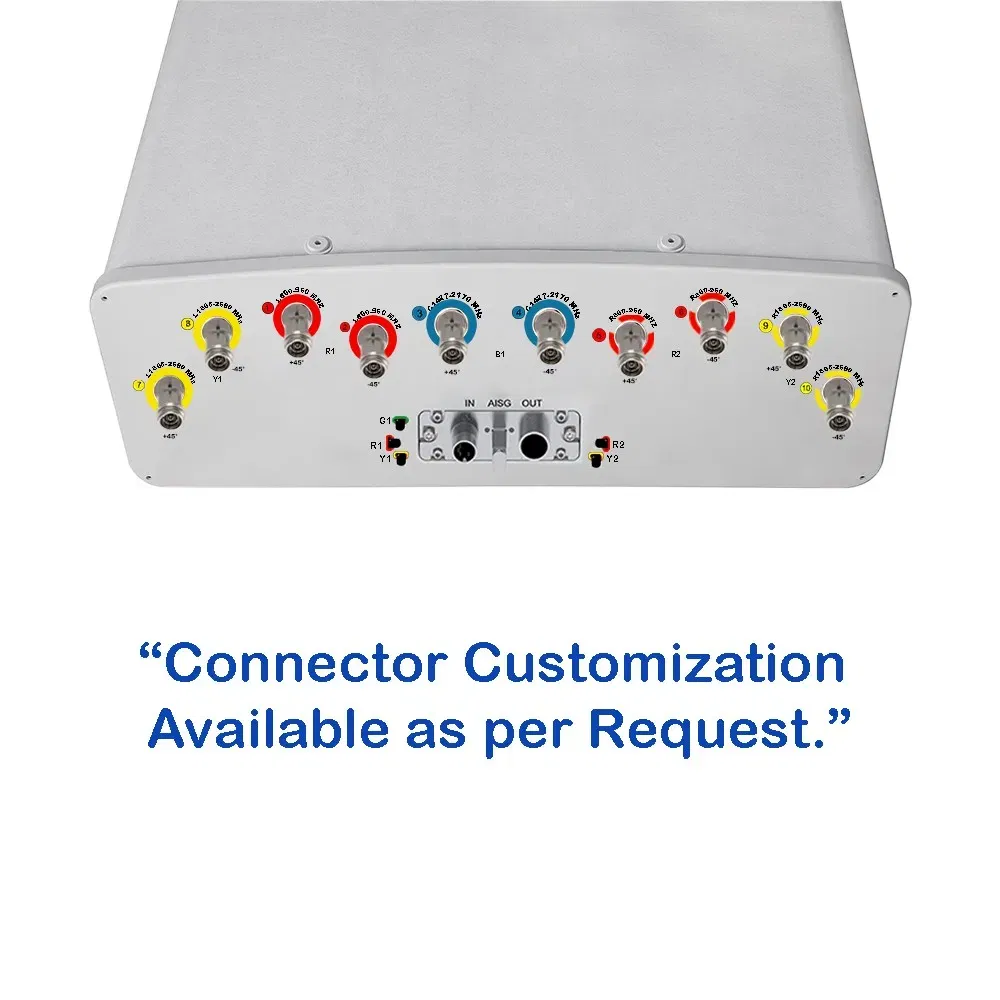

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
10P-690-2690F-15G-65H16V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2B1Y1 / Y2
Frequency RangeMHz690-9601427-21701695-2690
MHz690-806790-894880-9601427-15181695-19201920-21701695-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°±45°
Gainat Mid TiltdBi1414.314.6161717.416.616.917.217.417.4
Over All TiltsdBi13.8 ± 0.614.1 ± 0.614.4 ± 0.615.8 ± 0.616.8 ± 0.517.2 ± 0.516.4 ± 0.616.7 ± 0.517.0 ± 0.517.2 ± 0.517.2 ± 0.5
Horizontal Beamwidthdegree68 ± 5.466 ± 5.663 ± 4.671 ± 6.568 ± 6.566 ± 6.570 ± 6.568 ± 6.166 ± 6.164 ± 5.564 ± 6.5
Vertical Beamwidthdegree15.6 ± 0.913.4 ± 0.612.3 ± 0.77.8 ± 0.66.0 ± 0.85.4 ± 0.66.8 ± 0.66.4 ± 0.56.0 ± 0.55.2 ± 0.44.8 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec2-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side LobeFirst Upper LobedB> 16> 16> 16> 15> 15> 15> 15> 15> 15> 15> 15
SuppressionPeak to 20°dB> 15> 15> 15> 14> 14> 14> 14> 14> 14> 14> 14
Front-To-Back Ratio ±30°dB> 22> 23> 24> 24> 25> 25> 23> 23> 24> 25> 25
Cross Polarat BoresightdB> 18> 18> 18> 17> 18> 18> 16> 16> 16> 17> 17
DiscriminationOver SectordB> 9.0> 7.0> 6.0> 6.0> 6.0> 5.0> 7.0> 8.0> 8.0> 6.0> 4.0
IsolationCross-PolardB> 25> 26> 26
Port-to-PortdB> 25 (R1//R2), > 28 (R1//Y1, B1, Y2)> 28> 28
ImpedanceOhm505050
VSWR—< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150< -150
Lightning Protection—DC GroundDC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(10x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

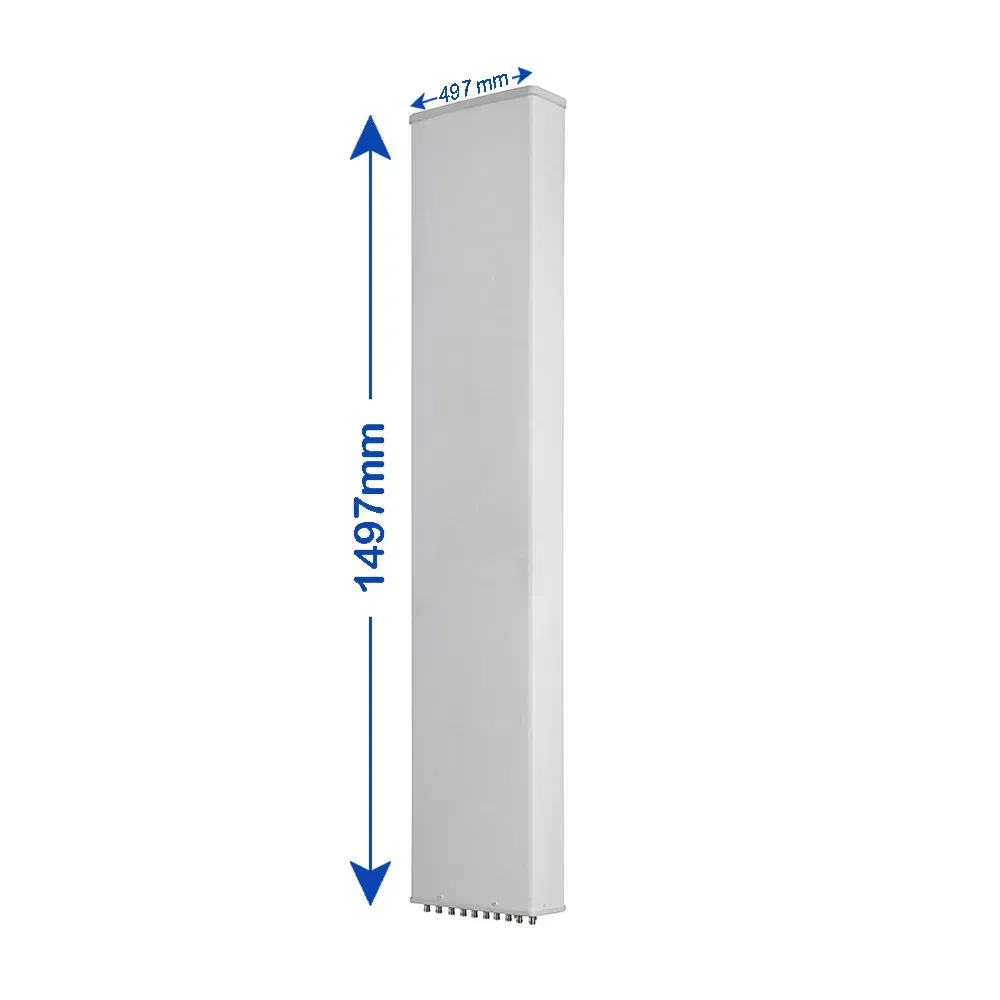

Antenna Dimensions (H x W x D)mm (in)1497 x 497 x 197 (58.9 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)27 (59.5)
with Clampskg (lbs)32.5 (71.7)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)690 (155.1)
at 150 km/hRearN (lbf)770 (173.1)
LateralN (lbf)335 (75.3)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
