Product code: 10P-690-2690F-14G-65H15V

10-Port, Panel Sector Antenna, 65° HBW, (2x) 690-960/(3x) 1695-2690 MHz, 14.5/14.5/18/18/18 dBi, 2-12°T, 1.497 m

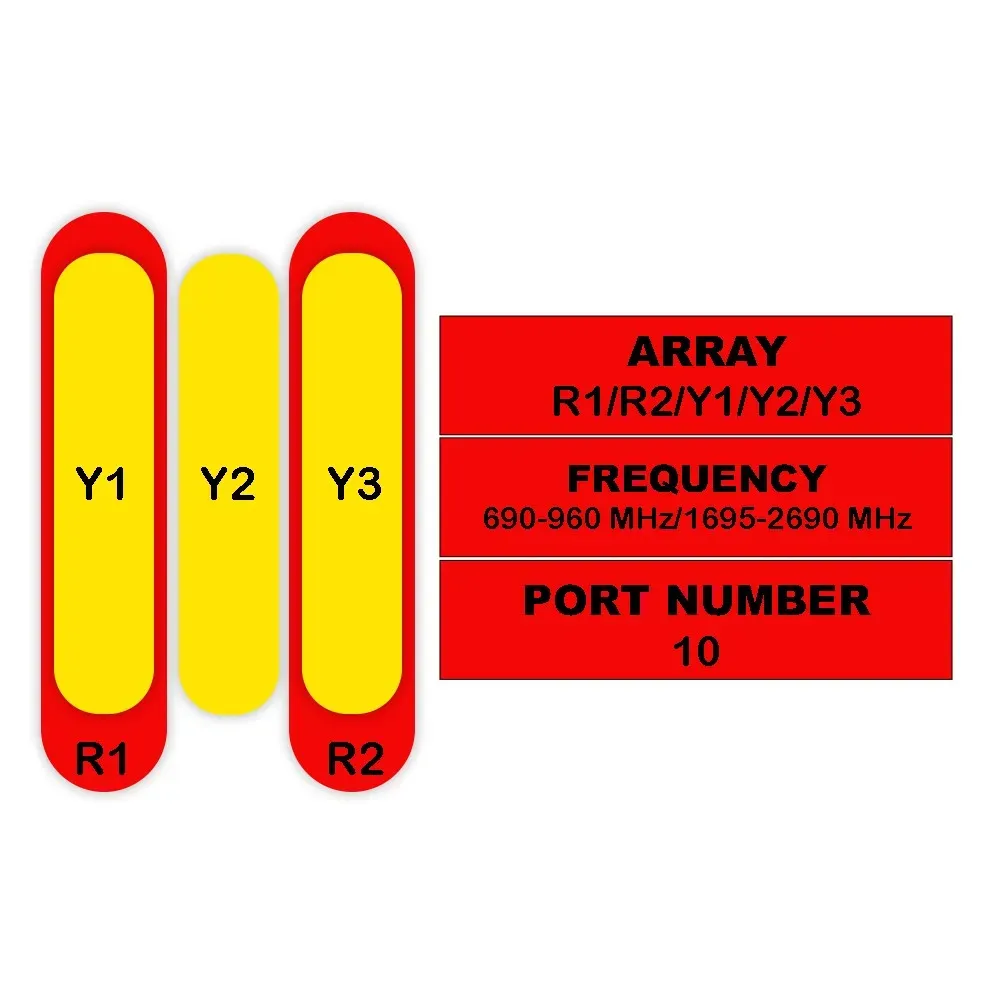

10-Port Antenna R1 R2 Y1 Y2 Y3
Frequency Range (MHz) 690-960 690-960 1695-2690 1695-2690 1695-2690
HBW 65° 65° 65° 65° 65°
Gain 14.5 dBi 14.5 dBi 18 dBi 18 dBi 18 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

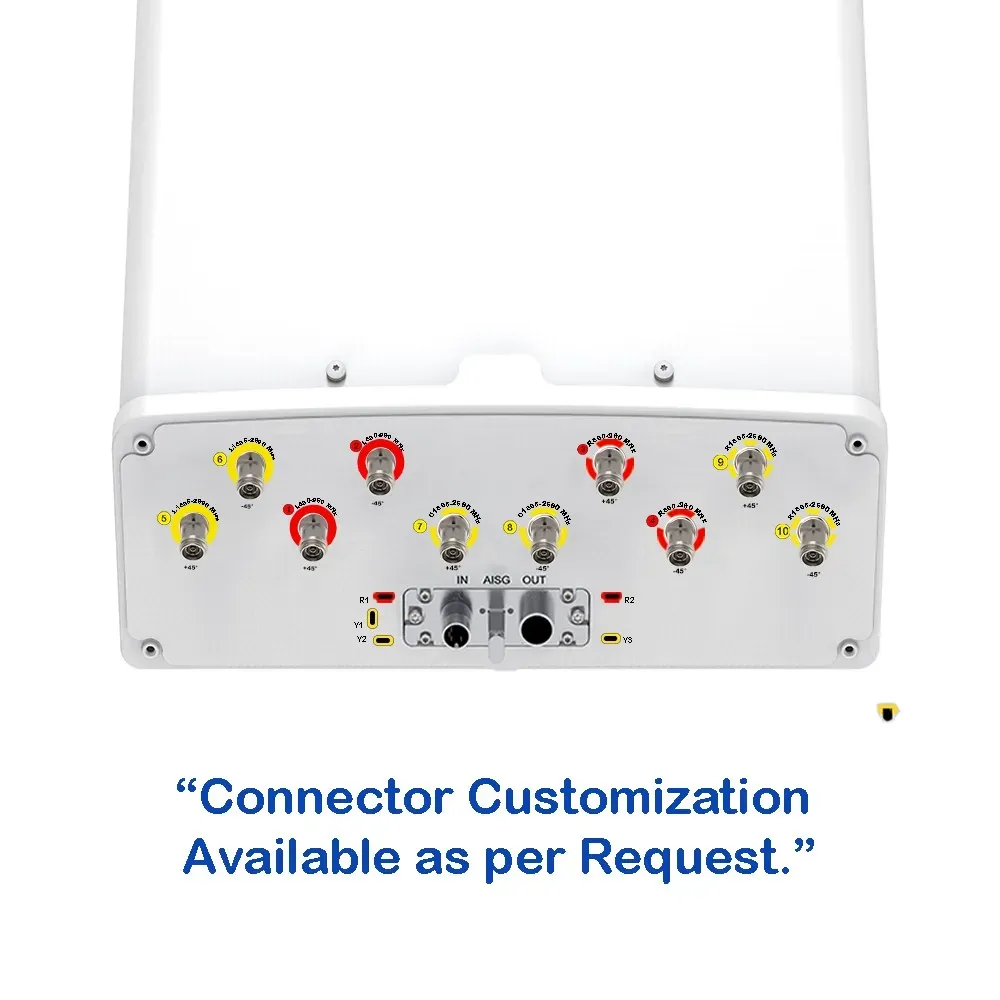

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
10P-690-2690F-14G-65H15V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2Y1 / Y2 / Y3
Frequency RangeMHz690-9601695-2690
MHz690-806790-894880-9601695-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°
Gainat Mid TiltdBi14.214.414.816.616.917.217.417.4
Over All TiltsdBi14.0 ± 0.514.2 ± 0.514.6 ± 0.416.4 ± 0.616.7 ± 0.517.0 ± 0.517.2 ± 0.517.2 ± 0.5
Horizontal Beamwidthdegree65 ± 4.460 ± 3.658 ± 4.667 ± 6.564 ± 6.563 ± 6.558 ± 5.560 ± 6.0
Vertical Beamwidthdegree14.9 ± 0.913.6 ± 0.612.4 ± 0.66.8 ± 0.76.4 ± 0.75.9 ± 0.75.2 ± 0.54.8 ± 0.7
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side LobeFirst Upper LobedB> 16> 16> 16> 16> 16> 16> 16> 16
SuppressionPeak to 20°dB> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio ±30°dB> 23> 24> 25≥ 25≥ 25> 25≥ 26≥ 26
Cross Polarat BoresightdB> 18> 18> 18> 16> 16> 16> 17> 17
DiscriminationOver SectordB> 8.0> 7.5> 6.5> 6.0> 7.0> 7.0> 5.0> 3.0
IsolationCross-PolardB> 26> 26
Port-To-PortdB> 26 (R1/R2), > 28 (R1,R2/Y1,Y2,Y3)> 28
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(10x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

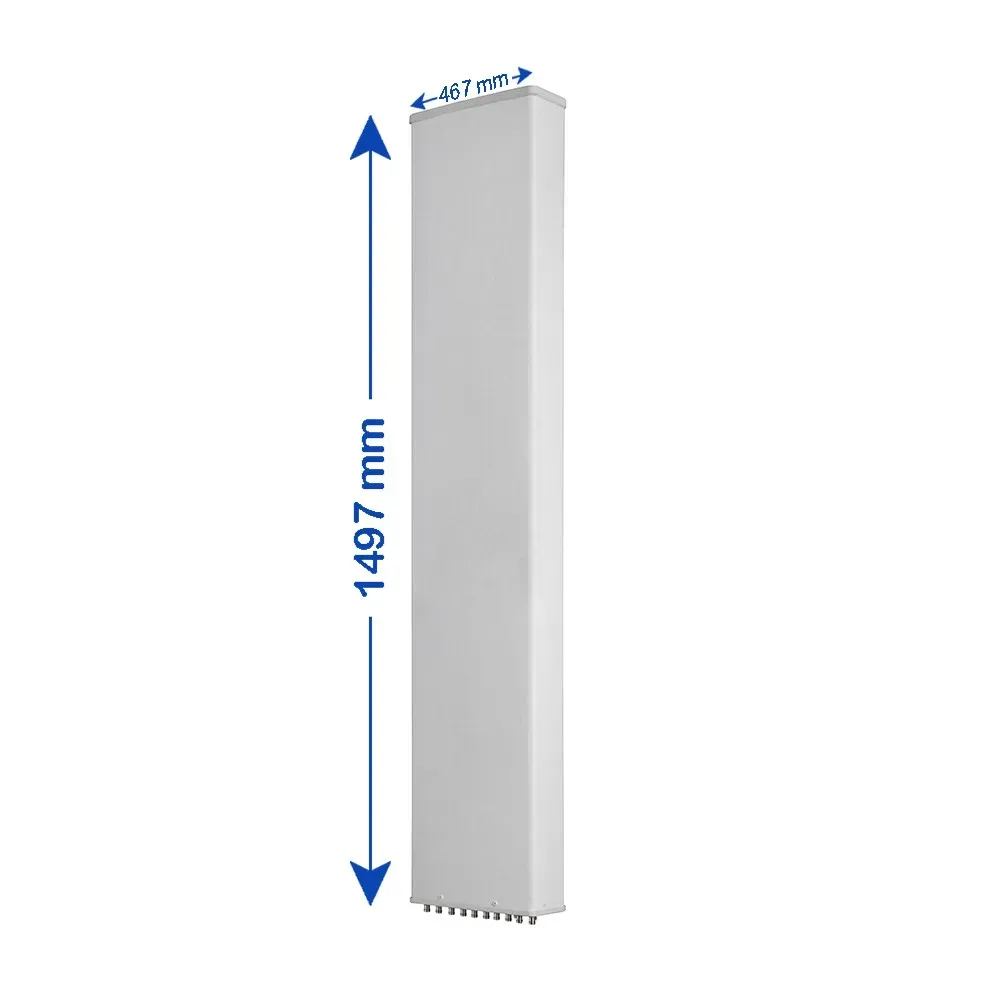

Antenna Dimensions (H x W x D)mm (in)1497 x 467 x 167 (58.9 x 18.4 x 6.6)
Antenna WeightAntenna Onlykg (lbs)24.5 (54.0)
with Clampskg (lbs)30 (66.1)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)645 (145.0)
at 150 km/hRearN (lbf)720 (161.9)
LateralN (lbf)285 (64.1)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
