Product code: 10P-690-2690F-18G-65H12V

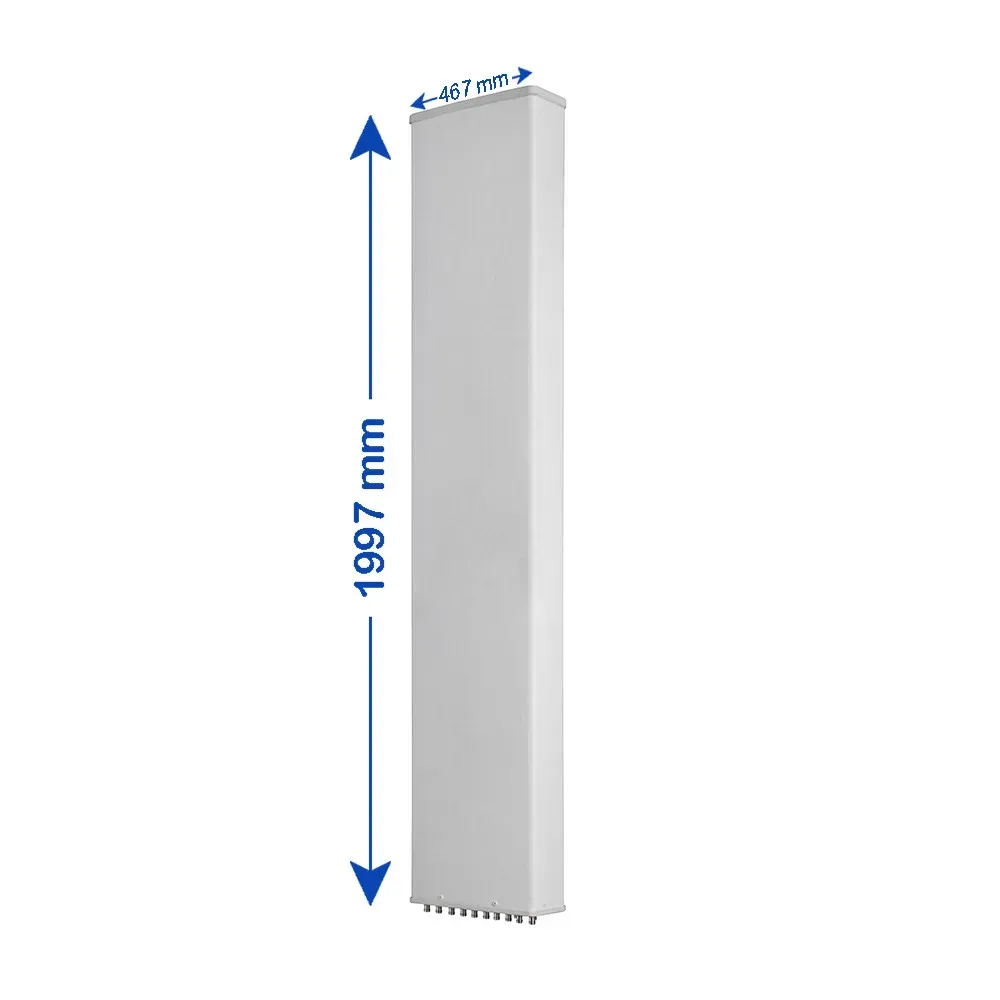

10-Port, Panel Sector Antenna, 65° HBW, (2x) 690-960/(3x) 1695-2690 MHz, 16/16/18/18/18 dBi, 2-12°T, 1.997 m

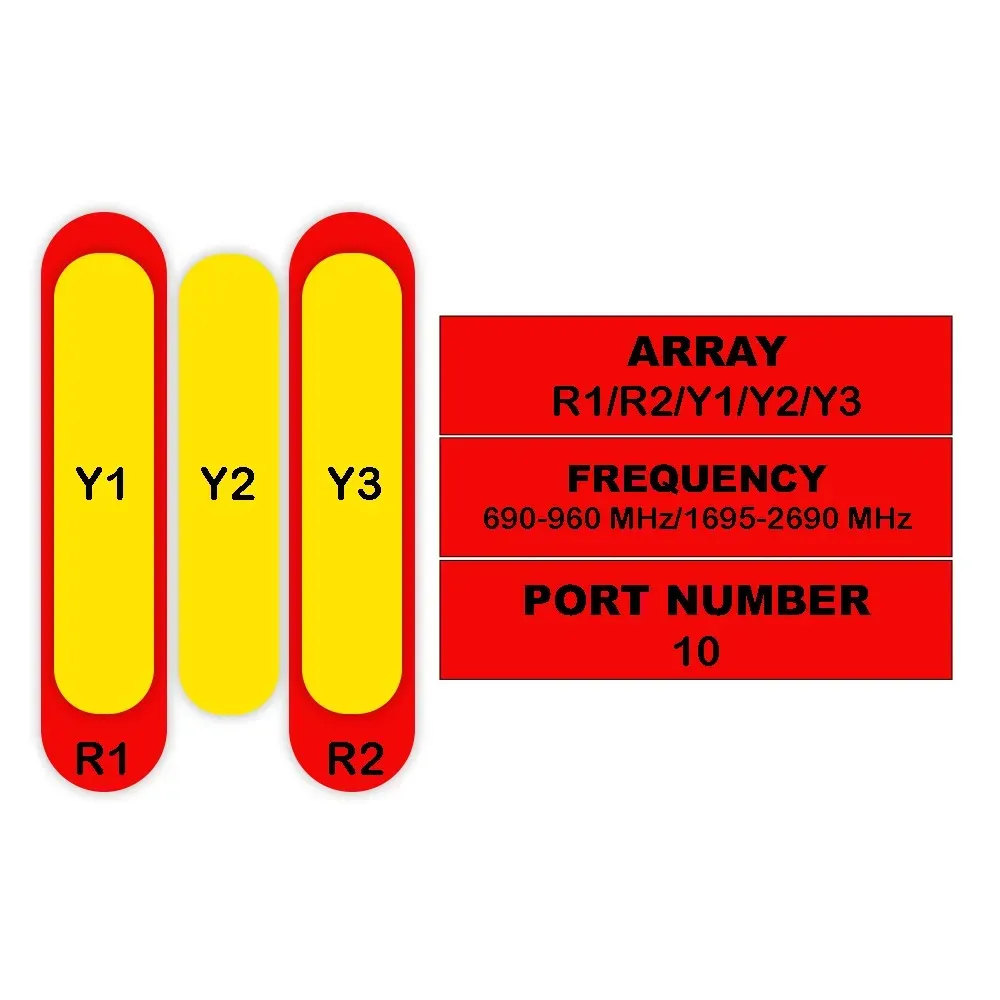

| 10-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 |
| Frequency Range (MHz) | 690-960 | 690-960 | 1695-2690 | 1695-2690 | 1695-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 16 dBi | 16 dBi | 18 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

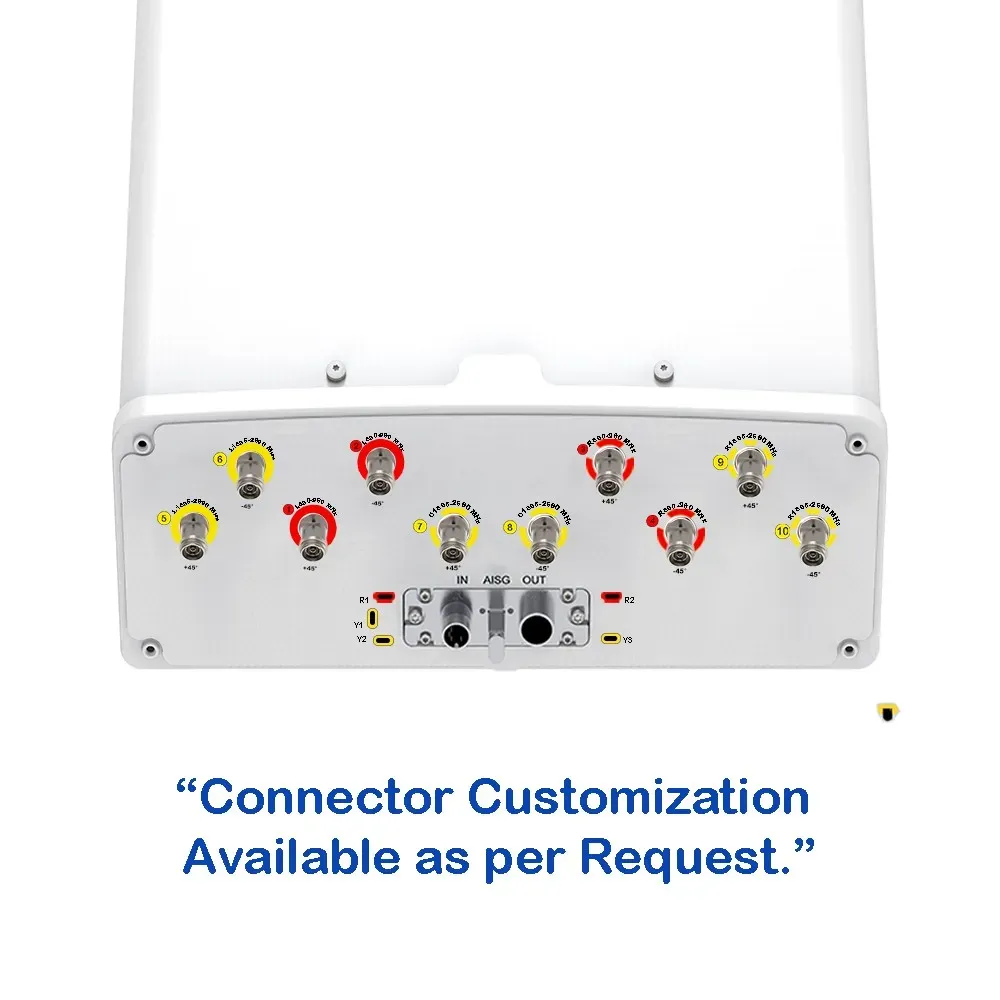

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
