10-Port, Panel Sector Antenna, 65° HBW, (5x) 1710-2690 MHz, 18/18/18/18/18 dBi, 2-12°T, 1.397 m

Product code: 10P-1710-2690F-18G-65H6V

10-Port, Panel Sector Antenna, 65° HBW, (5x) 1710-2690 MHz, 18/18/18/18/18 dBi, 2-12°T, 1.397 m

10-Port Antenna	Y1	Y2	Y3	Y4	Y5
Frequency Range (MHz)	1710-2690	1710-2690	1710-2690	1710-2690	1710-2690
HBW	65°	65°	65°	65°	65°
Gain	18 dBi	18 dBi	18 dBi	18 dBi	18 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

10P-1710-2690F-18G-65H6V

Electrical & Mechanical Specification

Electrical Specifications
			Y1 / Y2 / Y3 / Y4 / Y5
		MHz	1710-2690
Frequency Range		MHz	1710-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°
	at Mid Tilt	dBi	16.7	17	17.3	17.8	17.6
Gain	Over All Tilts	dBi	16.6 ± 0.6	16.9 ± 0.5	17.2 ± 0.5	17.7 ± 0.5	17.5 ± 0.6
Horizontal Beamwidth		degree	69 ± 6	66 ± 6	64 ± 6	62 ± 6	61 ± 6
Vertical Beamwidth		degree	7.0 ± 0.7	6.7 ± 0.6	6.3 ± 0.6	5.4 ± 0.5	5.0 ± 0.4
Electrical Downtilt, Continuously Adjustable		degree	2-Dec
First Upper Side Lobe Suppression		dB	> 16	> 16	> 16	> 16	> 16
Front-To-Back Ratio CO-Pol, ±30°		dB	> 26	> 26	> 27	> 27	> 27
Cross Polar	at Boresight	dB	> 20	> 20	> 20	> 20	> 20
Discrimination	Over Sector	dB	> 10	> 10	> 10	> 6	> 5
	Cross-Polar	dB	> 28
	Port-To-Port	dB	> 28
Isolation	Interband	dB	> 28
Impedance		Ohm	50
VSWR		—	< 1.5
Return Loss		dB	> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150
Lightning Protection		—	DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE
Housing Material / Color		Aluminum / Grey
Operating Temperature		-40° to +70° C (-40° to +158° F)
Storage Temperature		-55° to +75° C (-67° to +167° F)
Humidity		Up to 95%
IP Rating		IP65
Weight		≤ 500 g

Mechanical Specifications

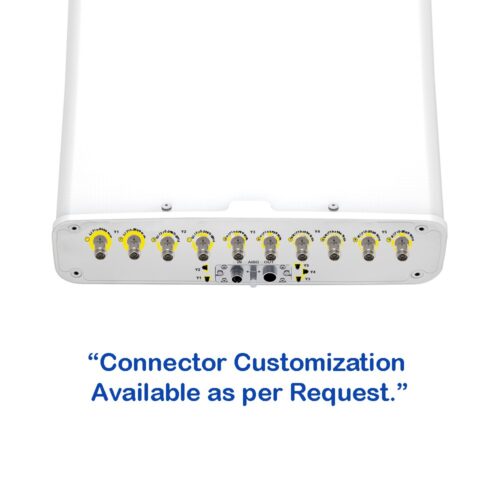

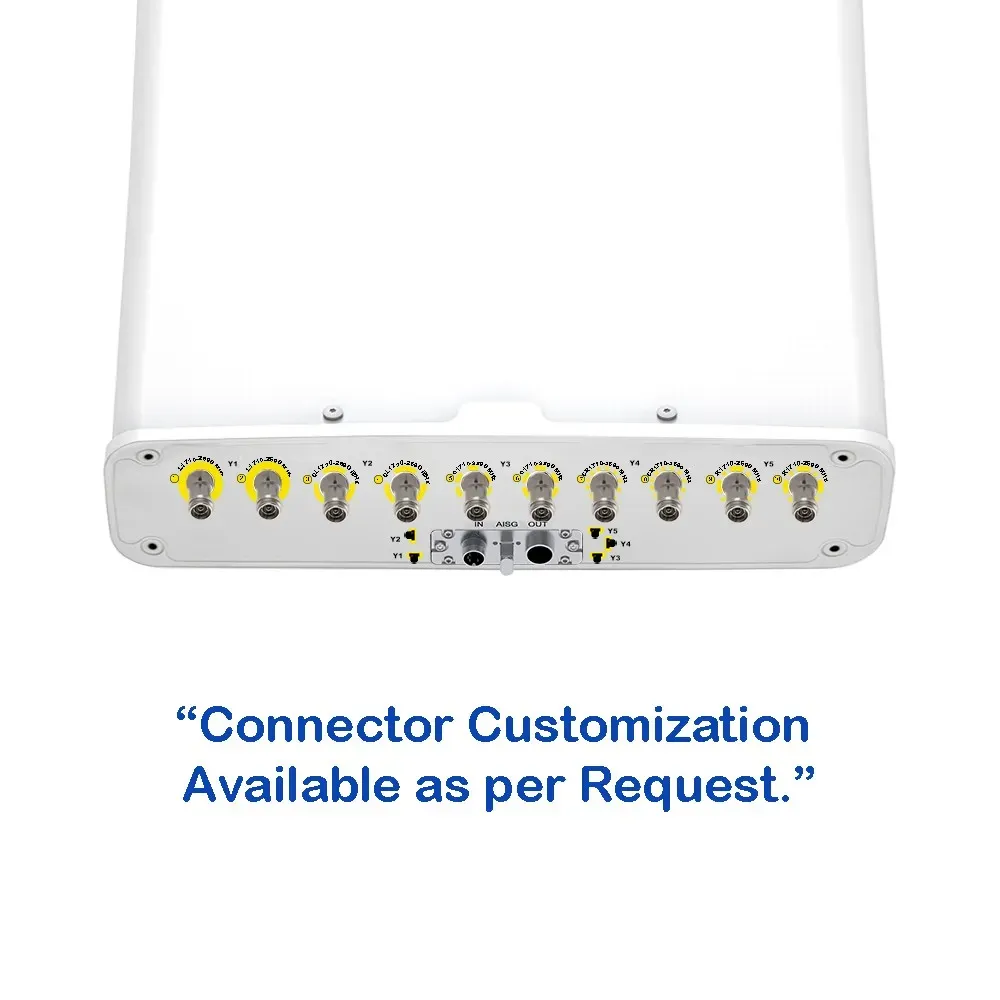

Connector Type		—	(10x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

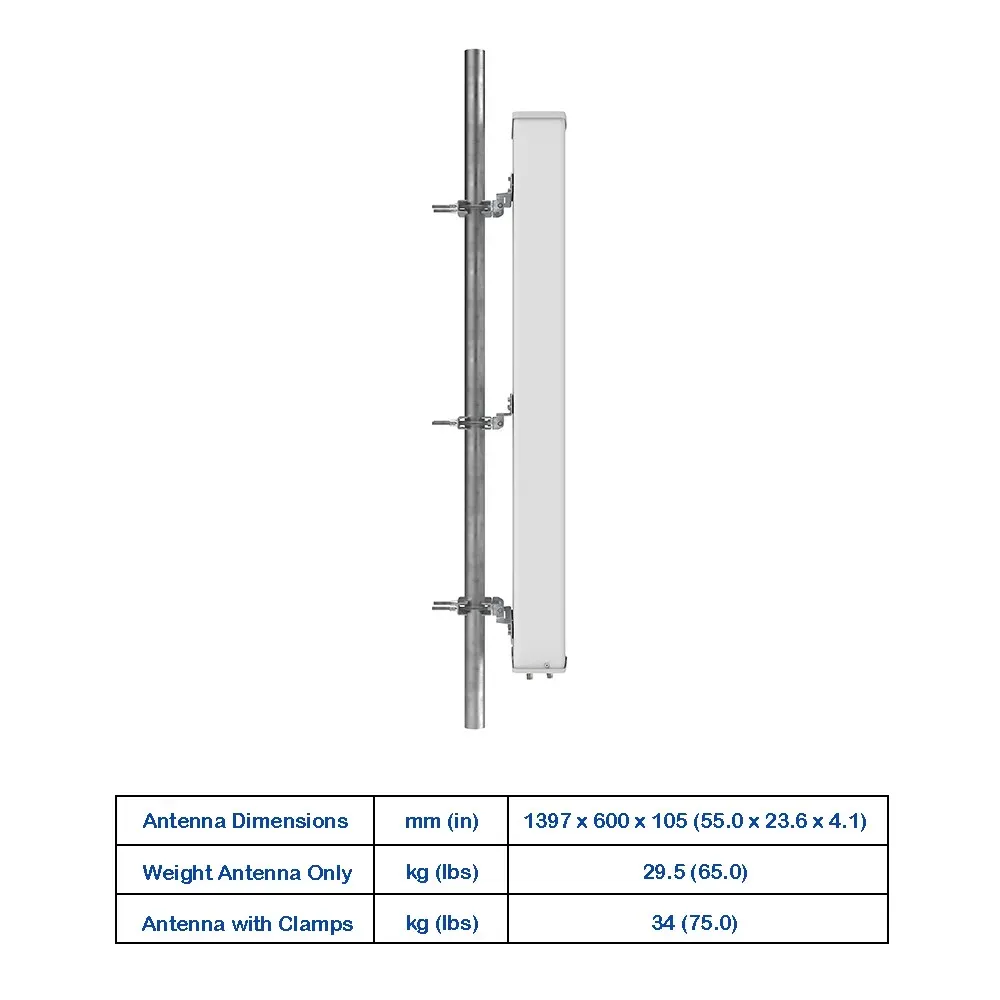

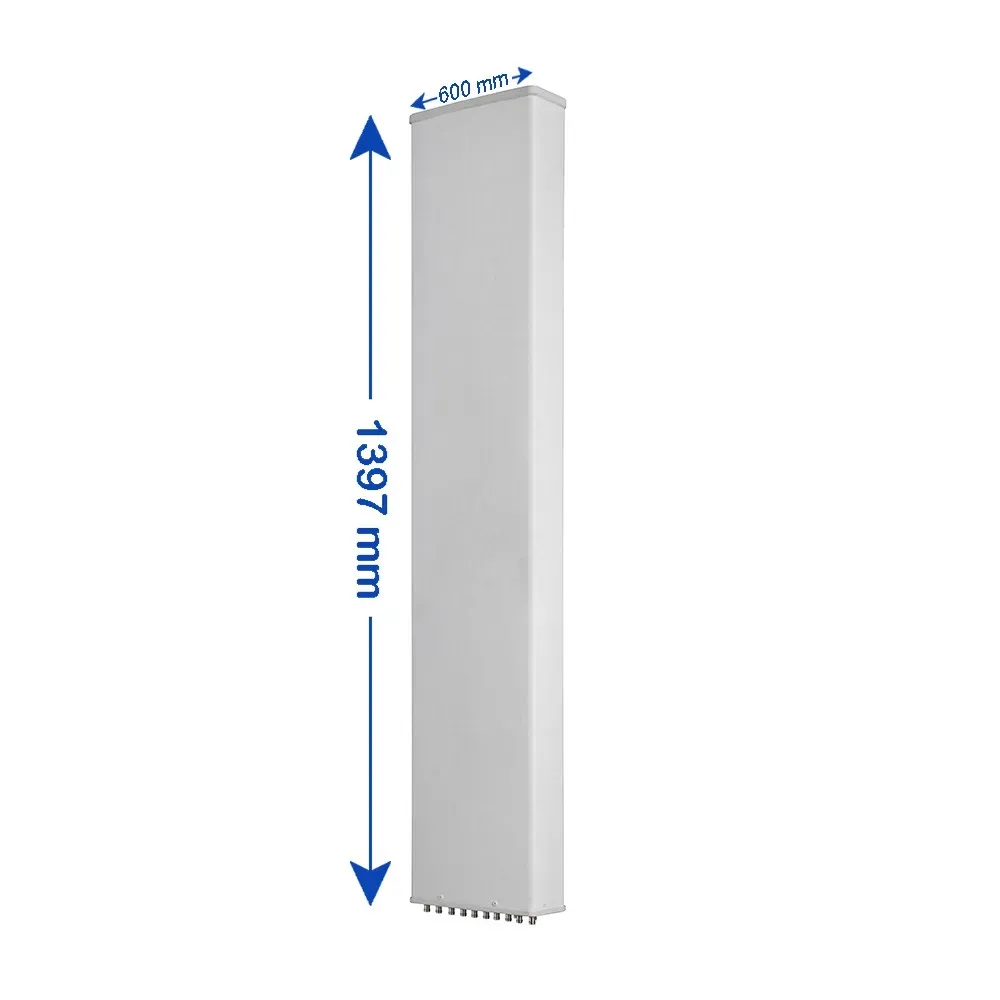

Antenna Dimensions (H x W x D)		mm (in)	1397 x 600 x 105 (55.0 x 23.6 x 4.1)
Antenna Weight	Antenna Only	kg (lbs)	29.5 (65.0)
Antenna Weight	with Clamps	kg (lbs)	34 (75.0)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	775 (174.2)
at 150 km/h	Rear	N (lbf)	865 (194.5)
	Lateral	N (lbf)	170 (38.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
