Product code: 10P-698-2690F-16G-65H11V

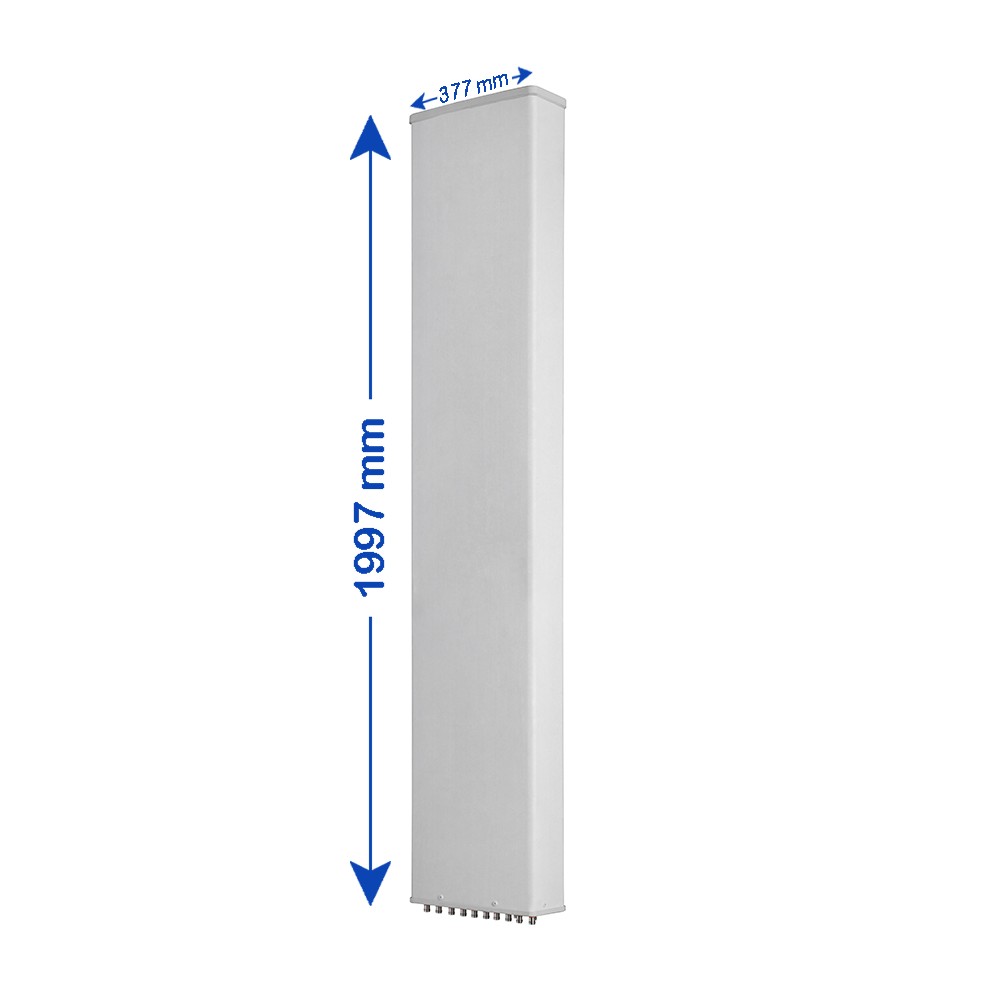

10-Port, Panel Sector Antenna, 65° HBW, 698-960/(4x) 1695-2690 MHz, 16/16/16/16/16 dBi, 2-12°T, 1.997 m

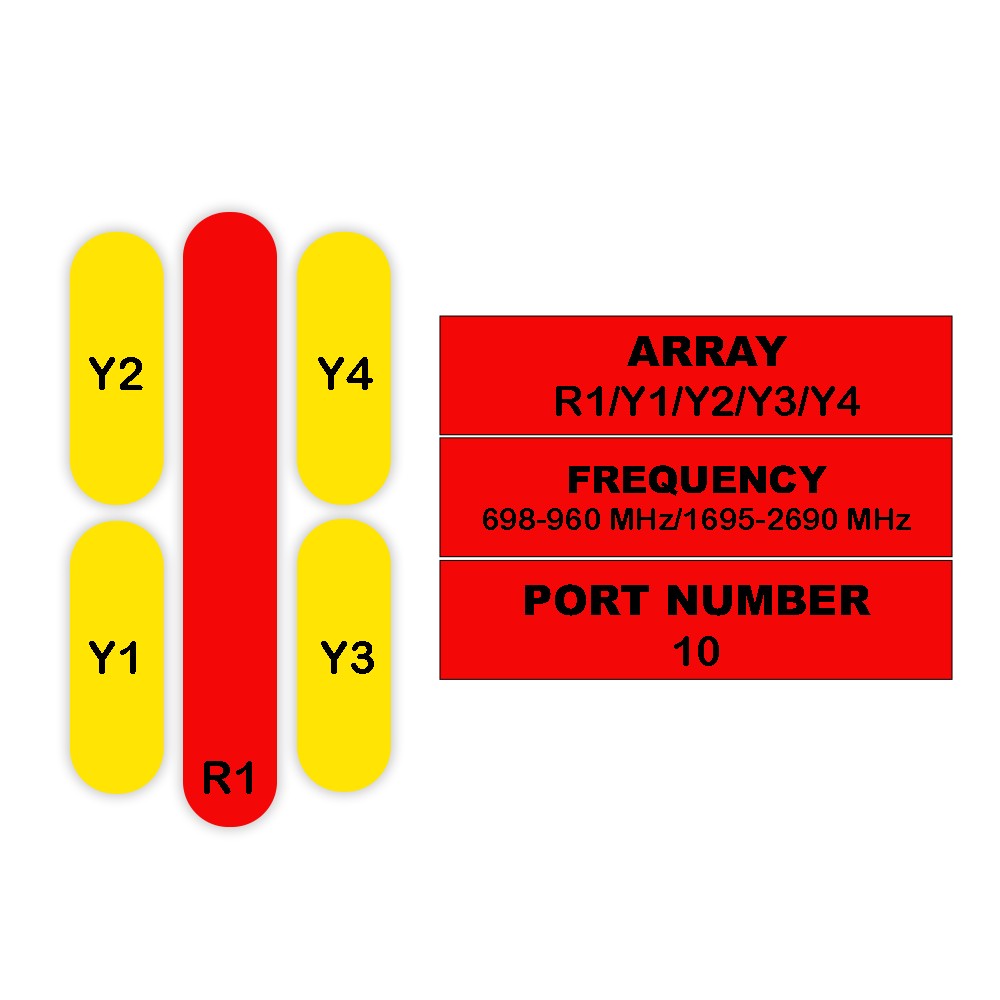

| 10-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 698-960 | 1695-2690 | 1695-2690 | 1695-2690 | 1695-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 16 dBi | 16 dBi | 16 dBi | 16 dBi | 16 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

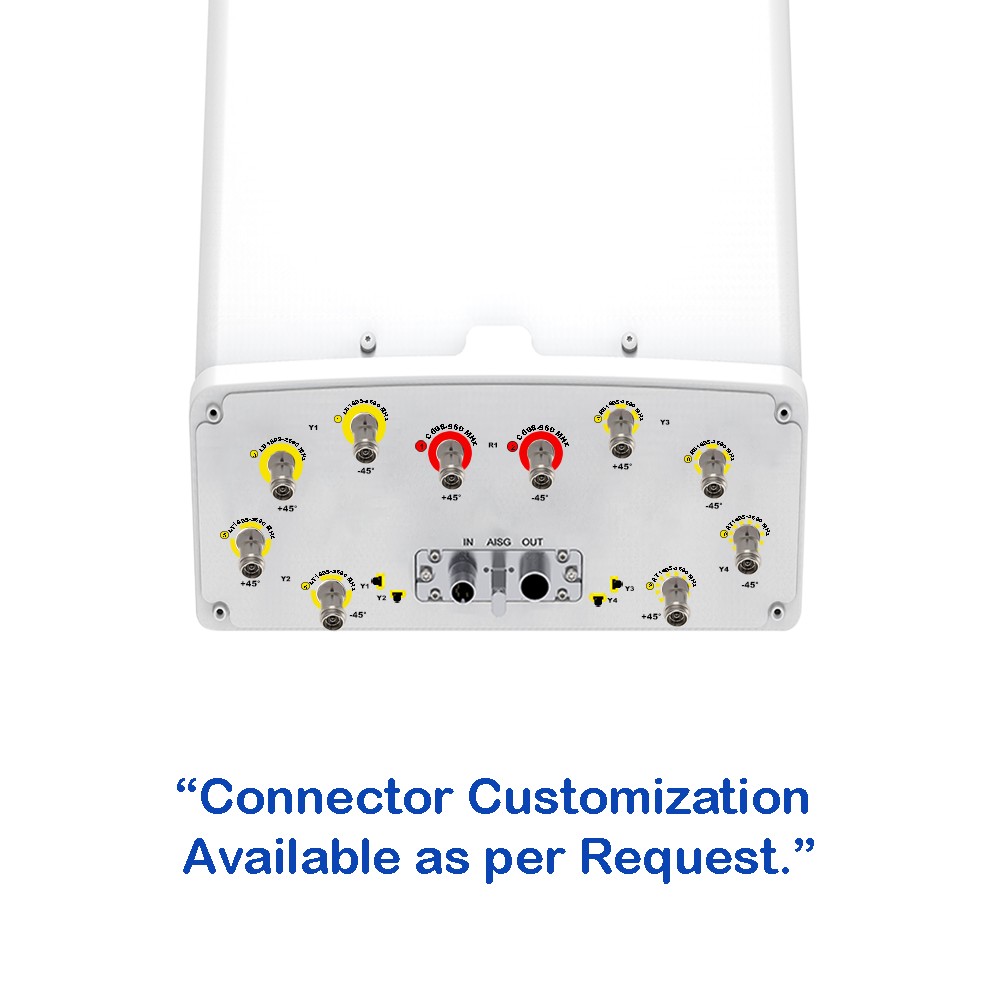

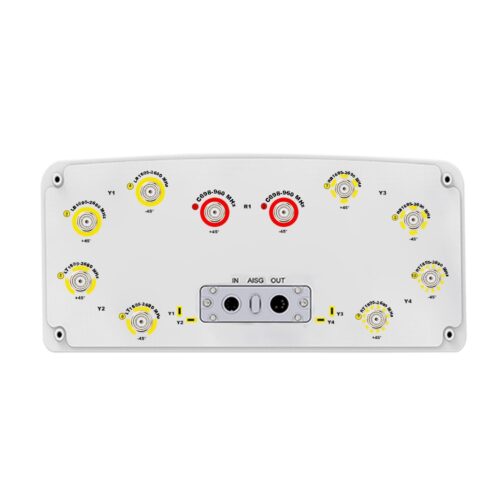

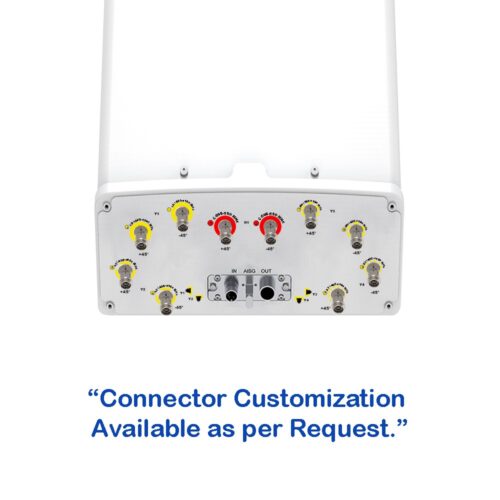

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
