Product code: 10P-698-2690F-14G-65H16V

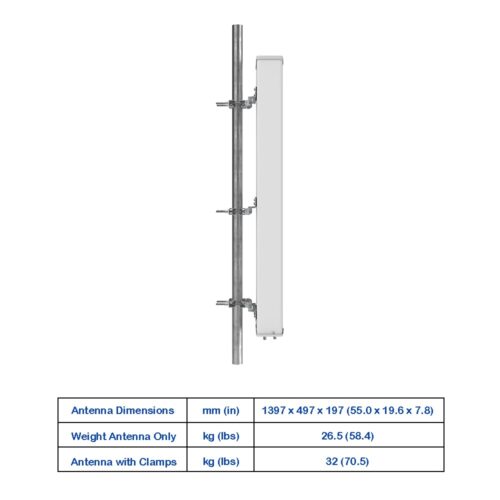

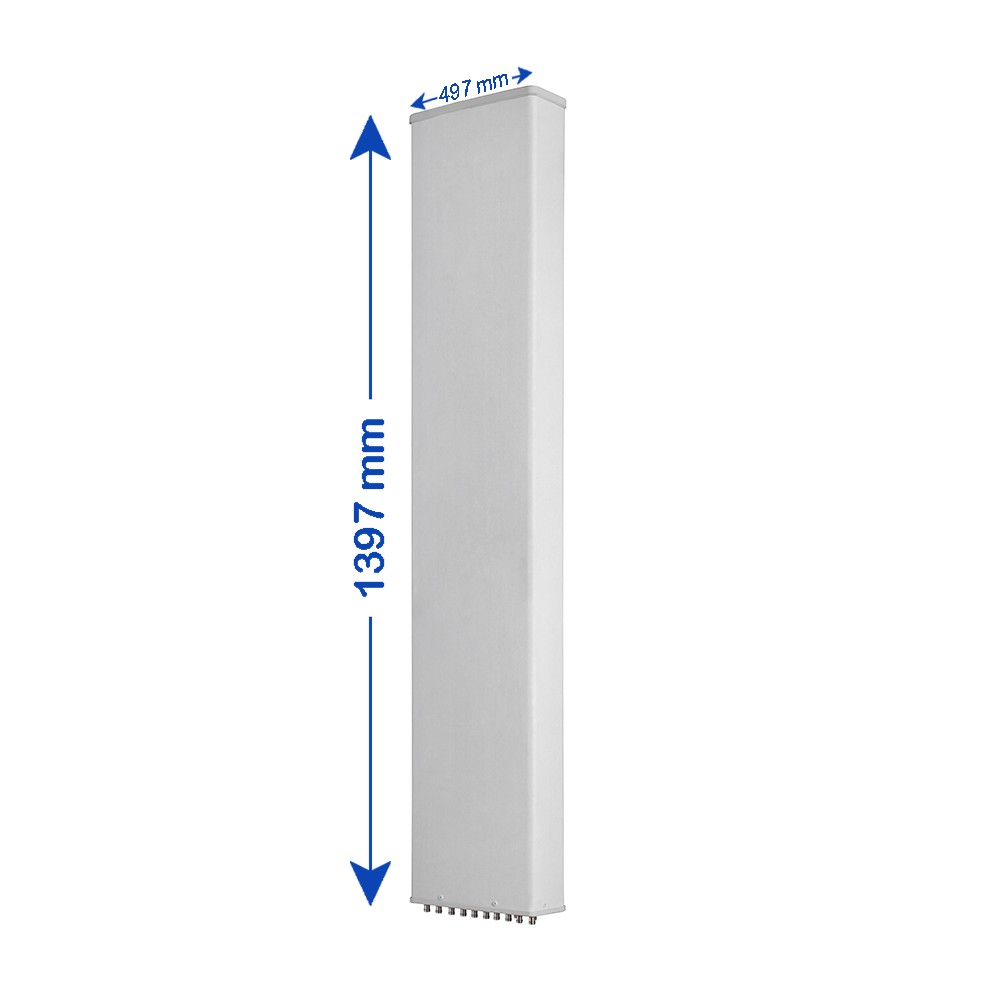

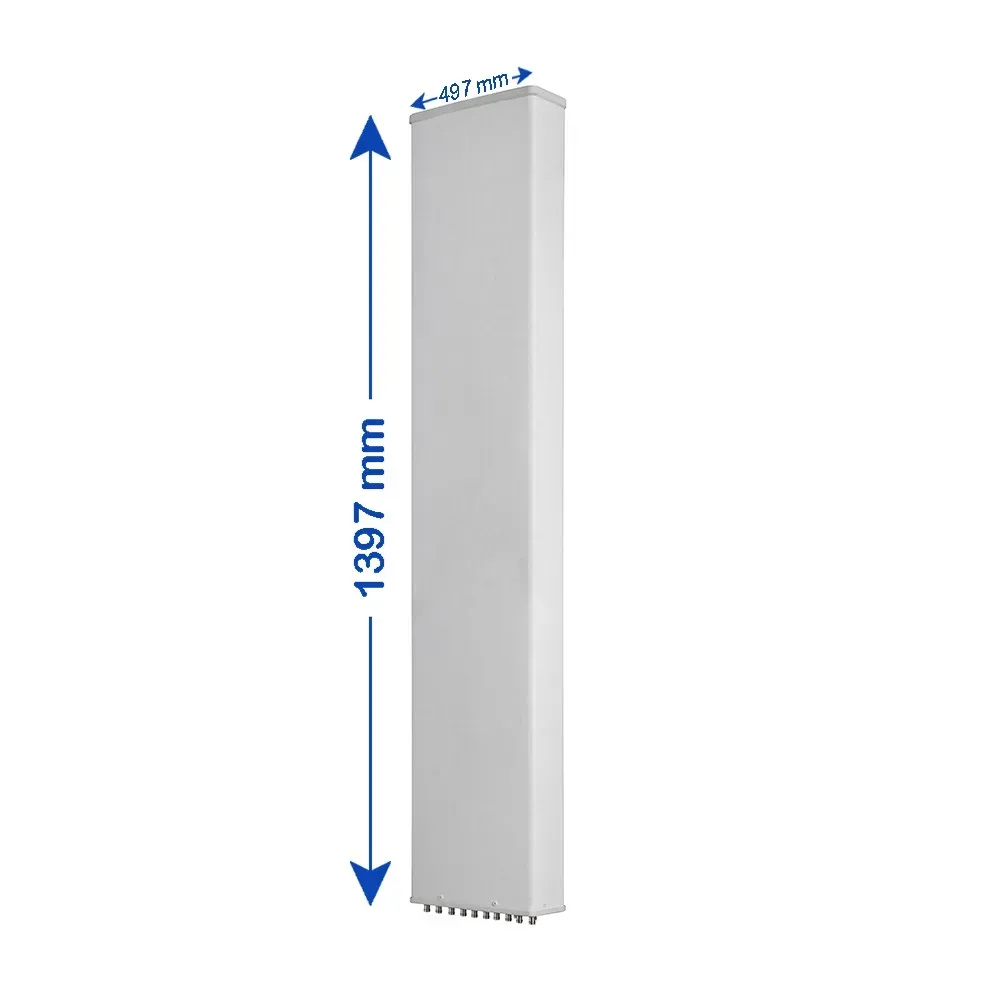

10-Port, Panel Sector Antenna, 65° HBW, 698-960/(4x) 1710-2690 MHz, 14.5/18/18/18/18 dBi, 2-12°T, 1.397 m

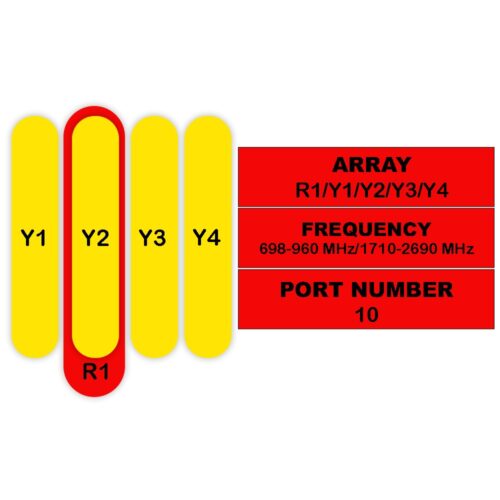

| 10-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 14.5 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

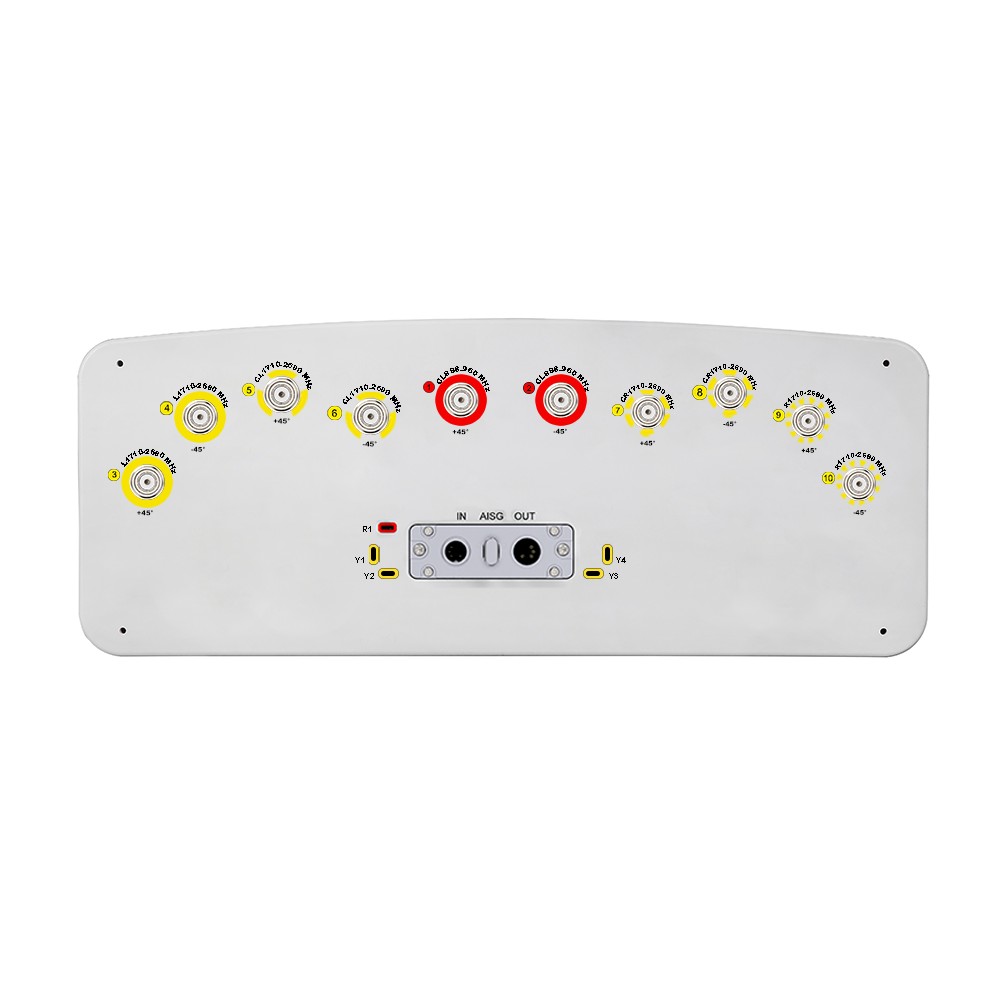

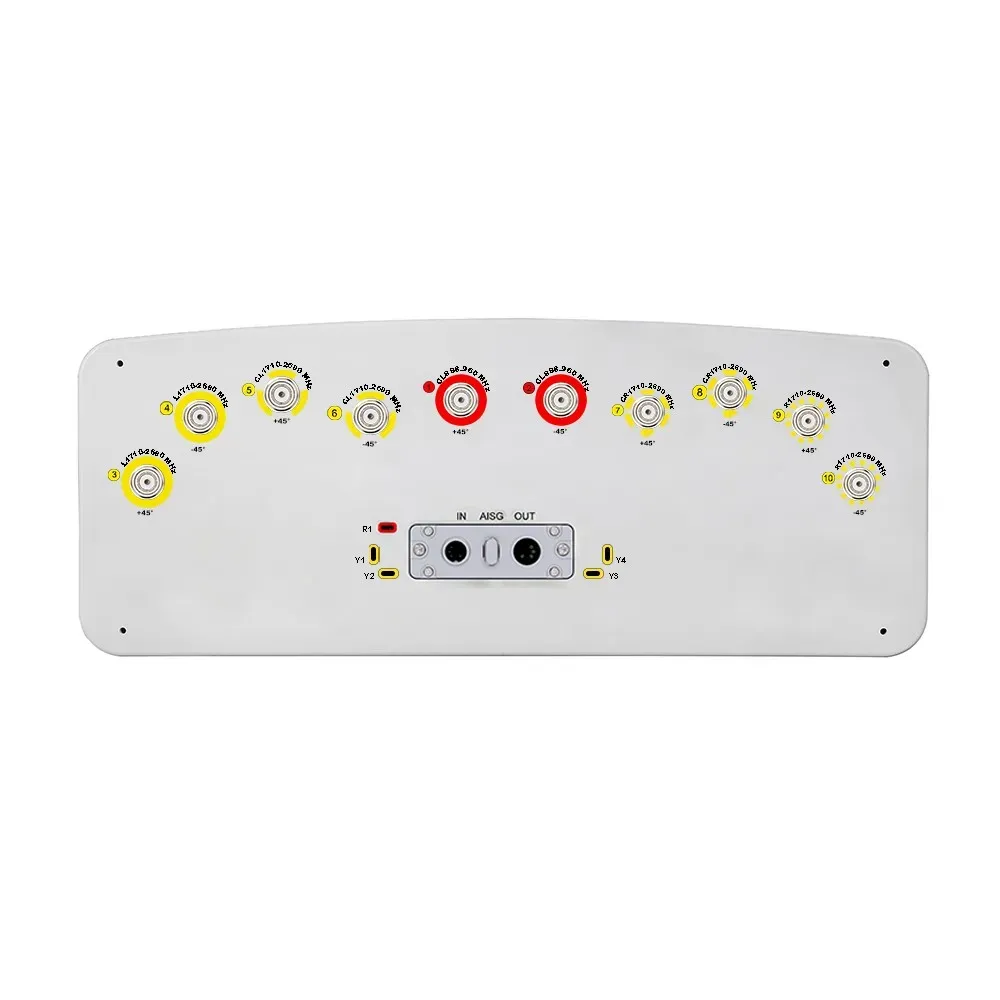

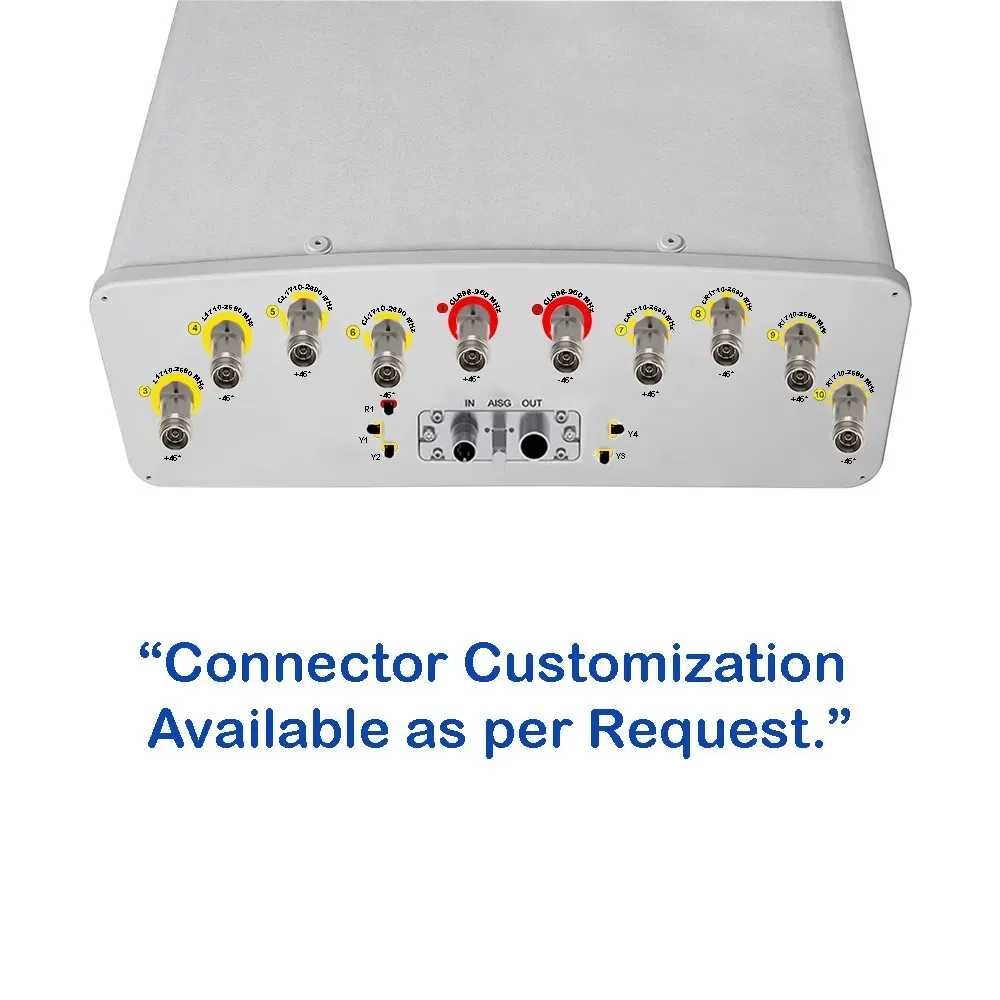

| Connectors

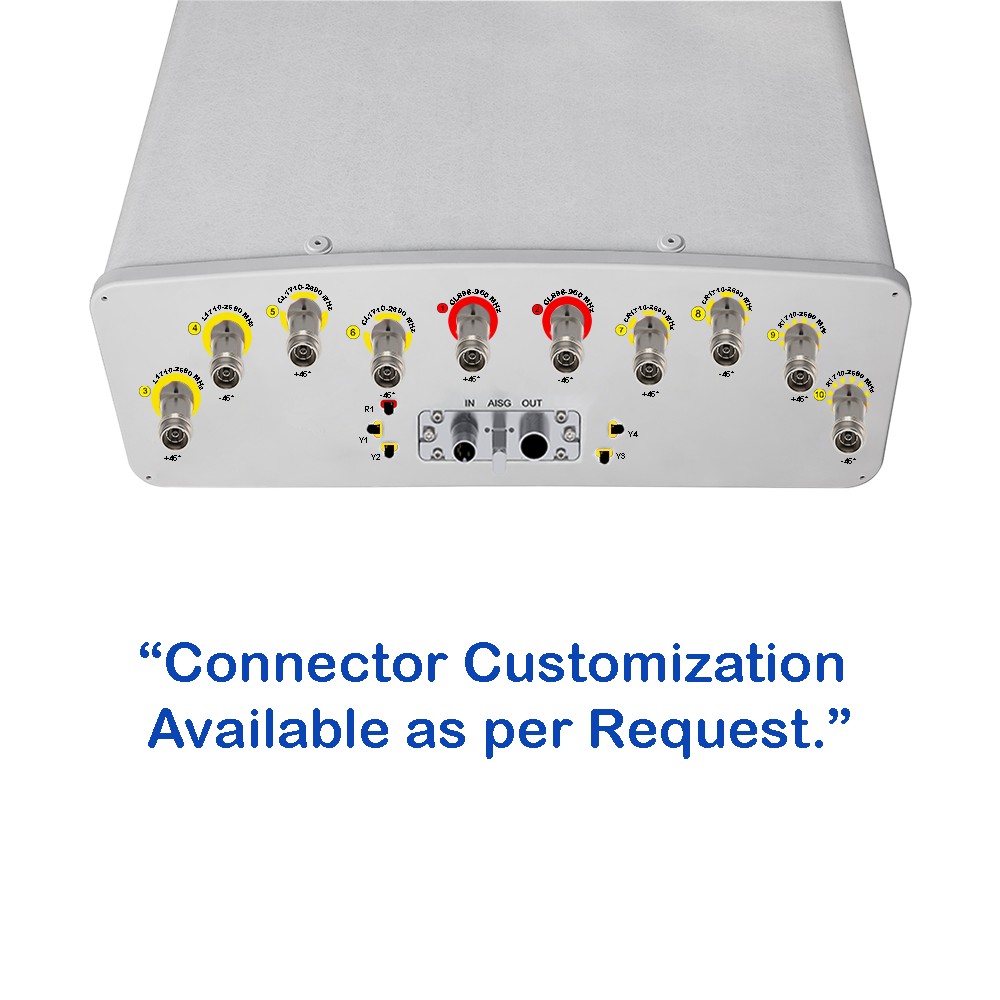

(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
