Product code: 10P-698-2690F-15G-65H15V

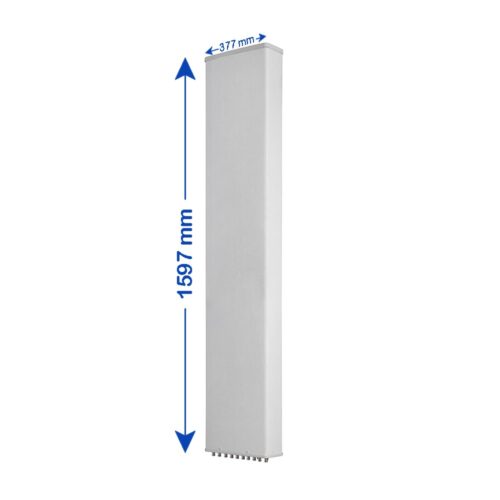

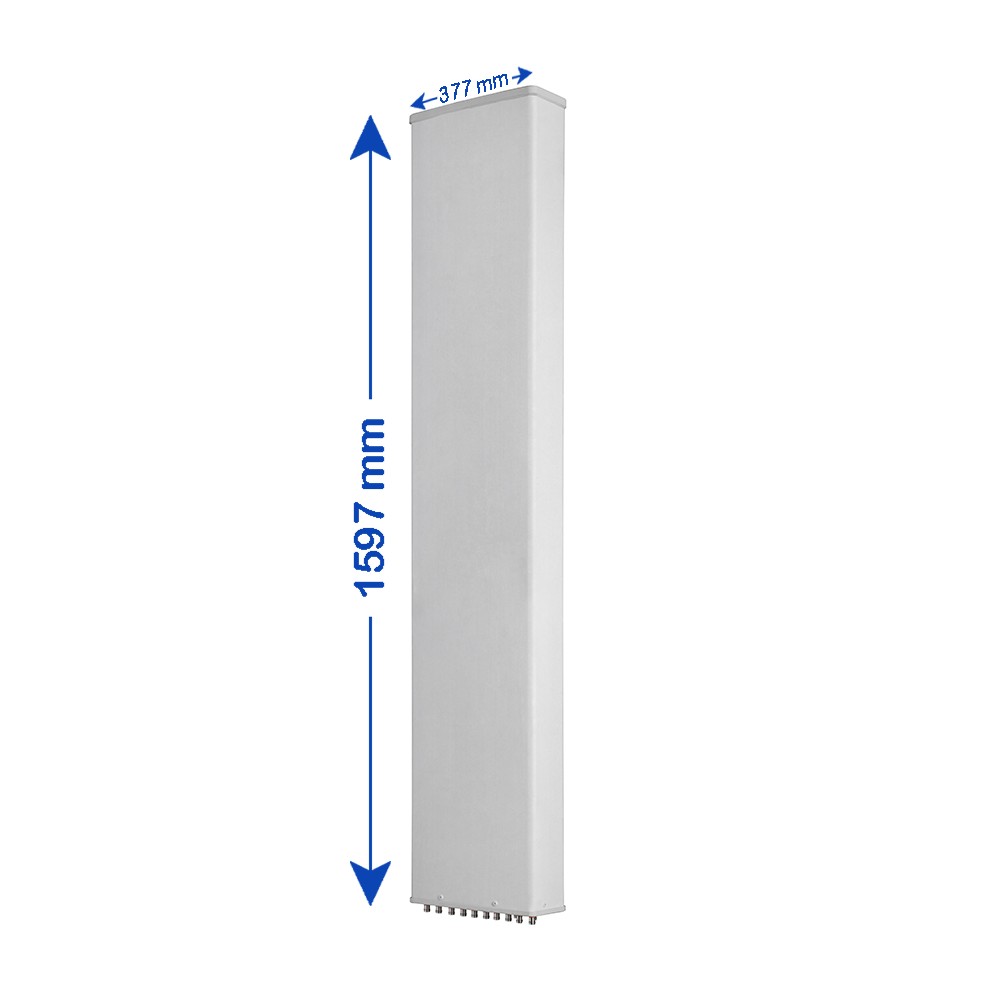

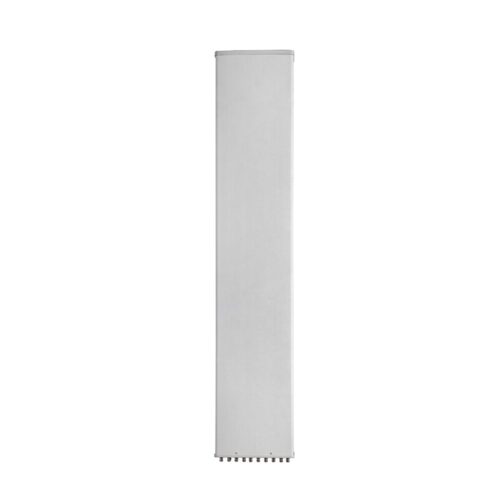

10-Port, Panel Sector Antenna, 65° HBW, 698-960/(4x) 1710-2690 MHz, 15/15/15/15/15 dBi, 2-12°T, 1.597 m

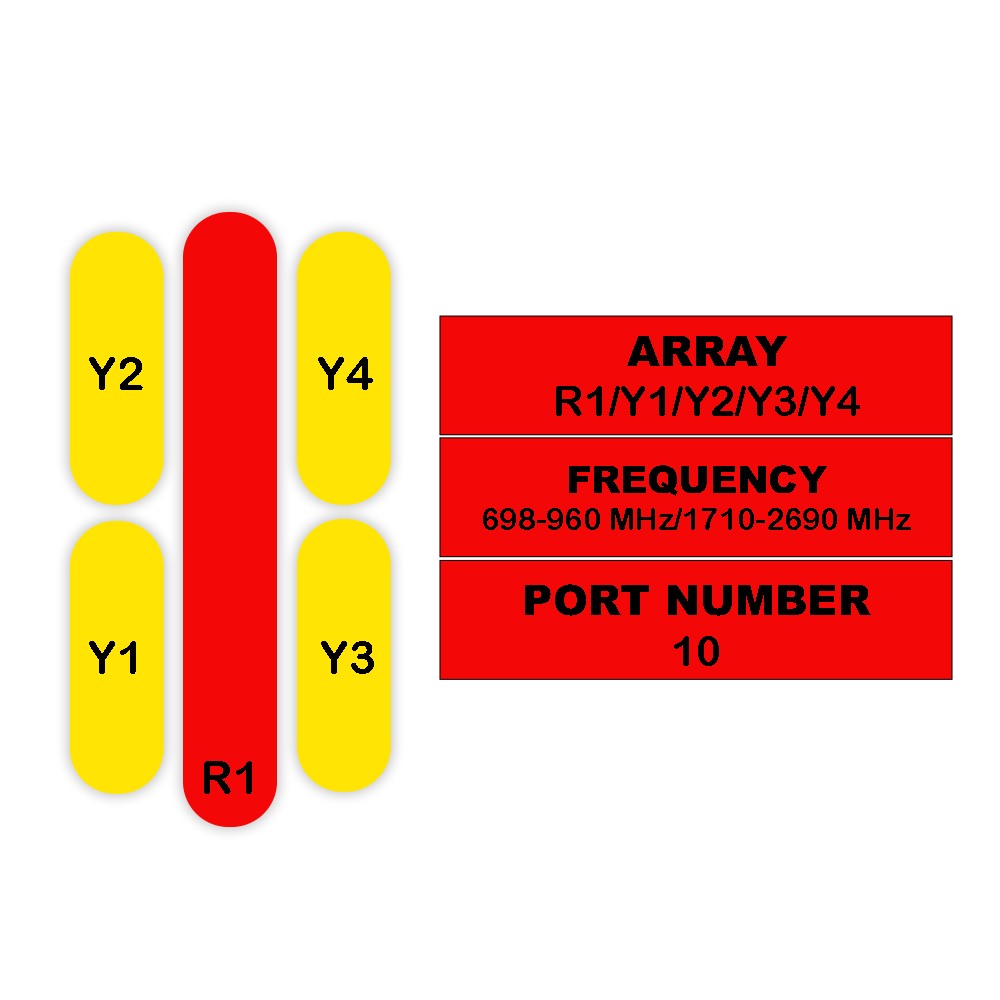

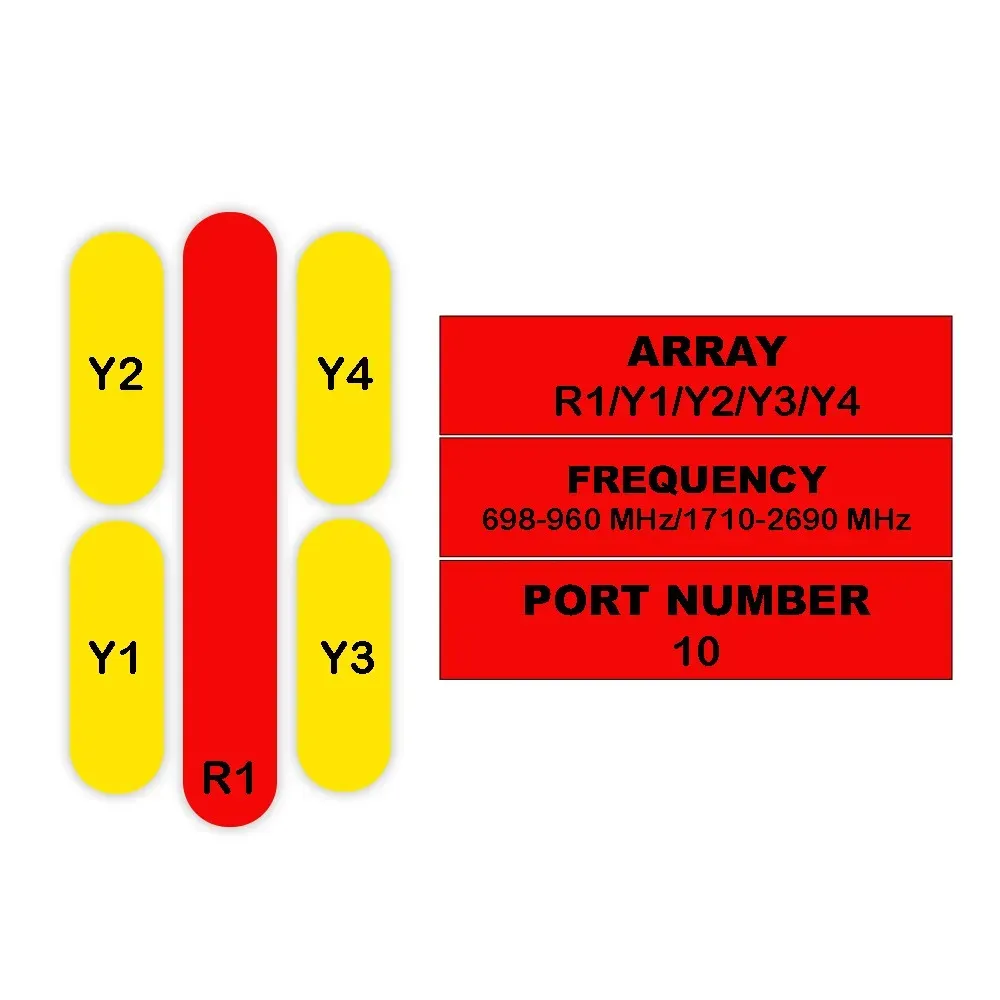

| 10-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° |
| Gain | 15 dBi | 15 dBi | 15 dBi | 15 dBi | 15 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

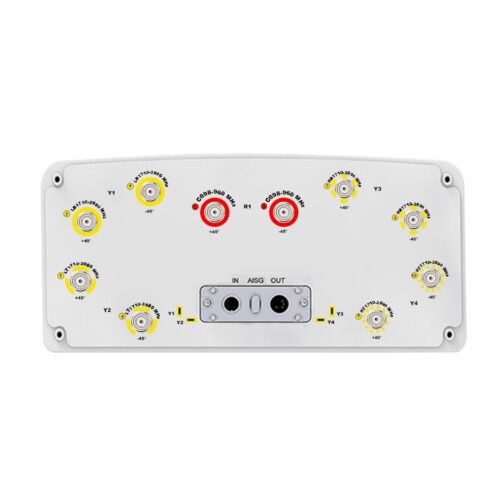

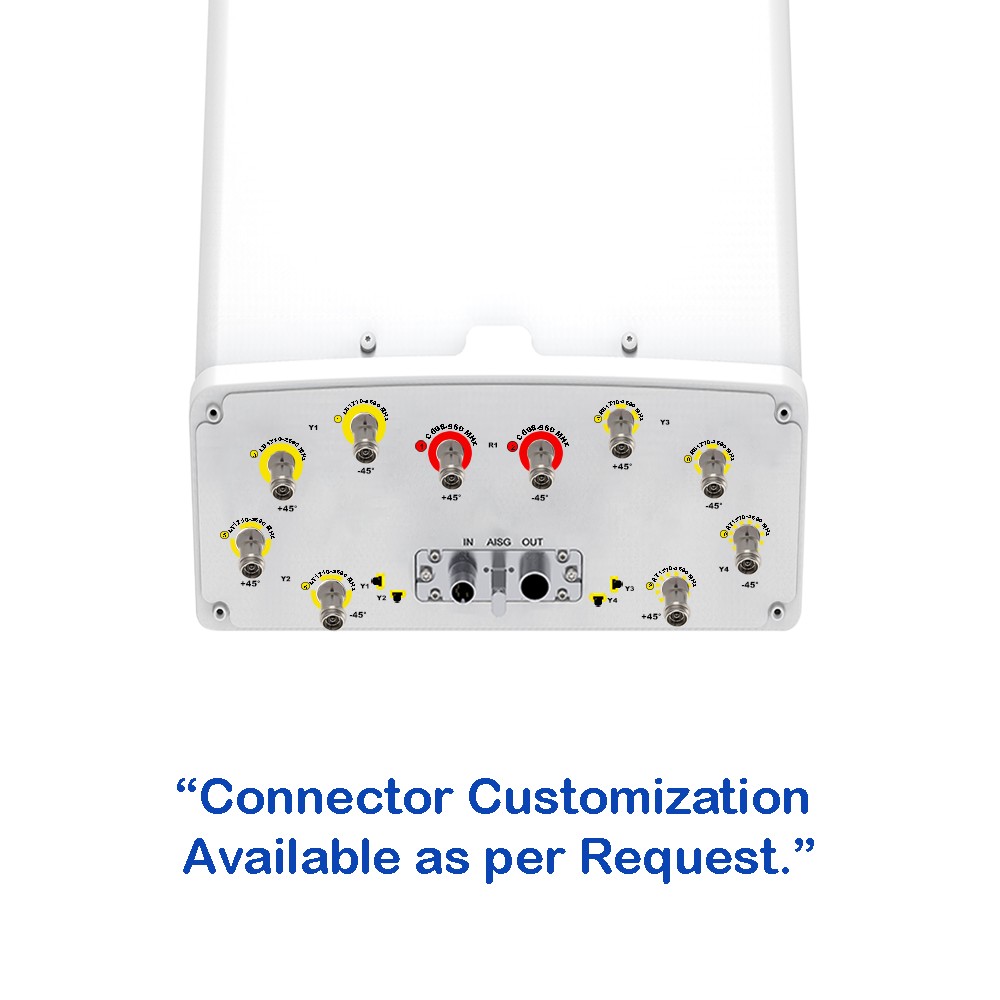

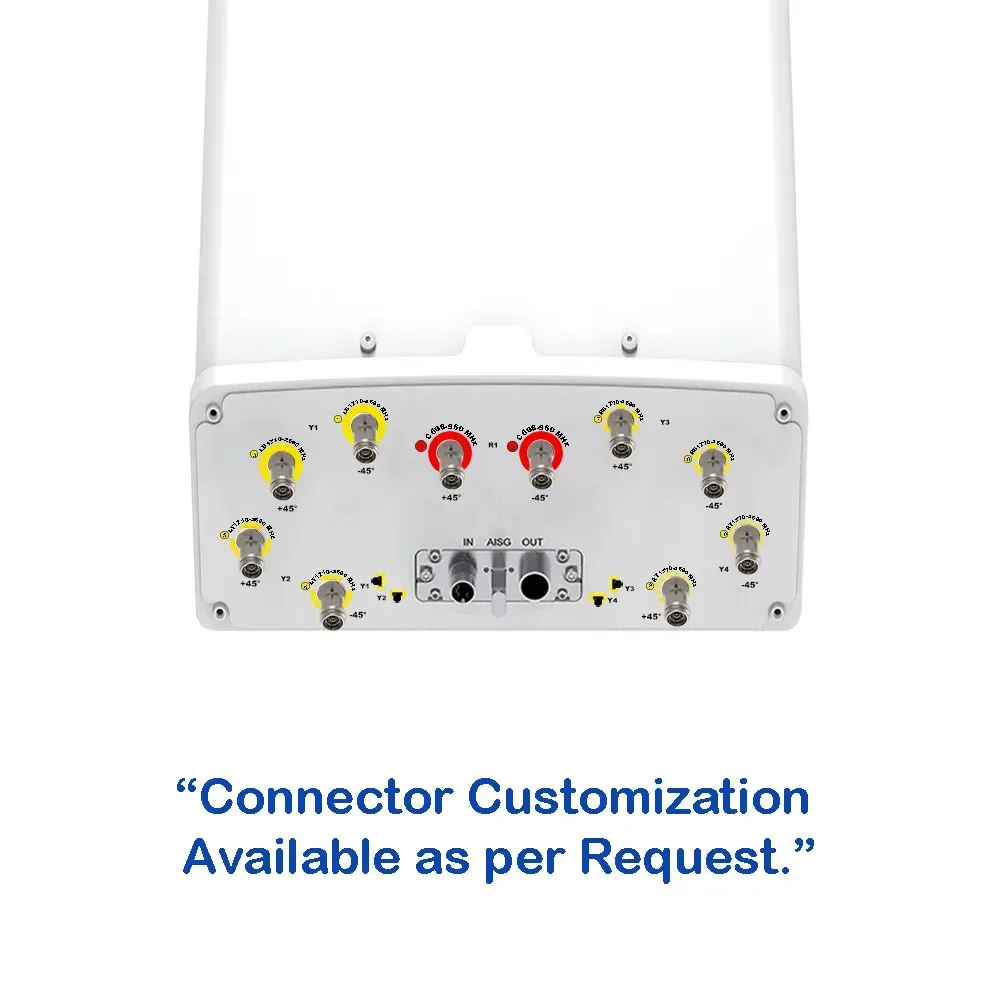

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
4-Port, Panel Sector Antenna, 35° HBW, 806-960/806-960 MHz, 16/16 dBi, 2-12°T, 1.515 m
4-Port, Panel Sector Antenna, 30° HBW, (2x) 1710-2690 MHz, 24/24 dBi, 0-6°T, 2.497 m
4-Port, Panel Sector Antenna, 33° HBW, 1710-2690/1710-2690 MHz, 22/22 dBi, 2-8°T, 1.997 m
2-Port, Panel Sector Antenna, 90° HBW, 698-960 MHz, 14.5 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 790-960/ 1710-2180 MHz, 15/17 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 20 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 16 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 17 dBi,
2-Port, Panel Sector Antenna, 45° HBW, 698-960 MHz, 17.5 dBi
2-Port, Panel Sector Antenna, 33° HBW, 690-960 MHz, 21 dBi
