Product code: MT-DTA137

11-13GHz Comb Band Pass Filter

  • P/N：MT-DTA137
  • Pass Band Frequency:11～13GHz
  • inhibition：≥60dB
  • Insertion loss：≤1.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA137
Electrical & Mechanical Specification
SerialParameters
1Center Frequency (F0)12GHz
2Pass Band Frequency11～13GHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Attenuation≥60dB @ DC～10.2GHz  @ 13.8～24GHz
6Impedance50 ohms
7Power Handling≤5W
8ConnectorsSMA-Female
9Surface FinishBlack Paint
10Temperature Range-30℃～+70℃
11Net WeightTBD

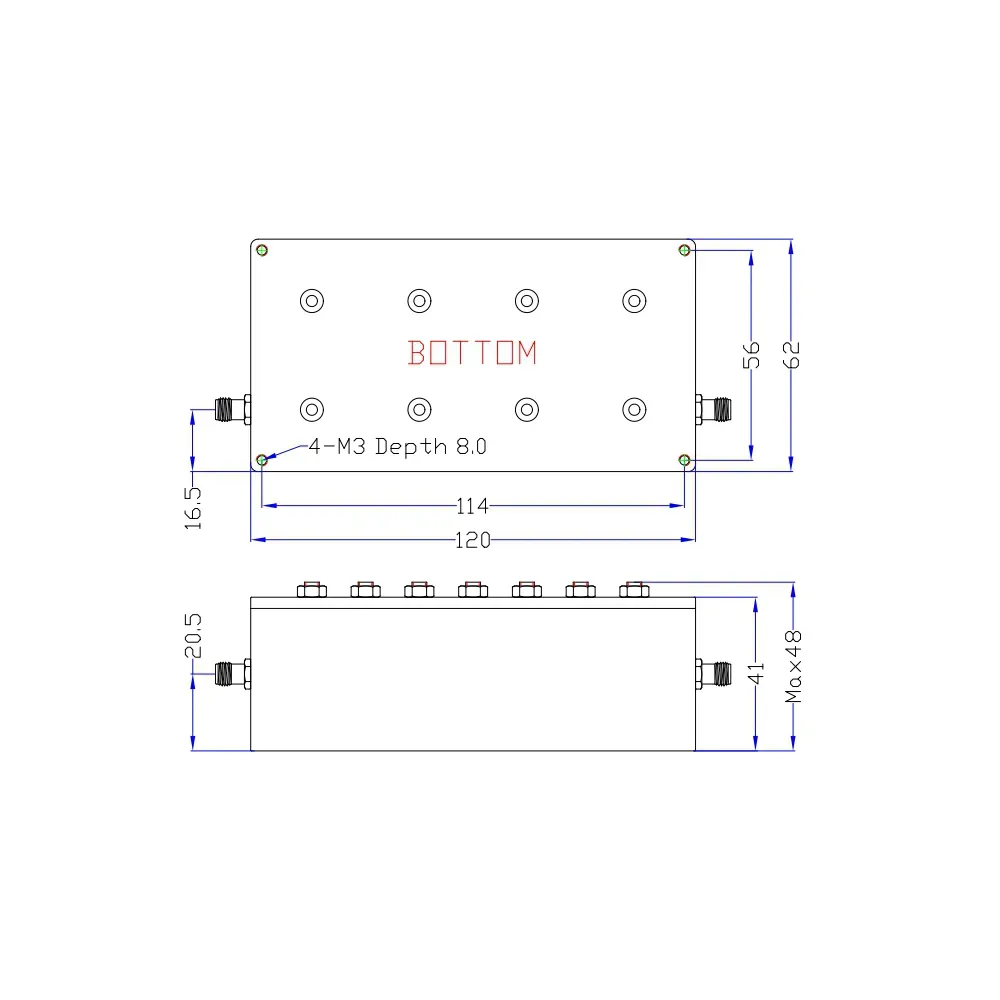

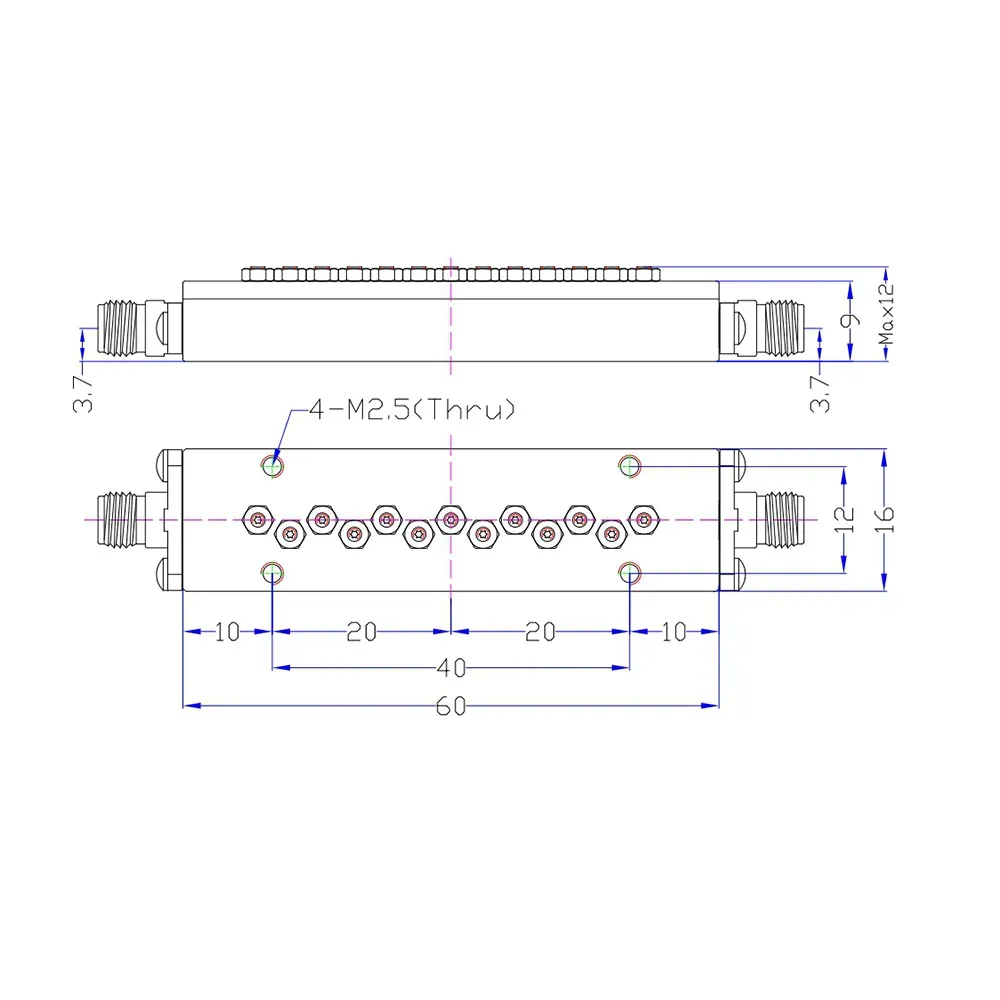

12ConfigurationAs Below (Size Unit: mm)
