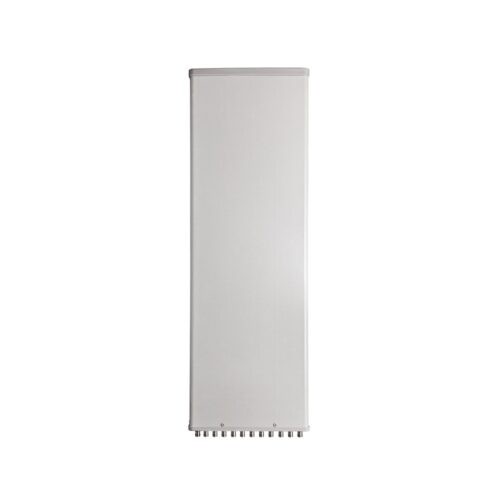

Product code: 12P-1710-2170F-17G-30H9V

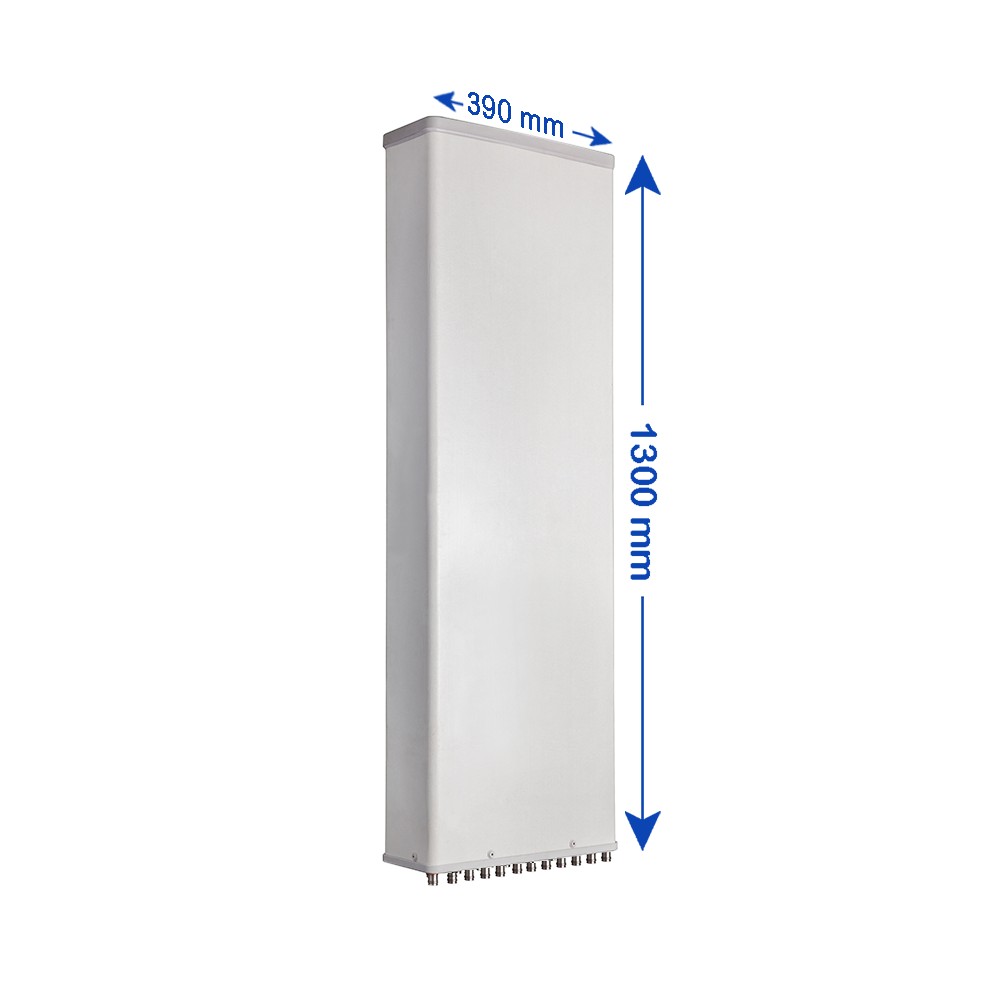

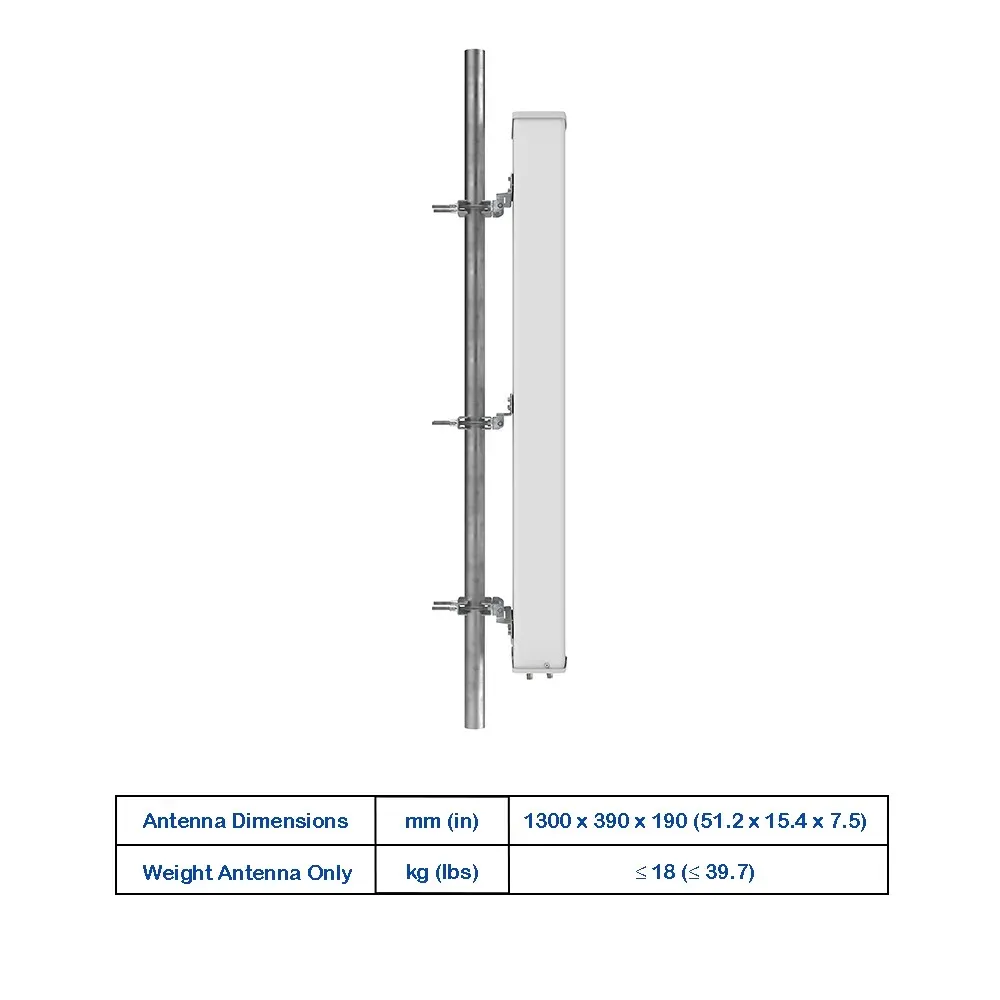

12-Port, 3-Beam Panel Sector Antenna, 30° HBW, (6x) 1710-2170 MHz, 17.4/17.4/19/19/17.4/17.4 dBi, 0-10°T, 1.300 m

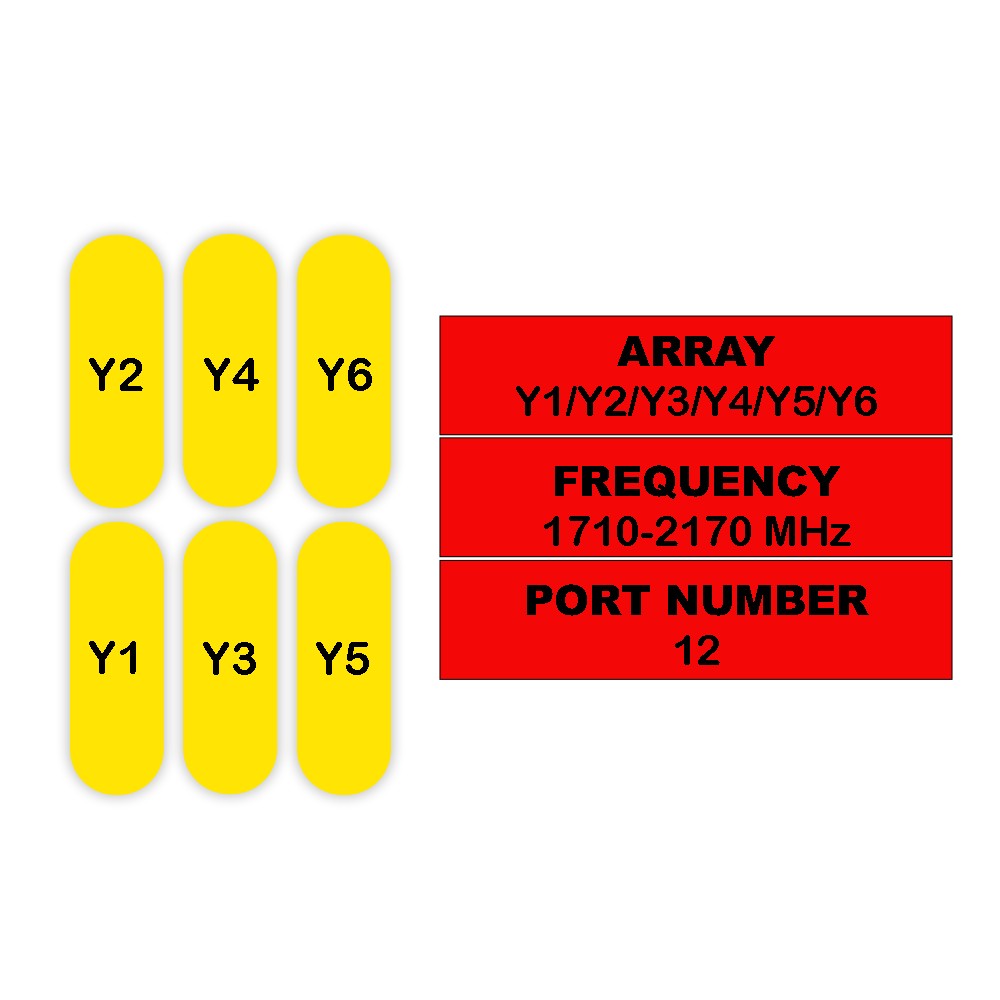

| 12-Port Antenna | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 |
| Frequency Range (MHz) | 1710-2170 | 1710-2170 | 1710-2170 | 1710-2170 | 1710-2170 | 1710-2170 |
| HBW | 30° | 30° | 30° | 30° | 30° | 30° |
| Gain | 17.4 dBi | 17.4 dBi | 18.7 dBi | 18.7 dBi | 17.4 dBi | 17.4 dBi |
| Tilt | 0-10° | 0-10° | 0-10° | 0-10° | 0-10° | 0-10° |

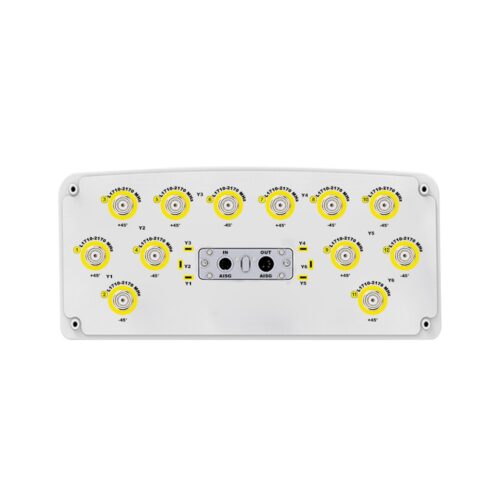

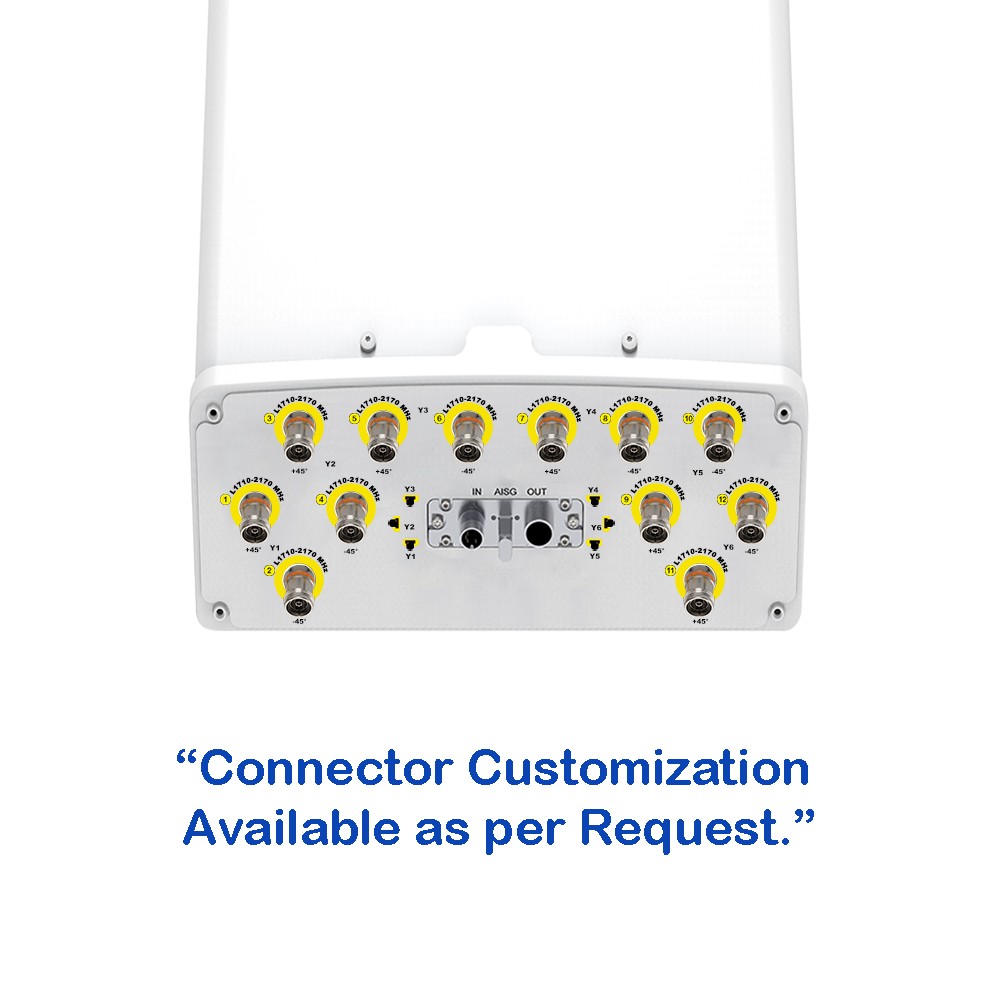

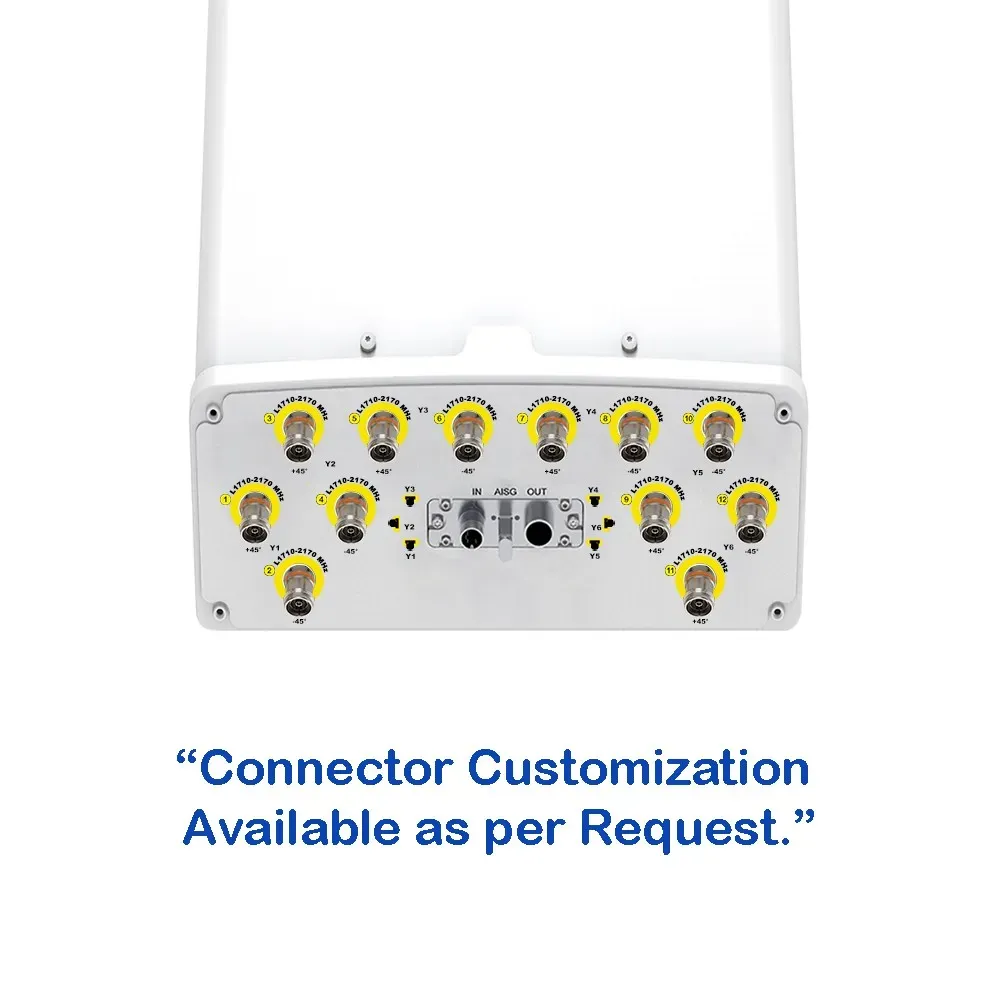

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
