Product code: 12P-1710-2400F-19G-30H10V

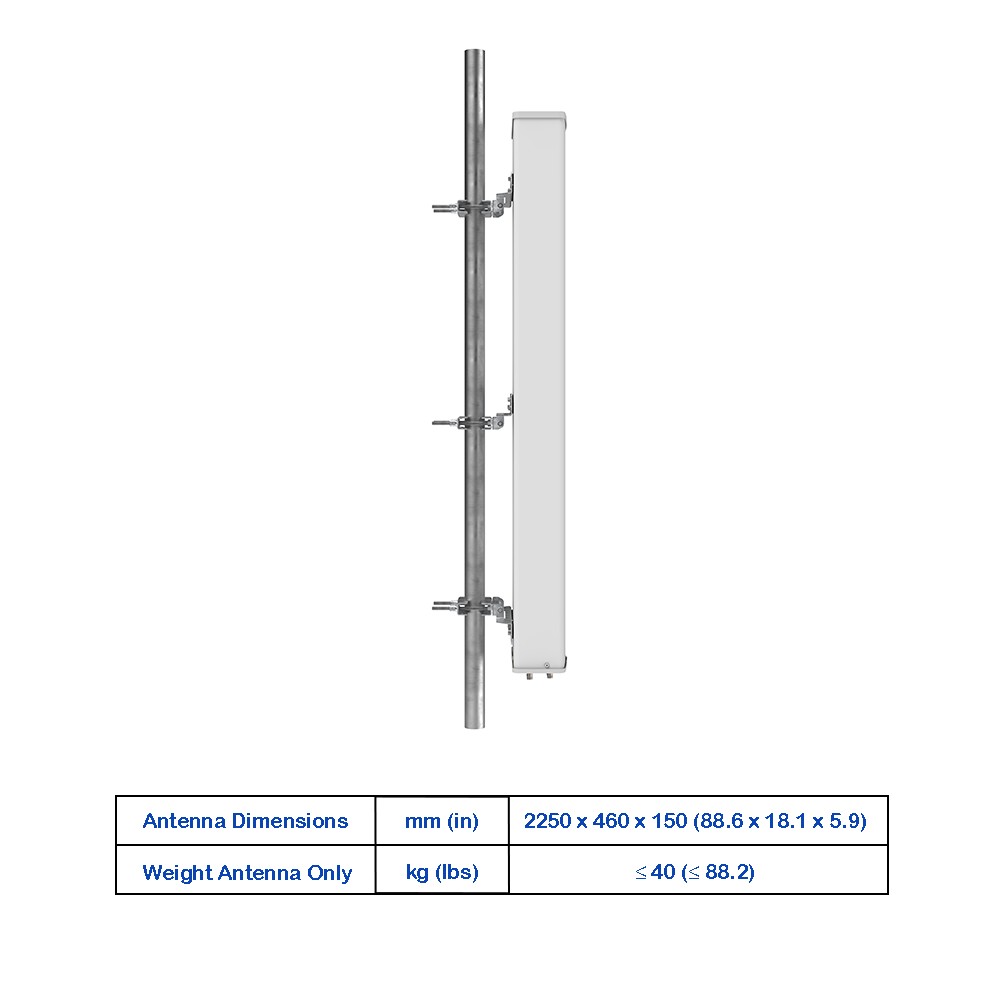

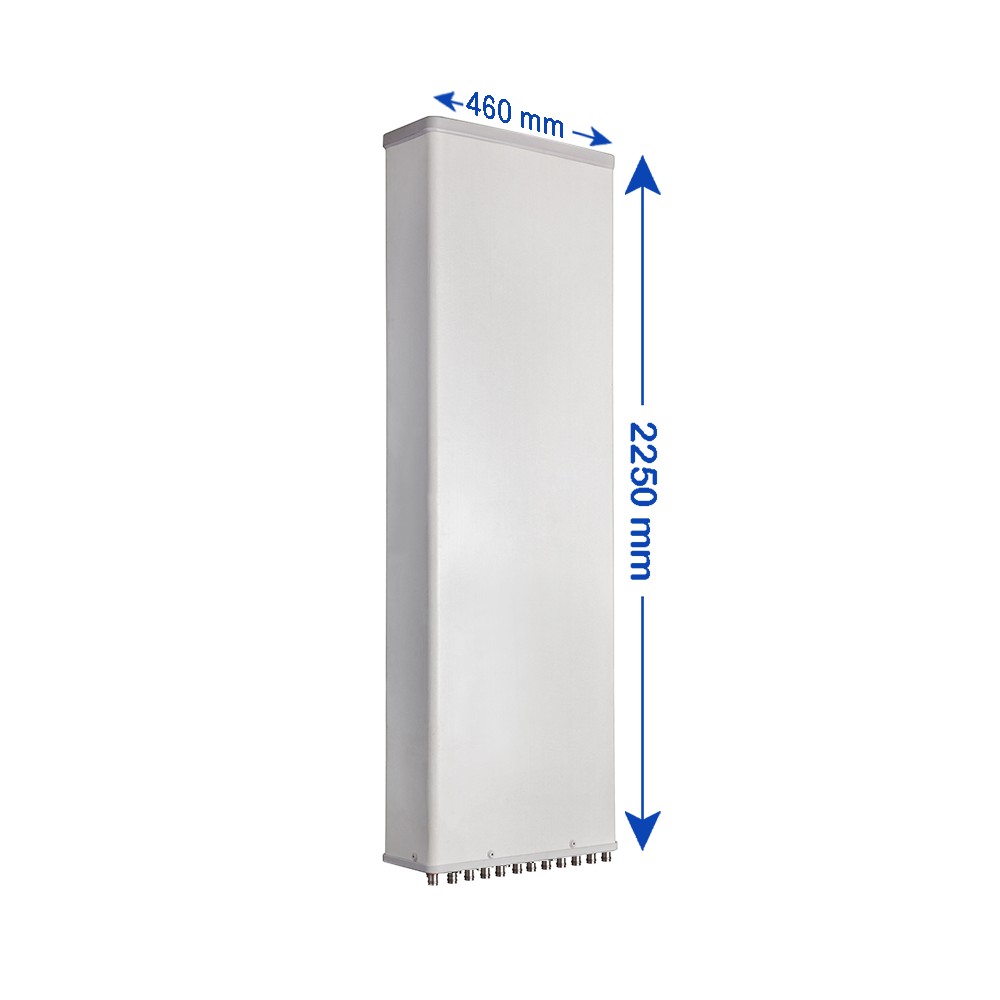

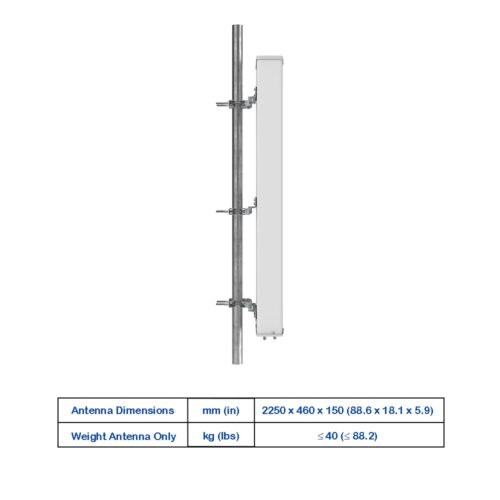

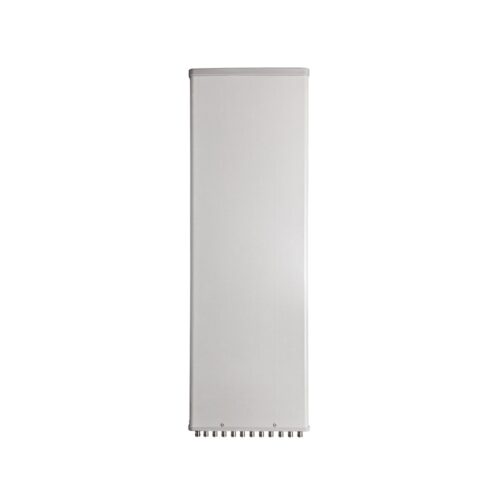

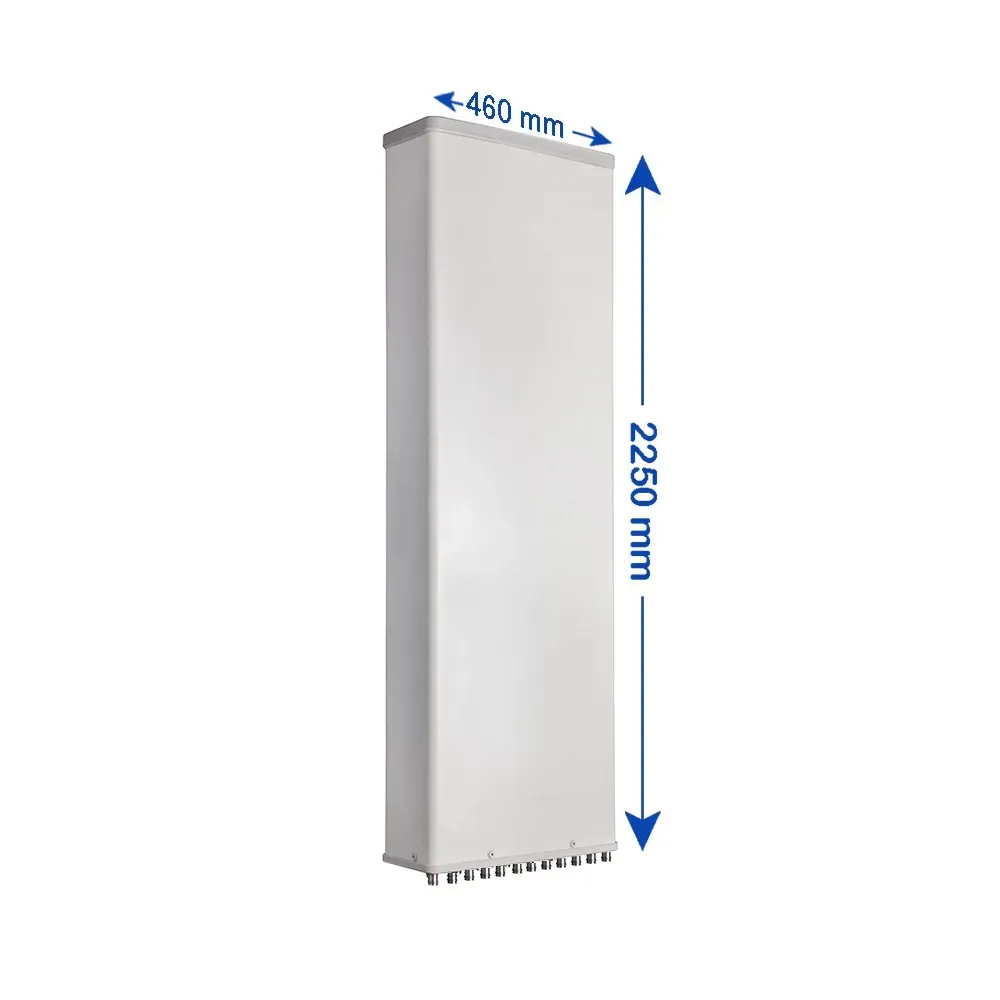

12-Port, 3-Beam Panel Sector Antenna, 30° HBW, (6x) 1710-2400 MHz, 19/19/19.5/19.5/19/19 dBi, 0-10°T, 2.250 m

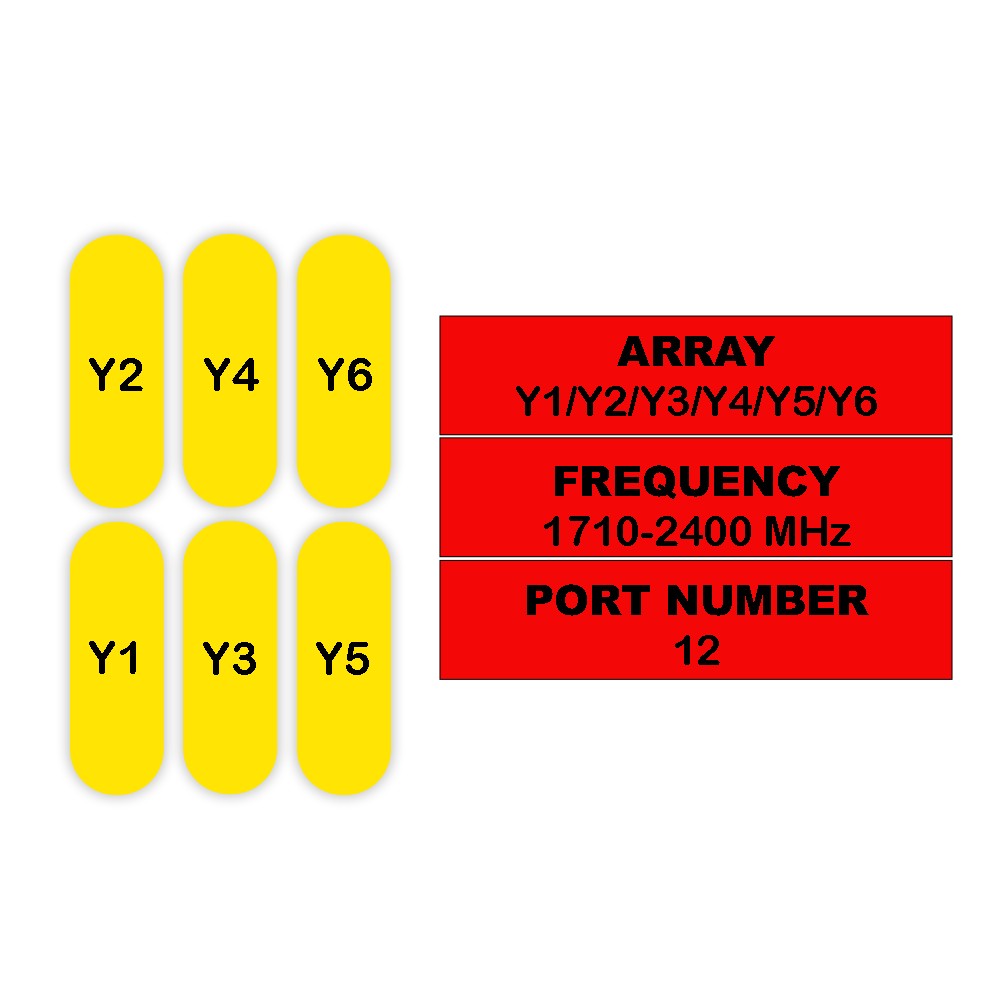

| 12-Port Antenna | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 |
| Frequency Range (MHz) | 1710-2400 | 1710-2400 | 1710-2400 | 1710-2400 | 1710-2400 | 1710-2400 |
| HBW | 30° | 30° | 30° | 30° | 30° | 30° |
| Gain | 19 dBi | 19 dBi | 19.5 dBi | 19.5 dBi | 19 dBi | 19 dBi |
| Tilt | 0-10° | 0-10° | 0-10° | 0-10° | 0-10° | 0-10° |

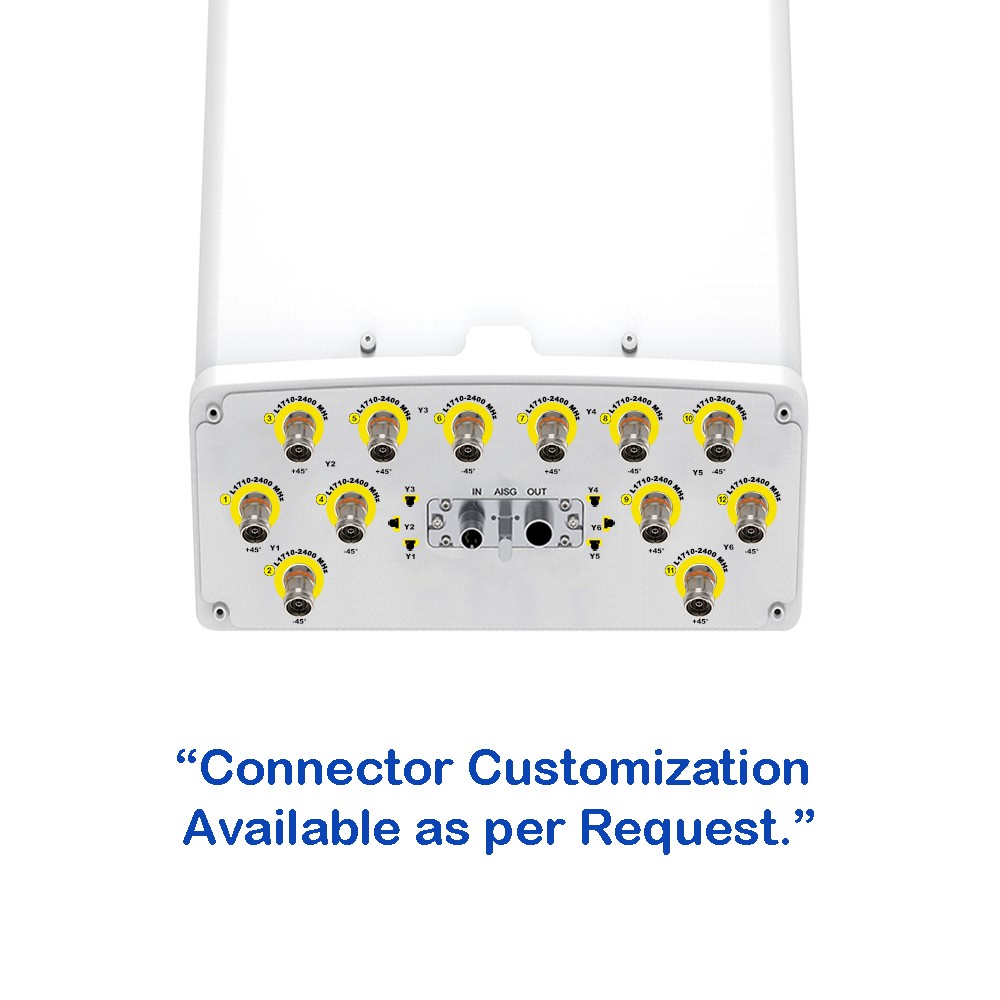

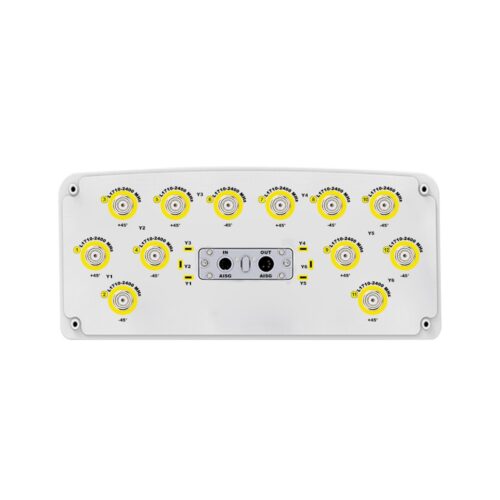

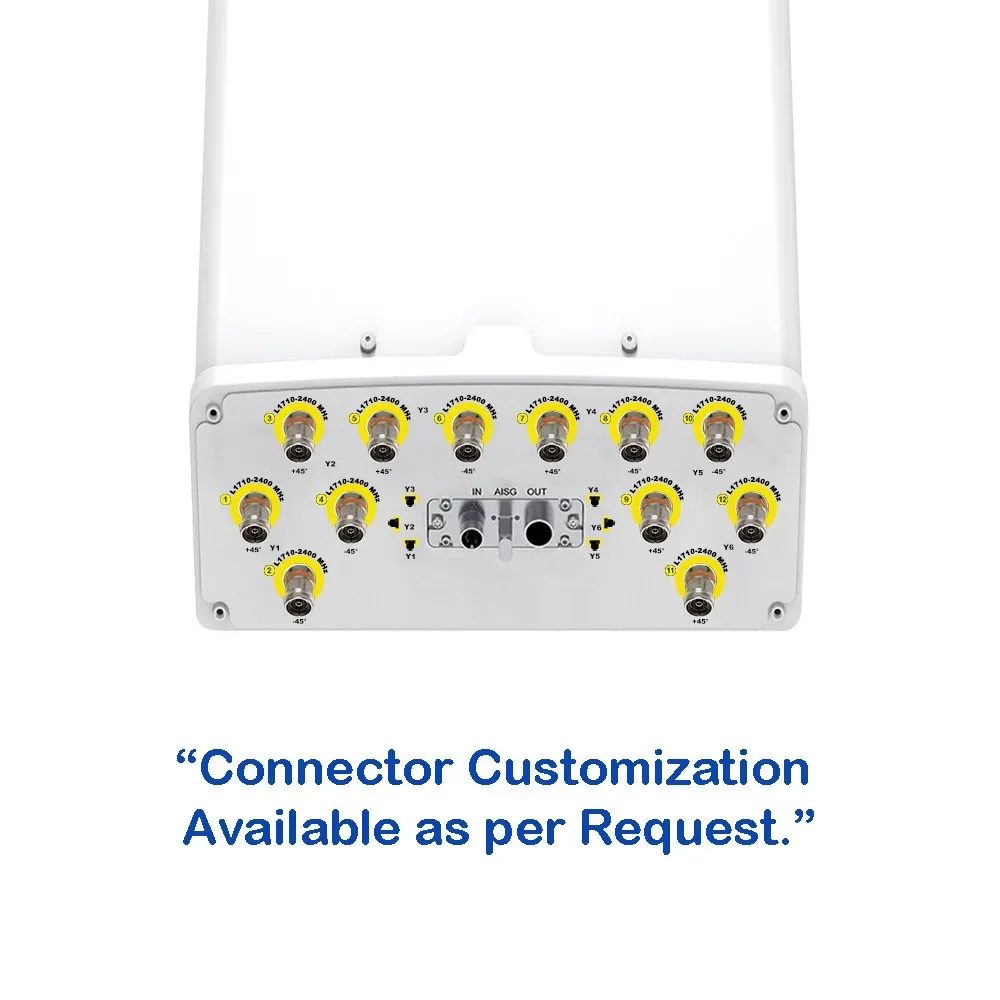

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
