Product code: 12P-698-2690F-17G-65H8V

12-Port, Hybrid, Split-Beam, Panel Sector Antenna, 65°/33° HBW, 698-960/1710-1880/(3x) 1710-2690/2500-2690 MHz, 17/16.5/17.5/18/19/19 dBi, 2-12°T, 2.597 m

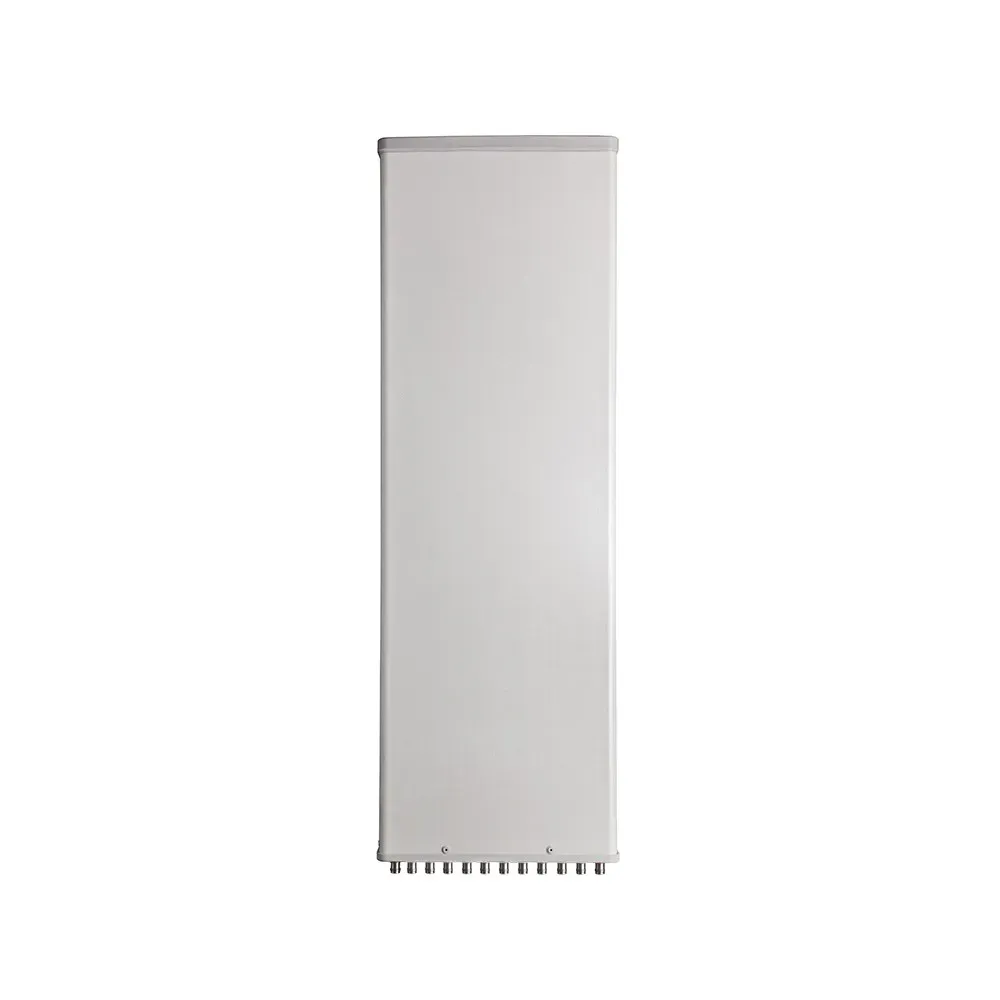

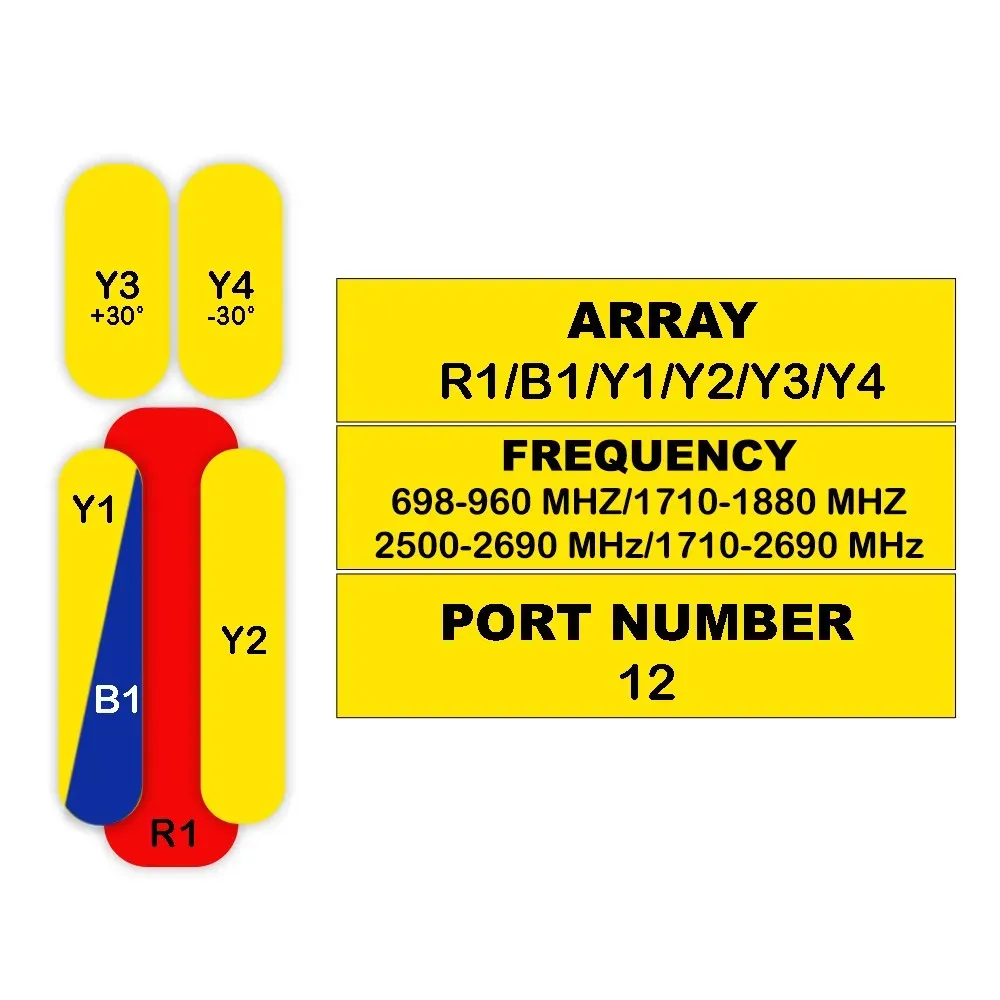

12-Port Antenna R1 B1 Y1 Y2 Y3 Y4
Frequency Range (MHz) 698-960 1710-1880 2500-2690 1710-2690 1710-2690 1710-2690
HBW 65° 65° 65° 65° 33° 33°
Gain 17 dBi 16.5 dBi 17.5 dBi 18 dBi 19 dBi 19 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

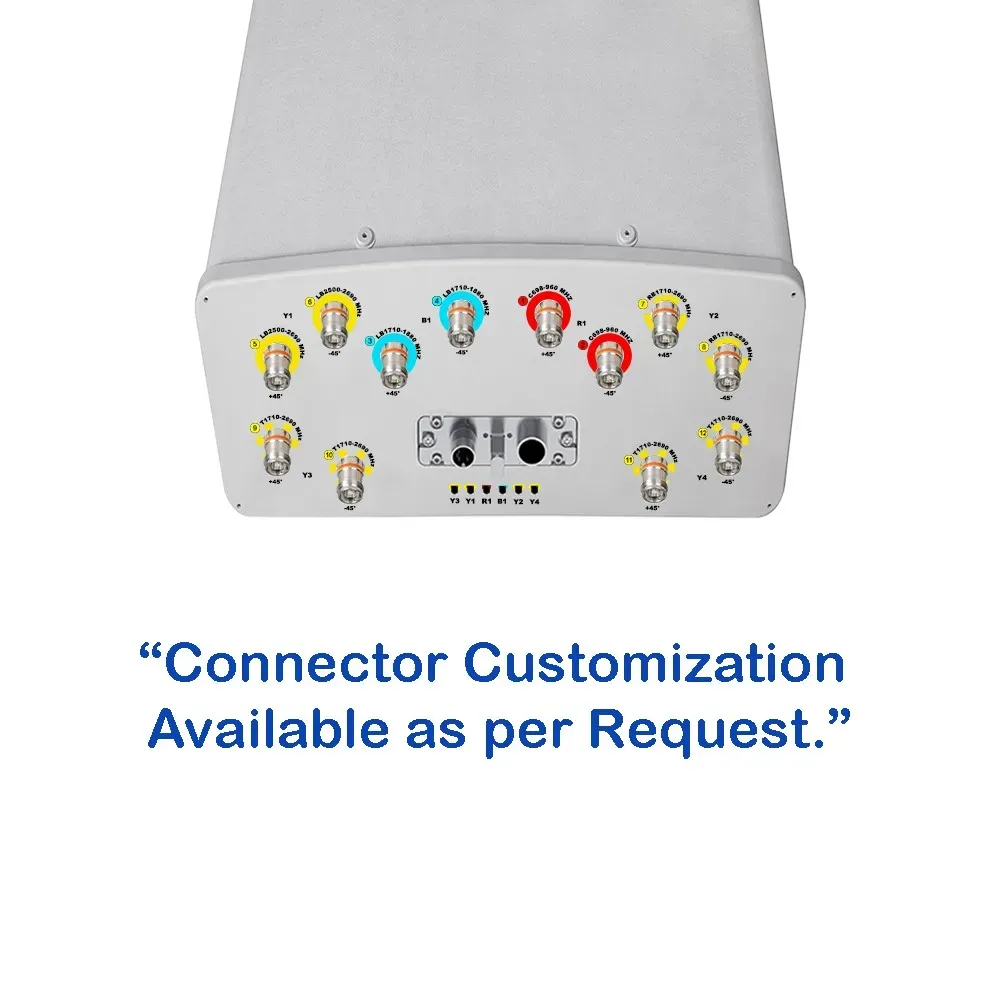

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
12P-698-2690F-17G-65H8V
Electrical & Mechanical Specification
Electrical Specifications
R1B1Y1
Frequency RangeMHz698-960
MHz698-806790-894880-9601710-18802500-2690
Polarization—±45°±45°
Gainat Mid TiltdBi15.816.416.816.217.1
Over All TiltsdBi15.7 ± 0.616.3 ± 0.616.7 ± 0.616.1 ± 0.617.0 ± 0.8
Horizontal Beamwidthdegree70 ± 667 ± 663 ± 667 ± 760 ± 7
Vertical Beamwidthdegree8.2 ± 0.97.3 ± 0.86.7 ± 0.77.5 ± 0.85.5 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec
First Upper Side Lobe SuppressiondB≥ 15≥ 15≥ 15≥ 15≥ 15
Front-To-Back Ratio Co-pol, ±30°dB≥ 23≥ 23≥ 24≥ 24≥ 25
Cross Polarat BoresightdB≥ 15≥ 15≥ 15≥ 16≥ 16
DiscriminationOver SectordB≥ 8≥ 8≥ 8≥ 8≥ 5
IsolationInterbanddB≥ 25≥ 25
IntrabanddB≥ 25≥ 25
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Y2Y3 / Y4
Frequency RangeMHz1710-26901710-2690
MHz1710-1850-1920-2300-2500-1710-1850-1920-2300-2500-
1880199021702400269018801990217024002690
Polarization—±45°±45°
GainAt Mid TiltdBi16.61717.317.617.517.617.918.118.818.7
Over All TiltsdBi16.5 ± 0.616.9 ± 0.617.2 ± 0.617.5 ± 0.617.4 ± 0.817.5 ± 0.617.8 ± 0.618.0 ± 0.618.7 ± 0.618.6 ± 0.6
Horizontal Beamwidthdegree67 ± 766 ± 764 ± 765 ± 760 ± 735 ± 333 ± 330 ± 327 ± 325 ± 3
Vertical Beamwidthdegree7.5 ± 0.87.0 ± 0.76.7 ± 0.76.1 ± 0.65.5 ± 0.69.8 ± 1.09.0 ± 0.98.5 ± 0.97.2 ± 0.76.7 ± 0.7
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec
First Upper Side Lobe SuppressiondB≥ 15≥ 15≥ 15≥ 15≥ 15≥ 15≥ 15≥ 15≥ 15≥ 15
Front-To-Back Ratio Co-pol, ±30°dB≥ 24≥ 24≥ 25≥ 25≥ 25≥ 23≥ 24≥ 25≥ 25≥ 25
Cross PolarAt BoresightdB≥ 16≥ 16≥ 16≥ 16≥ 16≥ 15≥ 15≥ 15≥ 15≥ 15
DiscriminationOver SectordB≥ 8≥ 8≥ 8≥ 6≥ 5
IsolationIntraband (Same-Beam)dB≥ 25≥ 25
Beam-To-BeamdB—≥ 15
InterbanddB≥ 25≥ 25
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

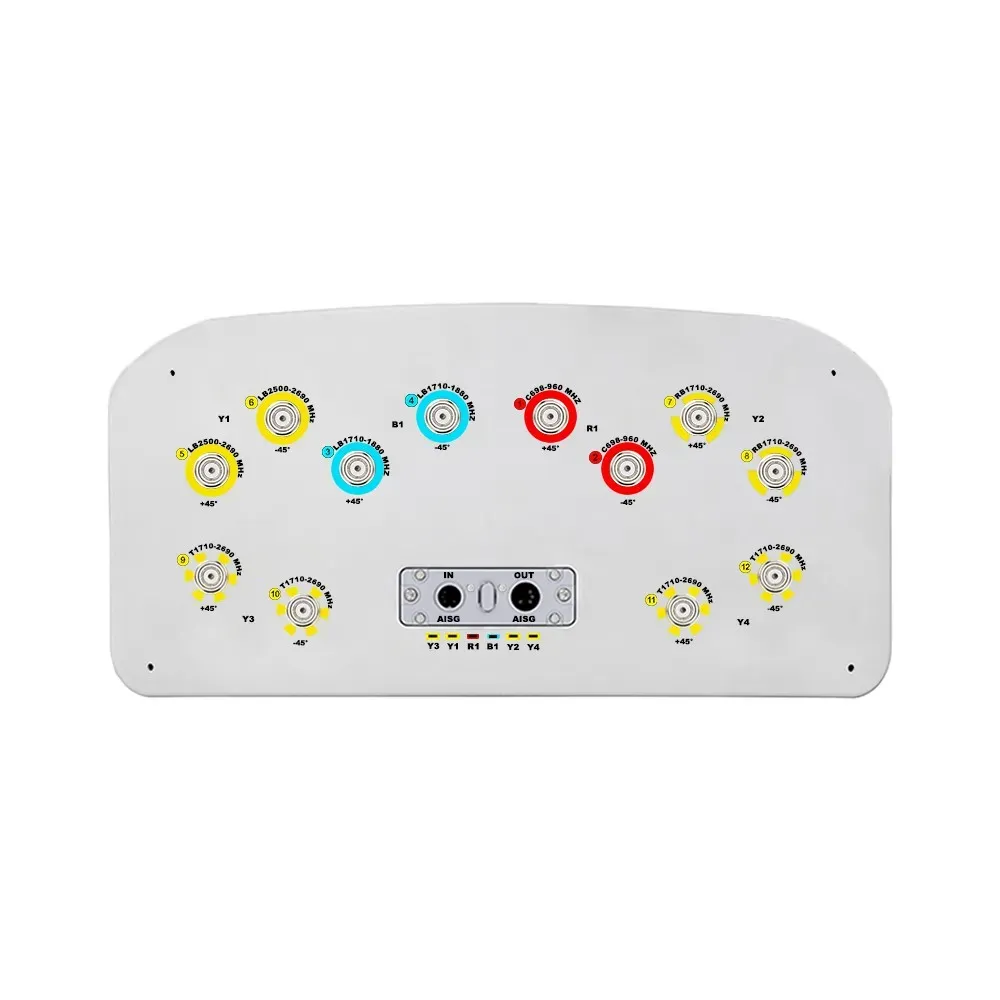

Connector Type—(12x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—UPVC

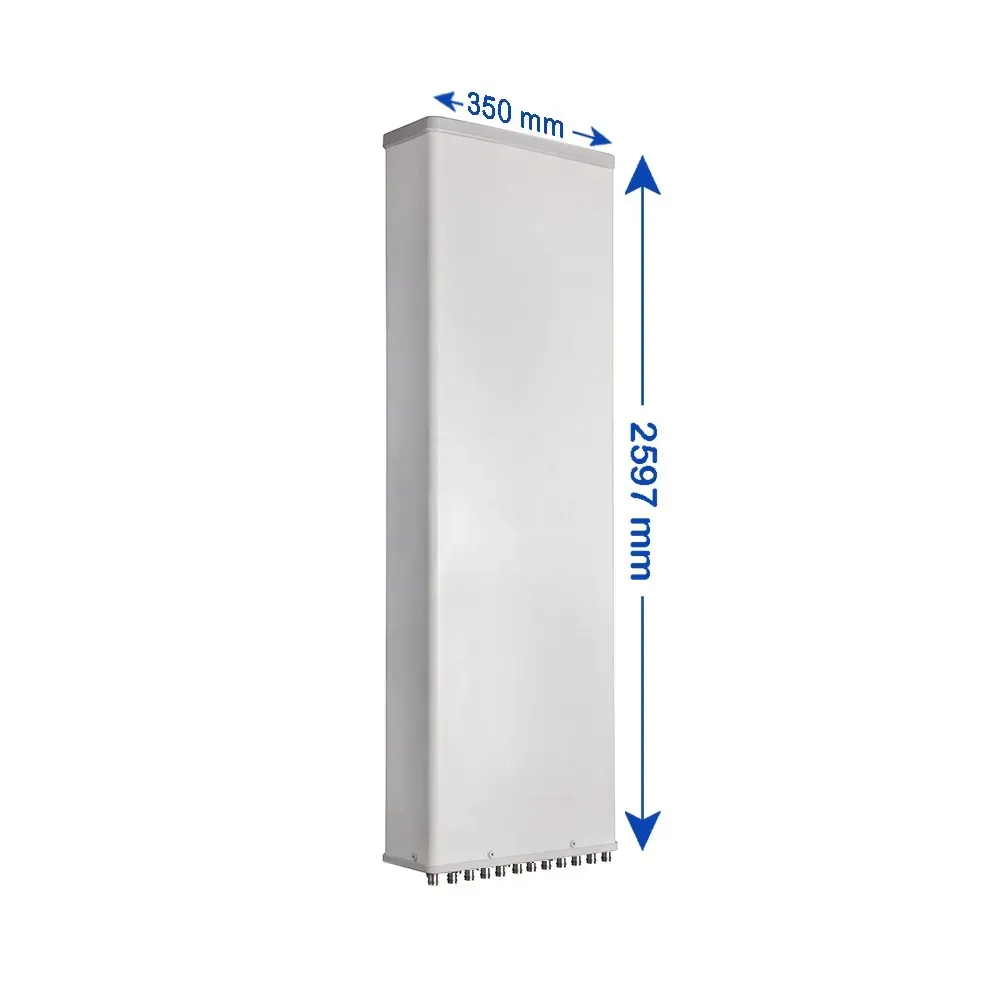

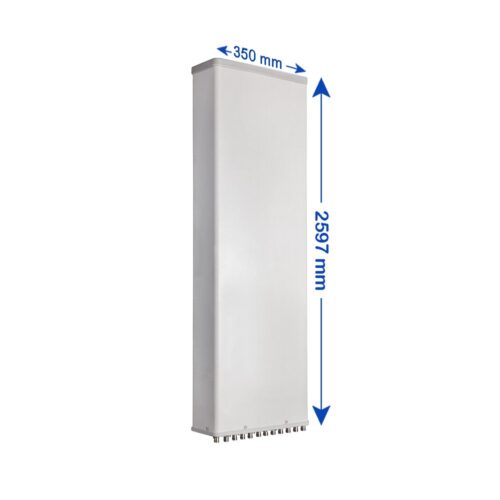

Antenna Dimensions (H x W x D)mm (in)2597 x 350 x 178 (102.2 x 13.8 x 7.0)
Antenna WeightAntenna Onlykg (lbs)38 (83.8)
with Clampskg (lbs)43.5 (95.9)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)840 (188.8)
at 150 km/hRearN (lbf)940 (211.3)
LateralN (lbf)580 (130.4)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
