Product code: 12P-698-2690F-17G-65H9V

12-Port, Hybrid, Split-Beam, Panel Sector Antenna, 65°/65°/65°/65°/35°/35° HBW, 698-960/(5x) 1710-2690 MHz, 17/18/18/18/19/19 dBi, 2-12°T, 2.597 m

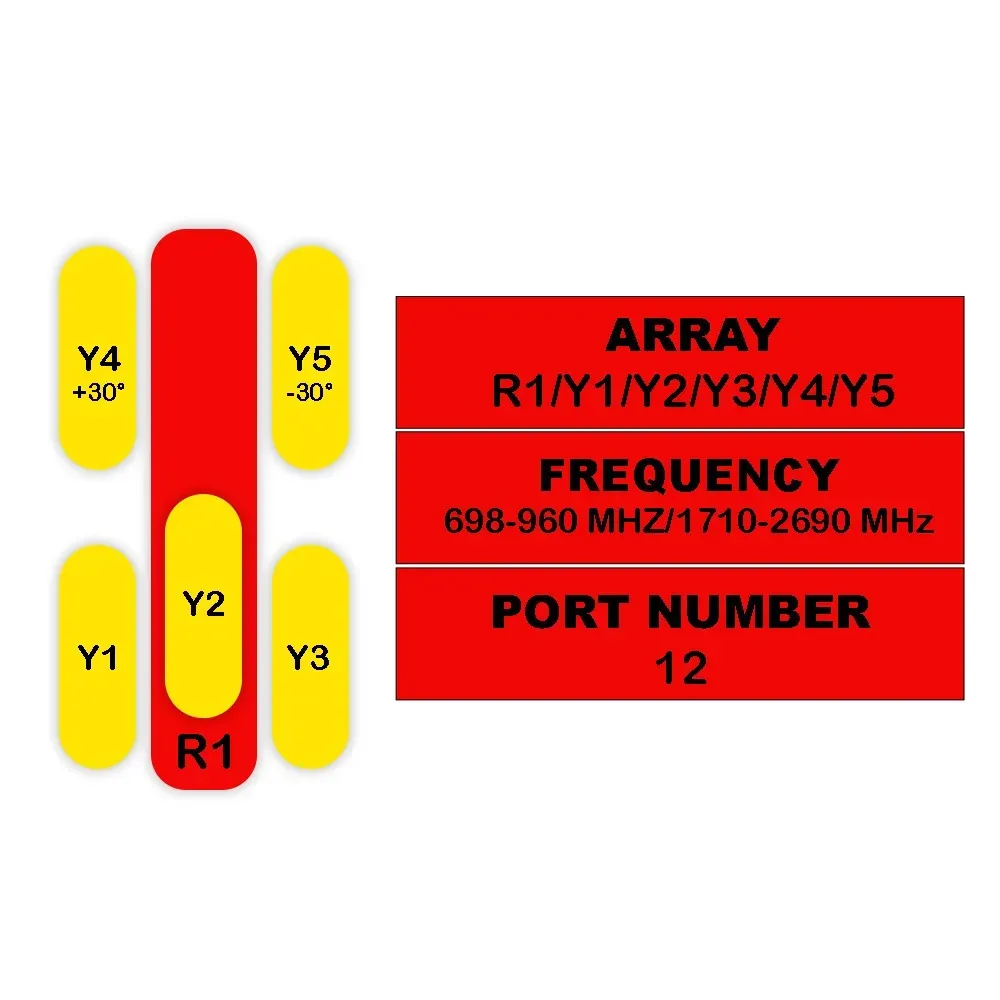

12-Port Antenna R1 Y1 Y2 Y3 Y4 Y5
Frequency Range (MHz) 698-960 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690
HBW 65° 65° 65° 65° 35° 35°
Gain 17 dBi 18 dBi 18 dBi 18 dBi 19 dBi 19 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

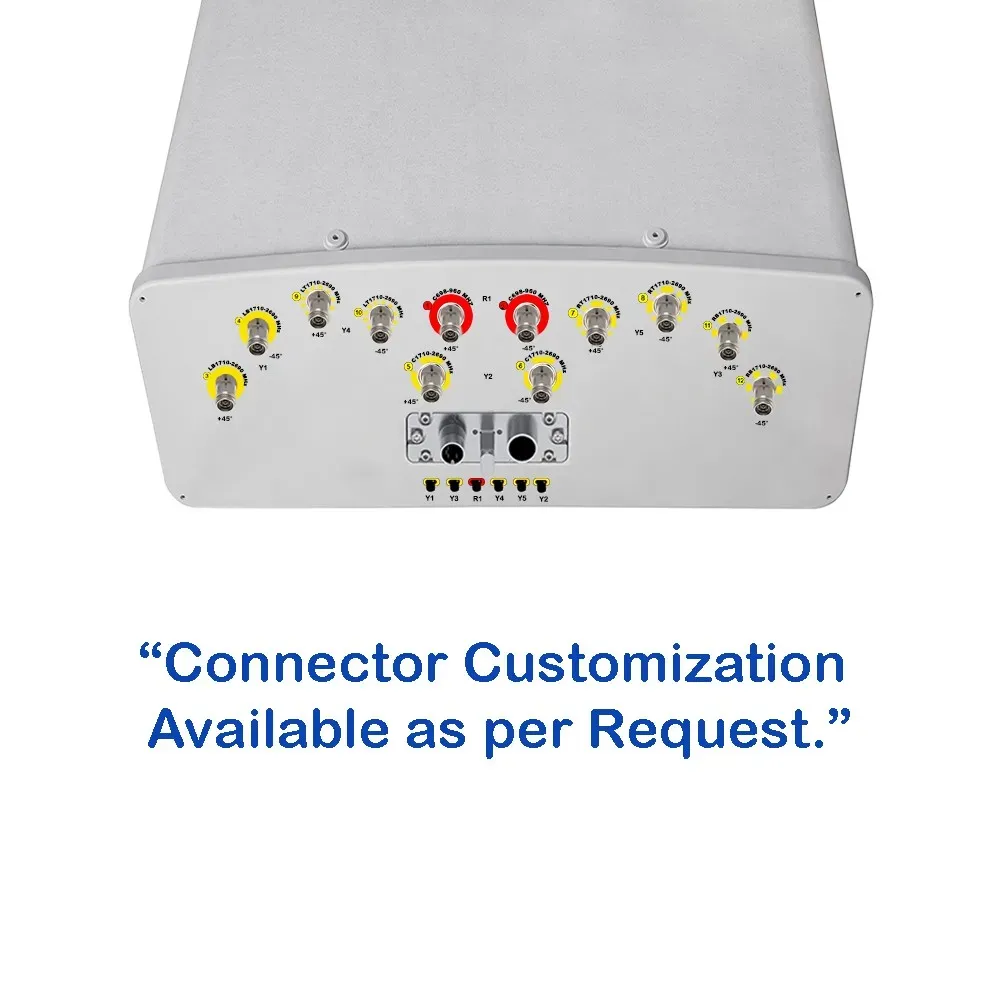

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
12P-698-2690F-17G-65H9V
Electrical & Mechanical Specification
Electrical Specifications
R1Y1 / Y2 / Y3
Frequency RangeMHz698-9601710-2690
MHz698-806790-894880-9601710-18801850-19901920-21702300-24002500-2690
Polarization—±45°±45°
Gainat Mid TiltdBi15.816.416.816.61717.317.617.5
Over All TiltsdBi15.7 ± 0.616.3 ± 0.616.7 ± 0.616.5 ± 0.616.9 ± 0.617.2 ± 0.617.5 ± 0.617.4 ± 0.8
Horizontal Beamwidthdegree70 ± 667 ± 663 ± 670 ± 768 ± 765 ± 763 ± 760 ± 7
Vertical Beamwidthdegree8.2 ± 0.97.3 ± 0.86.7 ± 0.77.5 ± 0.87.0 ± 0.76.7 ± 0.76.1 ± 0.65.5 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec
First Upper Side Lobe SuppressiondB≥ 16≥ 16≥ 16≥ 16≥ 16≥ 16≥ 16≥ 16
Front-To-Back Ratio Co-Pol, ±30°dB≥ 23≥ 23≥ 24≥ 24≥ 24≥ 25≥ 25≥ 25
Cross Polarat BoresightdB≥ 15≥ 15≥ 15≥ 16≥ 16≥ 16≥ 16≥ 16
DiscriminationOver SectordB≥ 8≥ 8≥ 8≥ 8≥ 8≥ 8≥ 6≥ 5
IsolationIntrabanddB≥ 25≥ 25
InterbanddB≥ 25≥ 25
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Y4 / Y5
Frequency RangeMHz1710-2690
MHz1710-18801850-19901920-21702300-24002500-2690
Polarization—±45°
Gainat Mid TiltdBi17.517.818.118.818.7
Over All TiltsdBi17.4 ± 0.617.7 ± 0.618.0 ± 0.618.7 ± 0.618.6 ± 0.6
Horizontal Beamwidthdegree40 ± 338 ± 335 ± 333 ± 330 ± 3
Azimuth Beam PointingdegreeY4: +30; Y5: -30
Vertical Beamwidthdegree9.8 ± 1.09.0 ± 0.98.5 ± 0.97.2 ± 0.76.7 ± 0.7
Electrical Downtilt, Continuously Adjustabledegree2-Dec
First Upper Side Lobe SuppressiondB≥ 16≥ 16≥ 16≥ 16≥ 16
Front-To-Back Ratio Co-Pol, ±30°dB≥ 23≥ 24≥ 25≥ 25≥ 25
Cross Polar Discrimination at BoresightdB≥ 15≥ 15≥ 15≥ 15≥ 15
IsolationIntraband, Same BeamdB≥ 25
Beam-to-BeamdB≥ 28
InterbanddB≥ 28
ImpedanceOhm50
VSWR—< 1.5
Return LossdB> 14
PIM3 (2×43 dBm Carrier)dBc< -150
Lightning Protection—DC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(12x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

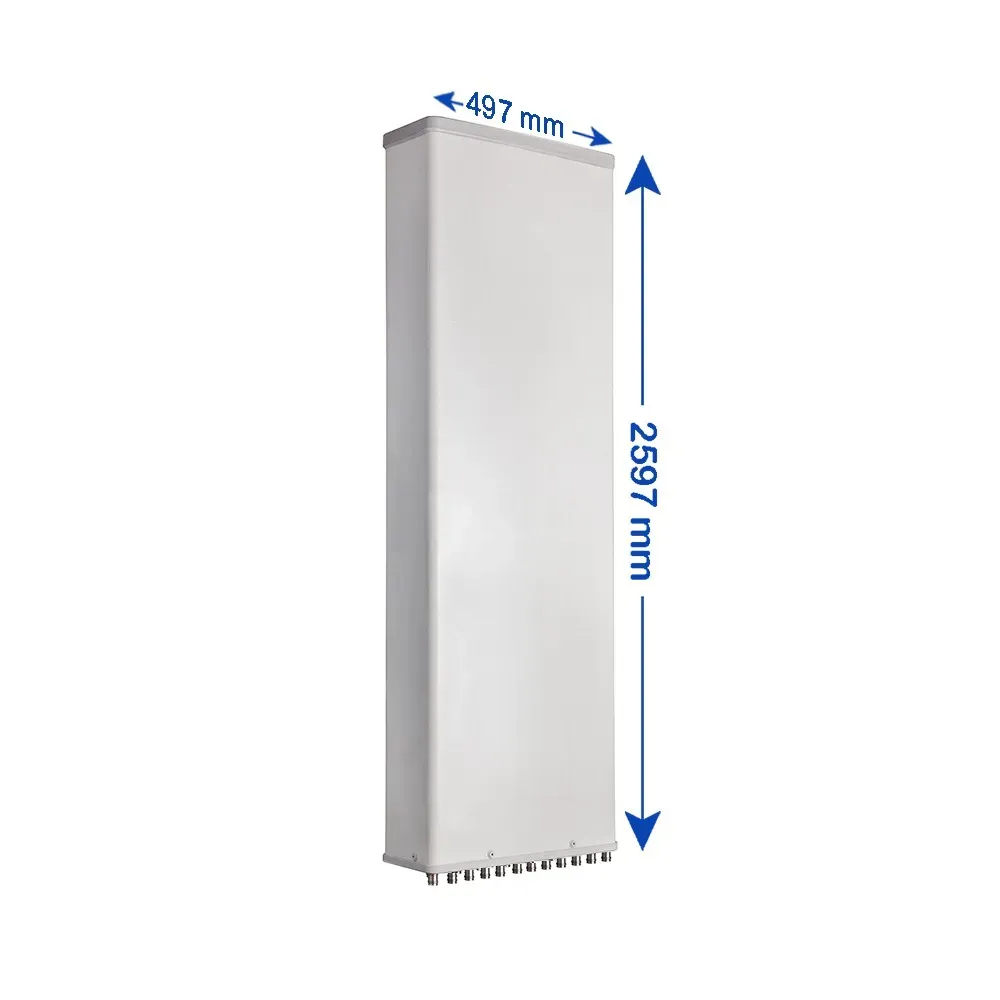

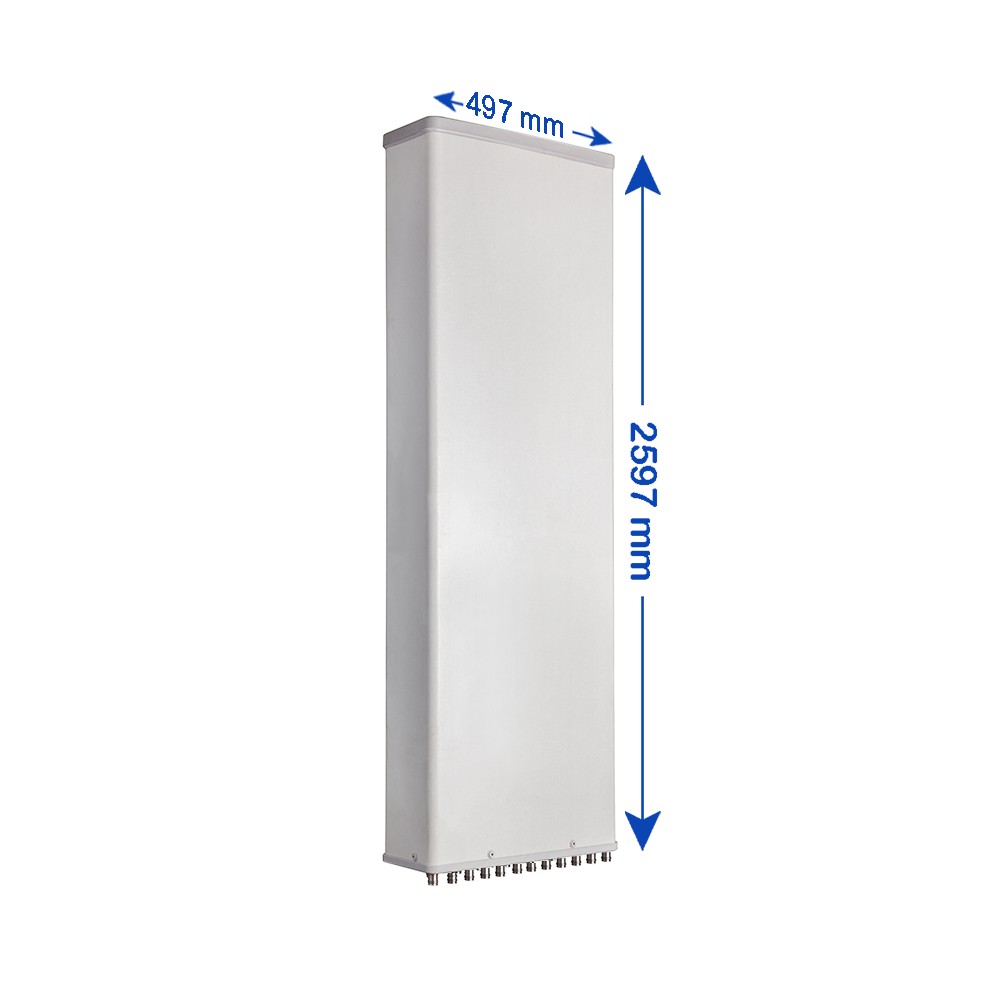

Antenna Dimensions (H x W x D)mm (in)2597 x 497 x 197 (102.2 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)46 (101.4)
with Clampskg (lbs)53.5 (117.9)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)1195 (268.6)
at 150 km/hRearN (lbf)1335 (300.1)
LateralN (lbf)585 (131.5)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
