Product code: 12P-698-2690F-18G-65H9V
12-Port, Hybrid, Split-Beam, Panel Sector Antenna, 65°/65°/35°/35°/35°/35° HBW, 698-960/(5x) 1710-2690 MHz, 17/18/19/19/19/19 dBi, 2-12°T, 2.597 m

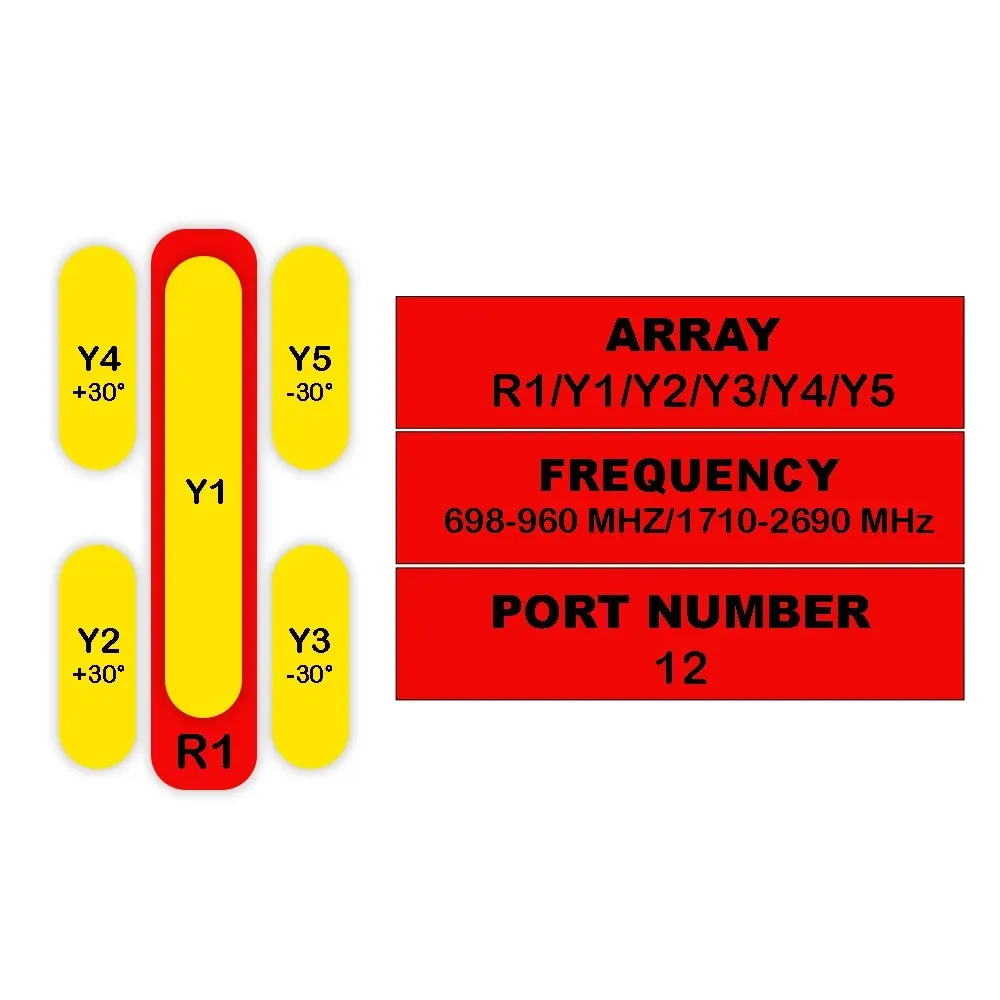

| 12-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 | Y5 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 35° | 35° | 35° | 35° |
| Gain | 17 dBi | 18 dBi | 19 dBi | 19 dBi | 19 dBi | 19 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

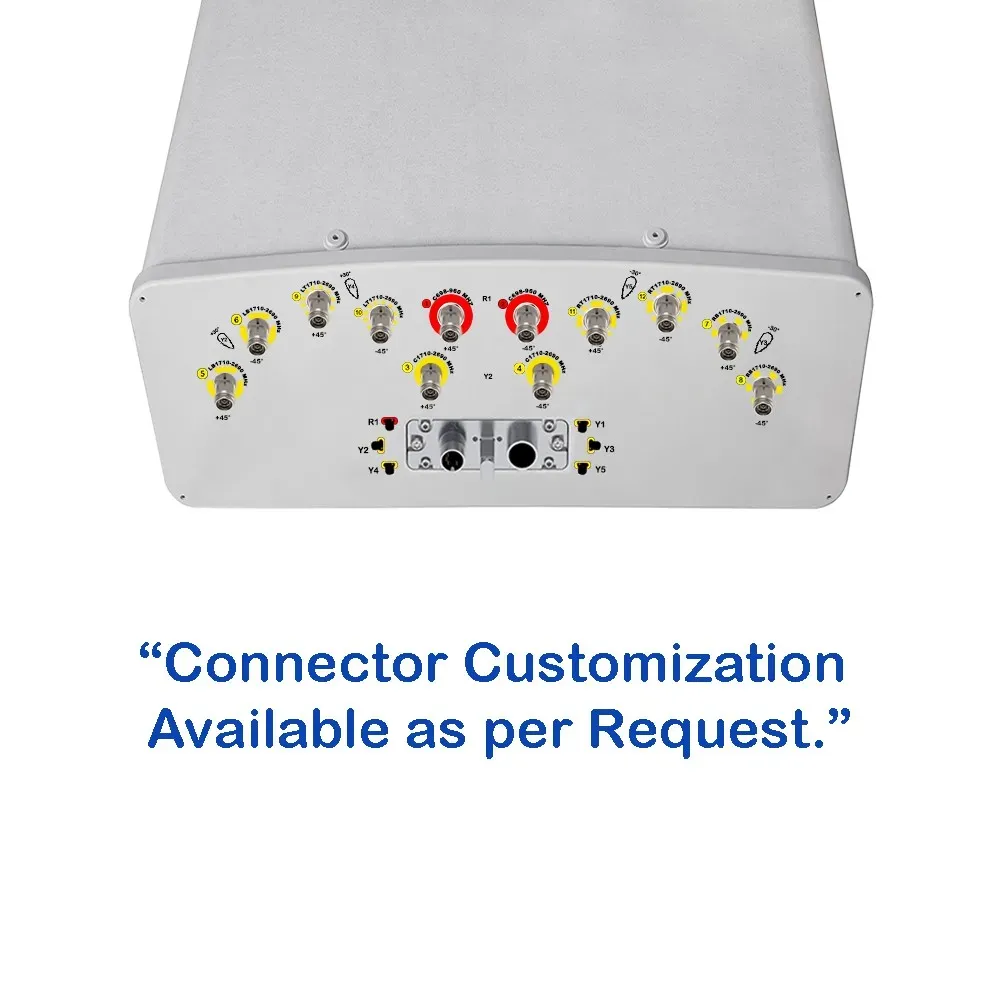

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
12P-698-2690F-18G-65H9V
Electrical & Mechanical Specification
| Electrical Specifications | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| R1 | Y1 | |||||||||
| Frequency Range | MHz | 698-960 | 1710-2690 | |||||||
| MHz | 698-806 | 790-894 | 880-960 | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2500-2690 | ||
| Polarization | — | ±45° | ±45° | |||||||
| Gain | at Mid Tilt | dBi | 15.8 | 16.3 | 16.6 | 16.6 | 16.9 | 17.2 | 17.6 | 17.5 |
| Over All Tilts | dBi | 15.7 ± 0.6 | 16.2 ± 0.6 | 16.5 ± 0.6 | 16.5 ± 0.6 | 16.8 ± 0.6 | 17.1 ± 0.6 | 17.5 ± 0.6 | 17.4 ± 0.6 | |
| Horizontal Beamwidth | degree | 69 ± 5 | 67 ± 5 | 63 ± 5 | 69 ± 6 | 68 ± 6 | 65 ± 6 | 60 ± 6 | 58 ± 6 | |
| Vertical Beamwidth | degree | 8.5 ± 0.9 | 7.7 ± 0.8 | 7.2 ± 0.7 | 7.5 ± 0.8 | 7.0 ± 0.7 | 6.6 ± 0.7 | 5.8 ± 0.6 | 5.5 ± 0.6 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | 2-Dec | |||||||
| First Upper Side Lobe Suppression | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | |
| Front-To-Back Ratio Co-Pol, ±30° | dB | > 23 | > 24 | > 25 | > 26 | > 26 | > 26 | > 26 | > 26 | |
| Cross Polar | at Boresight | dB | > 16 | > 16 | > 16 | > 19 | > 20 | > 20 | > 20 | > 20 |
| Discrimination | Over Sector | dB | > 6 | > 8 | > 8 | > 7 | > 7 | > 7 | > 5 | > 5 |
| Isolation | Intraband | dB | > 25 | > 25 | ||||||
| Interband | dB | > 25 | > 25 | |||||||
| Impedance | Ohm | 50 | 50 | |||||||
| VSWR | — | < 1.5 | < 1.5 | |||||||
| Return Loss | dB | > 14 | > 14 | |||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | < -150 | |||||||
| Lightning Protection | — | DC Ground | DC Ground | |||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 200 | |||||||
| Y2 / Y3 / Y4 / Y5 | ||||||||||
| Frequency Range | MHz | 1710-2690 | ||||||||
| MHz | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2500-2690 | |||||
| Polarization | — | ±45° | ||||||||
| Gain | at Mid Tilt | dBi | 17.5 | 17.9 | 18.3 | 18.8 | 18.7 | |||
| Over All Tilts | dBi | 17.4 ± 0.6 | 17.8 ± 0.6 | 18.2 ± 0.6 | 18.7 ± 0.6 | 18.6 ± 0.6 | ||||
| Horizontal Beamwidth | degree | 41 ± 3 | 39 ± 3 | 36 ± 3 | 32 ± 3 | 30 ± 3 | ||||
| Azimuth Beam Pointing | degree | Y3 / Y5: +30 ±3; Y2 / Y4: -30 ± 3 | ||||||||
| Vertical Beamwidth | degree | 9.6 ± 1.0 | 9.0 ± 0.9 | 8.5 ± 0.9 | 7.2 ± 0.7 | 6.6 ± 0.7 | ||||
| Electrical Downtilt, Continuously Adjustable | degree | 2-Dec | ||||||||
| First Upper Side Lobe Suppression | dB | > 15 | > 15 | > 15 | > 15 | > 15 | ||||
| Front-To-Back Ratio Co-Pol, ±30° | dB | > 26 | > 26 | > 26 | > 26 | > 26 | ||||
| Cross Polar Discrimination at Boresight | dB | > 20 | > 20 | > 20 | > 20 | > 20 | ||||
| Isolation | Intraband, Same Beam | dB | > 25 | |||||||
| Beam-to-Beam | dB | > 25 | ||||||||
| Interband | dB | > 25 | ||||||||
| Impedance | Ohm | 50 | ||||||||
| VSWR | — | < 1.5 | ||||||||
| Return Loss | dB | > 14 | ||||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -150 | ||||||||
| Lightning Protection | — | DC Ground | ||||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 200 | ||||||||
| Integrated RET Specifications | ||||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | |||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | |||||||||
| Power | Standby | < 2 W | ||||||||
| Consumption | In Motion | < 10 W | ||||||||
| Connectors | 2 x 8 Pin Circle Connector | |||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | ||||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | ||||||||||
| Hardware Interfaces | RS485 and Power | |||||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | |||||||||
| Adjustment Cycles | > 20,000 | |||||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | |||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | |||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 | ||||||||||
| Remote Control | Can manage from OMC, BTS/Node B | |||||||||
| Daisy Chaining Method | Ready for daisy-chaining | |||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | |||||||||
| Housing Material / Color | Aluminum / Grey | |||||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | |||||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | |||||||||
| Humidity | Up to 95% | |||||||||
| IP Rating | IP65 | |||||||||
| Weight | ≤ 500 g | |||||||||
| Mechanical Specifications | ||||||||||
| Connector Type | — | (12x) 4.3/10 Female | ||||||||
| Connector Position | — | Bottom | ||||||||
| Electrical Tilt Control | — | Integrated RET | ||||||||
| Radome Material | — | Fiberglass | ||||||||

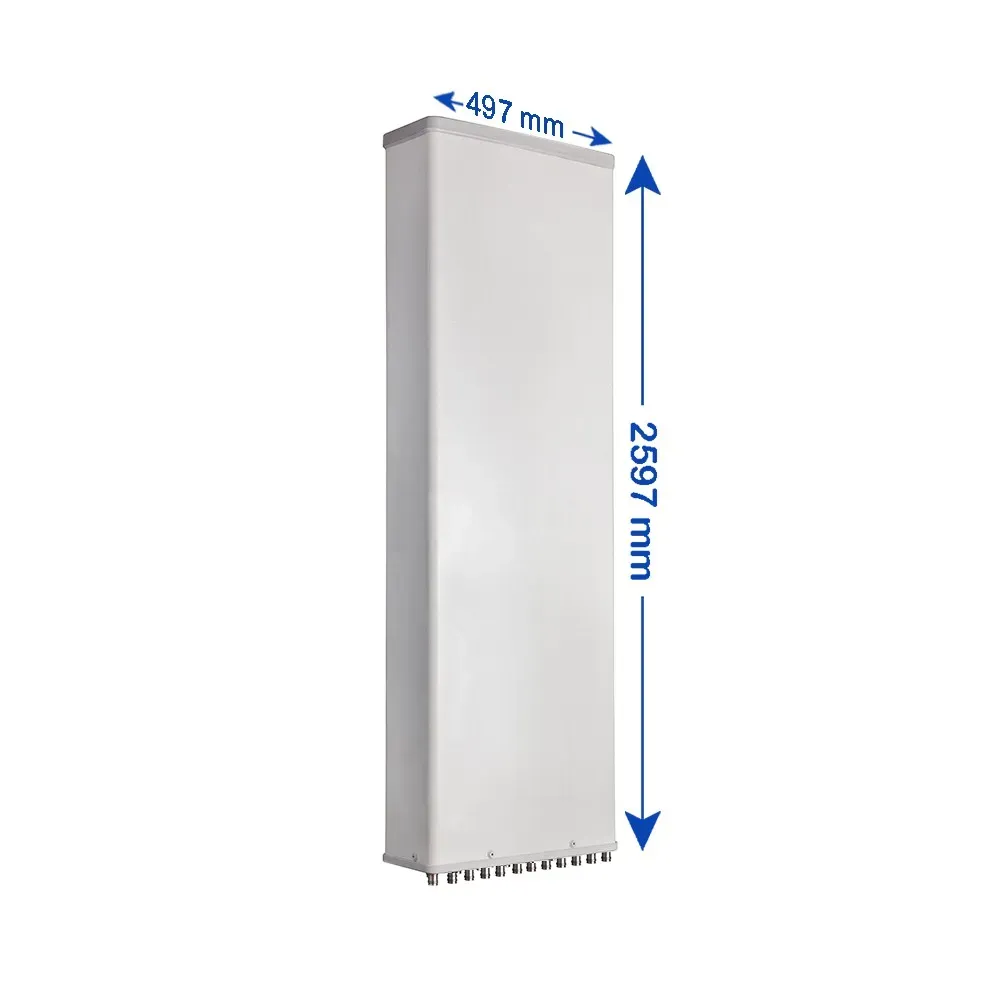

| Antenna Dimensions (H x W x D) | mm (in) | 2597 x 497 x 197 (102.2 x 19.6 x 7.8) | ||||||||
| Antenna Weight | Antenna Only | kg (lbs) | 44.5 (98.1) | |||||||
| with Clamps | kg (lbs) | 52 (114.6) | ||||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | ||||||||
| Wind Load | Frontal | N (lbf) | 1195 (268.6) | |||||||
| at 150 km/h | Rear | N (lbf) | 1335 (300.1) | |||||||
| Lateral | N (lbf) | 585 (131.5) | ||||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | ||||||||
