12-Port, Hybrid SplitBeam Panel Sector Antenna, (2x) 65°/ (4x) 33° HBW, (2x) 698-960/(4x) 1710-2690 MHz, 16/16/19/19/19/19 dBi, 2-12°T, 2.197 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 12P-698-2690F-16G-65H12V

12-Port, Hybrid SplitBeam Panel Sector Antenna, (2x) 65°/ (4x) 33° HBW, (2x) 698-960/(4x) 1710-2690 MHz, 16/16/19/19/19/19 dBi, 2-12°T, 2.197 m

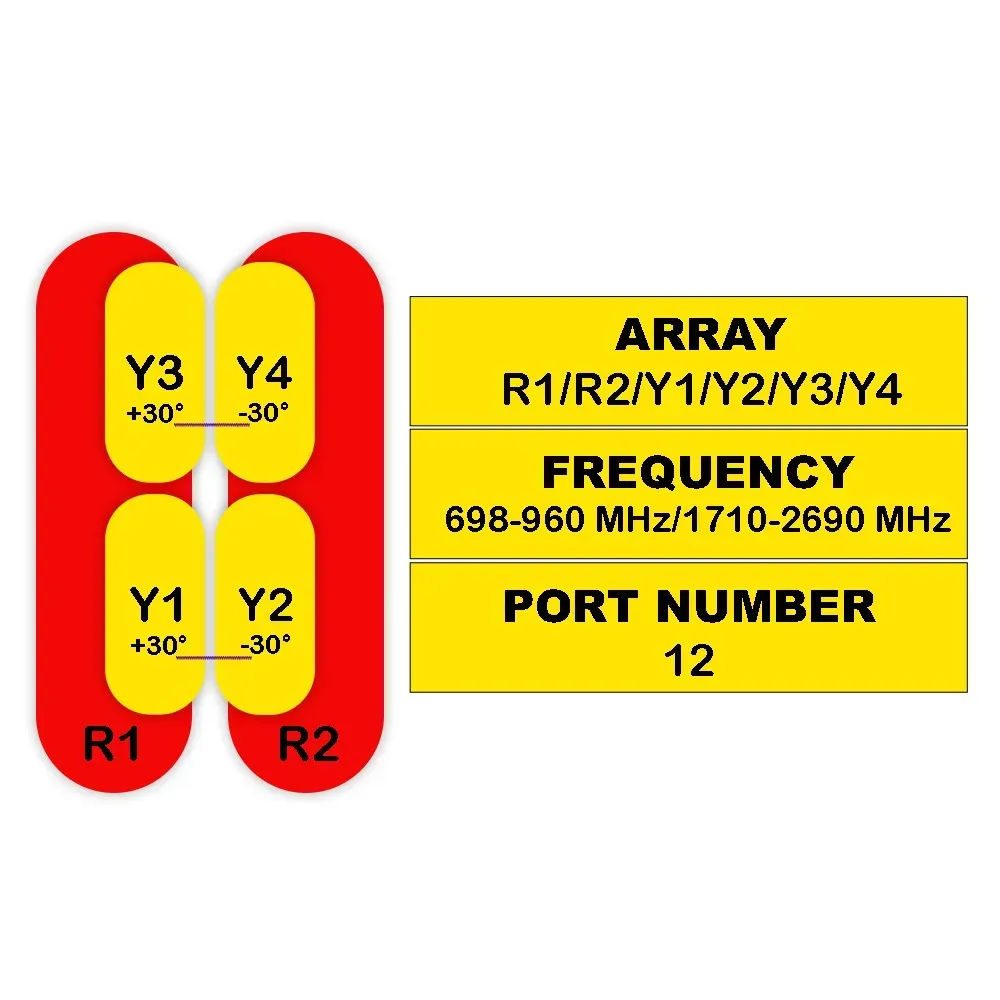

12-Port Antenna	R1	R2	Y1	Y2	Y3	Y4
Frequency Range (MHz)	698-960	698-960	1710-2690	1710-2690	1710-2690	1710-2690
HBW	65°	65°	33°	33°	33°	33°
Gain	16 dBi	16 dBi	19 dBi	19 dBi	19 dBi	19 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

12P-698-2690F-16G-65H12V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2			Y1 / Y2 / Y3 / Y4
Frequency Range		MHz	698-960			1710-2690
Frequency Range		MHz	698-806	790-894	880-960	1710-1880	1850-1990	1920-2170	2300-2500	2500-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	14.8	15.4	15.6	17.5	18.1	18.5	19.1	18.9
Gain	Over All Tilts	dBi	14.7 ± 0.6	15.3 ± 0.6	15.5 ± 0.6	17.3 ± 0.7	18.0 ± 0.6	18.4 ± 0.6	19.0 ± 0.6	18.8 ± 0.7
Horizontal Beamwidth		degree	67 ± 6	65 ± 6	60 ± 6	35 ± 3	33 ± 3	31 ± 3	27 ± 3	25 ± 3
Vertical Beamwidth		degree	10.8 ± 1.1	9.8 ± 1.0	9.0 ± 0.9	9.9 ± 1.0	9.5 ± 1.0	8.8 ± 0.9	7.7 ± 0.8	7.0 ± 0.7
Electrical Downtilt, Continuously Adjustable		degree	2-Dec			2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°		dB	> 23	> 24	> 24	> 23	> 24	> 24	> 25	> 25
Cross Polar Discrimination at Boresight		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Isolation	Intraband (same beam)	dB	> 25			≥ 25
	Beam-to-Beam	dB	—			≥ 15
	Interband	dB	> 25			> 25
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

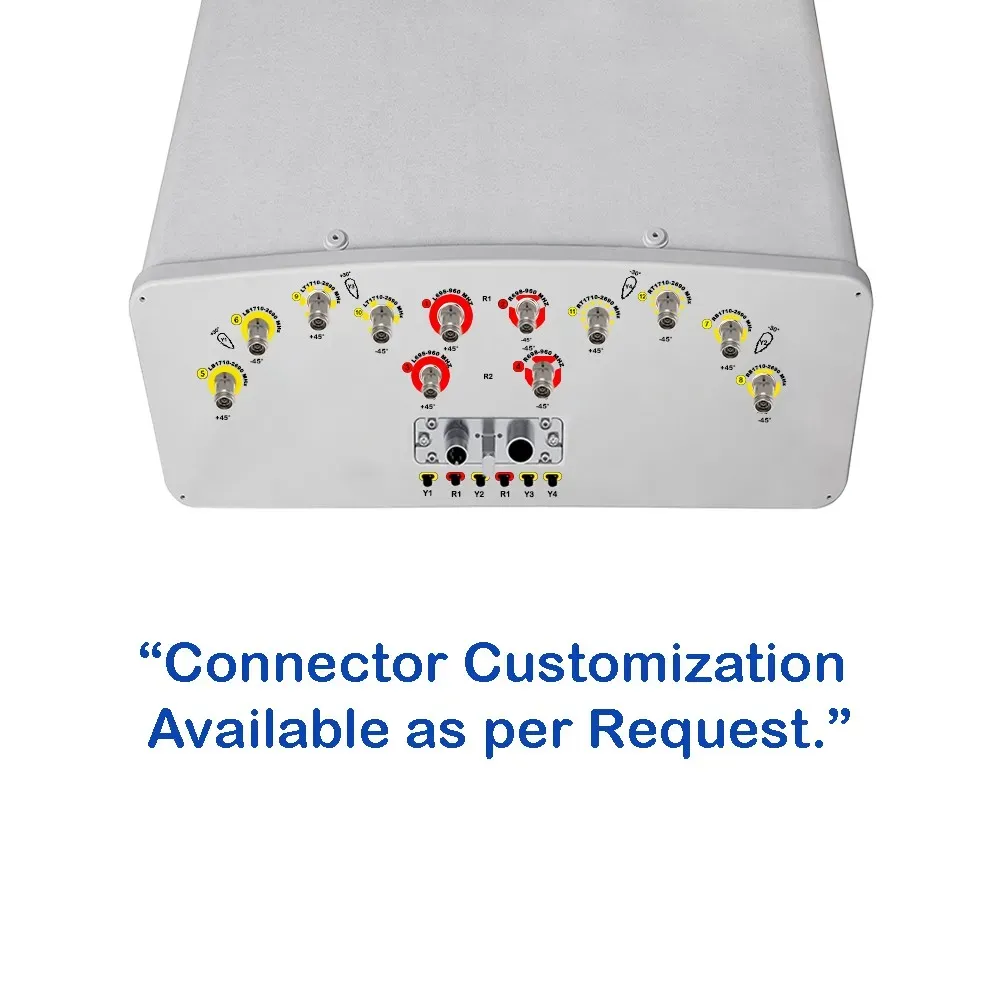

Connector Type		—	(12x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

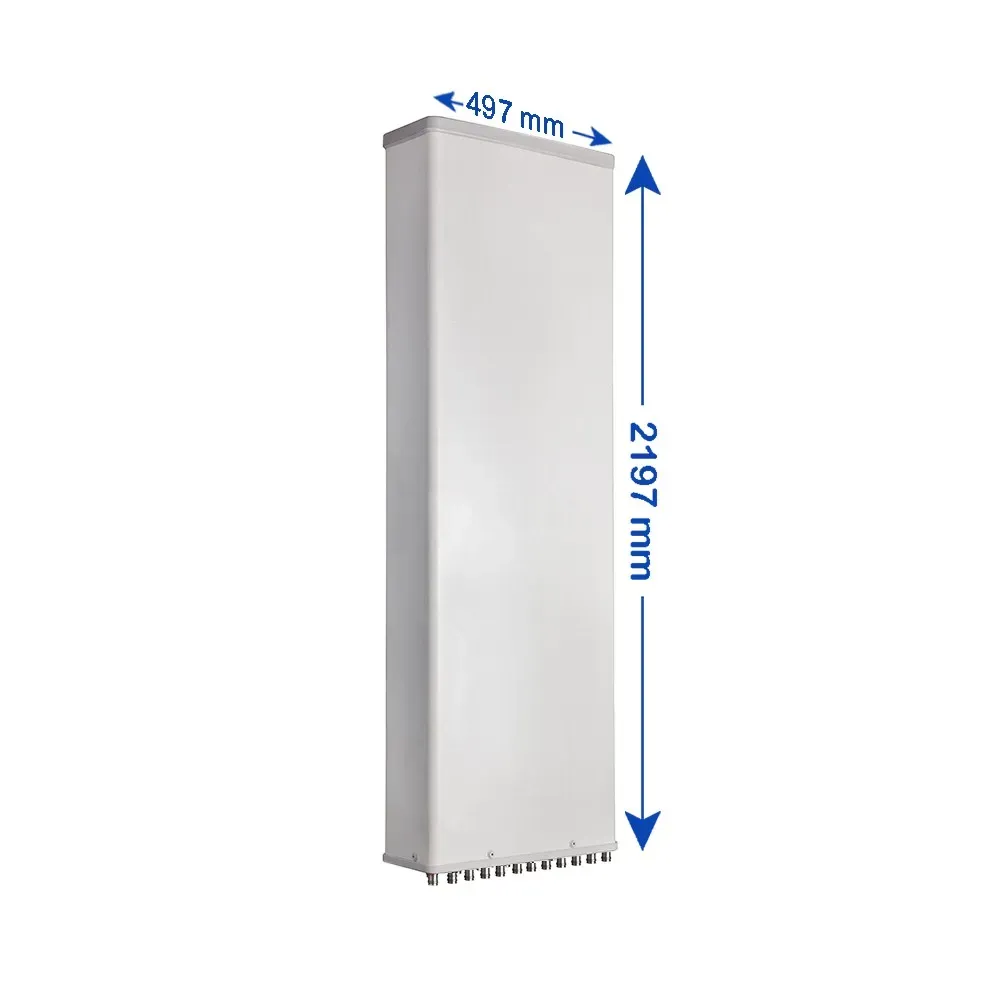

Antenna Dimensions (H x W x D)		mm (in)	2197 x 497 x 197 (86.5 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	31 (68.3)
Antenna Weight	with Clamps	kg (lbs)	36.5 (80.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	1010 (227.1)
at 150 km/h	Rear	N (lbf)	1130 (254.0)
	Lateral	N (lbf)	490 (110.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
