12-Port, Hybrid SplitBeam Panel Sector Antenna, (2x) 65°/ (4x) 33° HBW, (2x) 698-960/(4x) 1710-2690 MHz, 17/17/19/19/19/19 dBi, 2-12°T, 2.597 m

Product code: 12P-698-2690F-17G-65H10V

12-Port, Hybrid SplitBeam Panel Sector Antenna, (2x) 65°/ (4x) 33° HBW, (2x) 698-960/(4x) 1710-2690 MHz, 17/17/19/19/19/19 dBi, 2-12°T, 2.597 m

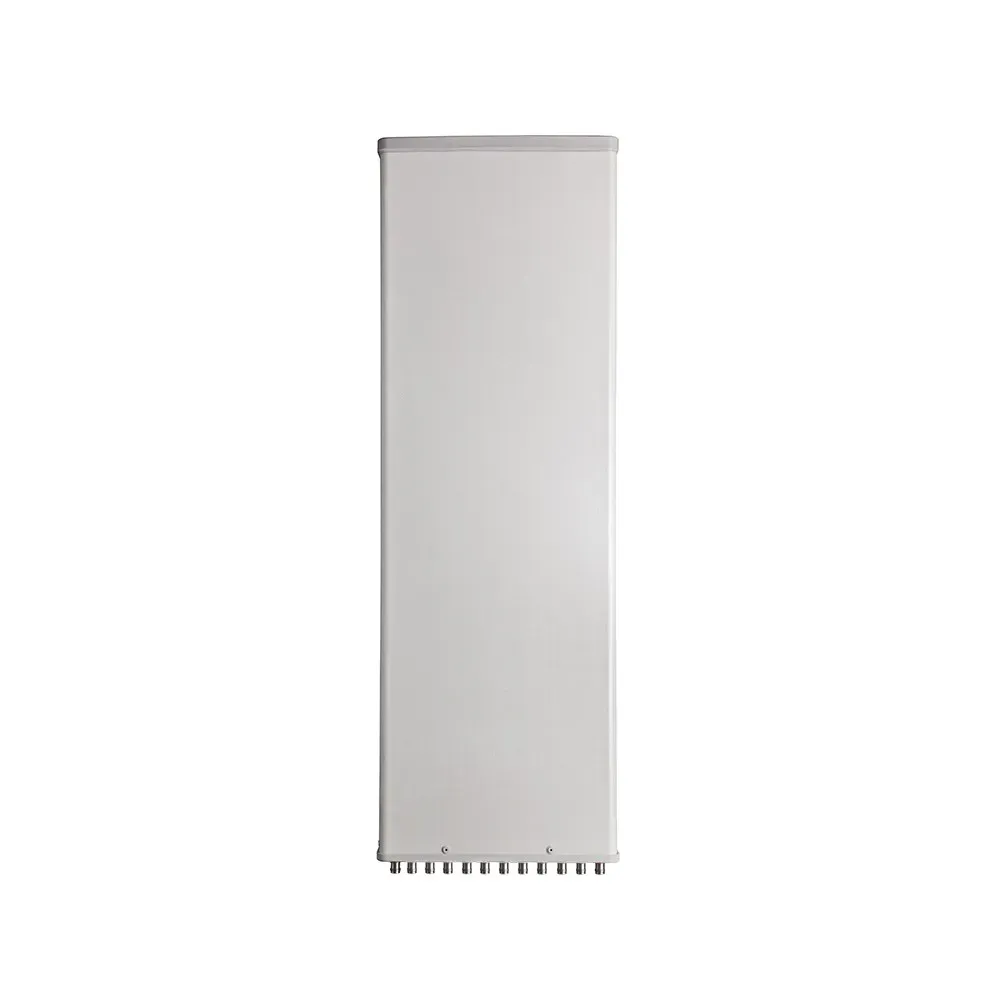

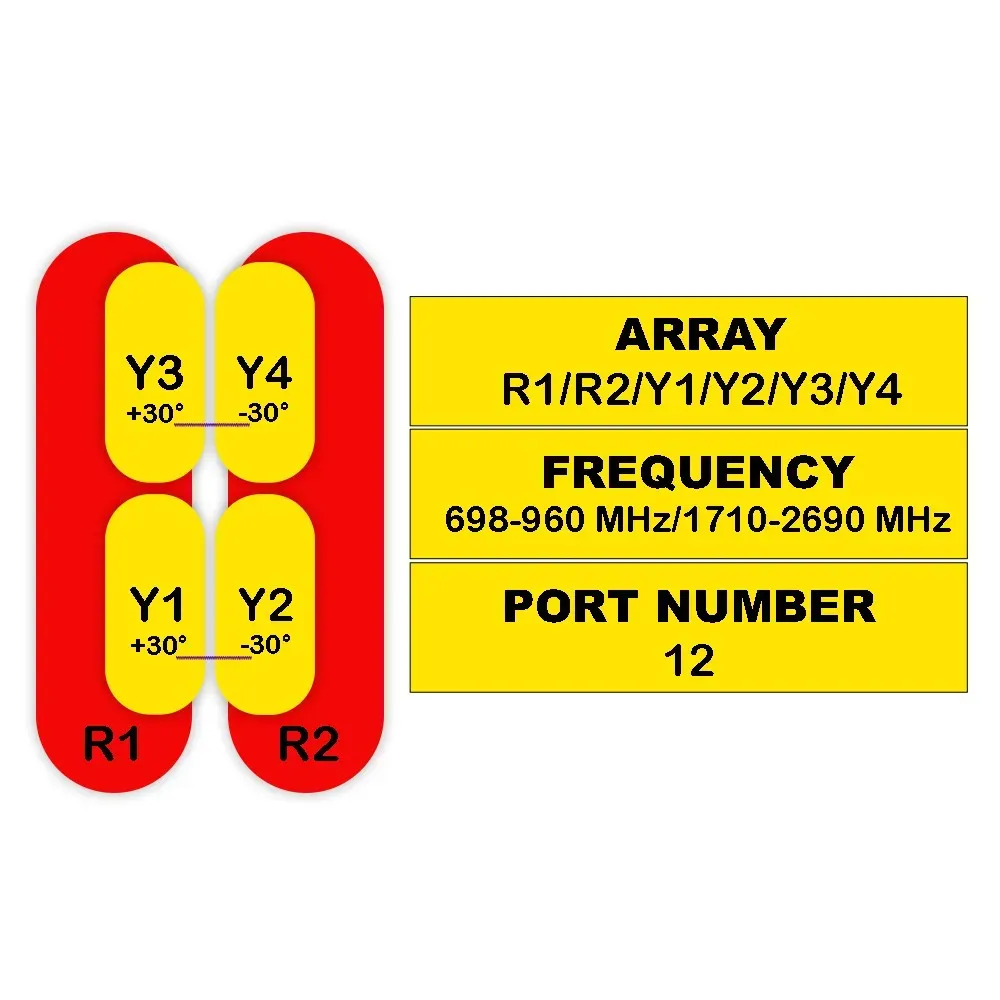

12-Port Antenna	R1	R2	Y1	Y2	Y3	Y4
Frequency Range (MHz)	698-960	698-960	1710-2690	1710-2690	1710-2690	1710-2690
HBW	65°	65°	33°	33°	33°	33°
Gain	17 dBi	17 dBi	19 dBi	19 dBi	19 dBi	19 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°	2-12°

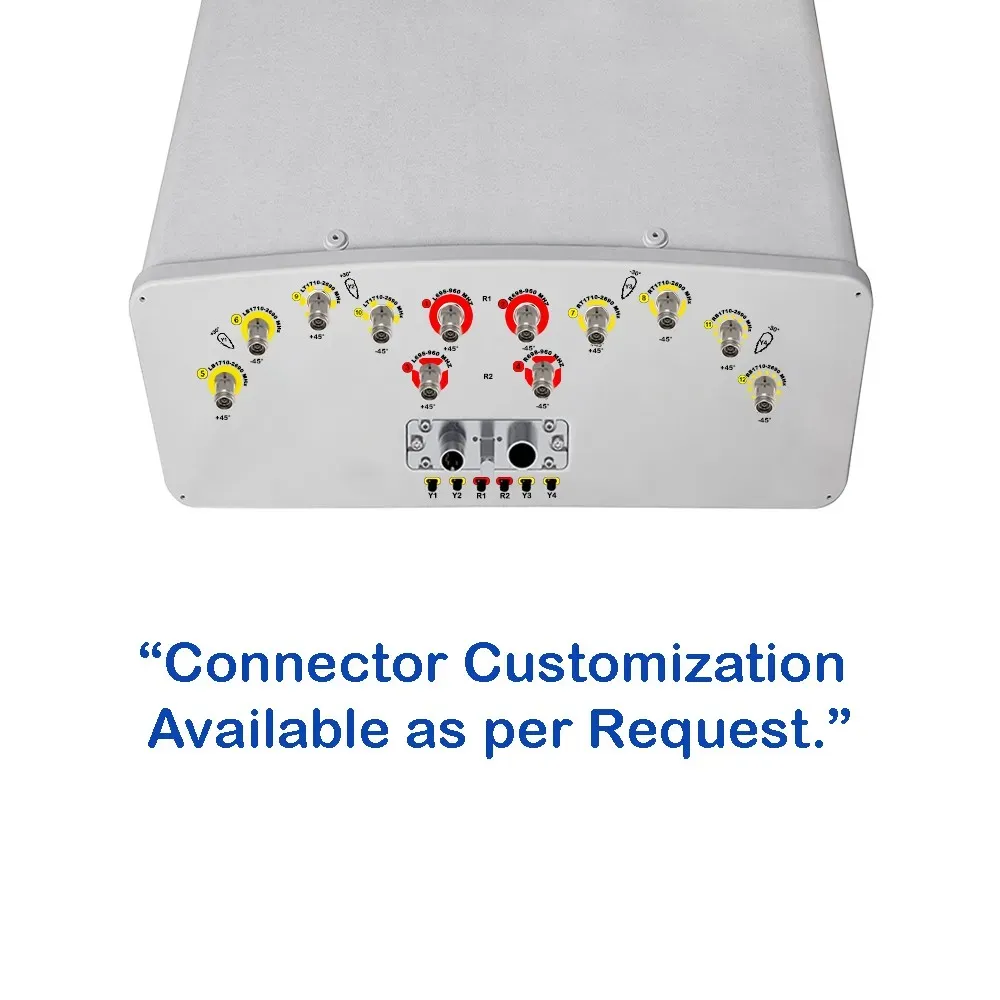

Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

12P-698-2690F-17G-65H10V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2			Y1 / Y2 / Y3 / Y4
Frequency Range		MHz	698-960			1710-2690
Frequency Range		MHz	698-806	790-894	880-960	1710-1880	1850-1990	1920-2170	2300-2500	2500-2690
Polarization		—	±45°			±45°
Gain	at Mid Tilt	dBi	15.8	16.3	16.6	17.5	17.8	18.1	18.8	18.7
	Over All Tilts	dBi	15.7 ±	16.2 ±	16.5 ±	17.4 ± 0.6	17.7 ± 0.6	18.0 ± 0.6	18.7 ± 0.6	18.6 ± 0.6
	Over All Tilts	dBi	0.6	0.6	0.6	17.4 ± 0.6	17.7 ± 0.6	18.0 ± 0.6	18.7 ± 0.6	18.6 ± 0.6
Horizontal Beamwidth		degree	68 ± 6	65 ± 6	61 ± 6	36 ± 3	34 ± 3	32 ± 3	27 ± 3	25 ± 3
Azimuth Beam Pointing		degree	—			Y1 & Y3: +30; Y2 & Y4: -30
Vertical Beamwidth		degree	8.6 ± 1.0	7.6 ± 1.0	7.0 ± 1.0	10.0 ± 1.0	9.3 ± 0.9	8.8 ± 0.9	7.2 ± 0.7	6.9 ± 0.7
Electrical Downtilt, Continuously Adjustable		degree	2-Dec			2-Dec
First Upper Side Lobe Suppression		dB	≥ 15	≥ 15	≥ 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°		dB	> 23	> 24	> 25	> 24	> 24	> 25	> 25	> 25
Cross Polar	at Boresight	dB	> 16	> 16	> 16	> 15	> 15	> 15	> 15	> 15
Discrimination	Over Sector	dB	> 7	> 7	> 7	—
Isolation	Intraband (same beam)	dB	≥ 25			≥ 25
	Beam-to-Beam	dB	—			≥ 15
	Interband	dB	≥ 25			> 25
Impedance		Ohm	50			50
VSWR		—	< 1.5			< 1.5
Return Loss		dB	> 14			> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150			< -150
Lightning Protection		—	DC Ground			DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware Interfaces		RS485 and Power
Adjustment Time		≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles		> 20,000
Torque Maximum		≥ 160 mN·m (@ 30RPM)
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote Control		Can manage from OMC, BTS/Node B
Daisy Chaining Method		Ready for daisy-chaining
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

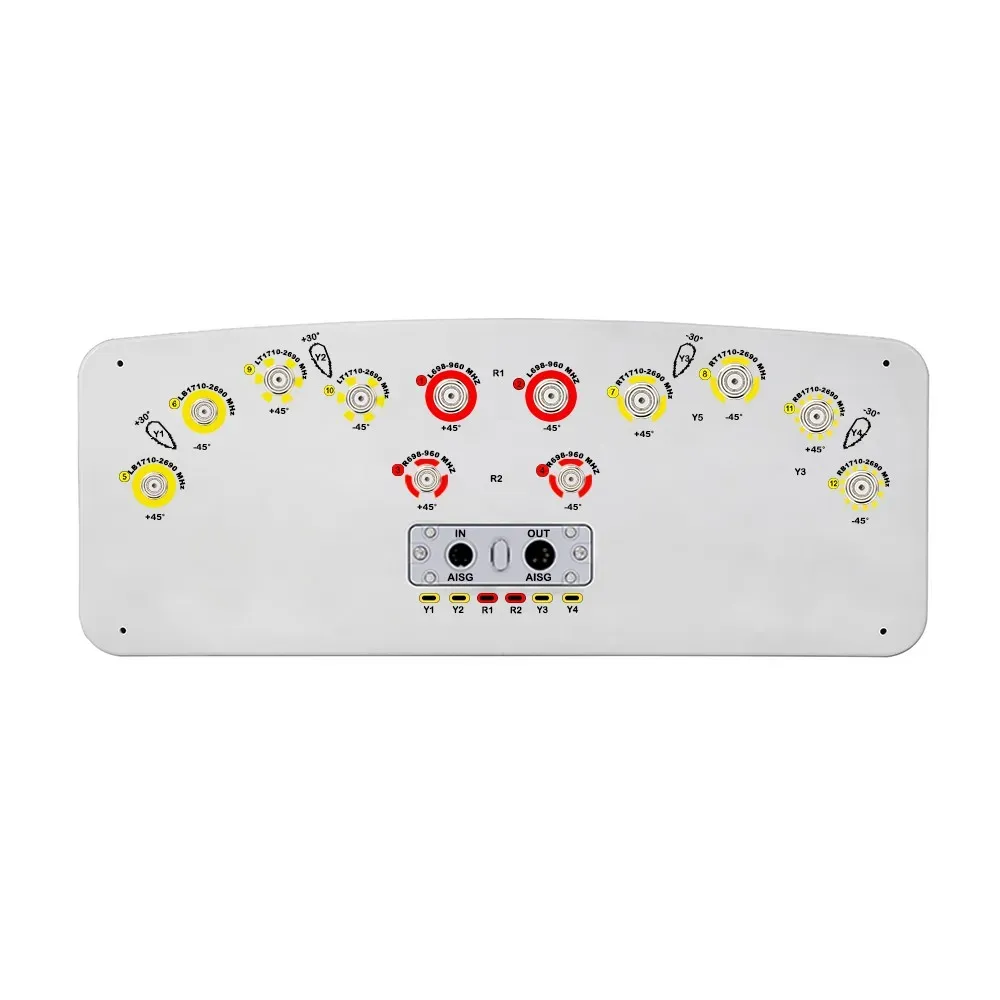

Connector Type		—	(12x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

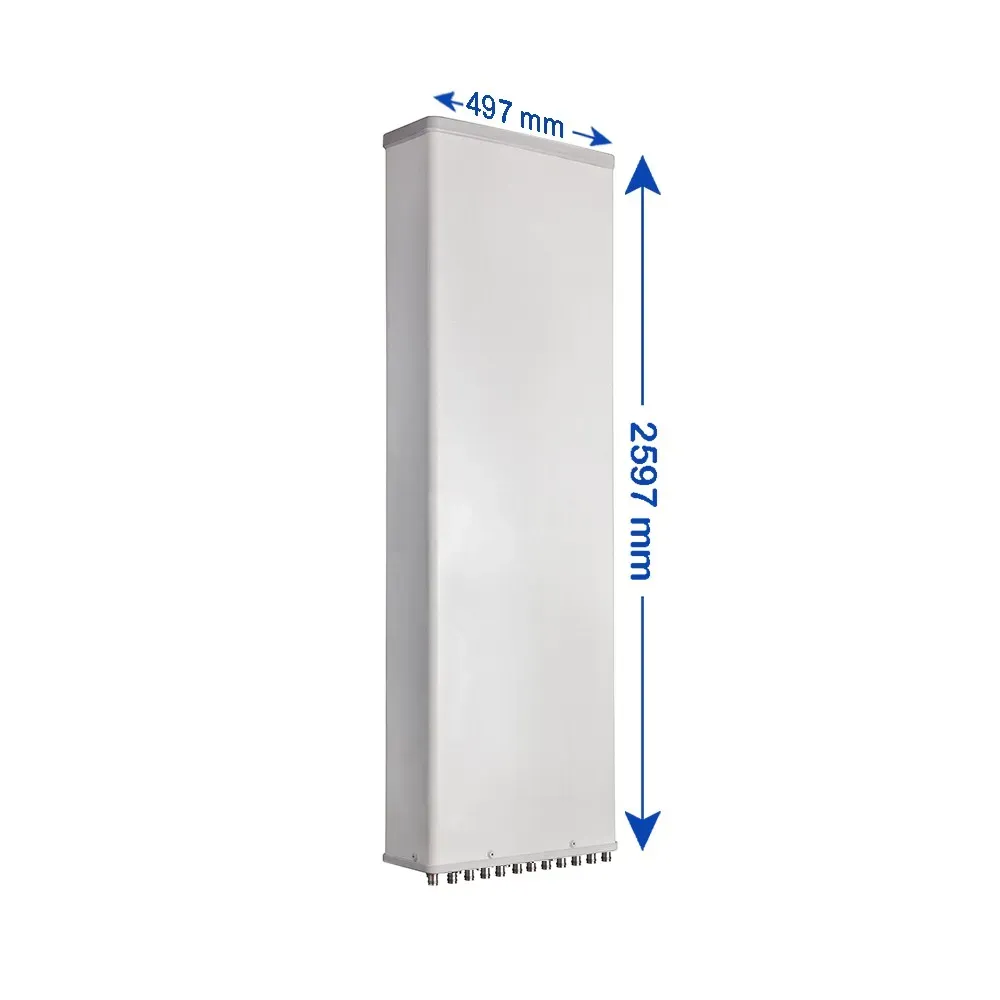

Antenna Dimensions (H x W x D)		mm (in)	2597 x 497 x 197 (102.2 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	47 (103.6)
Antenna Weight	with Clamps	kg (lbs)	54.5 (120.2)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	1195 (268.6)
at 150 km/h	Rear	N (lbf)	1335 (300.1)
	Lateral	N (lbf)	585 (131.5)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
