12-Port, Hybrid SplitBeam Panel Sector Antenna, (2x) 65°/ (4x) 35° HBW, (2x) 698-960/(4x) 1695-2690 MHz, 15.5/15.5/18.5/18.5/18.5/18.5 dBi, 2-12°T, 2.097 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 12P-698-2690F-15G-65H11V

12-Port, Hybrid SplitBeam Panel Sector Antenna, (2x) 65°/ (4x) 35° HBW, (2x) 698-960/(4x) 1695-2690 MHz, 15.5/15.5/18.5/18.5/18.5/18.5 dBi, 2-12°T, 2.097 m

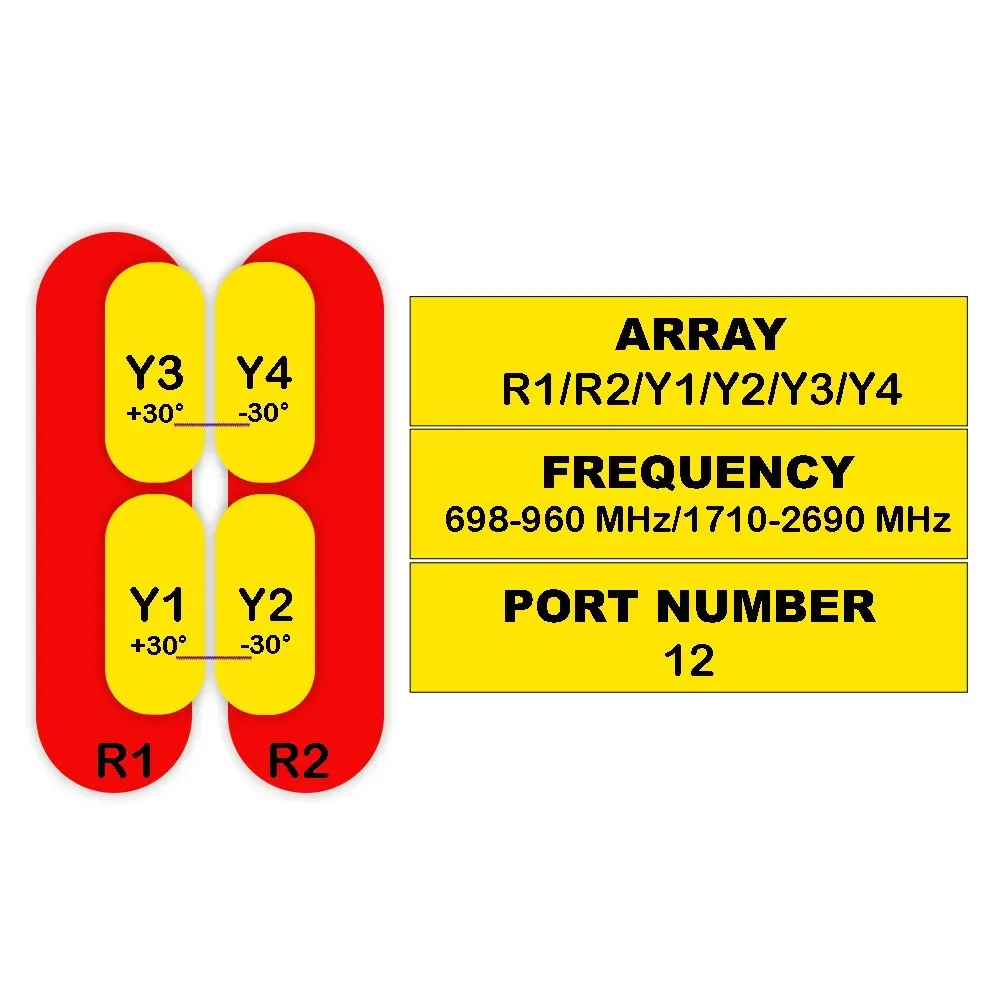

12-Port Antenna	R1	R2	Y1	Y2	Y3	Y4
Frequency Range (MHz)	698-960	698-960	1695-2690	1695-2690	1695-2690	1695-2690
HBW	65°	65°	35°	35°	35°	35°
Gain	15.5 dBi	15.5 dBi	18.5 dBi	18.5 dBi	18.5 dBi	18.5 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

12P-698-2690F-15G-65H11V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2				Y1 / Y2 / Y3 / Y4
Frequency Range		MHz	698-960				1695-2690
Frequency Range		MHz	698-803	790-862	824-894	880-960	1695-1990	1920-2200	2200-2490	2490-2690
Polarization		—	±45°				±45°
Gain	at Mid Tilt	dBi	14.8	14.9	15	15.1	17.4	17.9	18.1	17.9
Gain	Over All Tilts	dBi	14.7 ± 0.6	14.8 ± 0.6	14.9 ± 0.6	15.0 ± 0.6	17.3 ± 0.8	17.8 ± 0.6	18.0 ± 0.6	17.8 ± 0.8
Horizontal Beamwidth		degree	69 ± 6	67 ± 6	68 ± 6	69 ± 6	37 ± 4	35 ± 3	33 ± 3	30 ± 3
Vertical Beamwidth		degree	11.0 ± 1.0	9.9 ± 0.8	9.7 ± 0.8	9.2 ± 0.7	9.5 ± 1.0	8.6 ± 0.9	7.4 ± 0 .7	6.8 ± 0.7
Electrical Downtilt, Continuously Adjustable		degree	2-Dec				2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio Co-Pol, ±30°		dB	> 22	> 22	> 23	> 23	> 24	> 25	> 26	> 26
Cross Polar Discrimination at Boresight		dB	> 16	> 16	> 16	> 16	> 16	> 16	> 16	> 16
Isolation	Intraband (same beam)	dB	> 25				≥ 25
	Beam-to-Beam	dB	—				≥ 25
	Interband	dB	> 25				> 25
Impedance		Ohm	50				50
VSWR		—	< 1.5				< 1.5
Return Loss		dB	> 14				> 14
PIM3 (2×43 dBm Carrier)		dBc	< -150				< -150
Lightning Protection		—	DC Ground				DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250				200

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

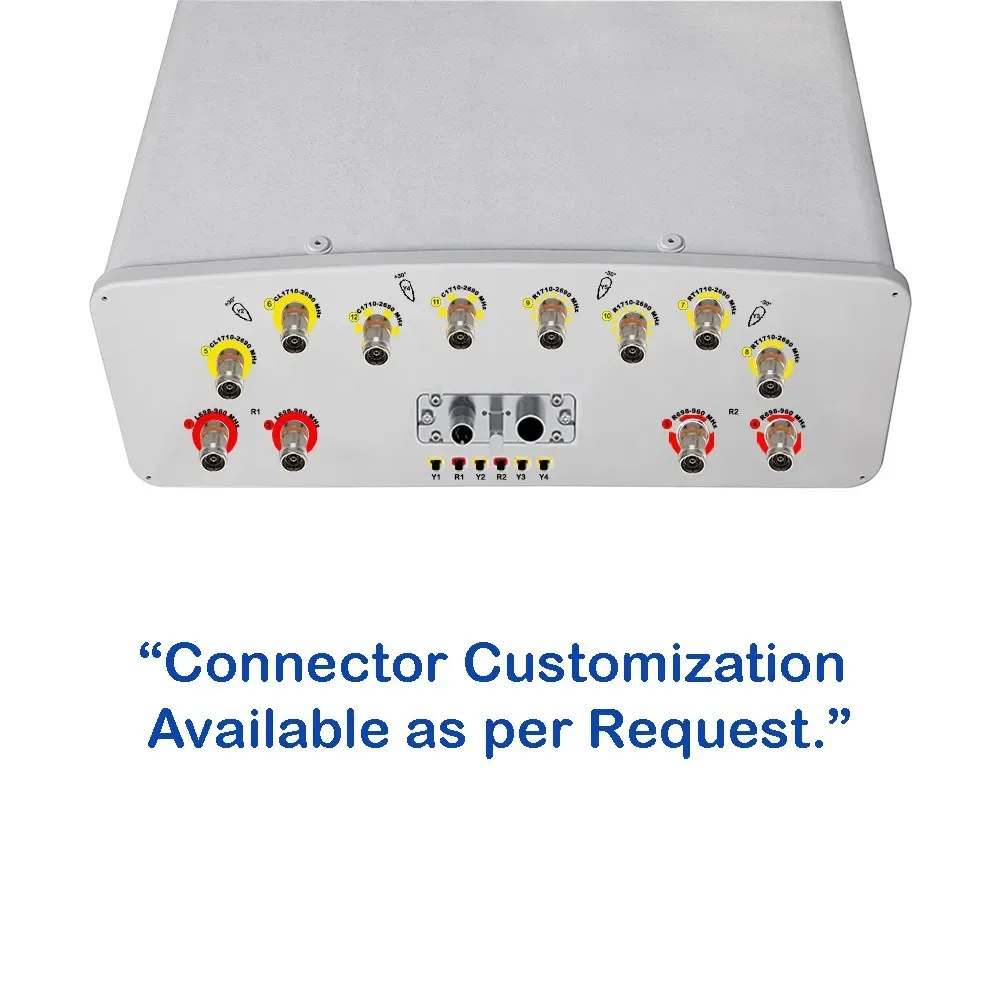

Connector Type		—	(12x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

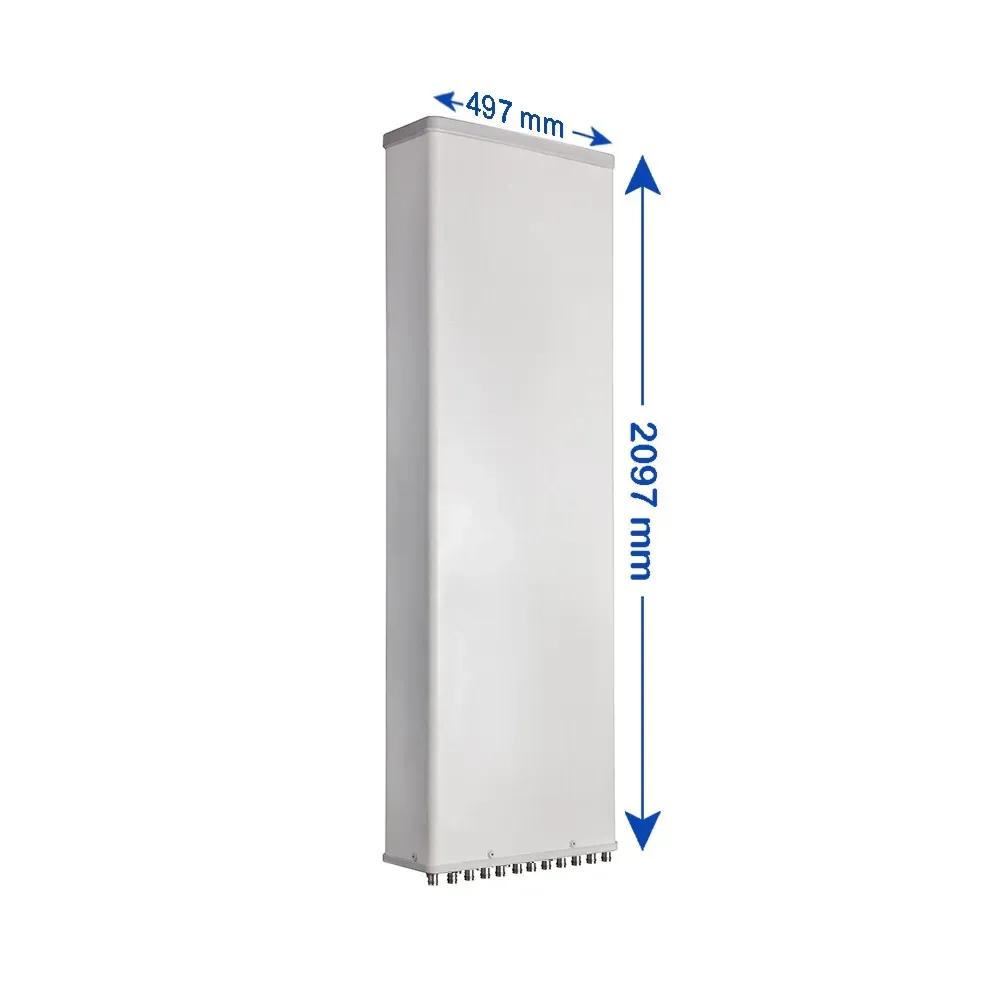

Antenna Dimensions (H x W x D)		mm (in)	2097 x 497 x 197 (82.6 x 19.6 x 7.8)
Antenna Weight	Antenna Only	kg (lbs)	36 (79.4)
Antenna Weight	with Clamps	kg (lbs)	41.5 (91.5)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	965 (216.9)
at 150 km/h	Rear	N (lbf)	1075 (241.7)
	Lateral	N (lbf)	470 (105.7)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
