Product code: 12P-1710-2690F-17G-65H7V

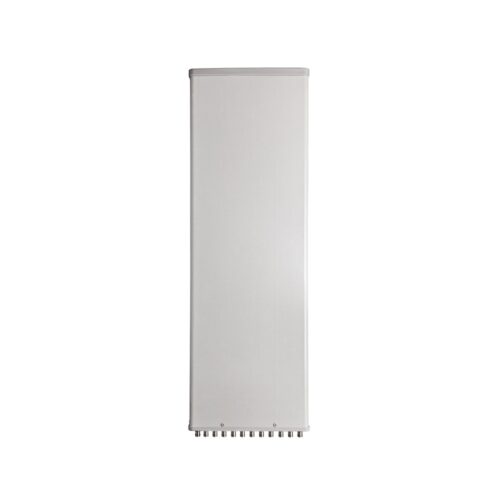

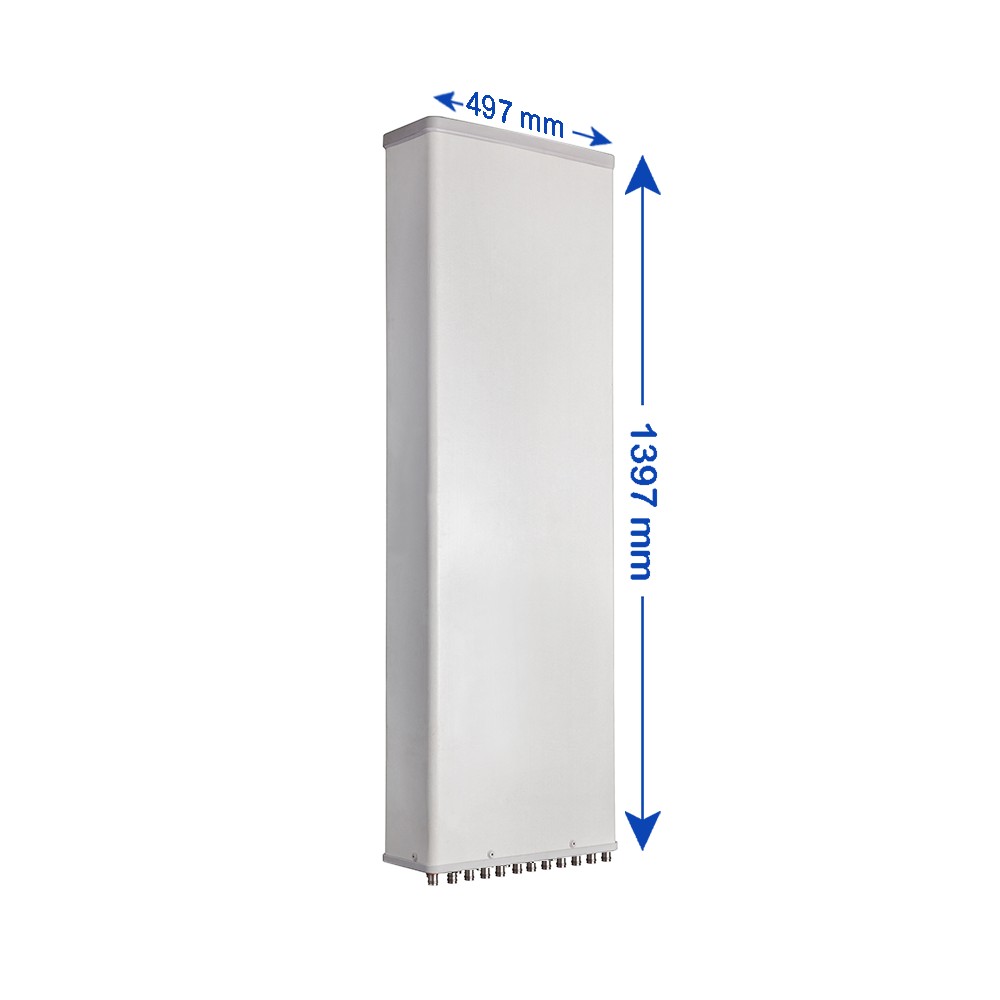

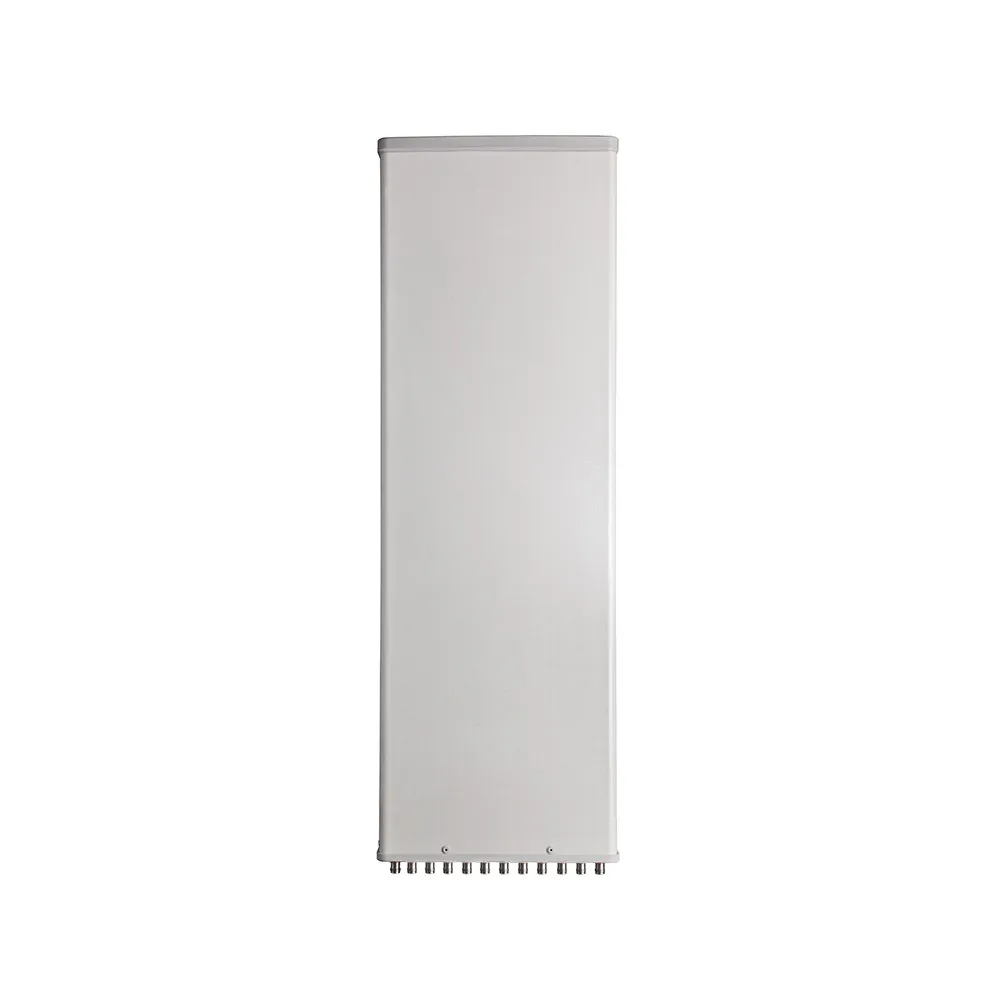

12-Port, Panel Antenna, 65° HBW, (2x) 1710-2170 / (2x) 1710-2690 / (2x) 2490-2690 MHz, 17.5/17.5/18/18/18/18 dBi, 2-12°T, 1.397 m

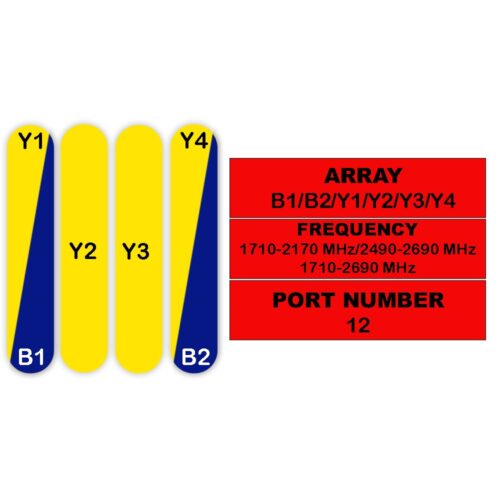

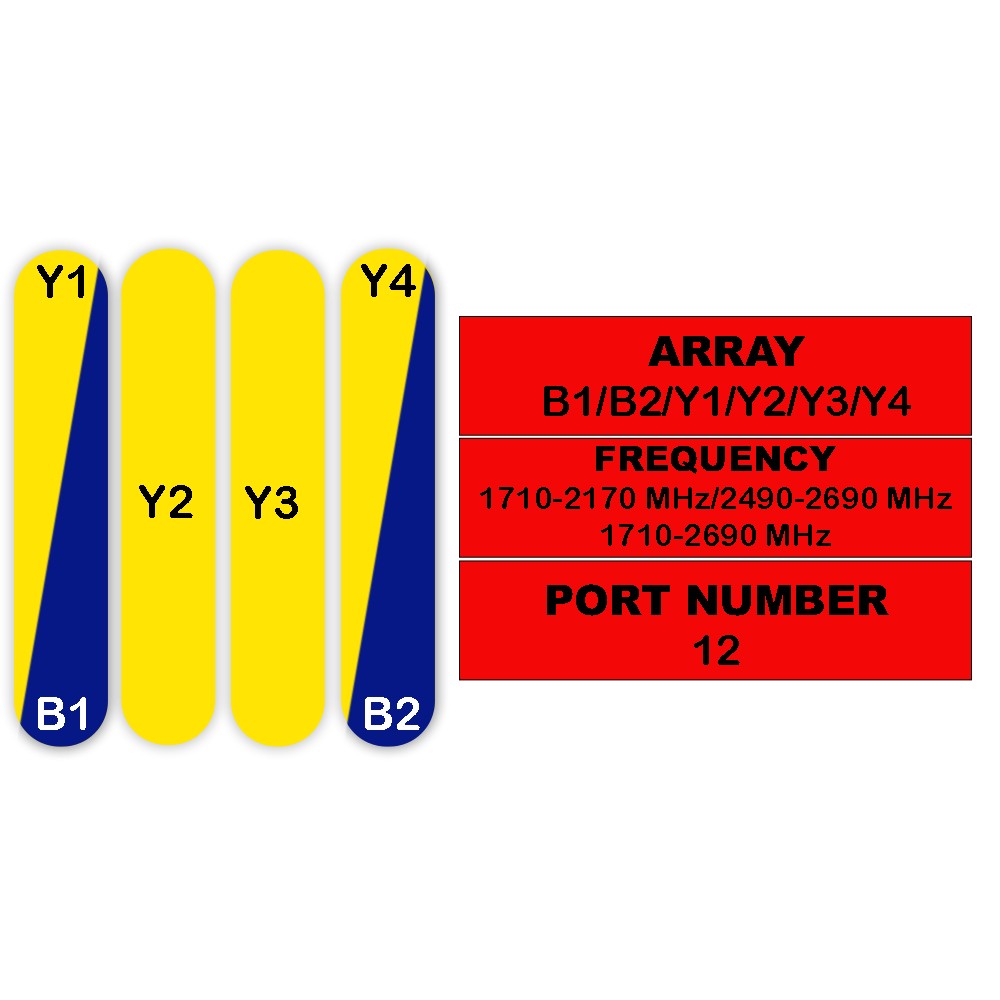

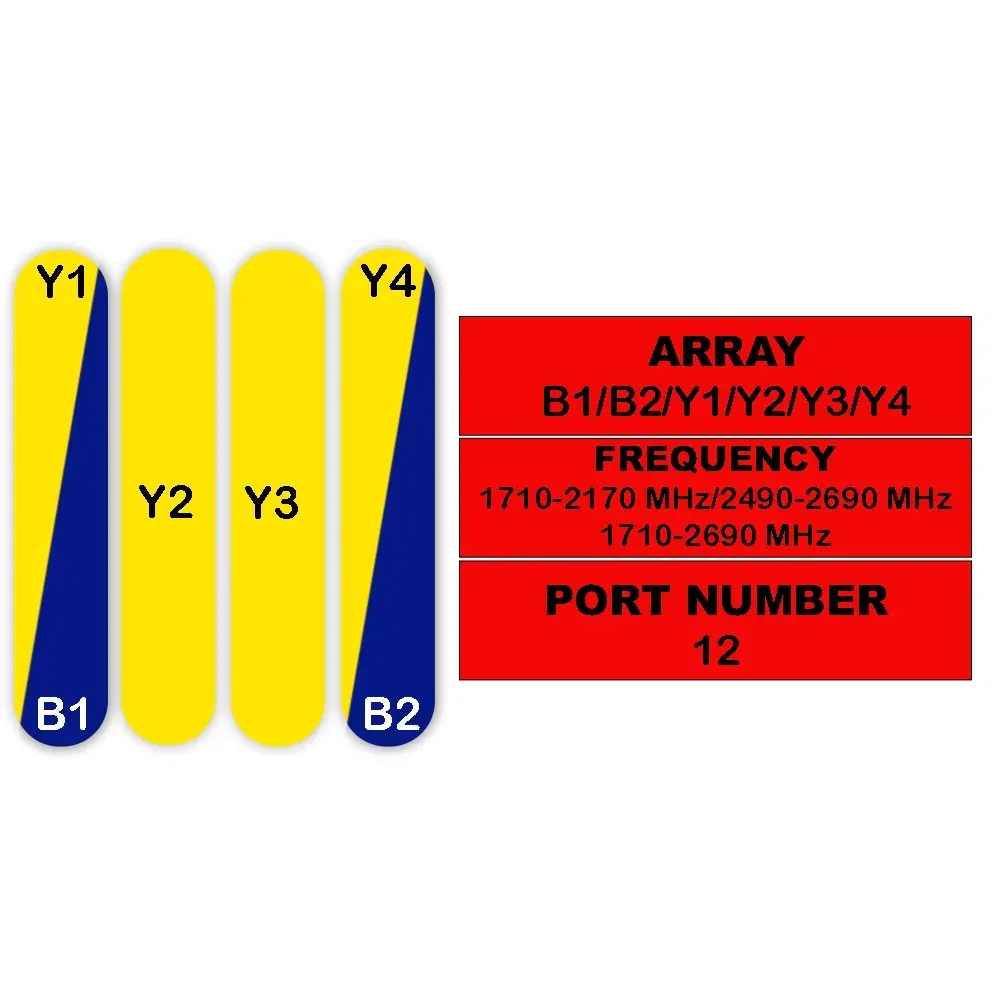

| 12-Port Antenna | B1 | B2 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 1710-2170 | 1710-2170 | 2490-2690 | 1710-2690 | 1710-2690 | 2490-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 17.5 dBi | 17.5 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

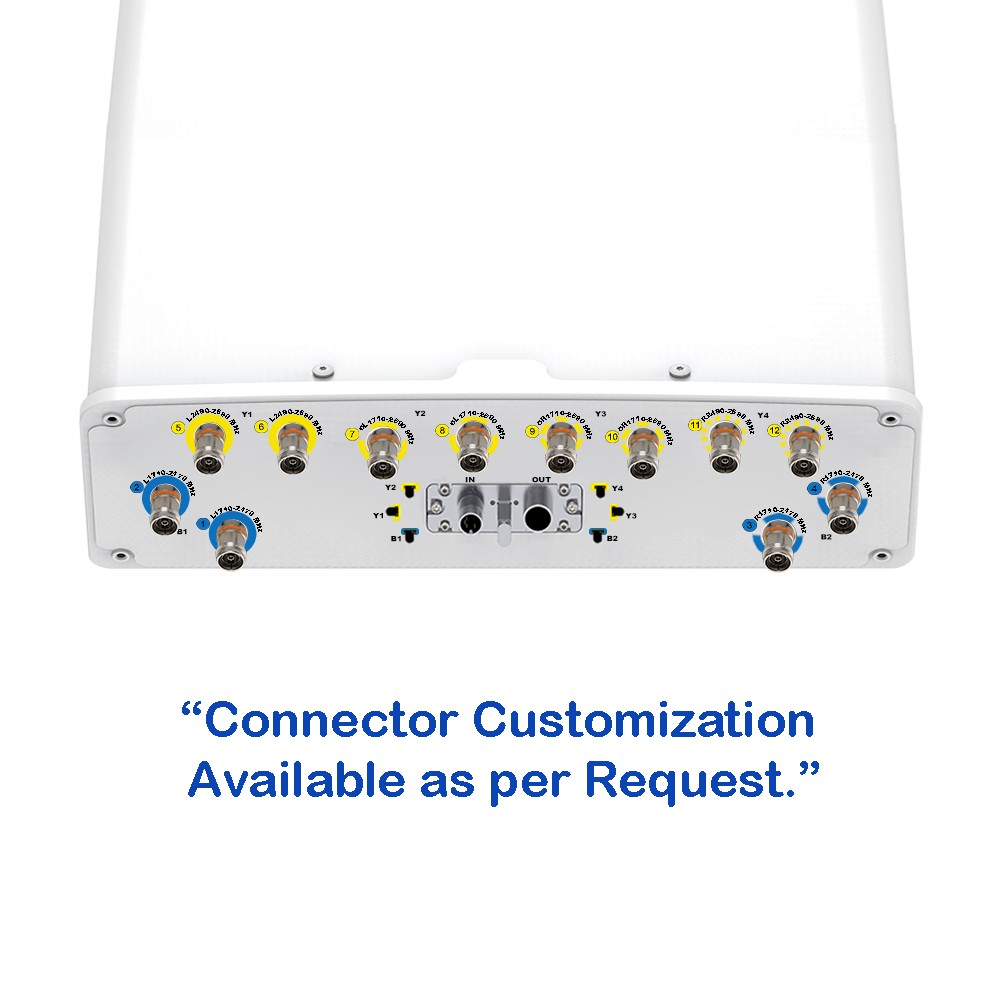

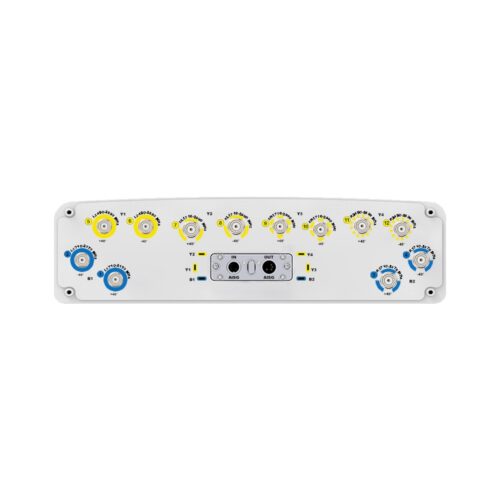

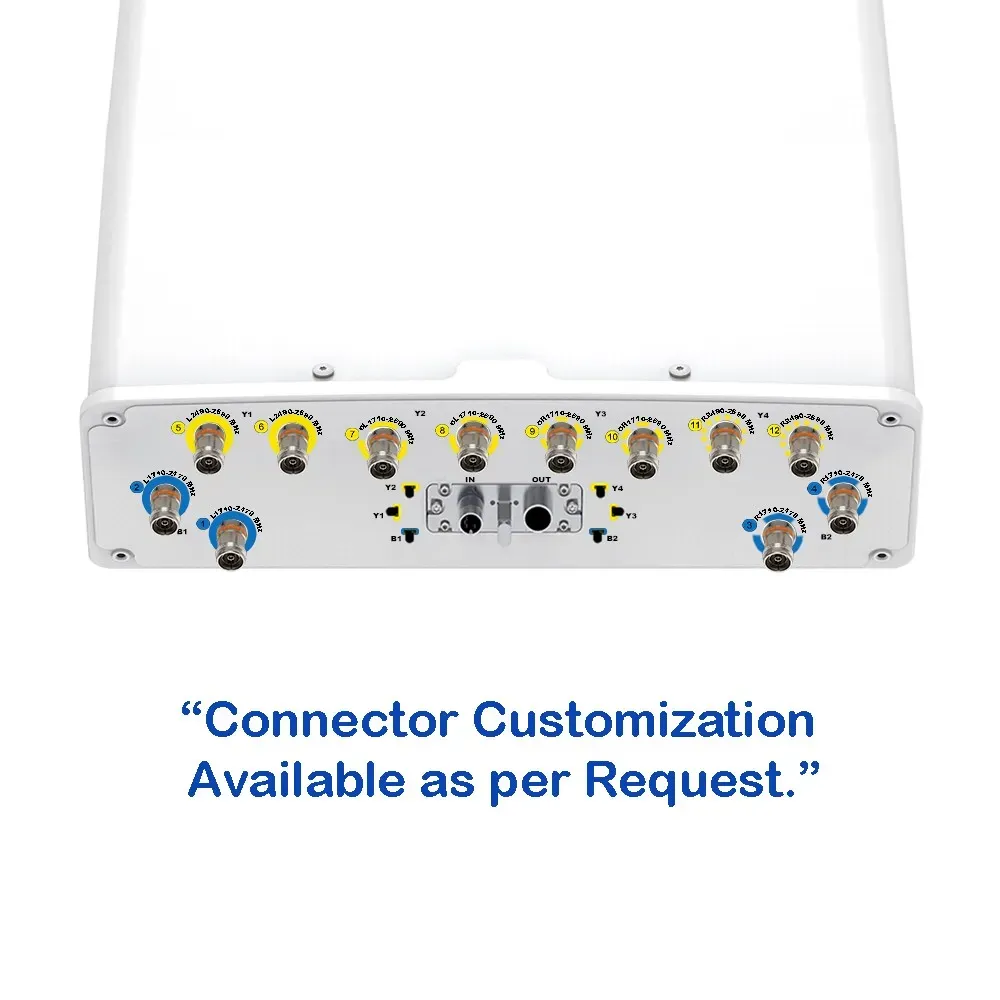

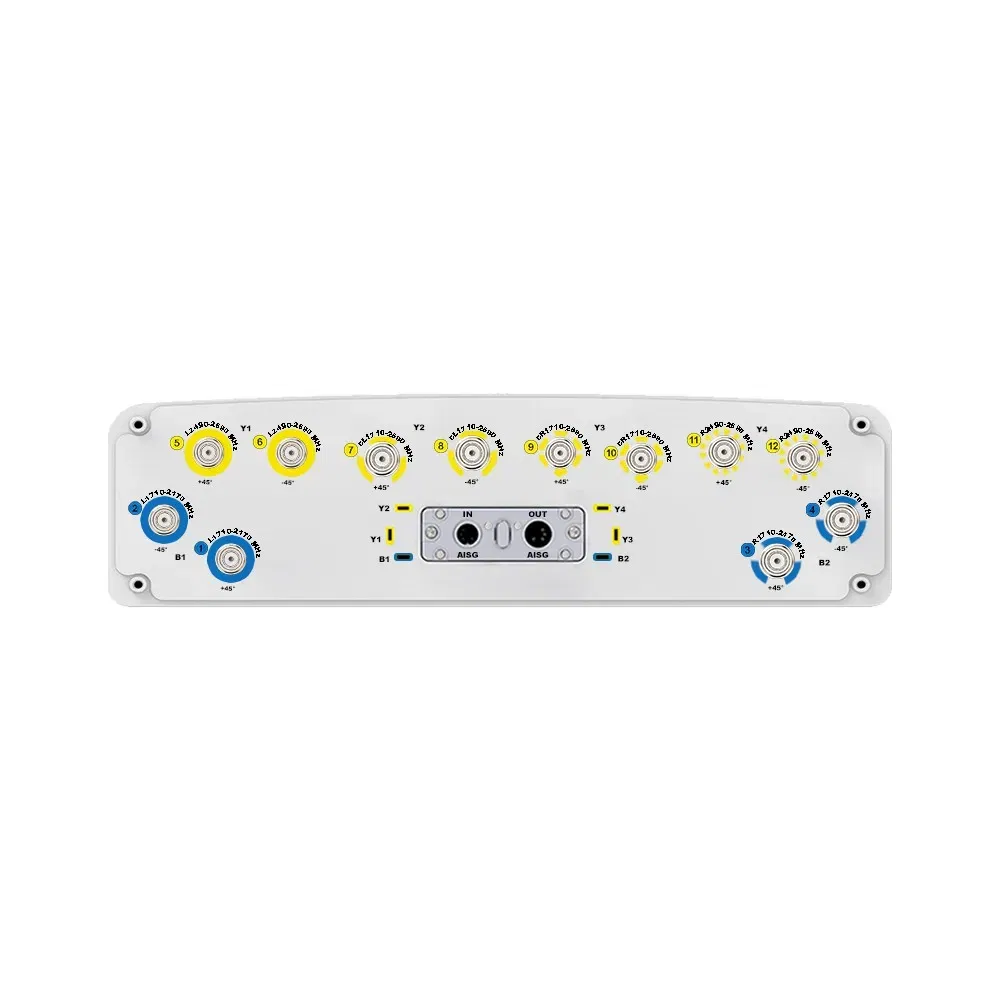

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
