Product code: 12P-1710-2690F-15G-65H7V

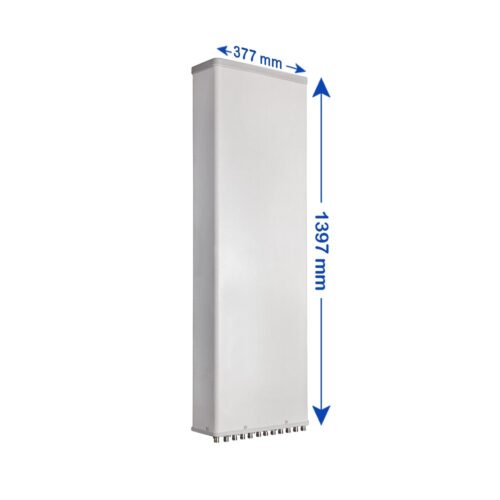

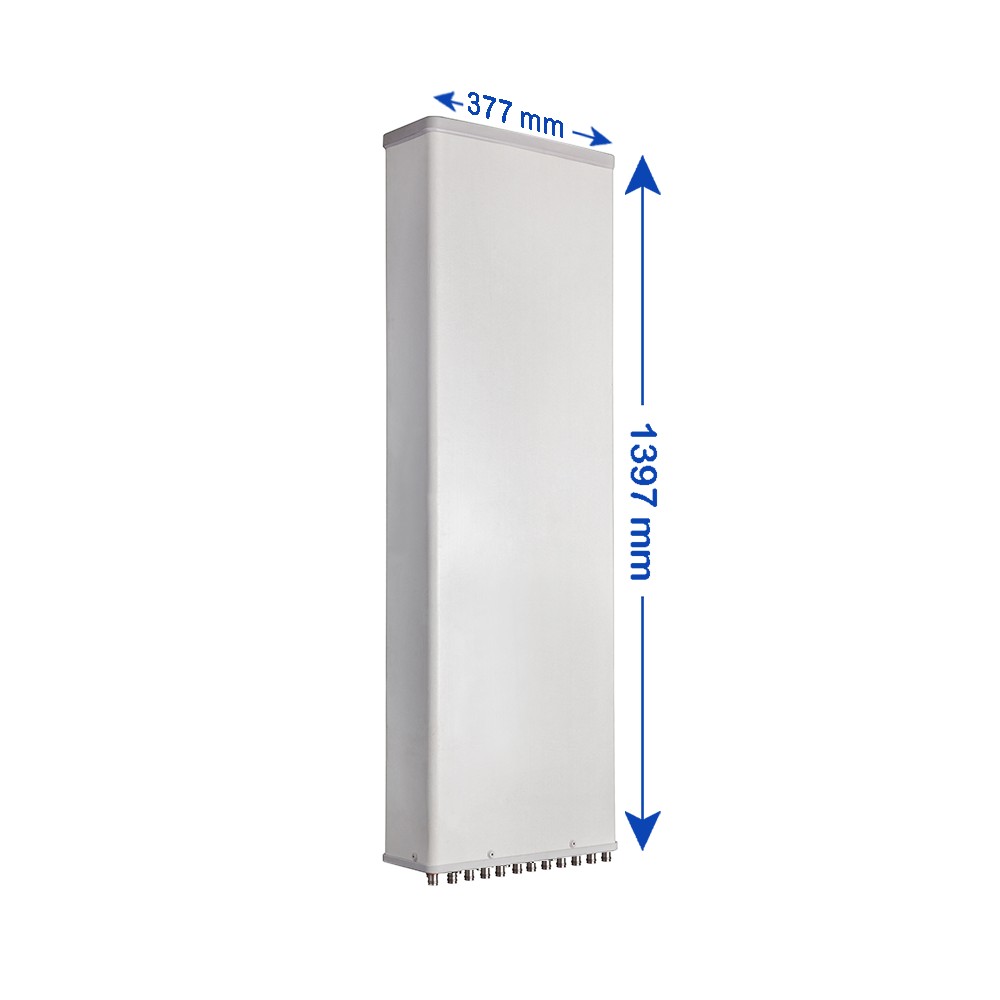

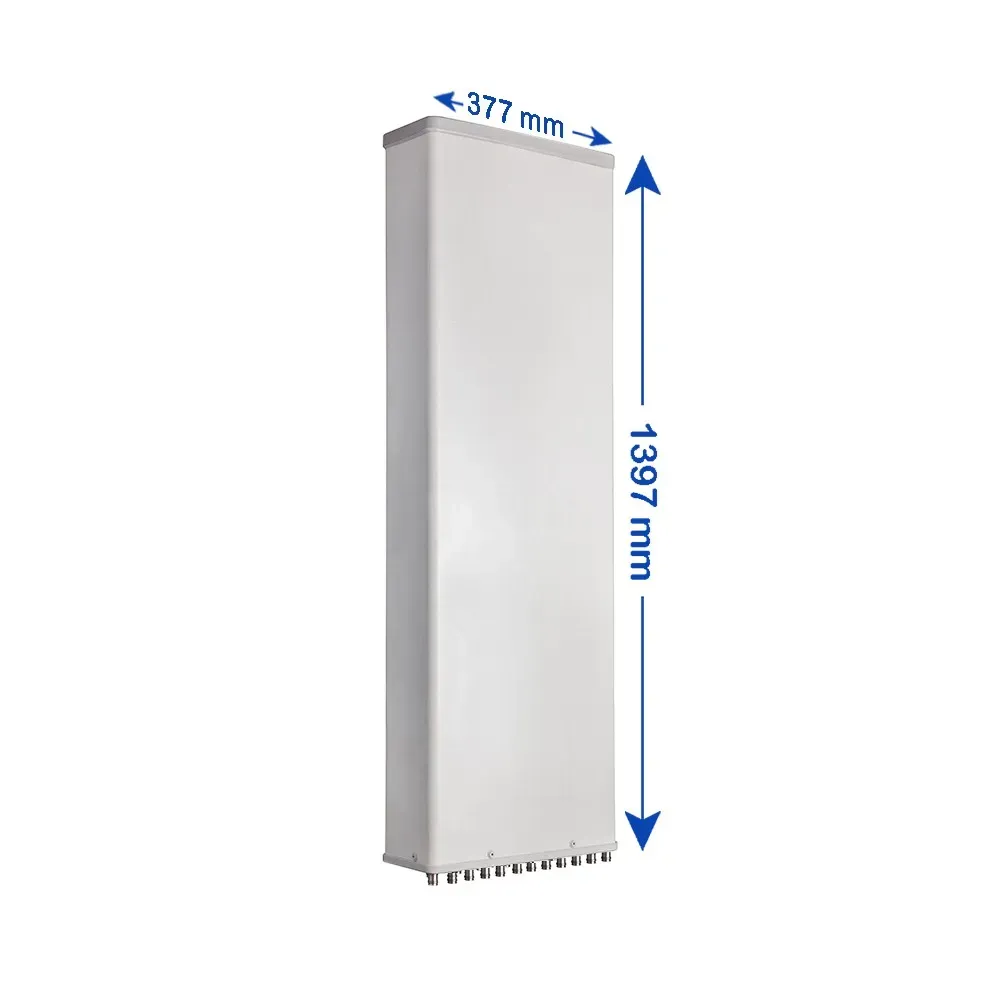

12-Port, Panel Antenna, 65° HBW, (6x) 1710-2690 MHz, 15/15/15/15/15/15 dBi, 2-12°T, 1.397 m

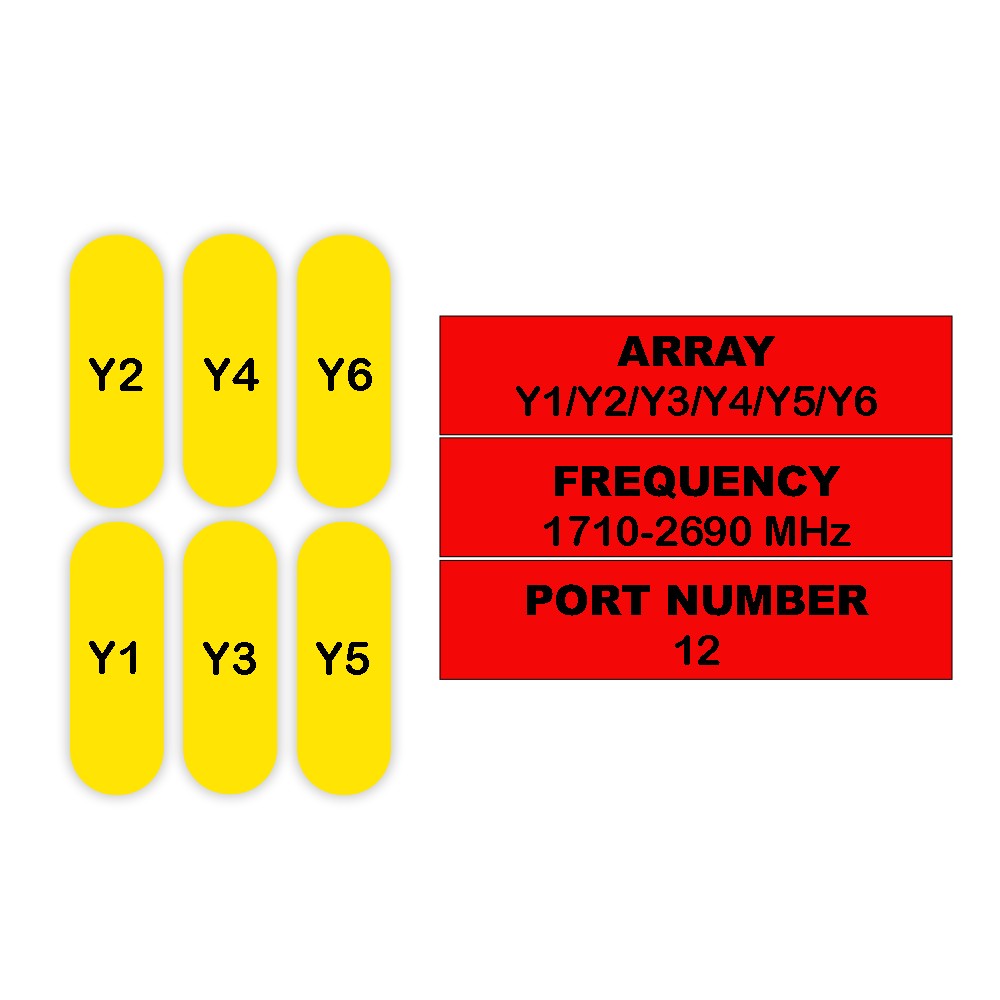

| 12-Port Antenna | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 |
| Frequency Range (MHz) | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 15 dBi | 15 dBi | 15 dBi | 15 dBi | 15 dBi | 15 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

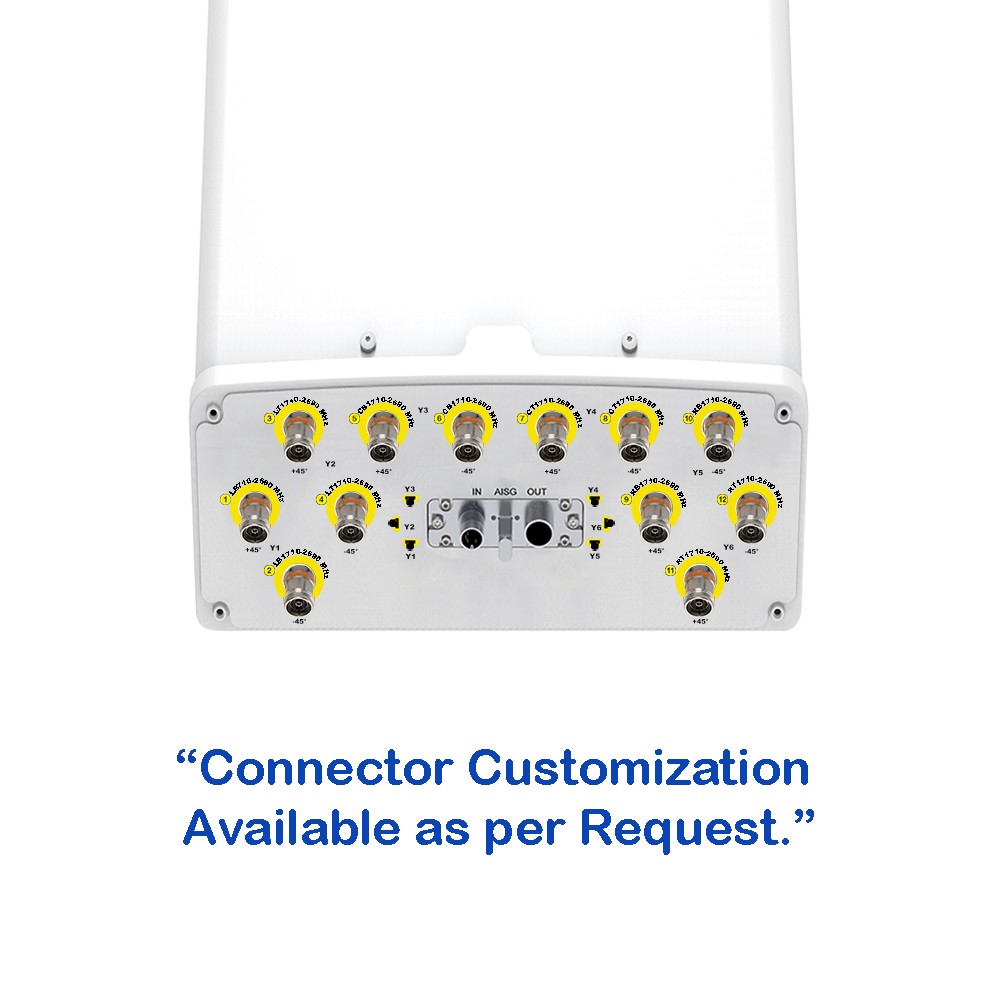

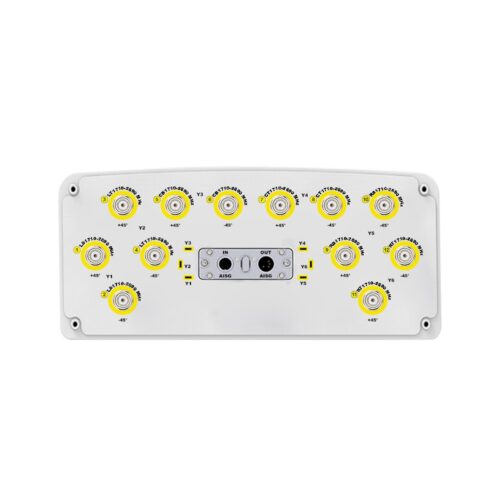

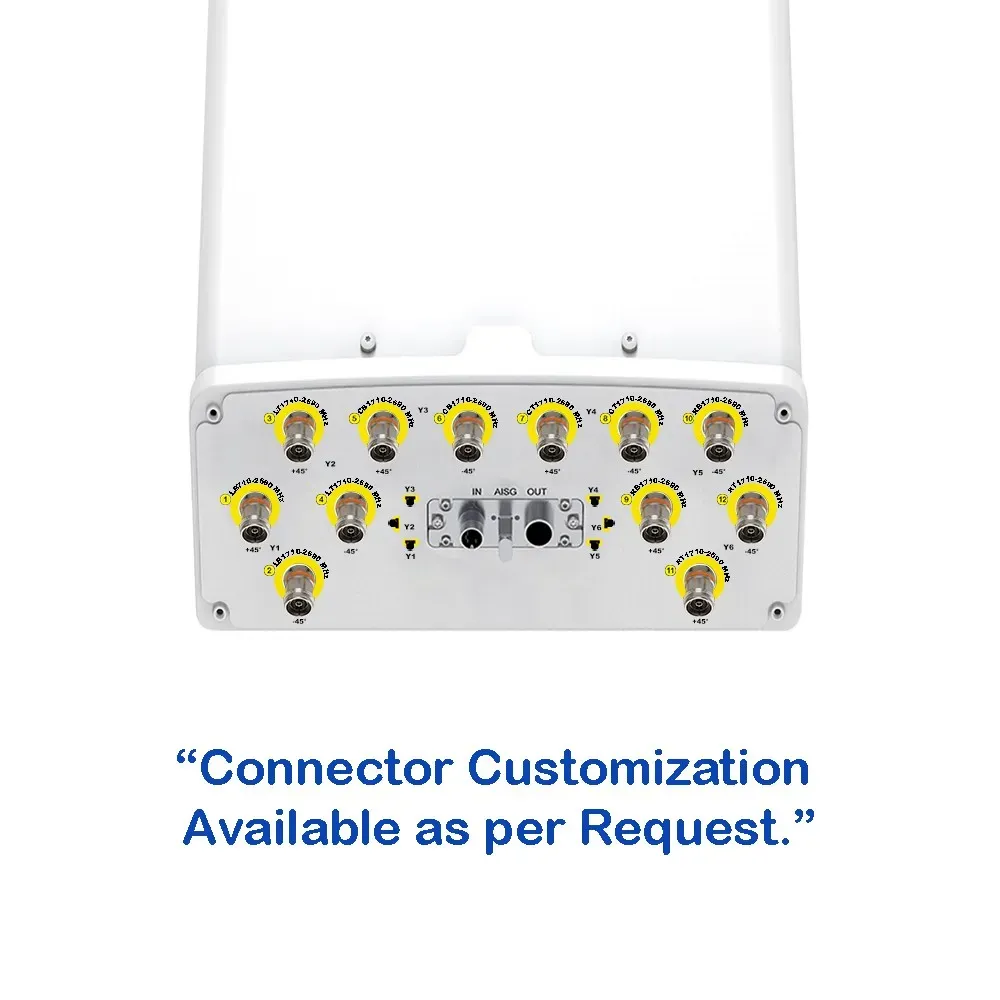

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
