Product code: 12P-617-2690F-16G-65H12V

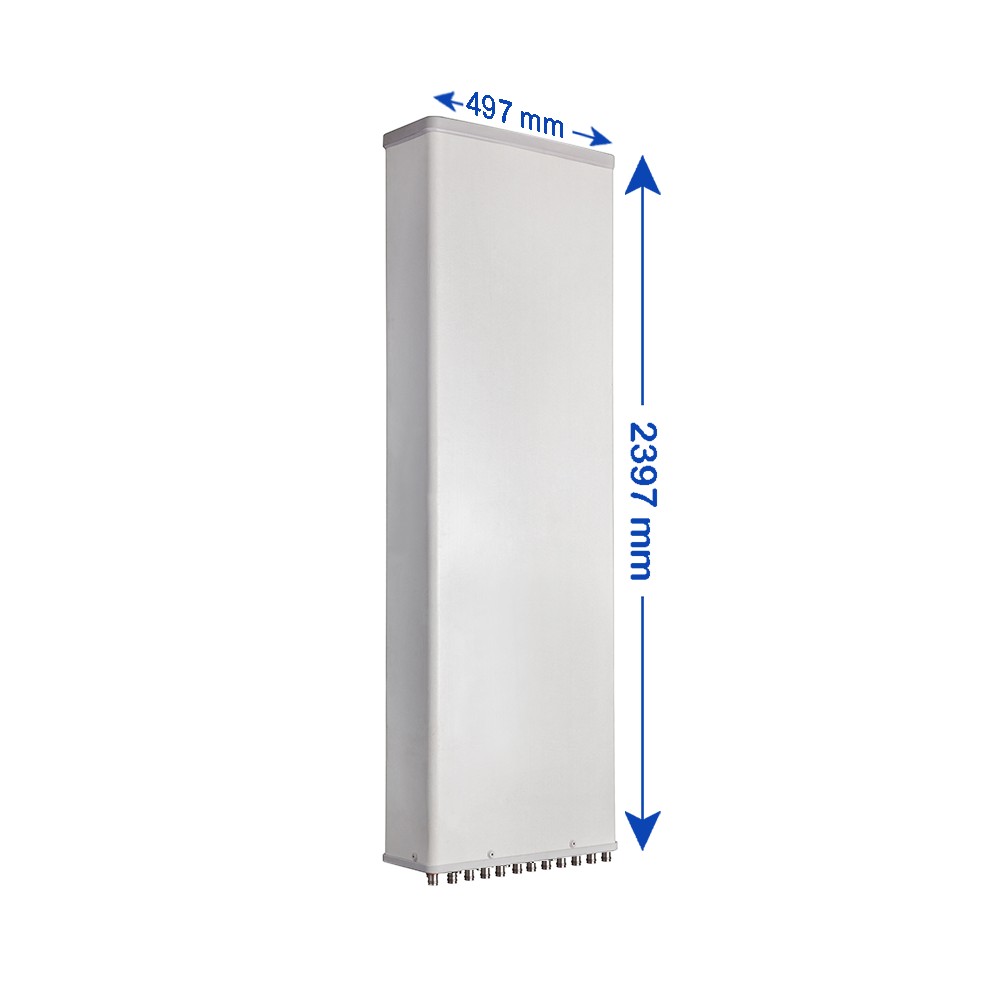

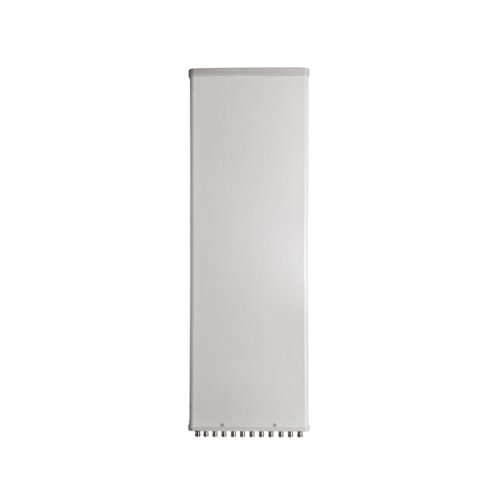

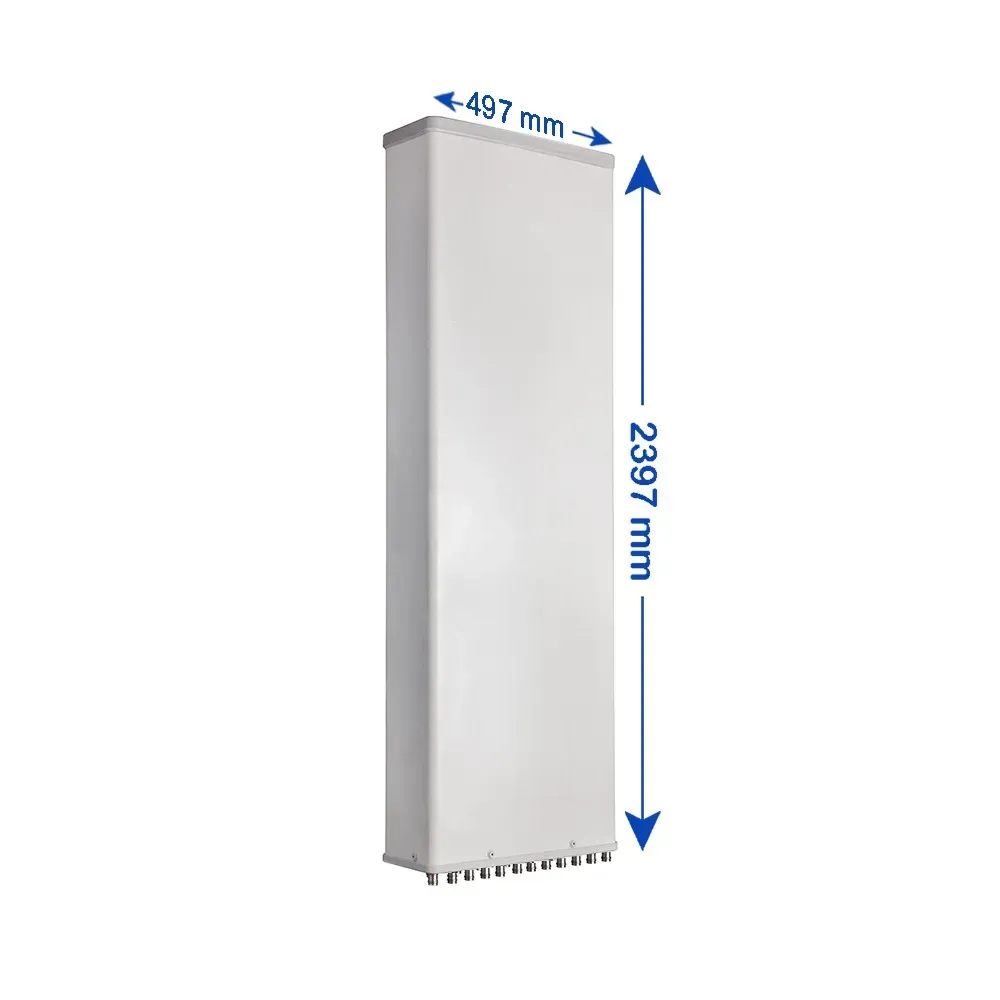

12-Port, Panel Sector Antenna, 65° HBW, (2x) 617-824/ (4x) 1695-2690 MHz, 15.5/15.5/17/16.5/17/16.5 dBi, 2-12°T, 2.397 m

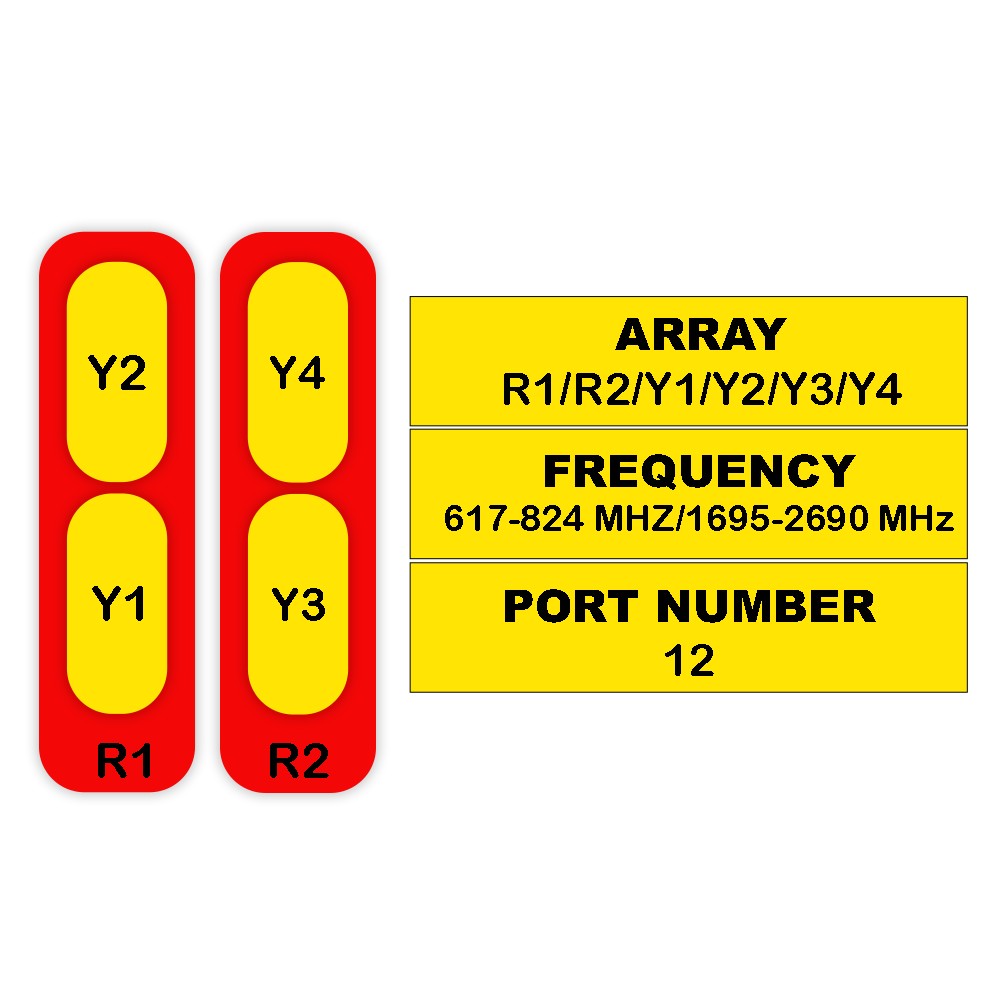

| 12-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 617-824 | 617-824 | 1695-2690 | 1695-2690 | 1695-2690 | 1695-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 15.5 dBi | 17 dBi | 16.5 dBi | 17 dBi | 16.5 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

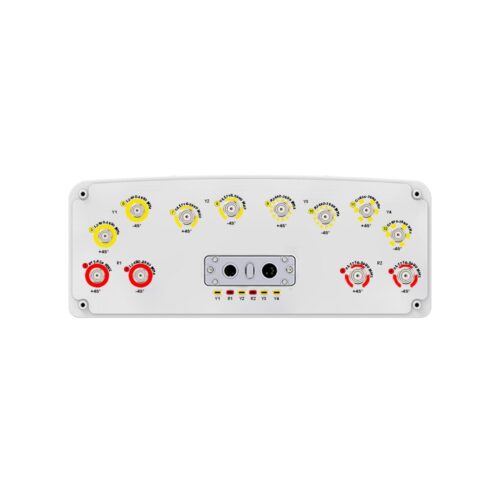

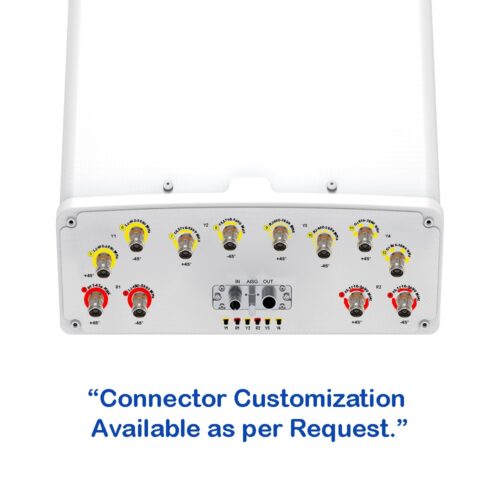

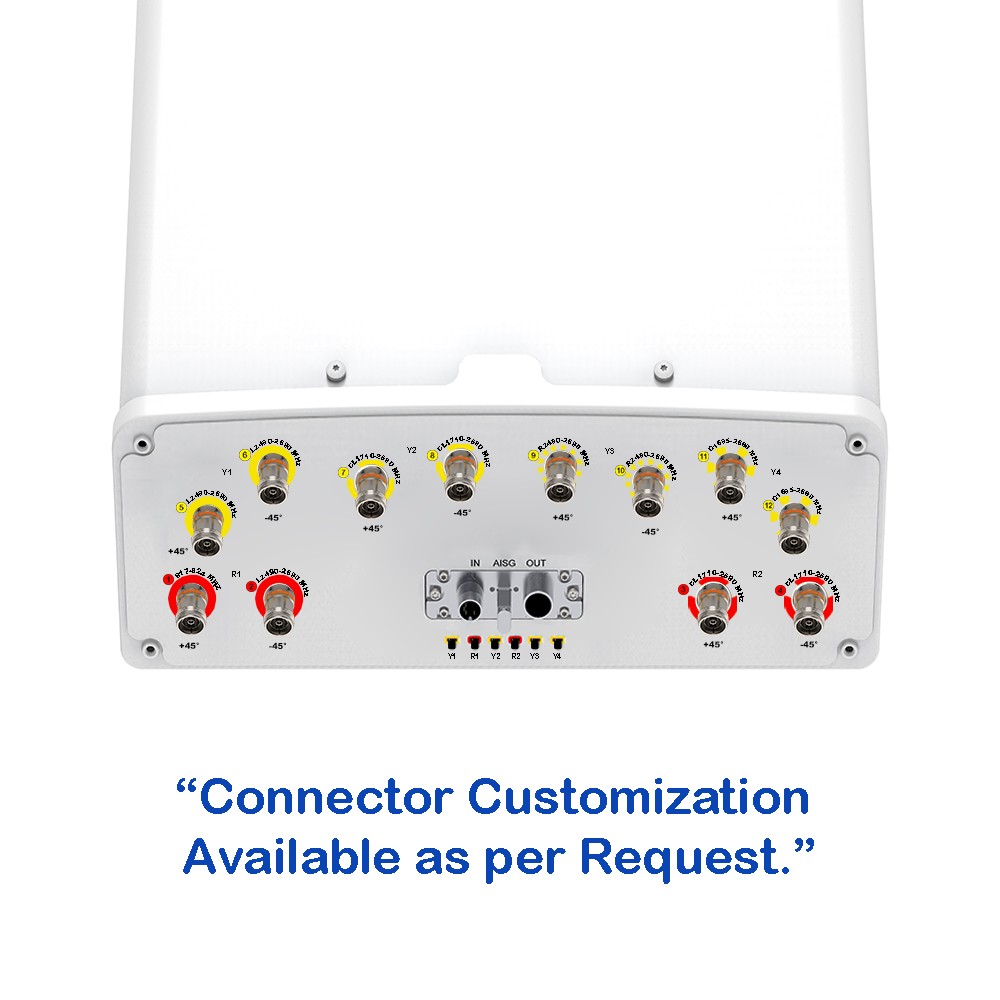

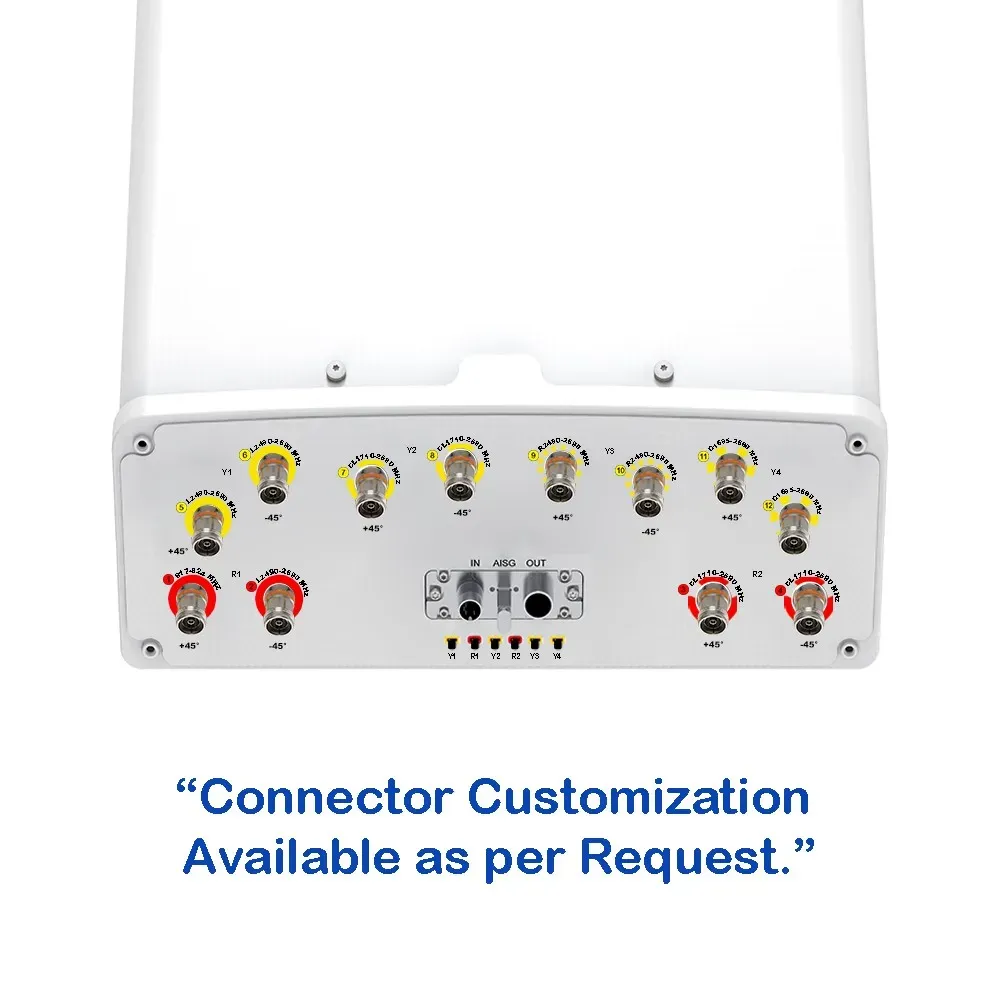

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
