Product code: 12P-617-2690F-16G-65H11V

12-Port, Panel Sector Antenna, 65° HBW, (2x) 617-894/ (4x) 1695-2690 MHz, 16/16/18/18/18/18 dBi, 2-12°T, 2.437 m

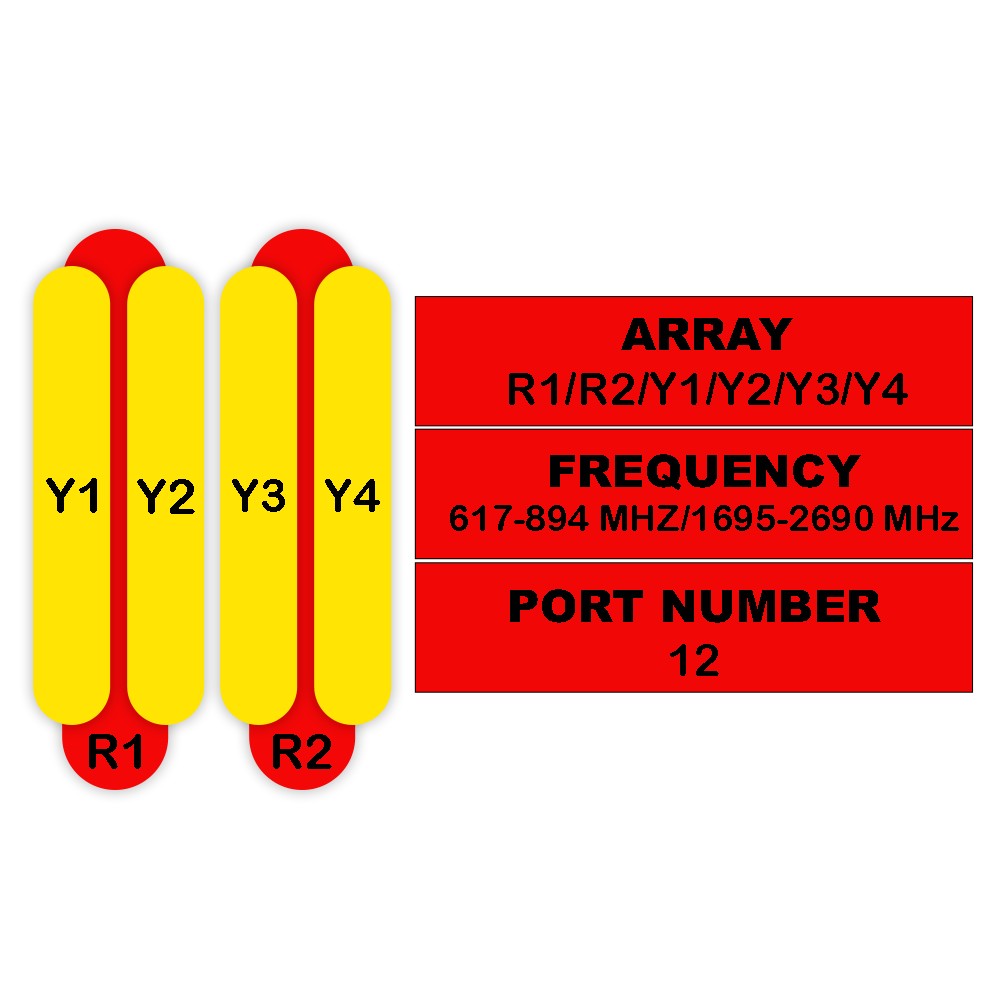

12-Port Antenna R1 R2 Y1 Y2 Y3 Y4
Frequency Range (MHz) 617-894 617-894 1695-2690 1695-2690 1695-2690 1695-2690
HBW 65° 65° 65° 65° 65° 65°
Gain 16 dBi 16 dBi 18 dBi 18 dBi 18 dBi 18 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°

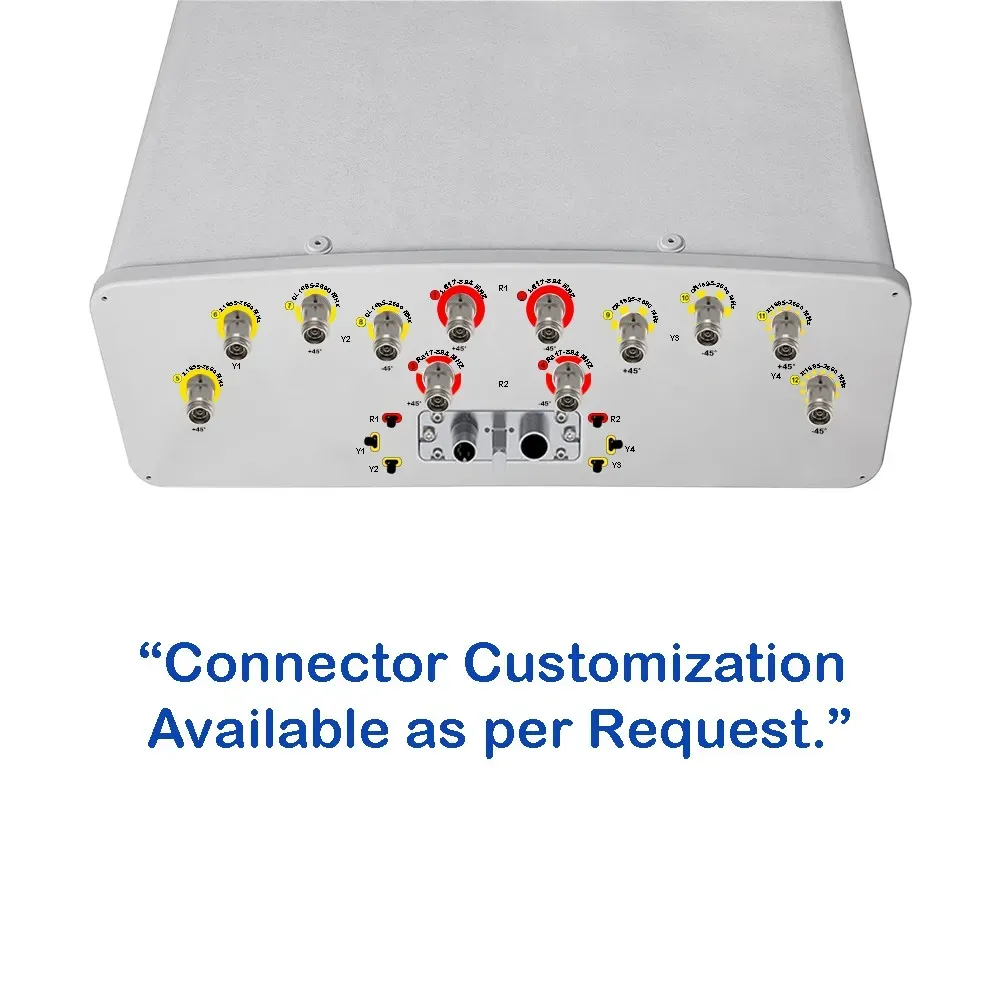

Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
12P-617-2690F-16G-65H11V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2Y1 / Y2 / Y3 / Y4
Frequency RangeMHz617-8941695-2690
MHz617-698690-806790-8941695-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°
Gainat Mid TiltdBi1515.415.81717.417.818.218.2
Over All TiltsdBi14.8 ± 0.515.2 ± 0.515.6 ± 0.516.8 ± 0.617.2 ± 0.617.6 ± 0.618.0 ± 0.518.0 ± 0.5
Horizontal Beamwidthdegree72 ± 6.068 ± 6.066 ± 5.069 ± 6.566 ± 6.564 ± 6.562 ± 6.062 ± 6.5
Vertical Beamwidthdegree10.4 ± 1.19.1 ± 0.98.3 ± 0.85.6 ± 0.55.2 ± 0.54.9 ± 0.54.4 ± 0.54.0 ± 0.5
Electrical Downtilt, Continuously Adjustabledegree2-Dec2-Dec
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side LobeFirst Upper LobedB> 15> 16> 16> 16> 16> 16> 15> 15
SuppressionPeak to 20°dB> 14> 15> 15> 14> 14> 14> 14> 14
Front-To-Back Ratio ±30°dB> 20> 22> 23≥ 23≥ 23> 24≥ 24≥ 24
Cross Polarat BoresightdB> 16> 17> 18> 16> 16> 17> 18> 18
DiscriminationOver SectordB> 7.0> 8.0> 7.5> 6.0> 6.0> 6.0> 5.0> 4.0
IsolationCross-PolardB> 25> 25
IntrabanddB> 28> 28
ImpedanceOhm5050
VSWR—< 1.5< 1.5
Return LossdB> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150
Lightning Protection—DC GroundDC Ground
Maximum Average Input Power per Port, at 50° C Ambient TemperatureWatts250200
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications
Connector Type—(12x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

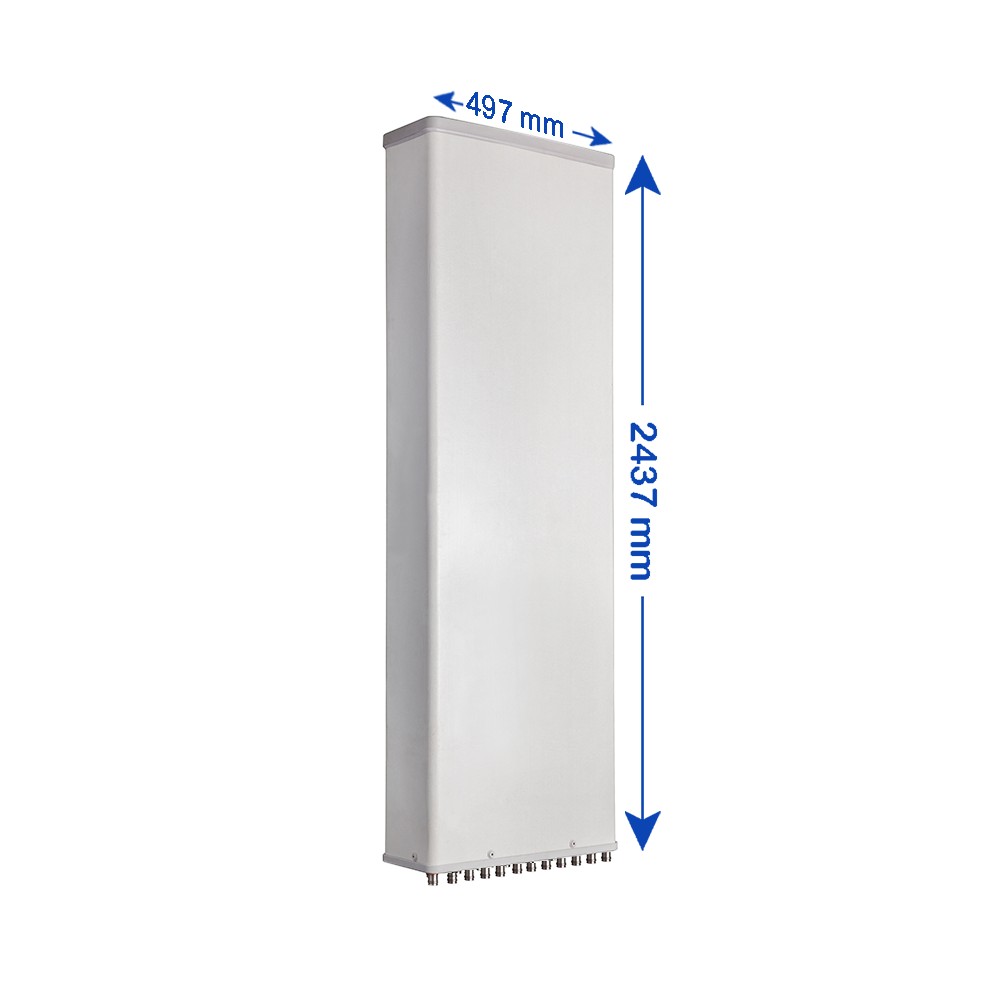

Antenna Dimensions (H x W x D)mm (in)2437 x 497 x 197 (95.9 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)41 (90.4)
with Clampskg (lbs)48.5 (106.9)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind LoadFrontalN (lbf)1120 (251.8)
at 150 km/hRearN (lbf)1250 (281.0)
LateralN (lbf)550 (123.6)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
