Product code: 12P-690-2690F-15G-65H16V

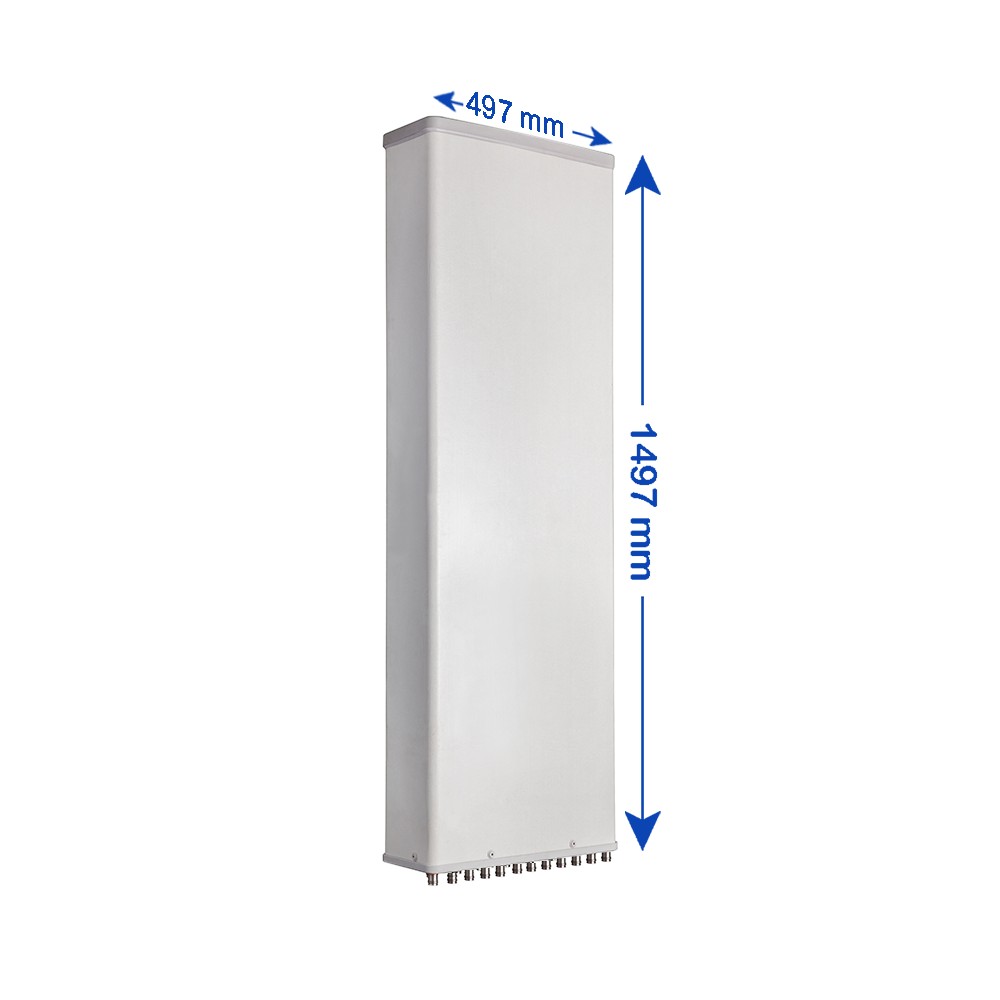

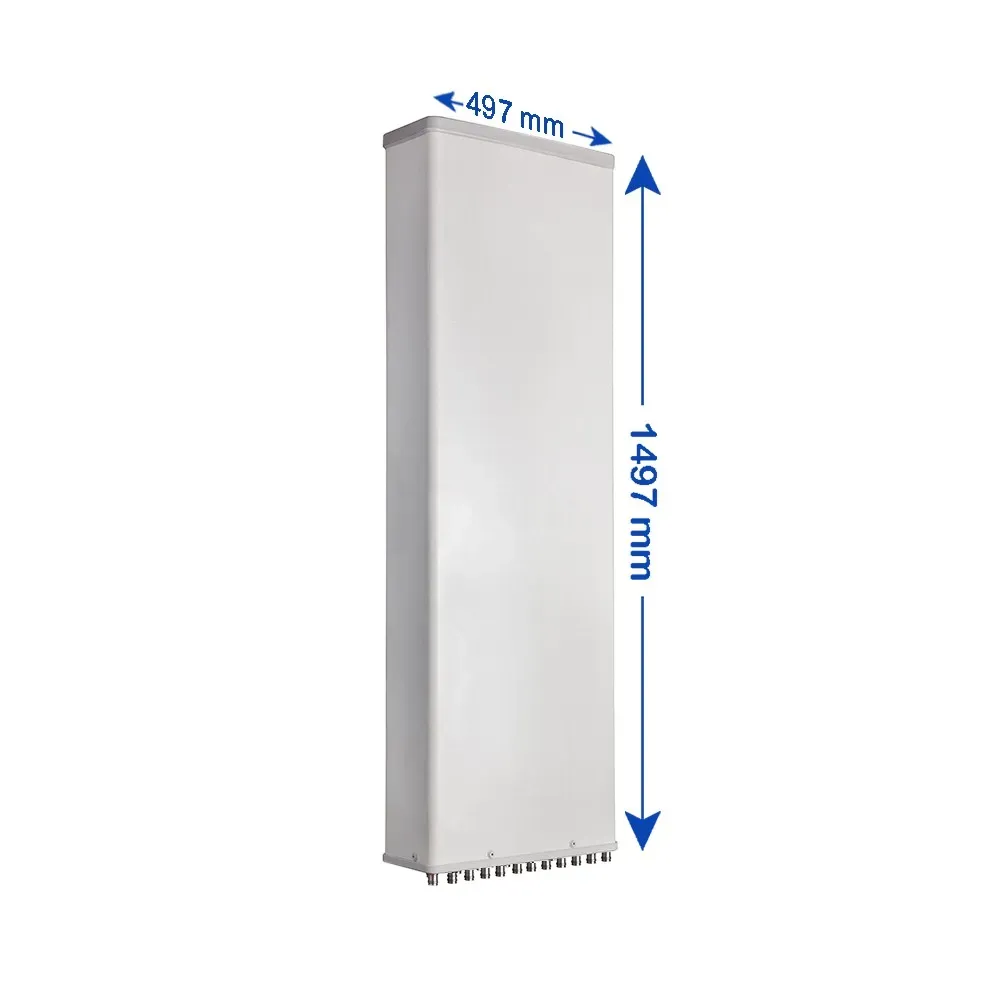

12-Port, Panel Sector Antenna, 65° HBW, (2x) 690-960/(2x) 1427-2690/(2x) 1695-2690 MHz, 14.5/14.5/18/18/18/18 dBi, 2-12°T, 1.497 m

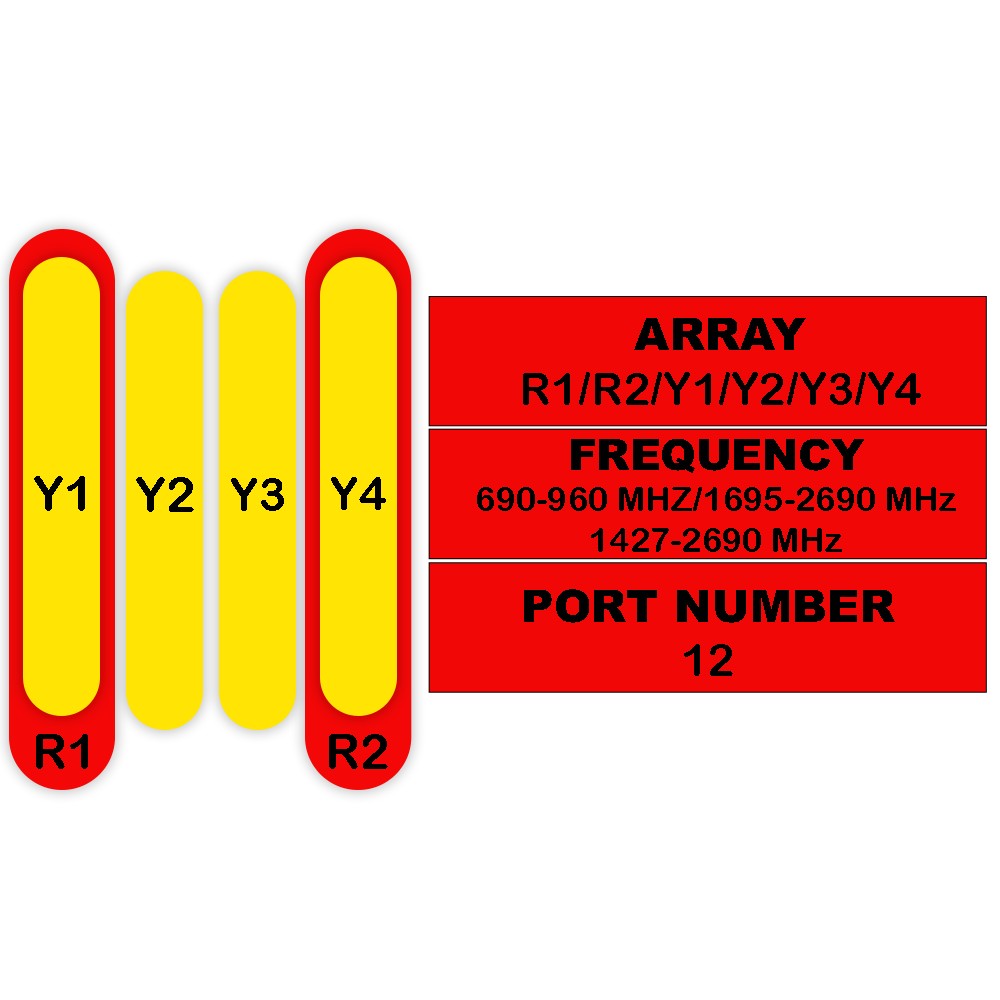

| 12-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 690-960 | 690-960 | 1695-2690 | 1427-2690 | 1427-2690 | 1695-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 14.5 dBi | 14.5 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

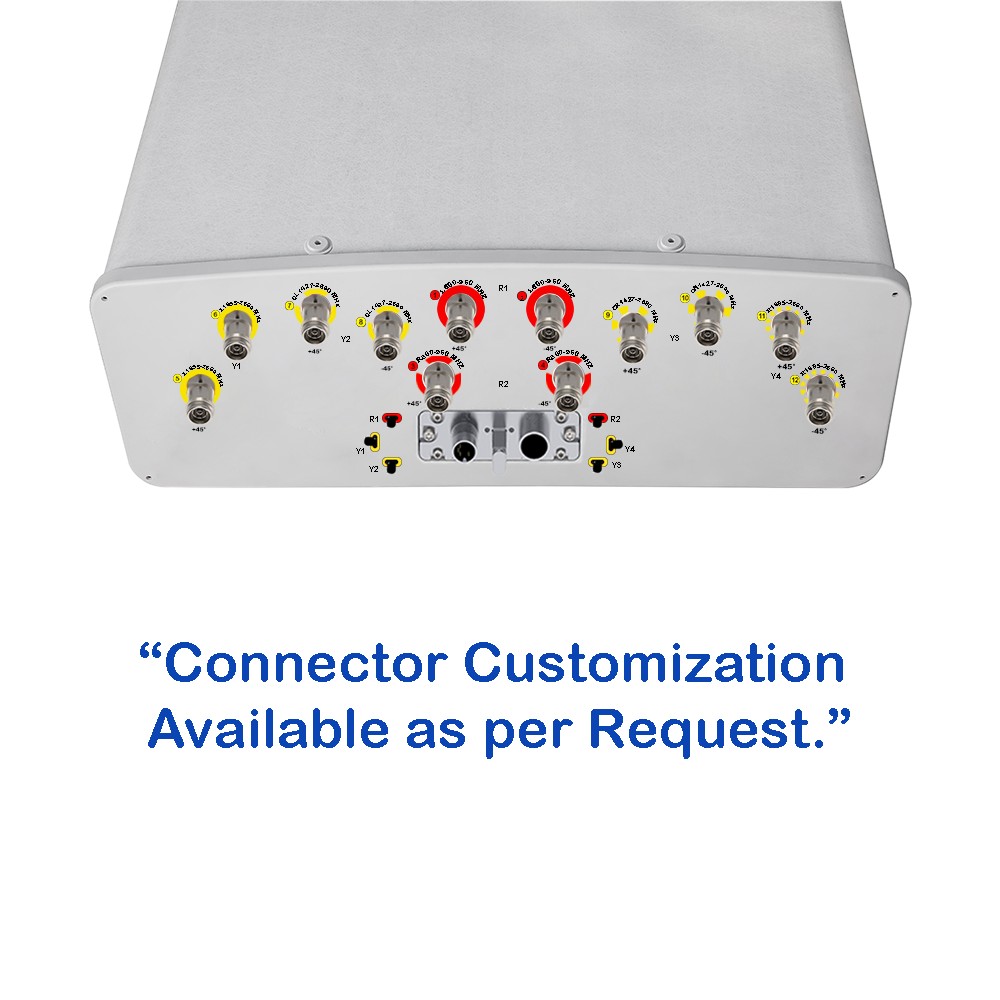

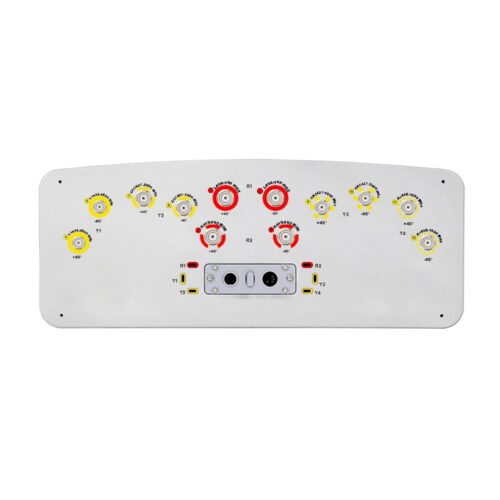

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
