12-Port, Panel Sector Antenna, 65° HBW, (2x) 690-960/(4x) 1695-2690 MHz, 13/13/13/13/13/13 dBi, (2x) 2-16°/(4x)2-12°T, 1.097 m

Q: Other Inquiries

Please send purchase request at sales@mtsrl.in

Product code: 12P-690-2690F-13G-65H24V

12-Port, Panel Sector Antenna, 65° HBW, (2x) 690-960/(4x) 1695-2690 MHz, 13/13/13/13/13/13 dBi, (2x) 2-16°/(4x)2-12°T, 1.097 m

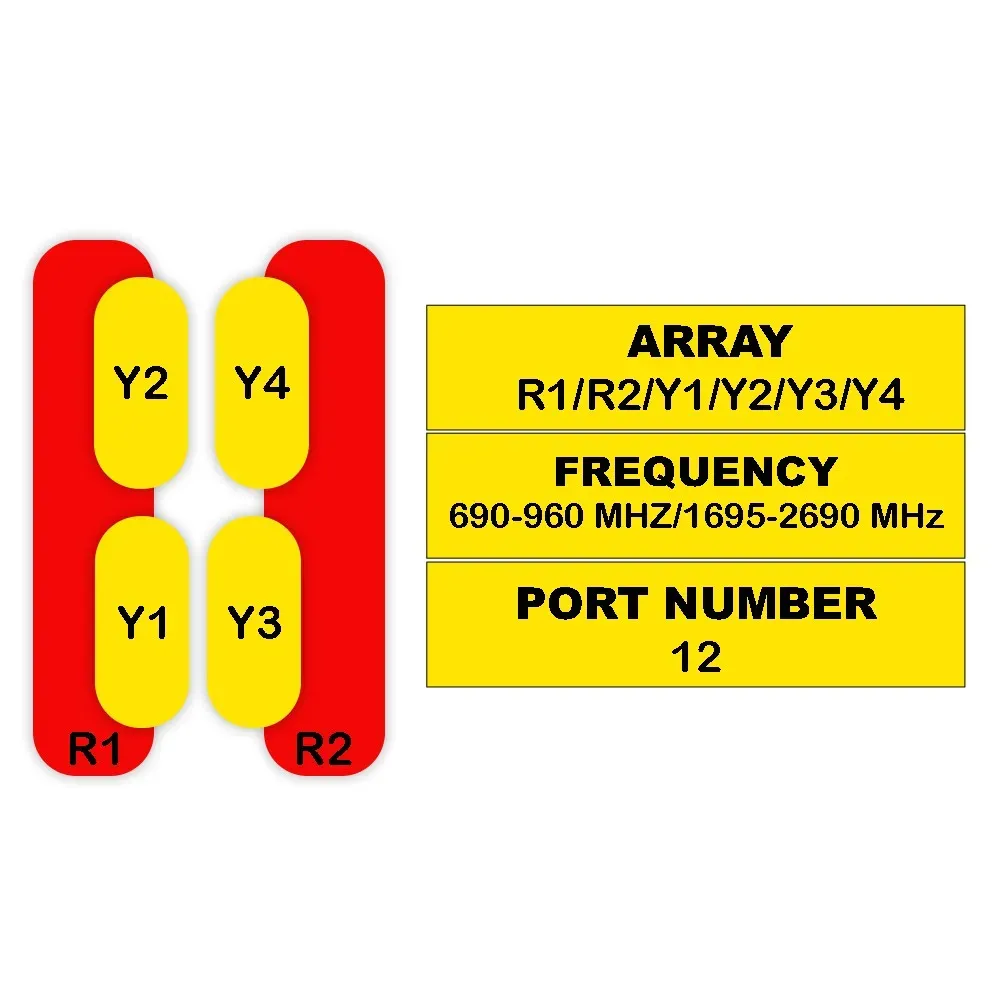

12-Port Antenna	R1	R2	Y1	Y2	Y3	Y4
Frequency Range (MHz)	690-960	690-960	1695-2690	1695-2690	1695-2690	1695-2690
HBW	65°	65°	65°	65°	65°	65°
Gain	13 dBi	13 dBi	13 dBi	13 dBi	13 dBi	13 dBi
Tilt	2-12°	2-12°	2-12°	2-12°	2-12°	2-12°
Connectors (other connectors by request)	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female	(2x) 4.3/10 Female

WhatsApp Chat

Skype

Product Part Number

12P-690-2690F-13G-65H24V

Electrical & Mechanical Specification

Electrical Specifications
			R1 / R2			Y1 / Y3					Y2 / Y4
Frequency Range		MHz	690-960			1695-2690
		MHz
		MHz	690-806	790-894	880-960	1695-1880	1850-1990	1920-2170	2300-2400	2490-2690	1695-1880	1850-1990	1920-2170	2300-2400	2490-2690
Polarization		—	±45°			±45°					±45°
Gain	at Mid Tilt	dBi	11.7	12.2	12.6	12.2	12.6	13	13.4	13.4	12	12.4	12.8	13.2	13.2
Gain	Over All Tilts	dBi	11.5 ± 0.6	12.0 ± 0.6	12.4 ± 0.6	12 ± 0.6	12.4 ± 0.5	12.8 ± 0.5	13.2 ± 0.5	13.2 ± 0.6	11.8 ± 0.6	12.2 ± 0.5	12.6 ± 0.5	13 ± 0.5	13 ± 0.6
Horizontal Beamwidth		degree	64 ± 6.5	60 ± 6.0	55 ± 6.5	68 ± 6.5	66 ± 6.0	64 ± 6.5	62 ± 5.5	62 ± 6.5	68 ± 6.5	65 ± 6.0	64 ± 6.5	60 ± 5.5	60 ± 6.5
Vertical Beamwidth		degree	24 ± 2	21 ± 2	19 ± 2	20 ± 1.5	18 ± 1.5	16 ± 1.5	15 ± 1.5	13 ± 1.5	20 ± 1.5	18 ± 1.5	16 ± 1.5	15 ± 1.5	13 ± 1.5
Electrical Downtilt, Continuously Adjustable		degree	Feb-16			2-Dec					2-Dec
First Upper Side Lobe Suppression		dB	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15	> 15
Front-To-Back Ratio ±30°		dB	> 21	> 22	> 23	≥ 23	≥ 23	> 24	≥ 25	≥ 24	≥ 23	≥ 23	> 24	≥ 25	≥ 24
Isolation	Cross-Polar	dB	> 25			> 25					> 25
Isolation	Port-To-Port	dB	> 23(R1/R2), > 28(R1/Y1, Y2, Y3, Y4)			> 28					> 28
Impedance		Ohm	50			50					50
VSWR		—	< 1.5			< 1.5					< 1.5
Return Loss		dB	> 14			> 14					> 14
PIM3 (2×43 dBm Carrier)		dBc	< -153			< -153					< -153
Lightning Protection		—	DC Ground			DC Ground					DC Ground
Maximum Average Input Power per Port, at 50° C Ambient Temperature		Watts	250			250					250

Integrated RET Specifications
Protocols		Compliant to AISG v2.0 and 3GPP
Supply Voltage Range		10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
Power	Standby	< 2 W
Consumption	In Motion	< 10 W
Connectors		2 x 8 Pin Circle Connector
		Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
		Female Connector: 8 PINs; Male Connector: 4 PINs
Lightning Protection Rating		IEC 61000-4-5 Current Pulse Profile
Lightning Protection Rating		Line to Ground: 8/20 µs @ 8 kA ≥ ±5
Safety Standard		Compliant to EN 60950/UL 60950/RoHS, CE

Mechanical Specifications

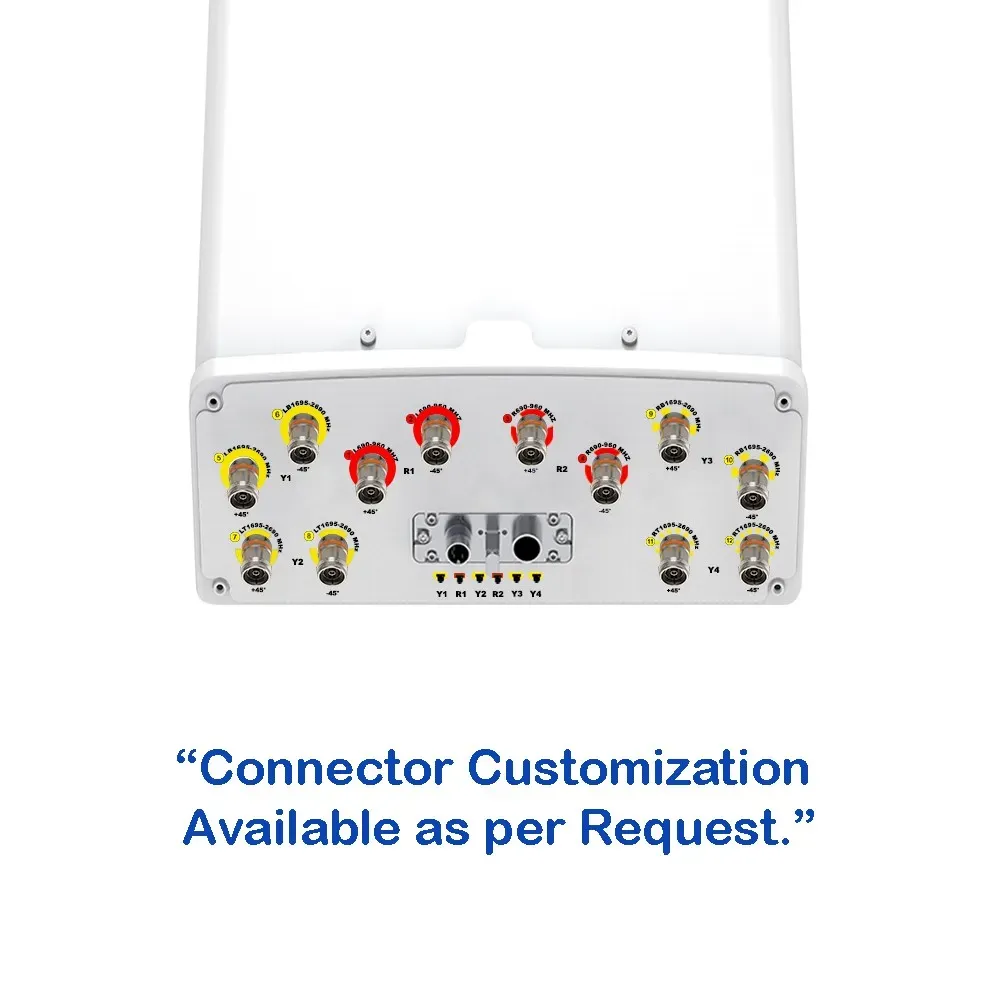

Connector Type		—	(12x) 4.3/10 Female
Connector Position		—	Bottom
Electrical Tilt Control		—	Integrated RET
Radome Material		—	Fiberglass

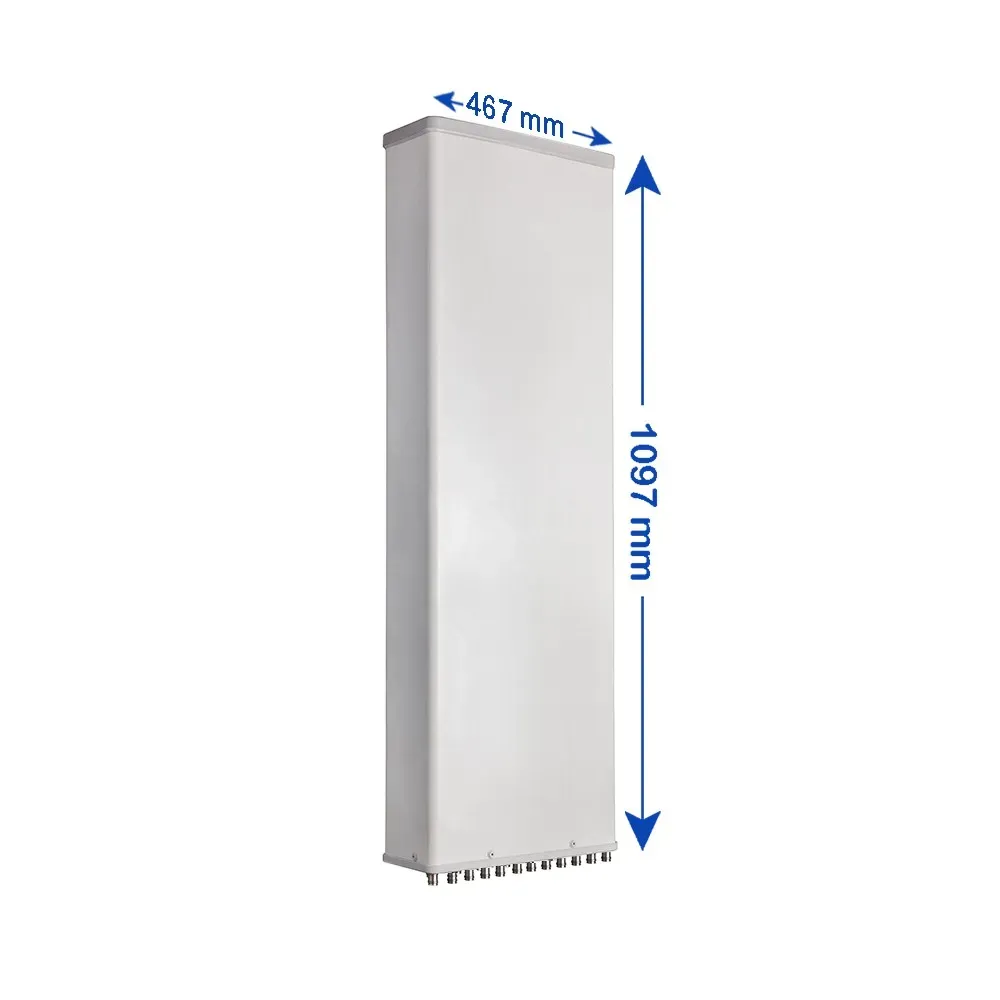

Antenna Dimensions (H x W x D)		mm (in)	1097 x 467 x 167 (43.2 x 18.4 x 6.6)
Antenna Weight	Antenna Only	kg (lbs)	21 (46.3)
Antenna Weight	with Clamps	kg (lbs)	25 (55.1)
Maximum Wind Speed		km/h (mph)	200 (124.3)
Wind Load	Frontal	N (lbf)	475 (106.8)
at 150 km/h	Rear	N (lbf)	530 (119.1)
	Lateral	N (lbf)	210 (47.2)
Operating Temperature		°C (°F)	-40 to +60 (-40 to +140)
