Product code: 12P-698-2690F-16G-65H11V

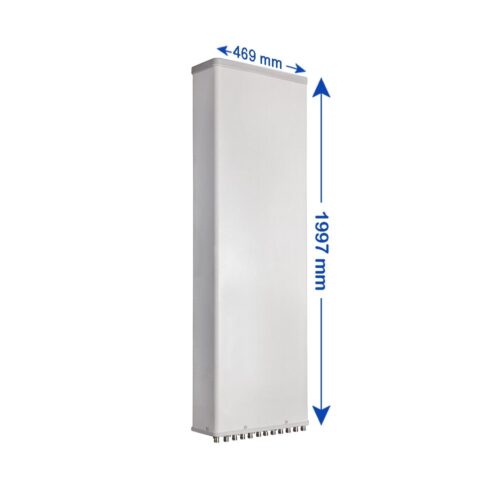

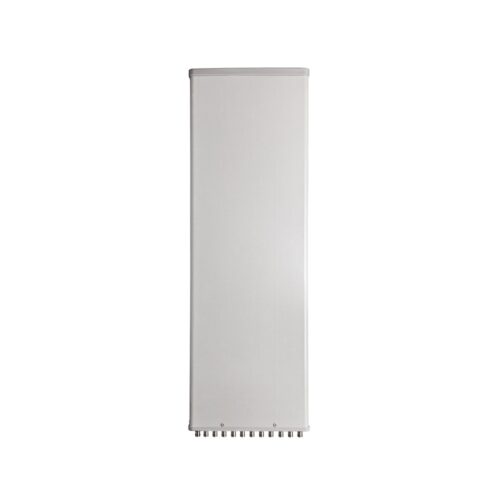

12-Port, Panel Sector Antenna, 65° HBW, (2x) 698-960/(4x) 1695-2690 MHz, 15.5/15.5/18/18/18/18 dBi, 2-12°T, 1.997 m

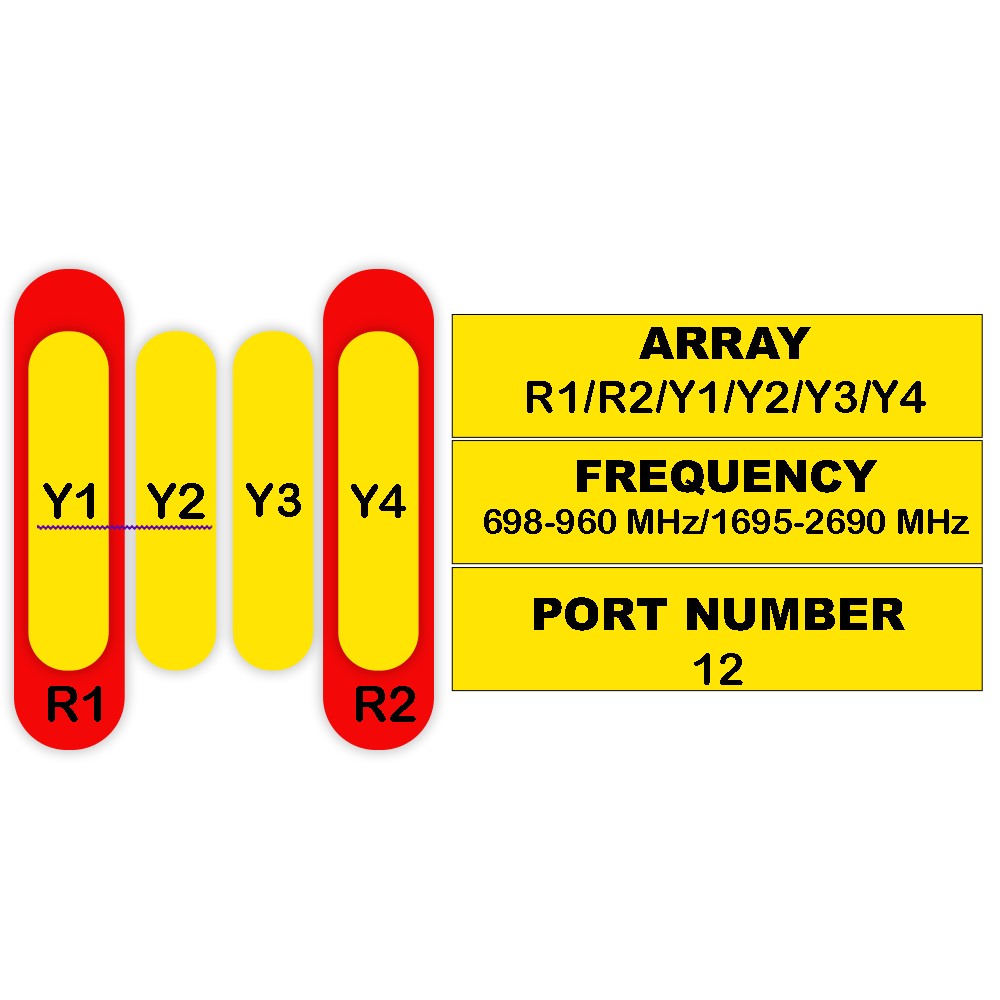

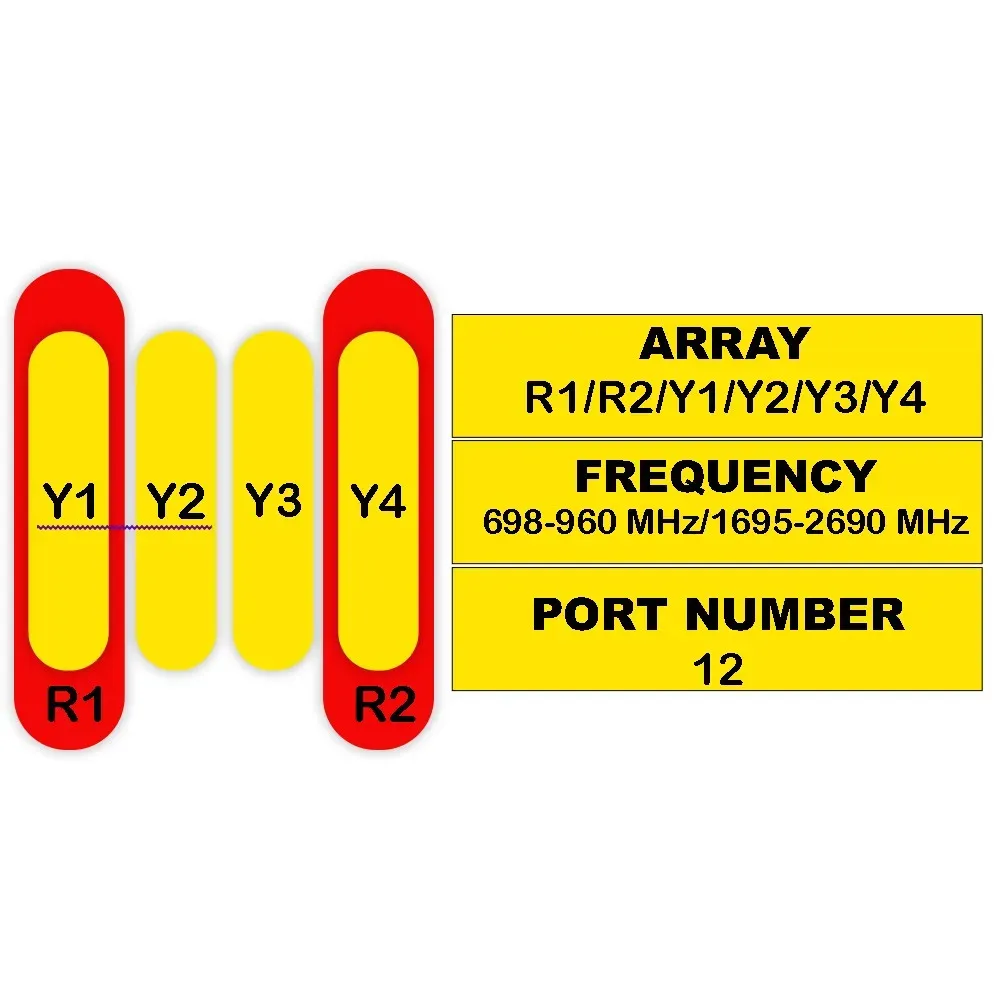

| 12-Port Antenna | R1 | R2 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 698-960 | 698-960 | 1695-2690 | 1695-2690 | 1695-2690 | 1695-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 15.5 dBi | 15.5 dBi | 18 dBi | 18 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

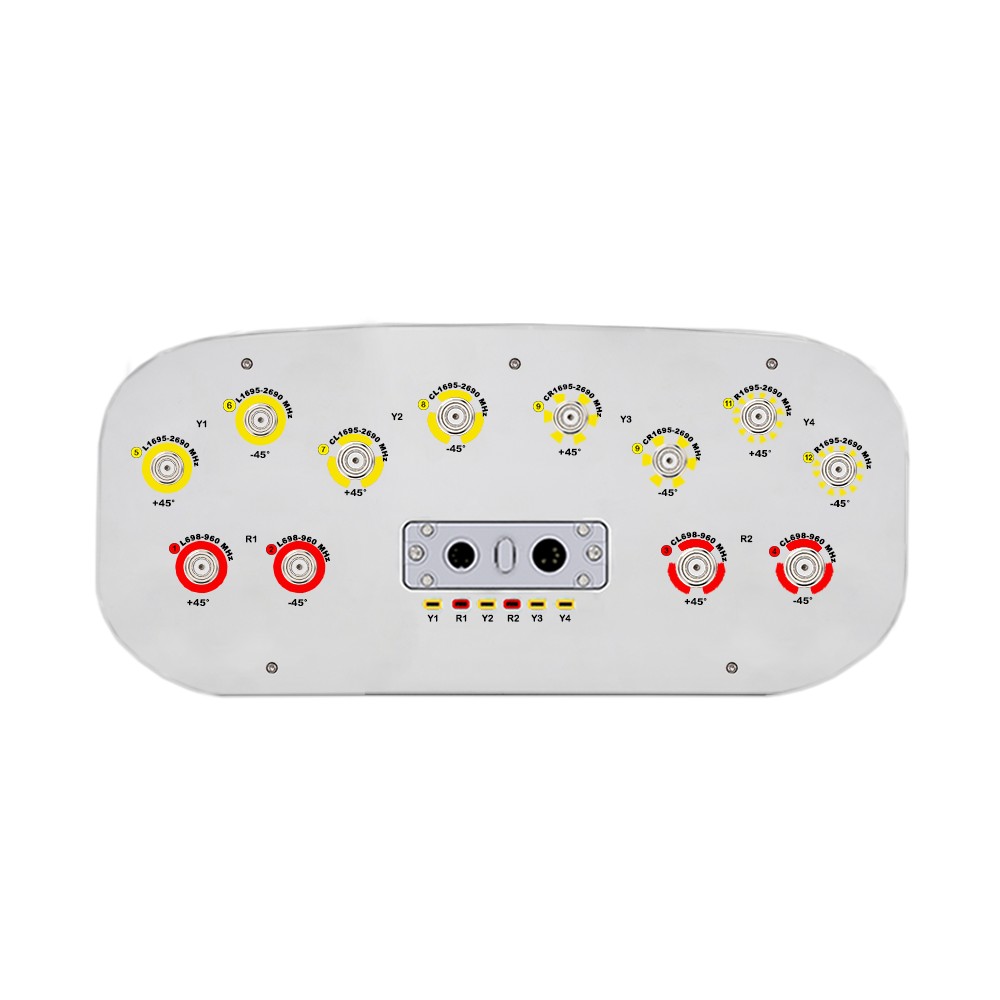

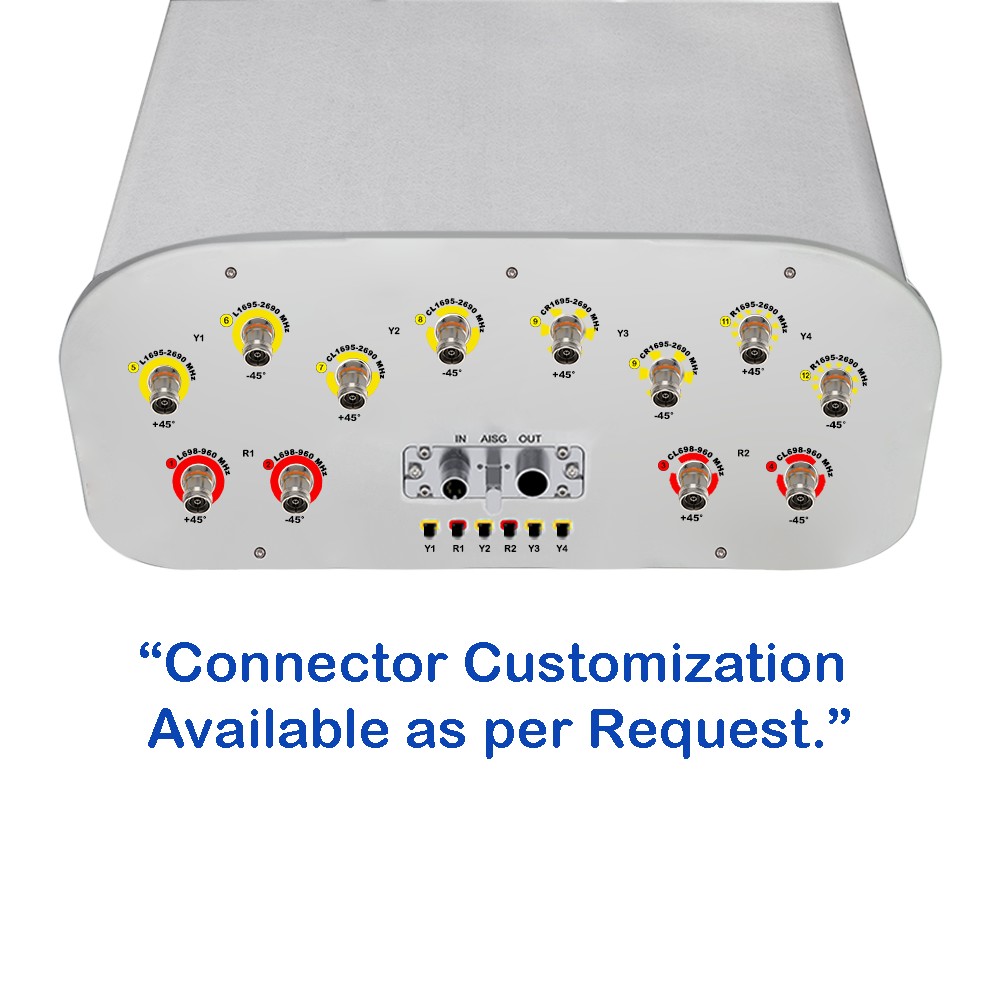

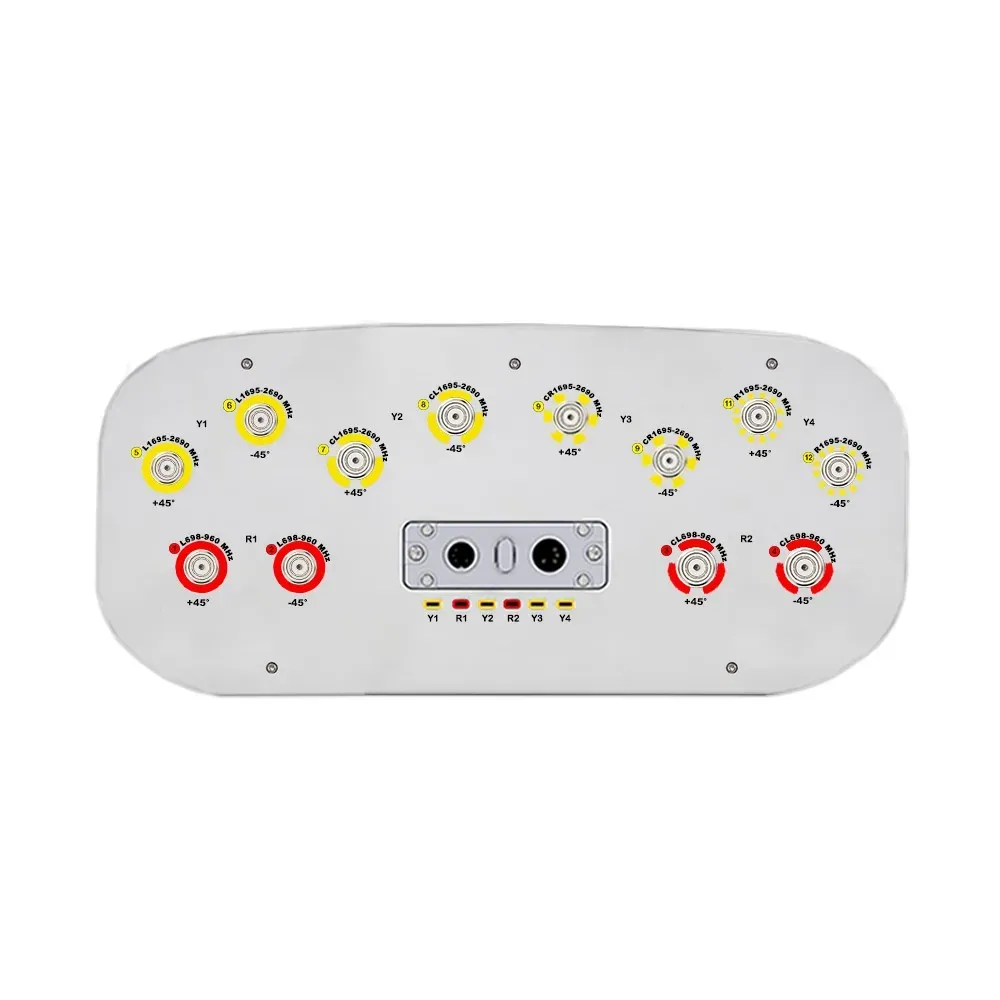

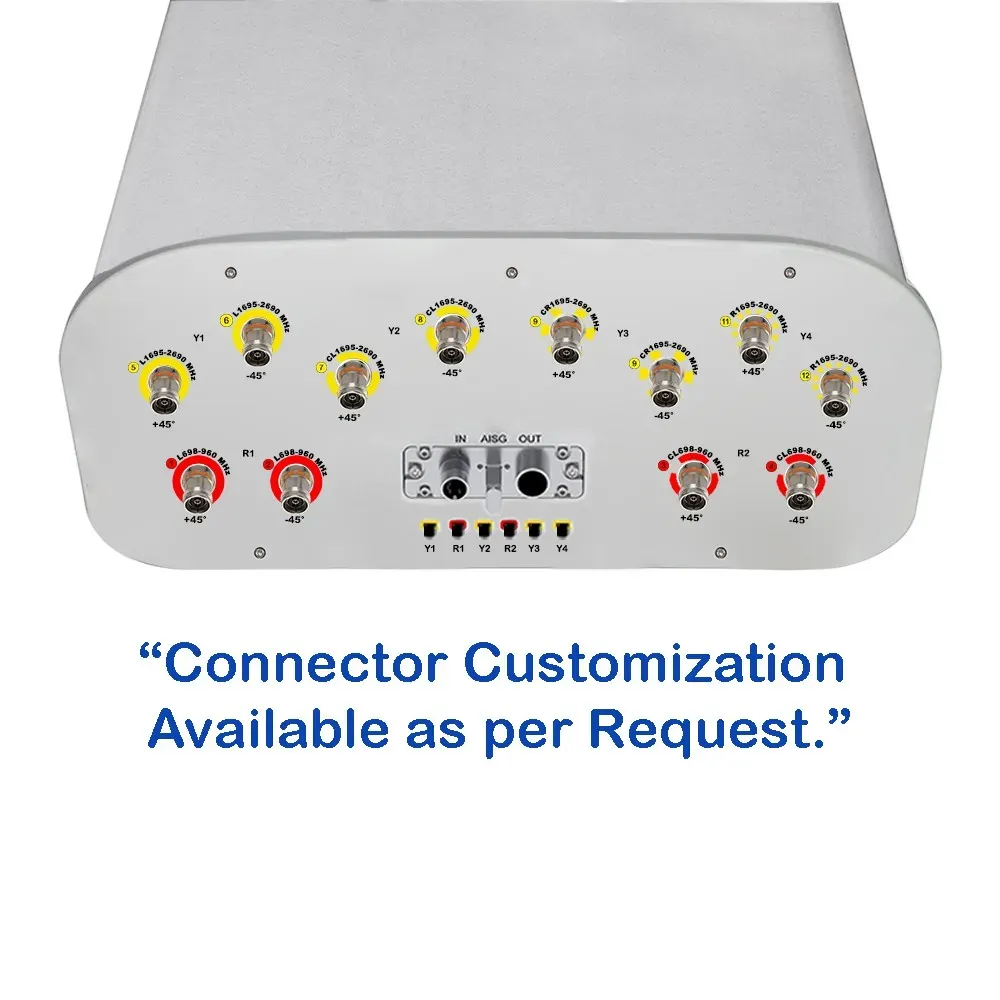

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
4-Port, Panel Sector Antenna, 35° HBW, 806-960/806-960 MHz, 16/16 dBi, 2-12°T, 1.515 m
4-Port, Panel Sector Antenna, 33° HBW, 1710-2690/1710-2690 MHz, 22/22 dBi, 2-8°T, 1.997 m
4-Port, Panel Sector Antenna, 35° HBW, 690-960/690-960 MHz, 18.2/18.2 dBi, 2-10°T, 2.690 m
4-Port, Panel Sector Antenna, 35° HBW, 698-960/698-960 MHz, 20/20 dBi, 2-12°T, 2.497 m
2-Port, Panel Sector Antenna, 120° HBW, 880-960 MHz, 13.5 dBi,
2-Port, Panel Sector Antenna, 90° HBW, 698-960 MHz, 14.5 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 18 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 1710-2690 MHz, 15 dBi,
2-Port, Panel Sector Antenna, 65° HBW, 698-960 MHz, 16 dBi,
2-Port, Panel Sector Antenna, 45° HBW, 698-960 MHz, 17.5 dBi
