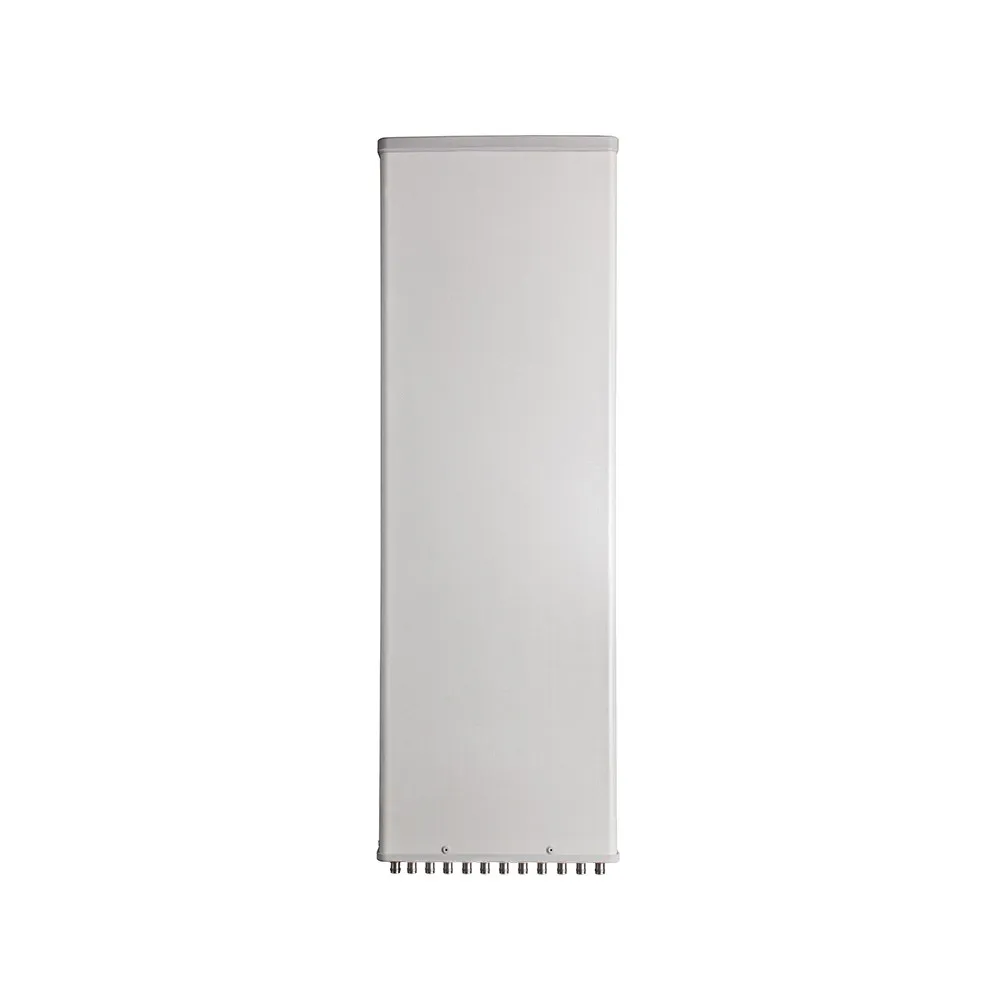

Product code: 12P-698-2400F-15G-65H15V

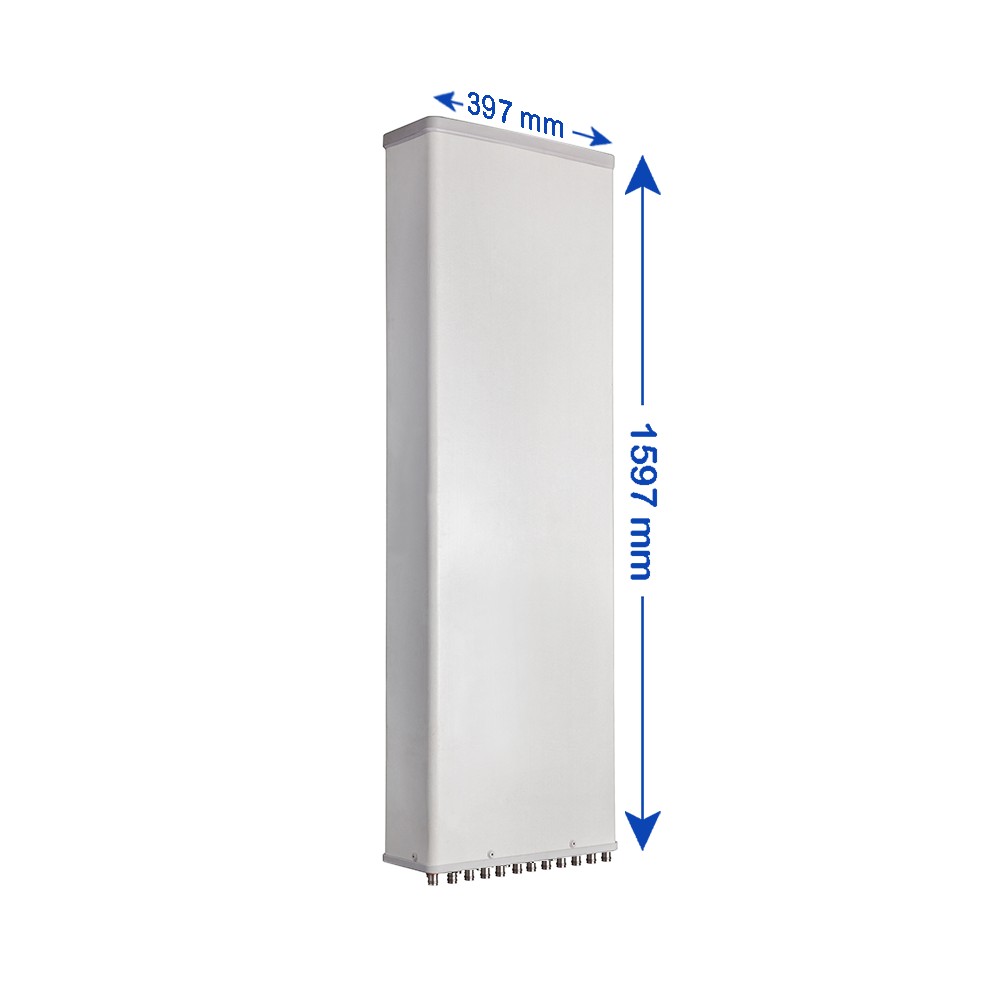

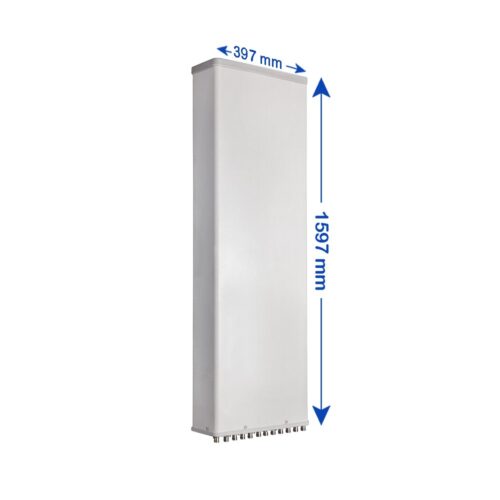

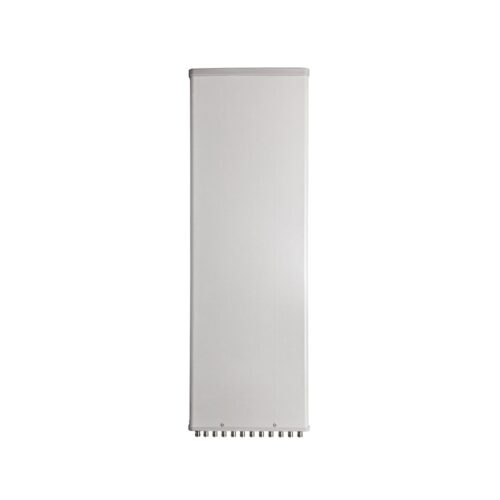

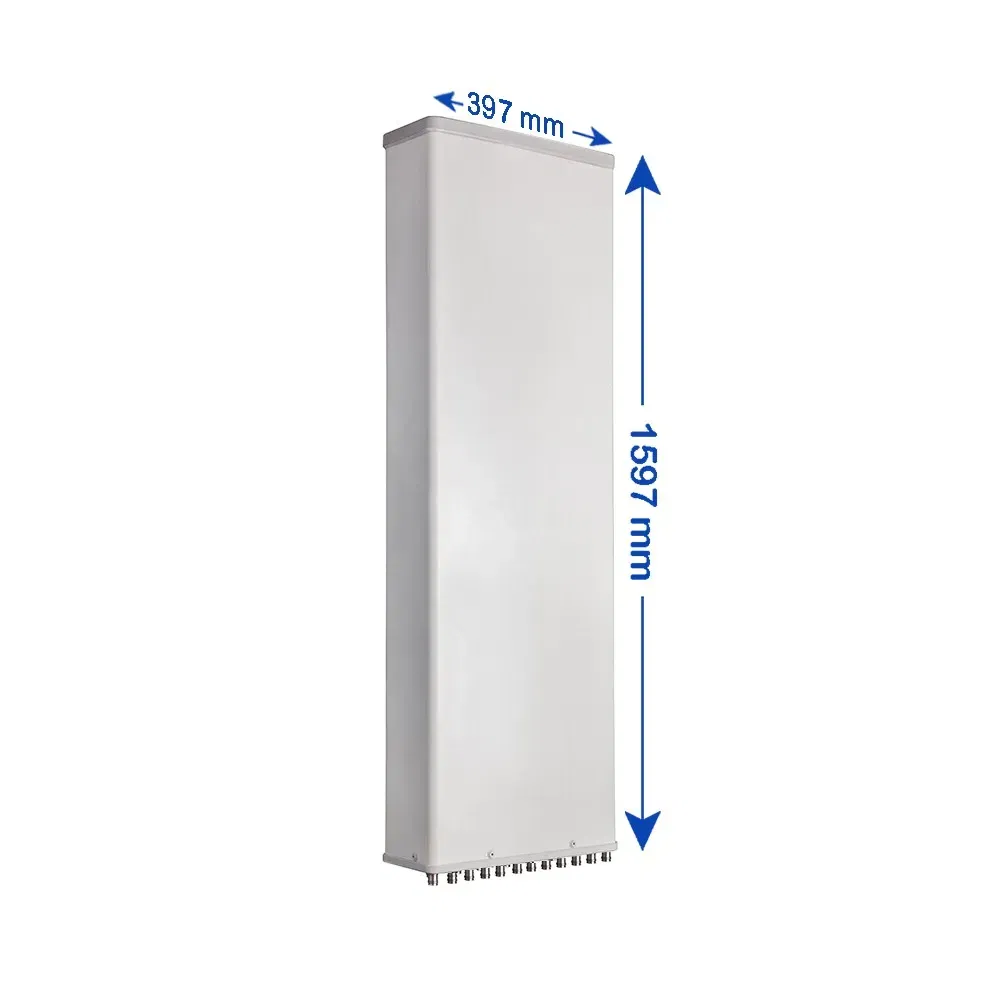

12-Port, Panel Sector Antenna, 65° HBW, 698-806/824-960/(2x) 1710-1880/(2x) 2300-2400 MHz, 14.5/14.5/16.5/16.5/17/17 dBi, 0-10°T, 1.597 m

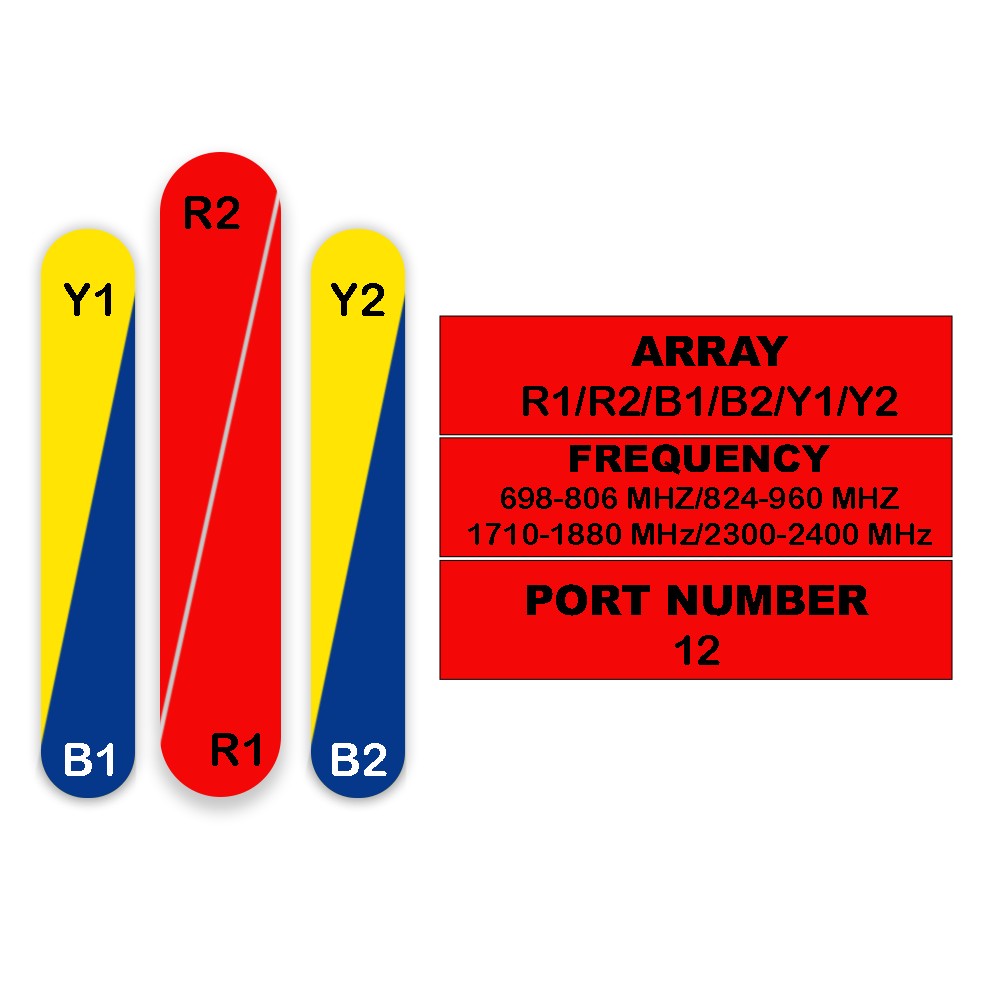

| 12-Port Antenna | R1 | R2 | B1 | B2 | Y1 | Y2 |
| Frequency Range (MHz) | 698-806 | 824-960 | 1710-1880 | 1710-1880 | 2300-2400 | 2300-2400 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 14.5 dBi | 14.5 dBi | 16.5 dBi | 16.5 dBi | 17 dBi | 17 dBi |
| Tilt | 4-14° | 4-14° | 0-10° | 0-10° | 0-10° | 0-10° |

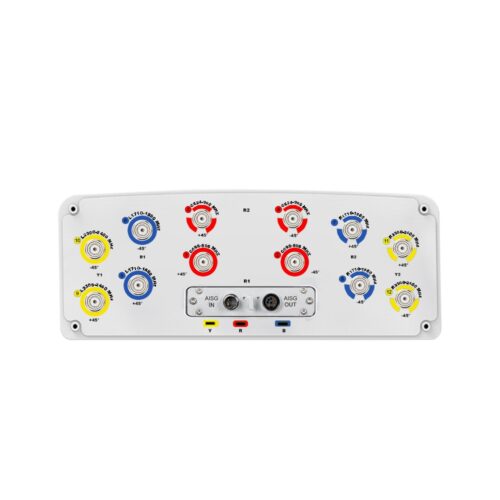

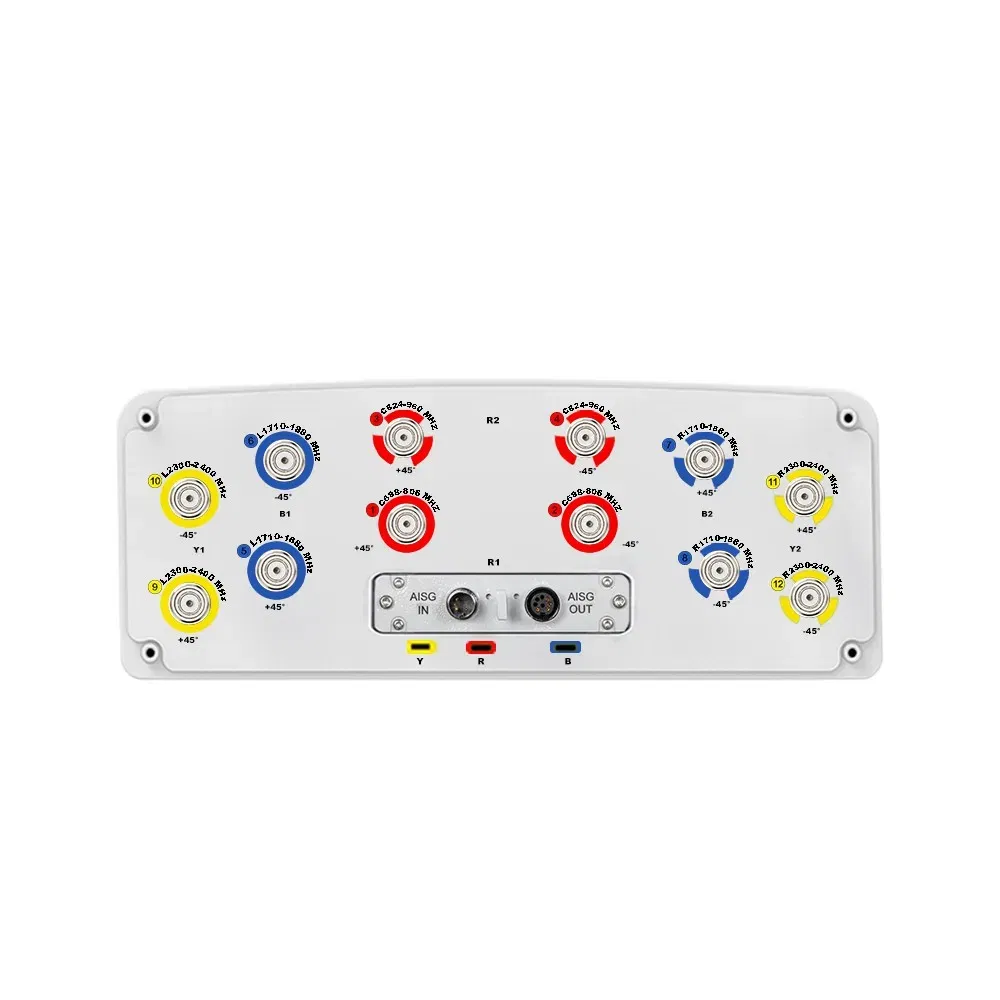

| Connectors

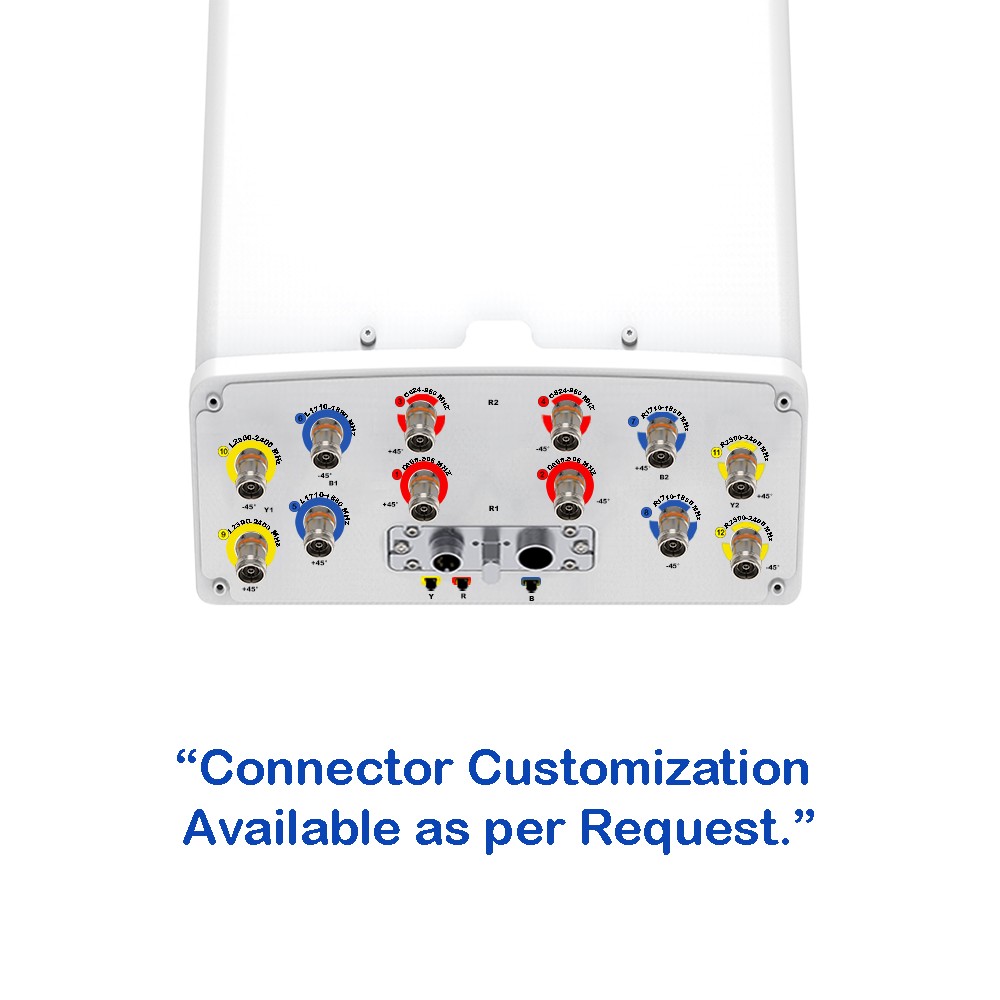

(other connectors by request) |
(2x) 7/16-
DIN Female |
(2x) 7/16-
DIN Female |
(2x) 7/16-
DIN Female |
(2x) 7/16-
DIN Female |
(2x) 7/16-
DIN Female |
(2x) 7/16-
DIN Female |
