Product code: 13P-1710-3800F-18G-65H6V

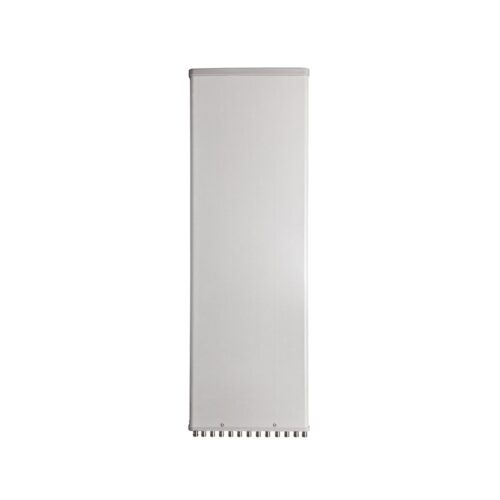

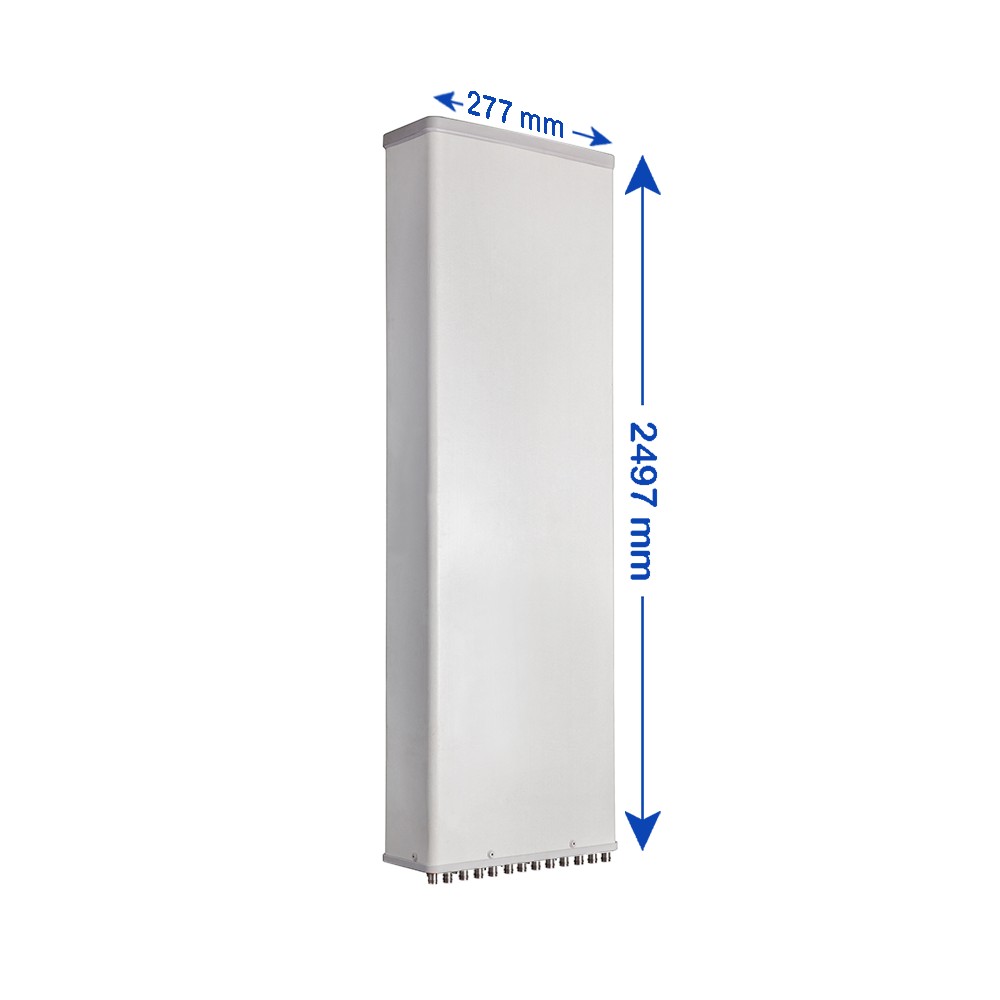

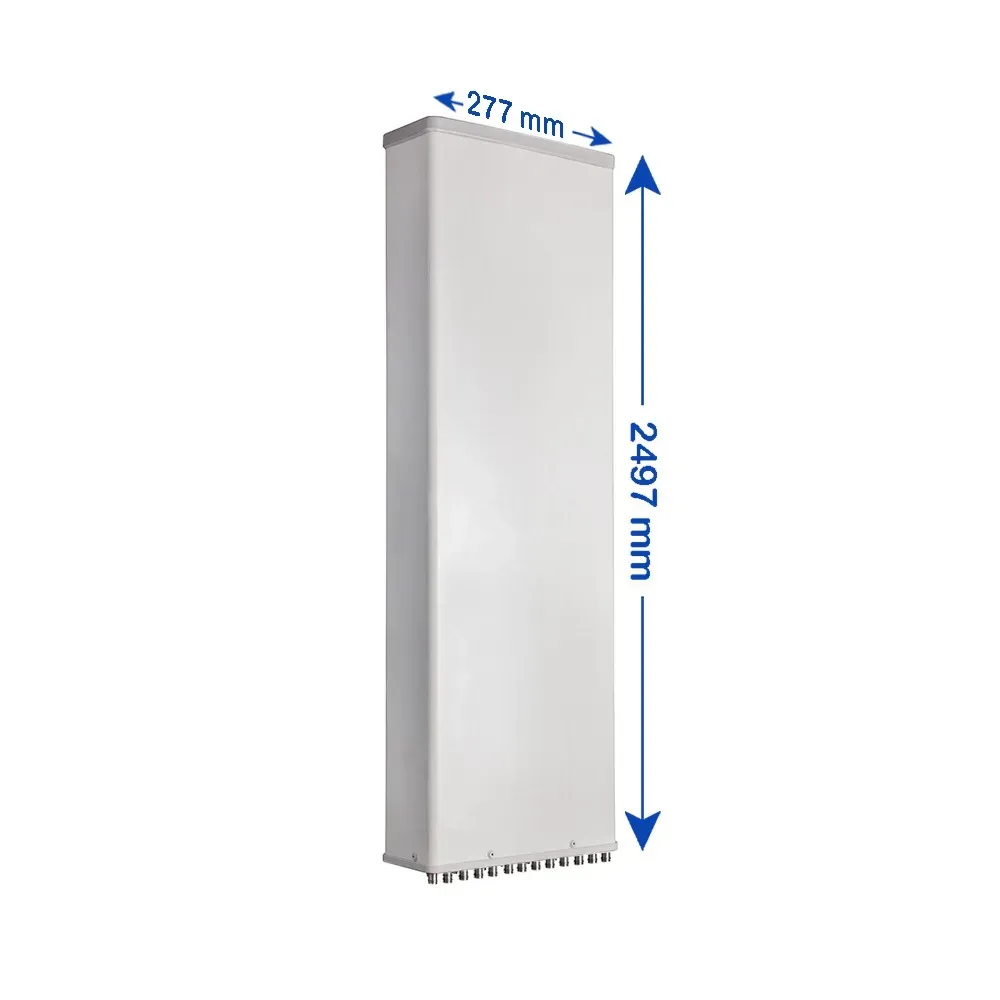

13-Port, TDD Hybrid Panel Antenna, 65°/65°/75° HBW, (2x)1710-2690/(1x) 3300-3800 MHz, 18/18/17 dBi, (2x) 0-10°/2-12°T, 2.497 m

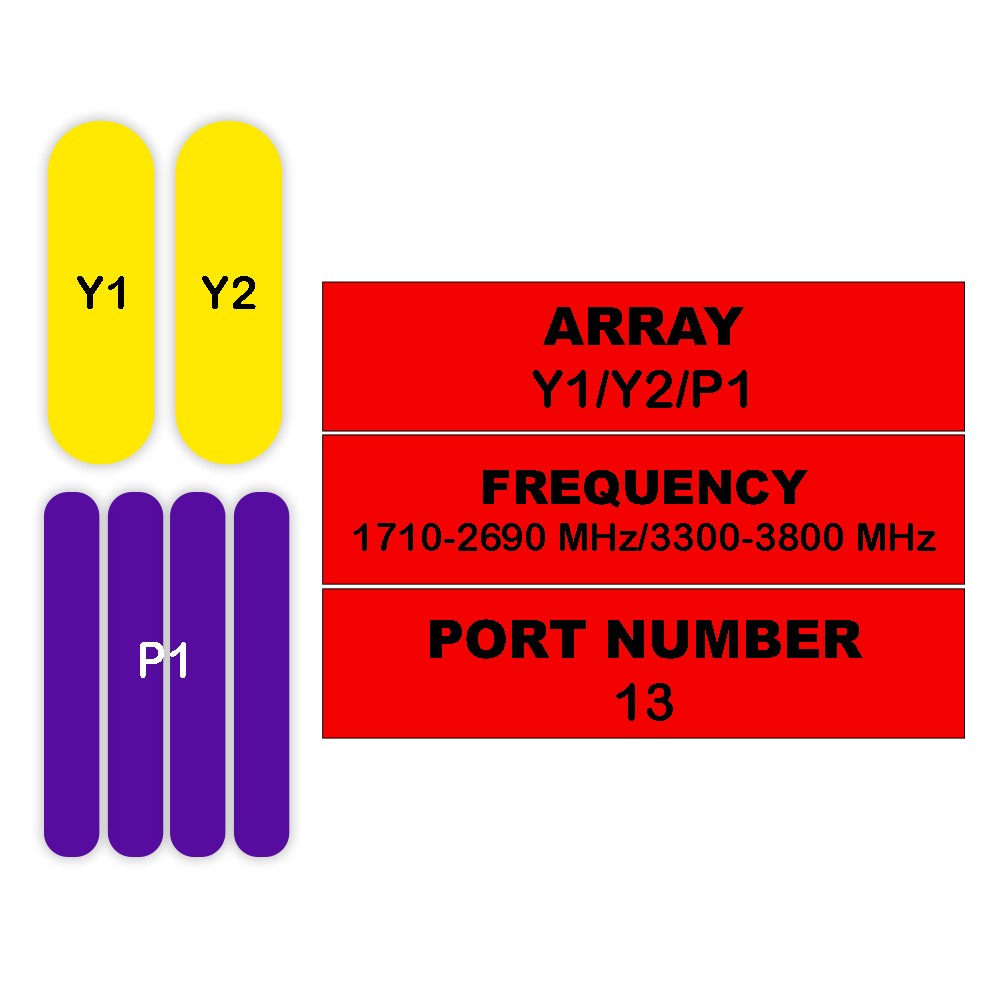

| 13-Port Antenna | Y1 | Y2 | P1 |
| Frequency Range | 1710-2690 MHz | 1710-2690 MHz | 3300-3800 MHz |
| HBW | 65° | 65° | 75° |
| Gain | 18 dBi | 18 dBi | 17 dBi |
| Tilt | 0-10° | 0-10° | 2-12° |

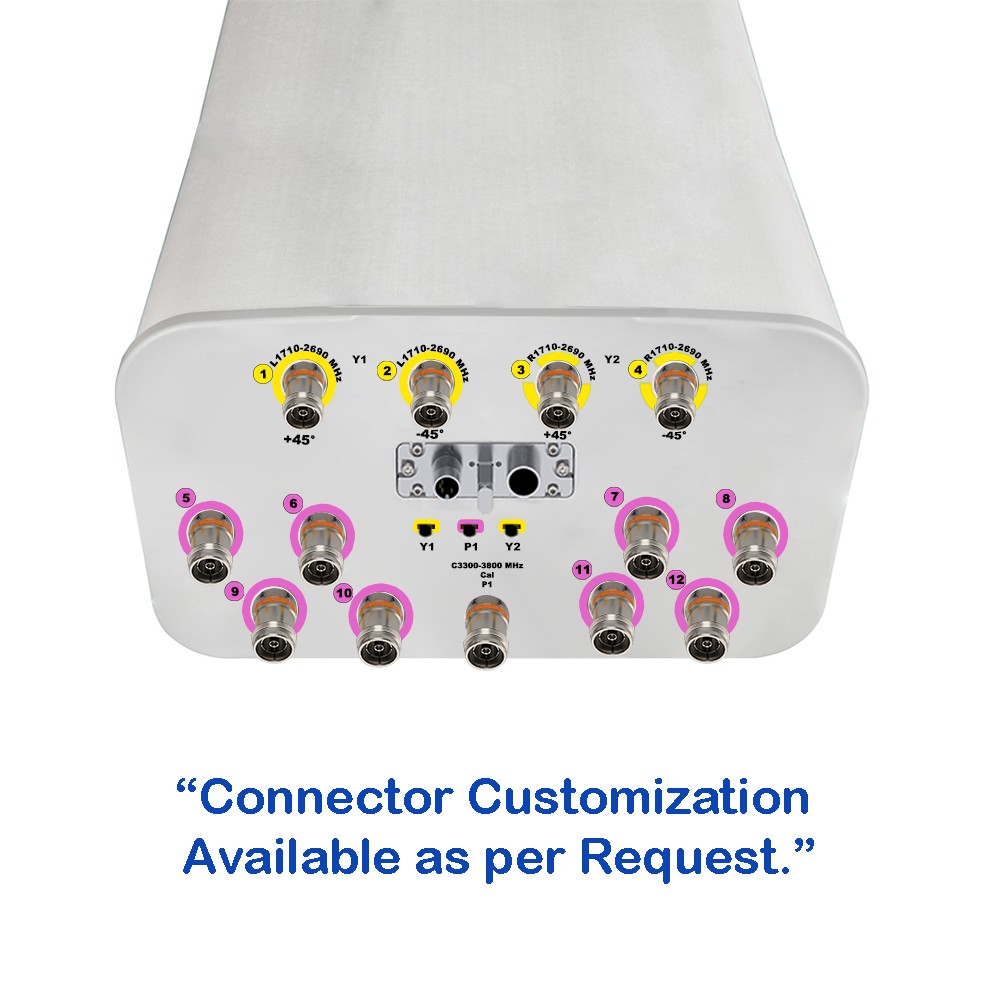

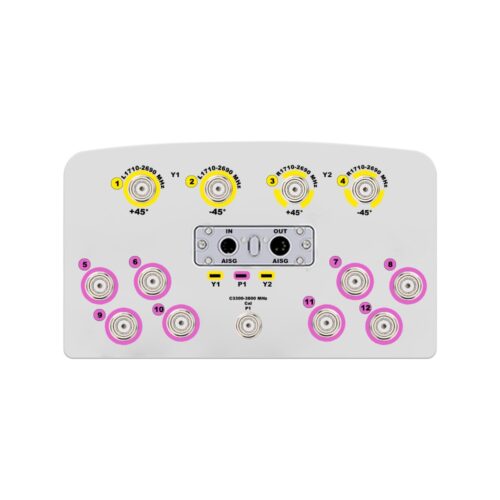

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(8x) 4.3/10 Female &
(1x) 4.3/10 Female Calibration port |
