Product code: MT-DTA759

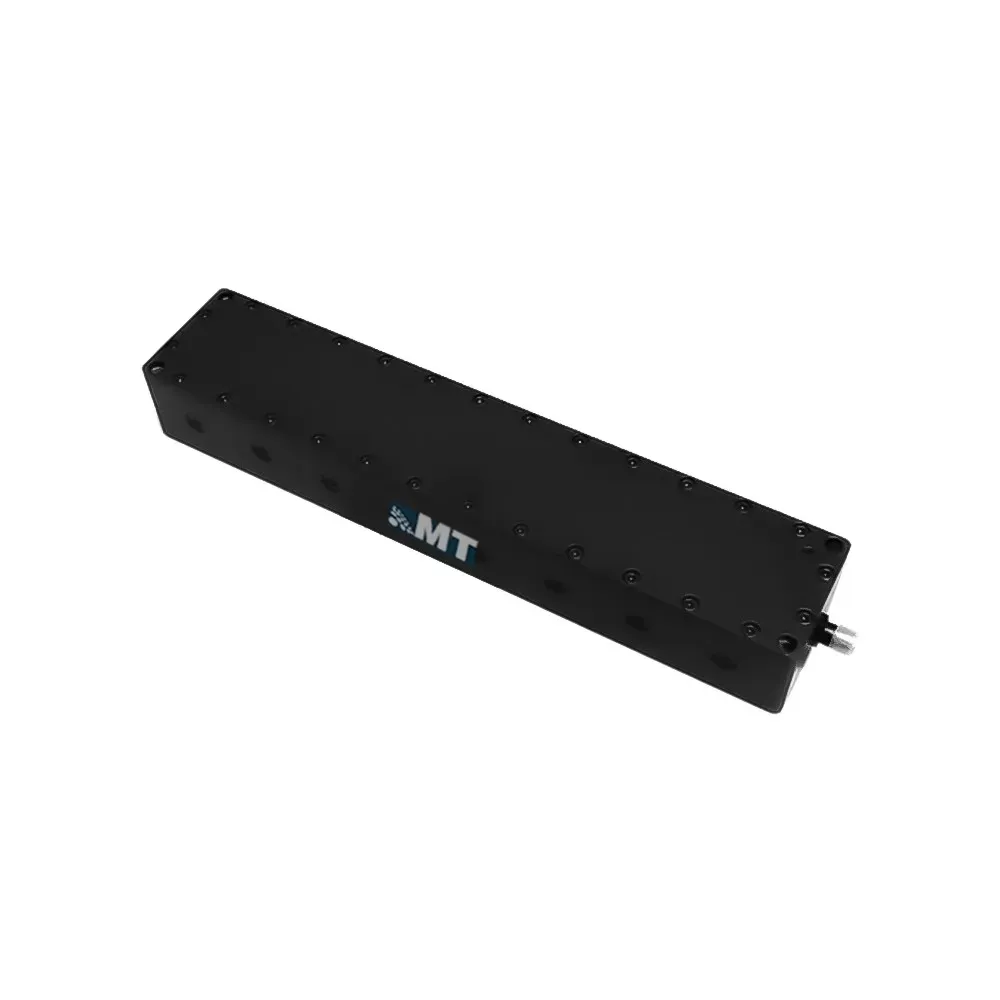

1300-1360MHz Cavity Band Pass Filter

  • P/N：MT-DTA759
  • Pass Band Frequency：1300-1360MHz
  • Pass Band Frequency：1300-1360MHz
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA759
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)1330MHz
2Pass Band Frequency1300 ~ 1360MHz
3Pass Band Insertion Loss≤0.8dB
4Pass Band Ripple≤0.4dB
5Pass Band Return Loss≥23dB
6Stop Band Rejection≥40dB @ DC ~ 1260MHz 1400 ~ 3000MHz
7Impedance50 Ohms
8Power Handling20W Max.
9ConnectorsSMA-Female
