Product code: MT-DTA163

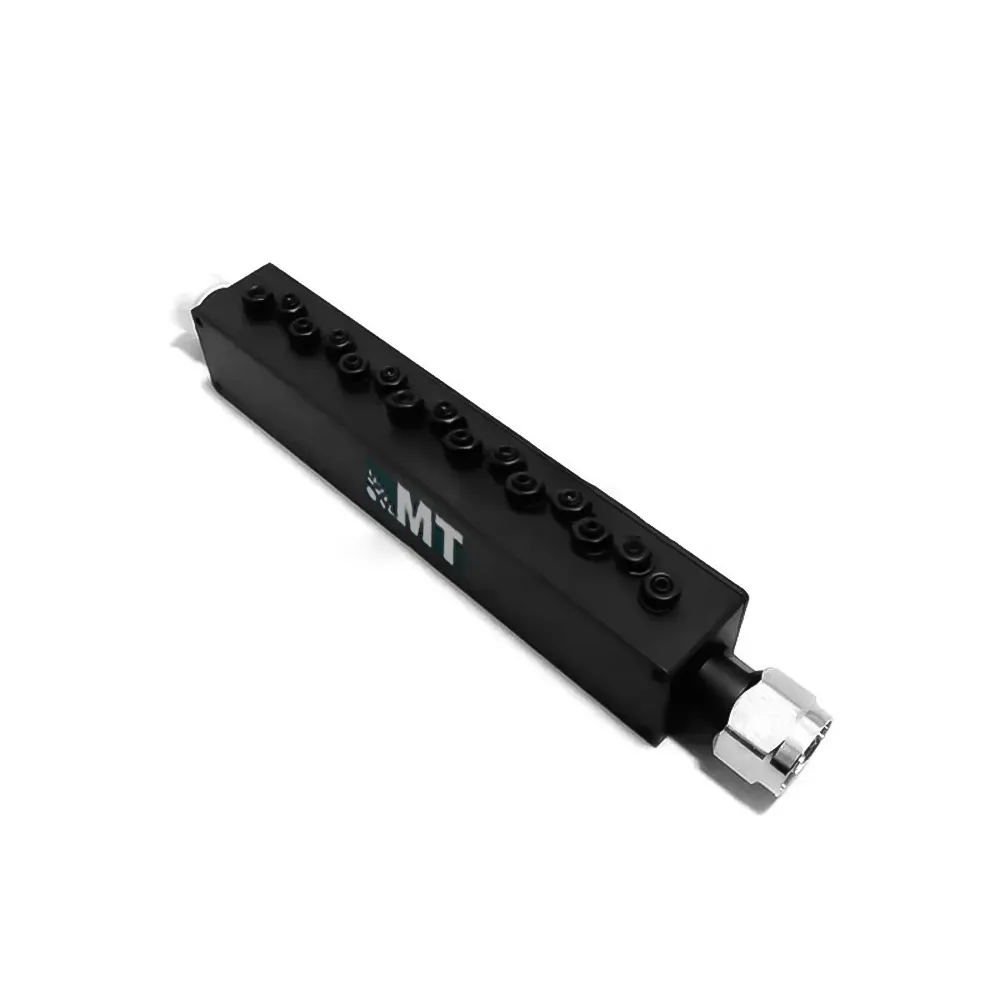

1345-1385MHz Cavity Band Pass Filter

  • P/N: MT-DTA163
  • Frequency:1345-1385MHz
  • Stop Band Rejection：≥50dB
  • Connectors：N-Male / N-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA163
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)1365MHz
2Pass Band Frequency1345 ~ 1385MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Attenuation≥50dB @ F0±120MHz (DC ~ 1245MHz , 1485 ~ 3000MHz)
6Impedance50 Ohms
7Power Handling10W Max.
8ConnectorsN-Male / N-Female
9Surface FinishPainted Black
10Temperature Range-30℃ ~ +70℃
11MaterialHousing: 6061 Aluminum alloy
Cover: LY12 Aluminum alloy
Tuning screw: H62 Copper alloy Resonant column: H59 Copper alloy
Connectors: H59 Copper, Plated ternary alloy
Other screw: Stainless Steel
12Dimensions98*35*20mm
13Net weightTBD
