Product code: MT-DTA174

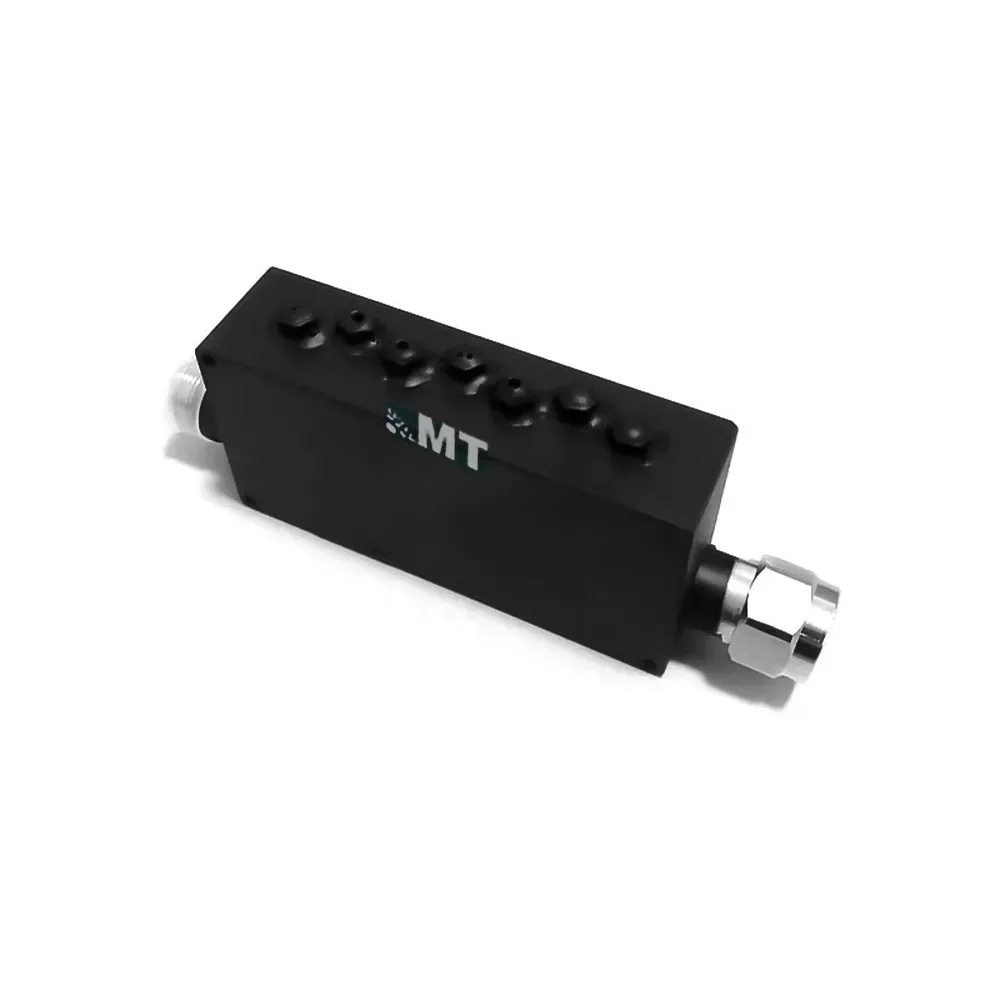

1395-1405MHz Cavity Band Pass Filter

  • P/N：MT-DTA174
  • frequency:1395-1405MHz
  • Stop Band Rejection：≥60dB
  • Connectors：N-Male / N-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA174
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)1400MHz
2Pass Band Frequency1395 ~ 1405MHz
3Pass Band Insertion Loss≤1.0dB
4Pass Band VSWR≤1.3:1
5Stop Band Rejection≥60dB @ F0±200MHz (DC ~ 1200MHz , 1600 ~ 3000MHz)
≥45dB @ F0±100MHz (1200 ~ 1300MHz , 1500 ~ 1600MHz)
≥30dB @ F0±50MHz (1300 ~ 1350MHz , 1450 ~ 1500MHz)
6Impedance50 Ohms
7Power50W Max.
8ConnectorsN-Male / N-Female
9Surface FinishPainted Black
10Temperature Range-30℃ ~ +70℃
11MaterialHousing: 6061 Aluminum alloy
Cover: LY12 Aluminum alloy
Tuning screw: H62 Copper alloy
Connectors: H59 Copper, Plated ternary alloy
Other screw: Stainless Steel

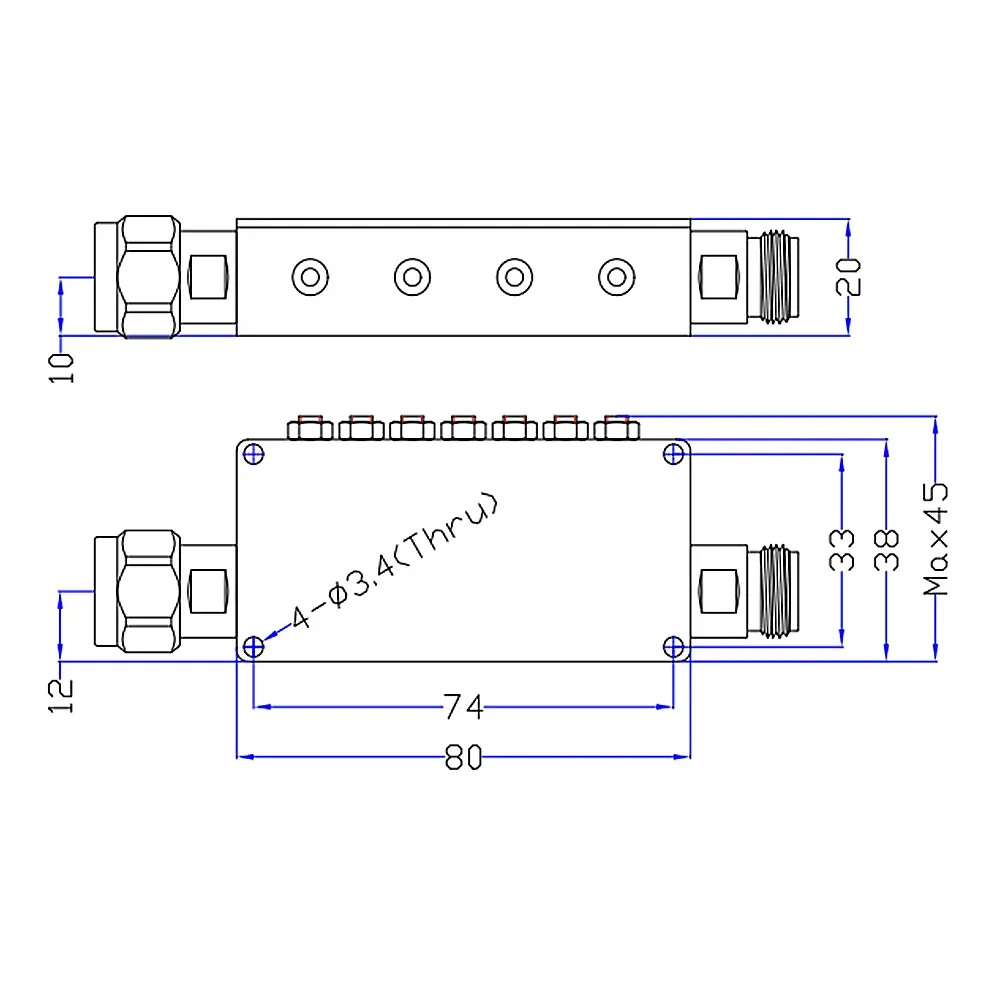

12Dimensions80*38*20mm
13Net weightTBD
