Product code: MT-DTA103

14～18GHz Interdigital Band Pass Filter

  • P/N：MT-DTA103
  • Pass Band Frequency:14～18GHz
  • inhibition：≥60dB
  • Insertion loss：≤2.0dB
WhatsApp Chat
Skype
Product Part Number
MT-DTA103

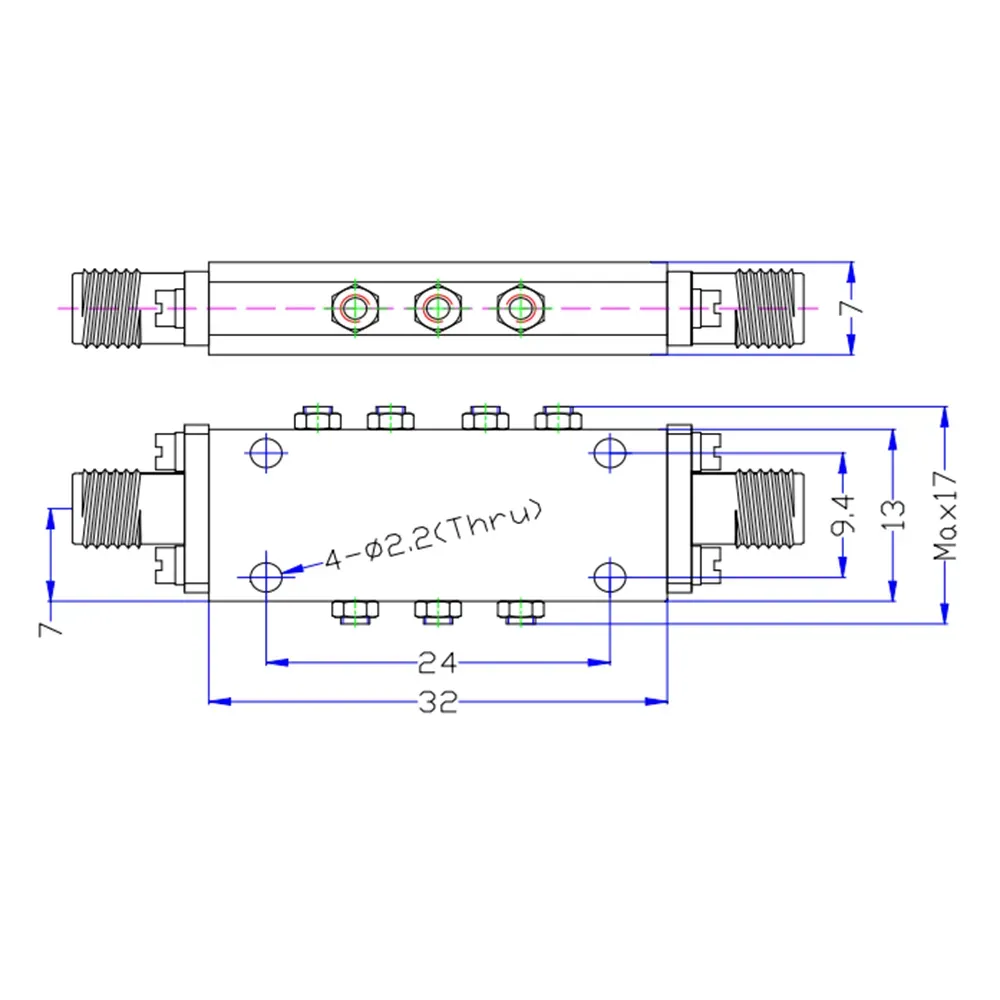

Electrical & Mechanical Specification
SerialParameters
1Center Frequency(F0)16GHz
2Pass Band Frequency14～18GHz
3Pass Band Insertion Loss≤1.4dB
4Pass Band VSWR≤1.8:1
5Stop Band Attenuation≥40dB @ F0±5.5GHz (10. 5GHz、21.5GHz)
6Number of Sections7
7Impedance50 ohms
8Power Handling≤2W
9ConnectorsSMA-Female
