Product code: MT-DTA765

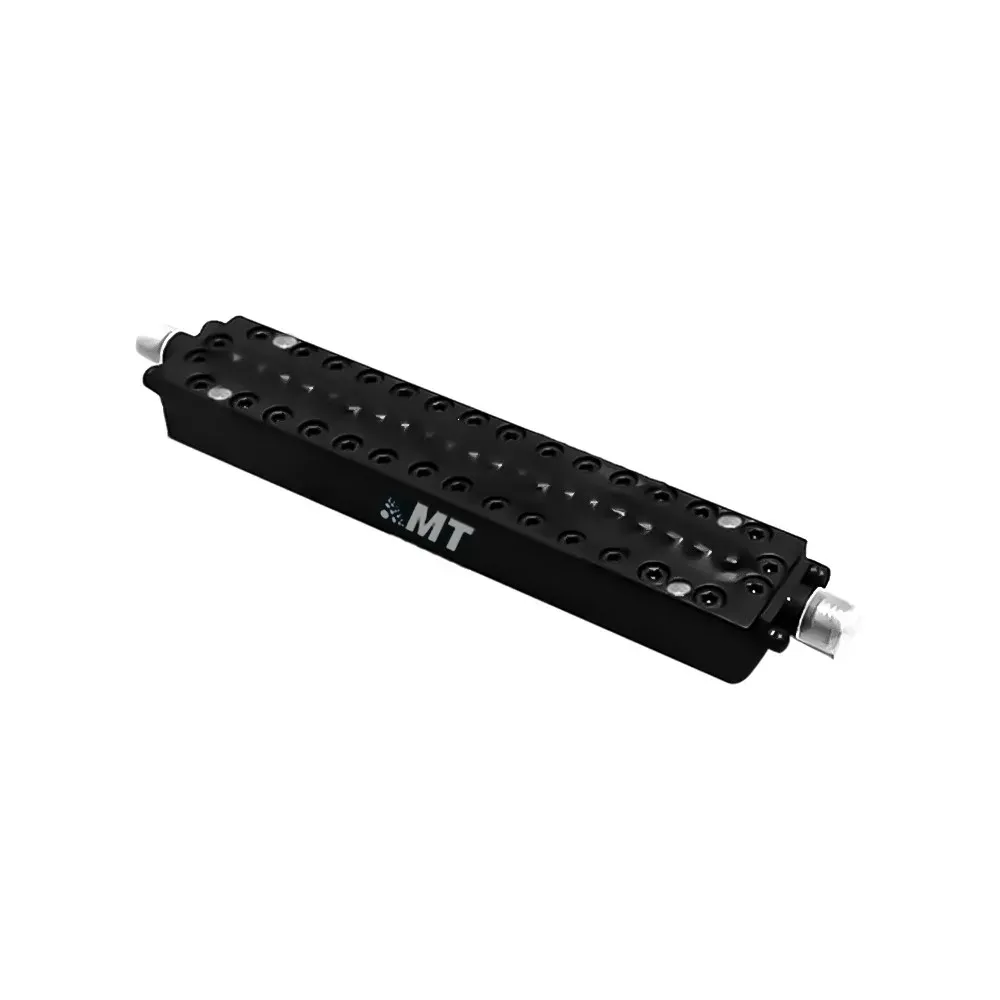

14.9-15.1GHz Cavity Band Pass Filter

  • P/N：MT-DTA765
  • Pass Band Frequency：14.9-15.1GHz
  • Stop Band Attenuation：≥50dB
  • Connectors：SMA-Female
WhatsApp Chat
Skype
Product Part Number
MT-DTA765
Electrical & Mechanical Specification
S/NItemParameters
1Center Frequency(F0)15000MHz
2Pass Band Bandwidth±100MHz (14900 ~ 15100MHz)
3Pass Band Insertion Loss≤1.2dB
4Pass Band Ripple≤0.35dB
5Pass Band Return Loss≥23dB
6Stop Band Rejection≥80dB @ DC ~ 14300MHz ≥50dB @ 14300 ~ 14500MHz ≥50dB @ 15500 ~ 15700MHz
≥80dB @ 15700 ~ 28000MHz
≥50dB @ 28000 ~ 30000MHz
7Impedance50 Ohms
8Power Handling10W Max.
9ConnectorsSMA-Female
