Product code: 14P-617-2200F-16G-65H11V

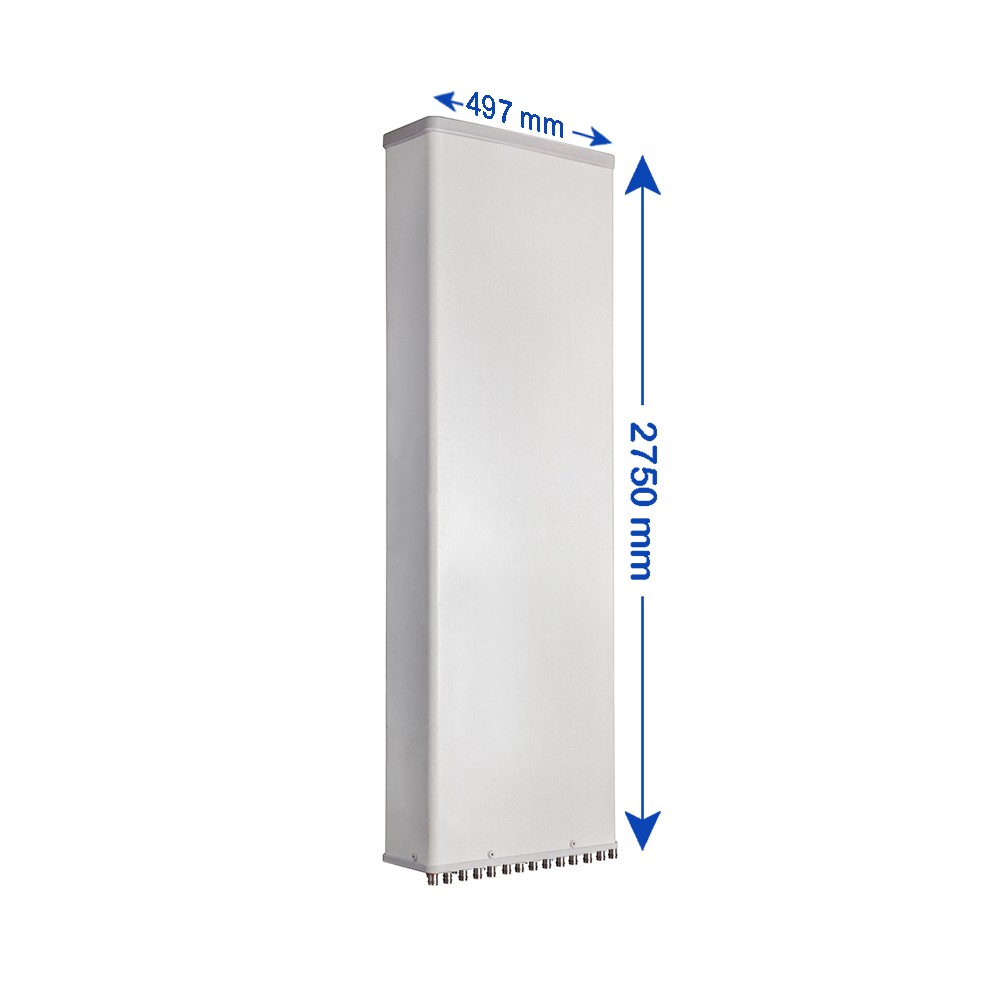

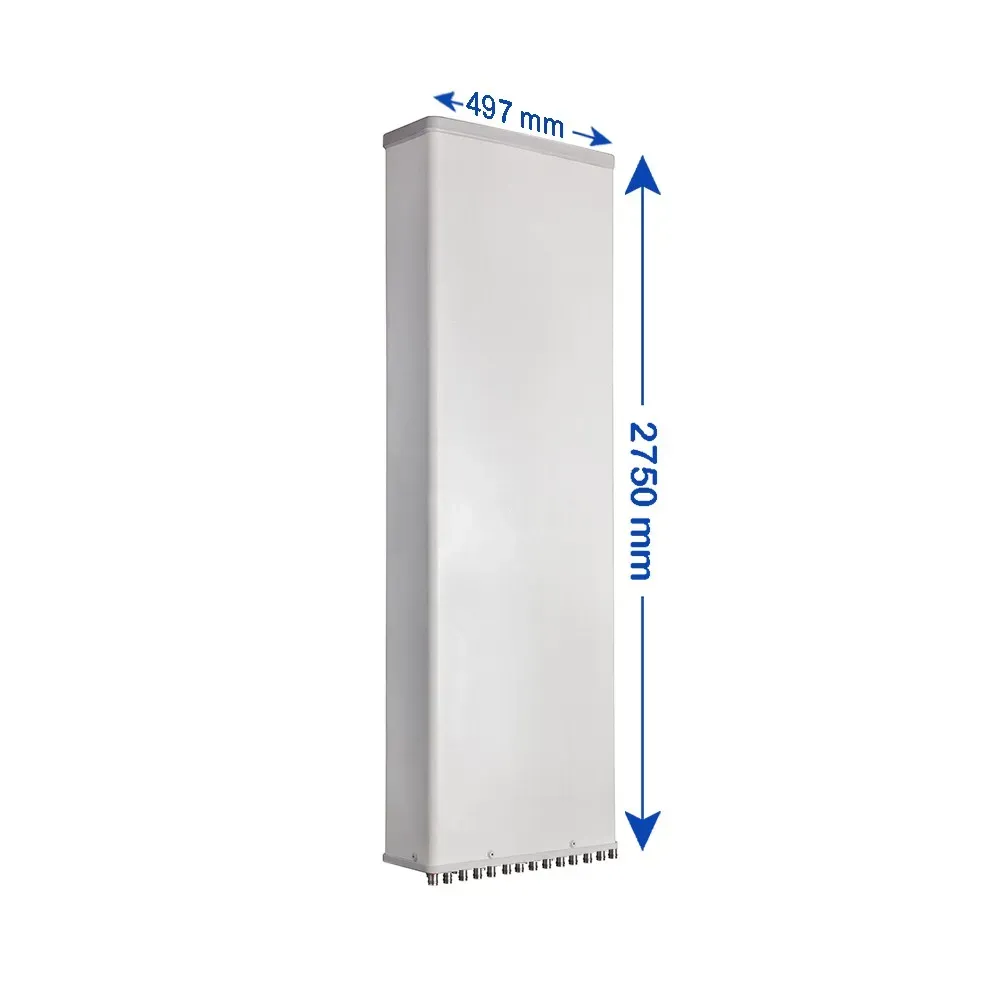

14-Port, Panel Sector, 65° HBW, 617-806/894-960/617-894/(2x)1427-1518/(2x) 1695-2200 MHz, 16/16.5/16.5/15.5/15.5/17.5/17.5 dBi, 2-12°T, 2.750 m

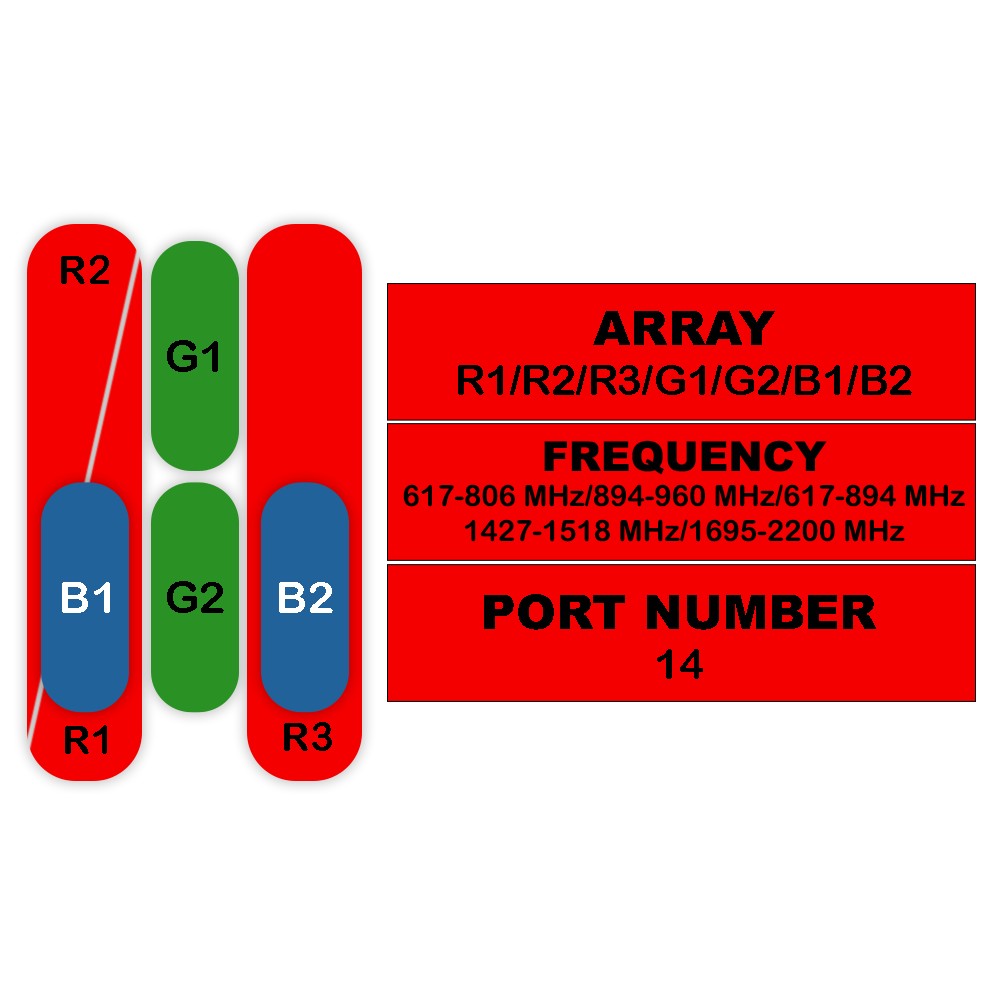

| 14-Port Antenna | R1 | R2 | R3 | G1 | G2 | B1 | B2 |
| Frequency Range (MHz) | 617-806 | 894-960 | 617-894 | 1427-1518 | 1427-1518 | 1695-2200 | 1695-2200 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 16 dBi | 16.5 dBi | 16.5 dBi | 15.5 dBi | 15.5 dBi | 17.5 dBi | 17.5 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

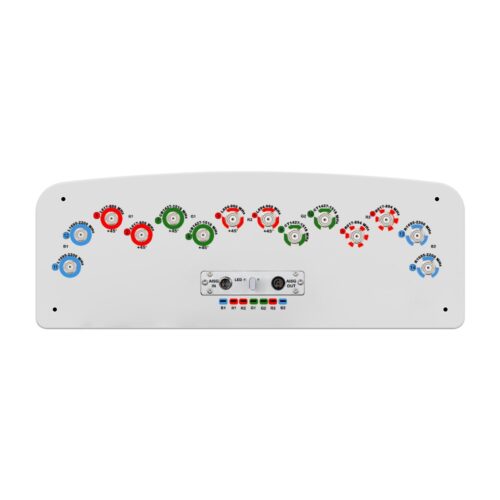

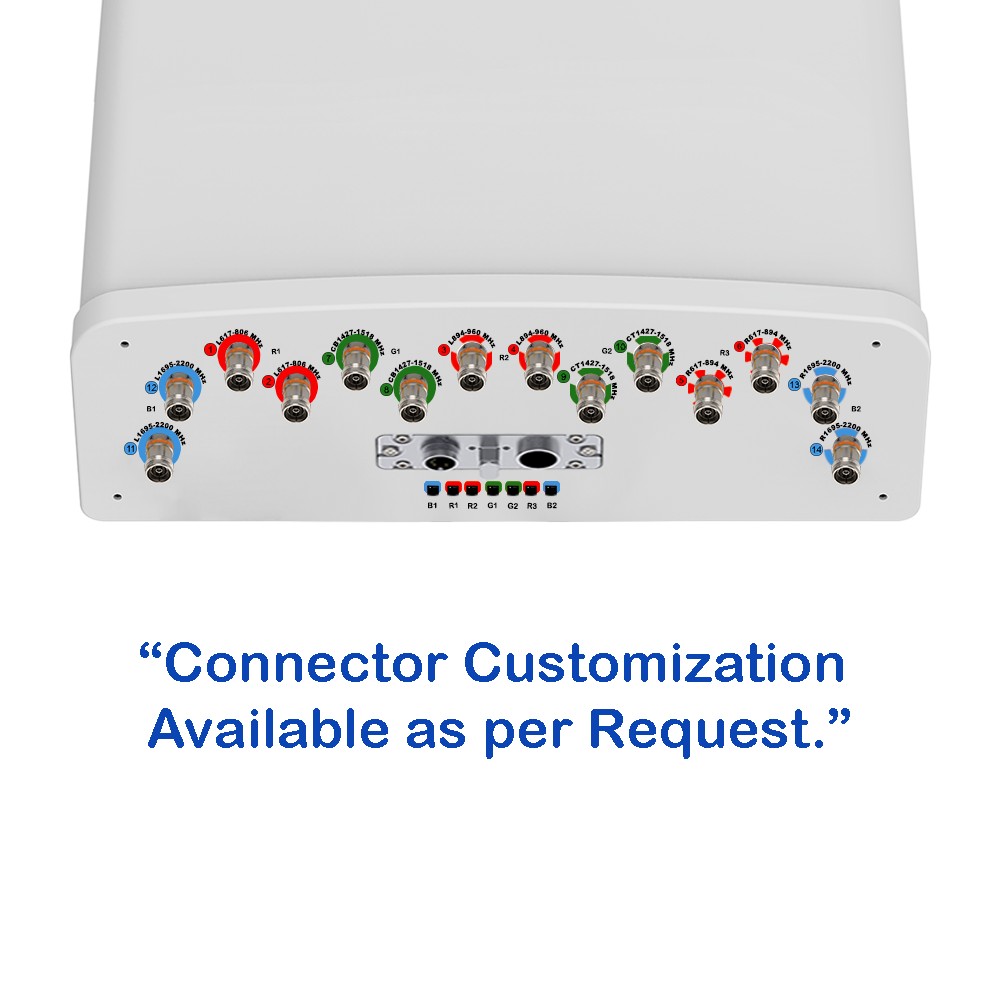

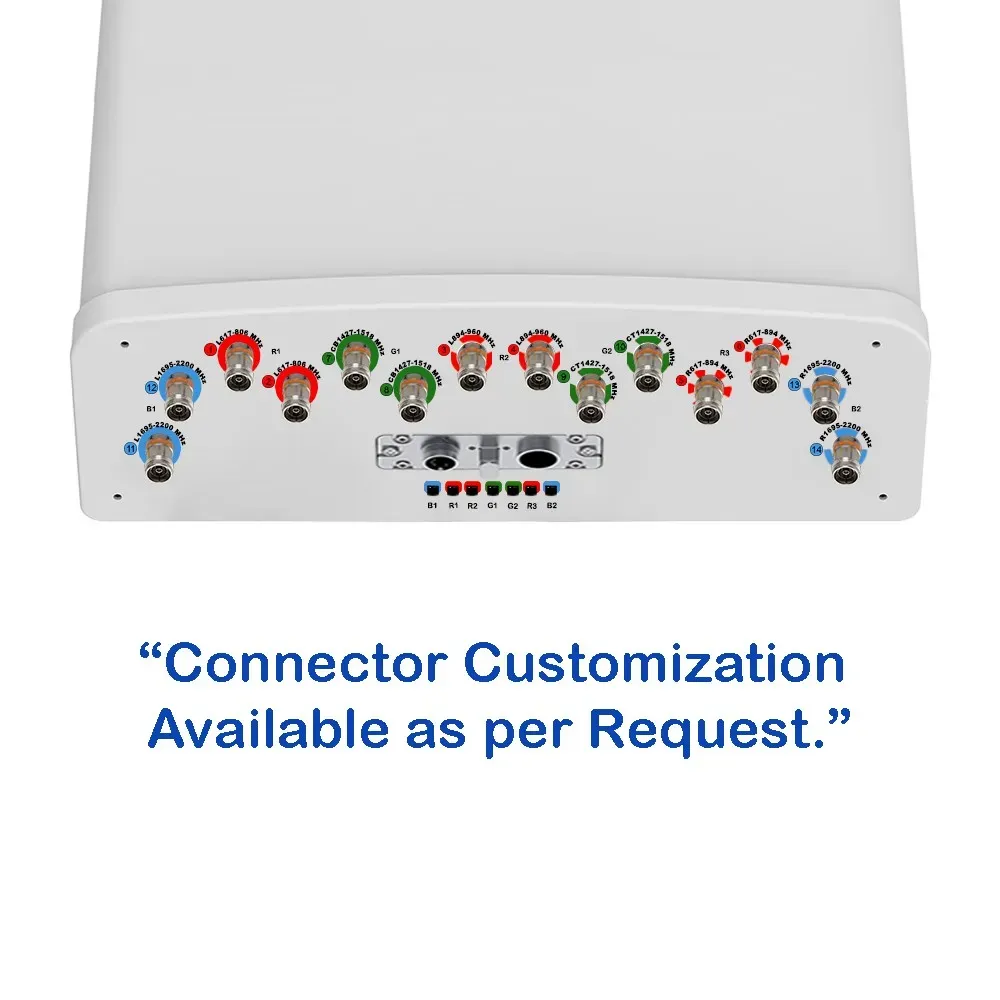

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
