Product code: 14P-698-2690F-14G-65H15V

14-Port, Panel Sector Antenna, 65° HBW, (2x) 694-960/(5x) 1695-2690 MHz, 14.5/14.5/15/14.5/15/15/14.5 dBi, 2-12°T, 1.497 m

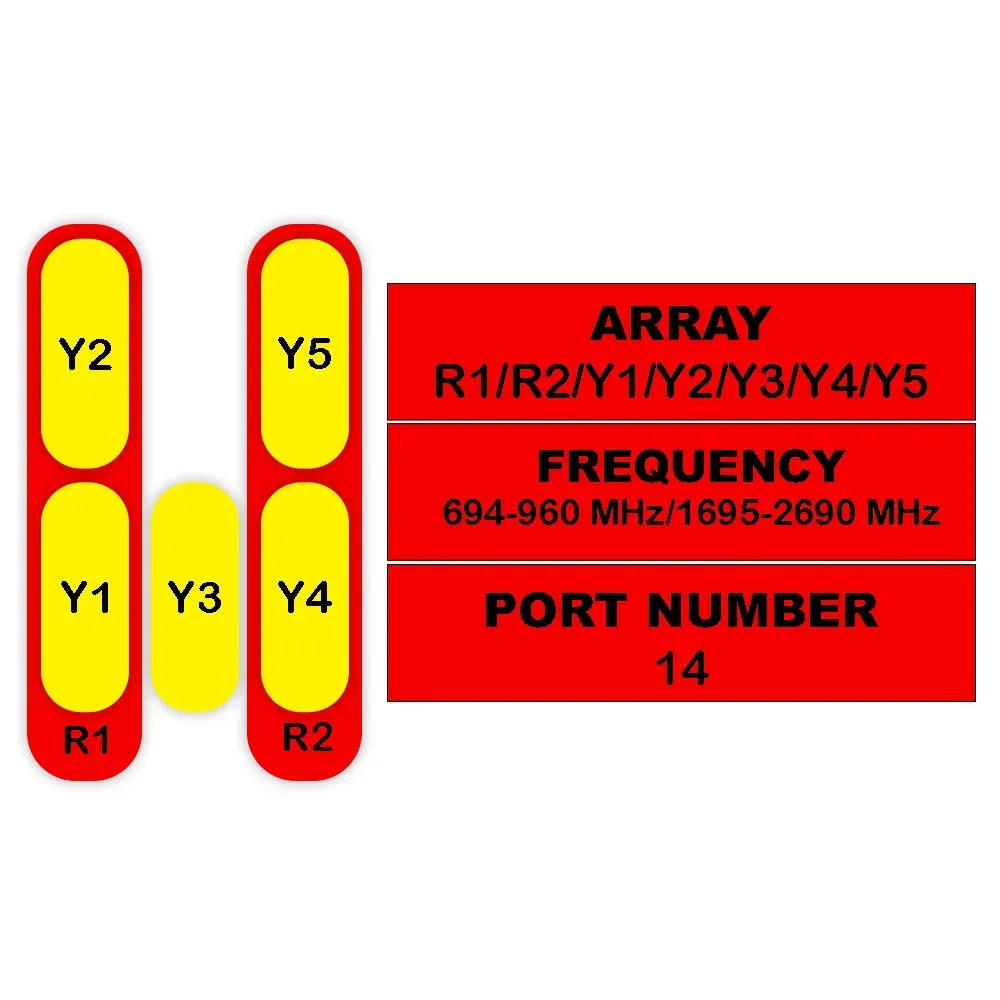

14-Port Antenna R1 R2 Y1 Y2 Y3 Y4 Y5
Frequency Range (MHz) 694-960 694-960 1695-2690 1695-2690 1695-2690 1695-2690 1695-2690
HBW 65° 65° 65° 65° 65° 65° 65°
Gain 14.5 dBi 14.5 dBi 15 dBi 14.5 dBi 15 dBi 15 dBi 14.5 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

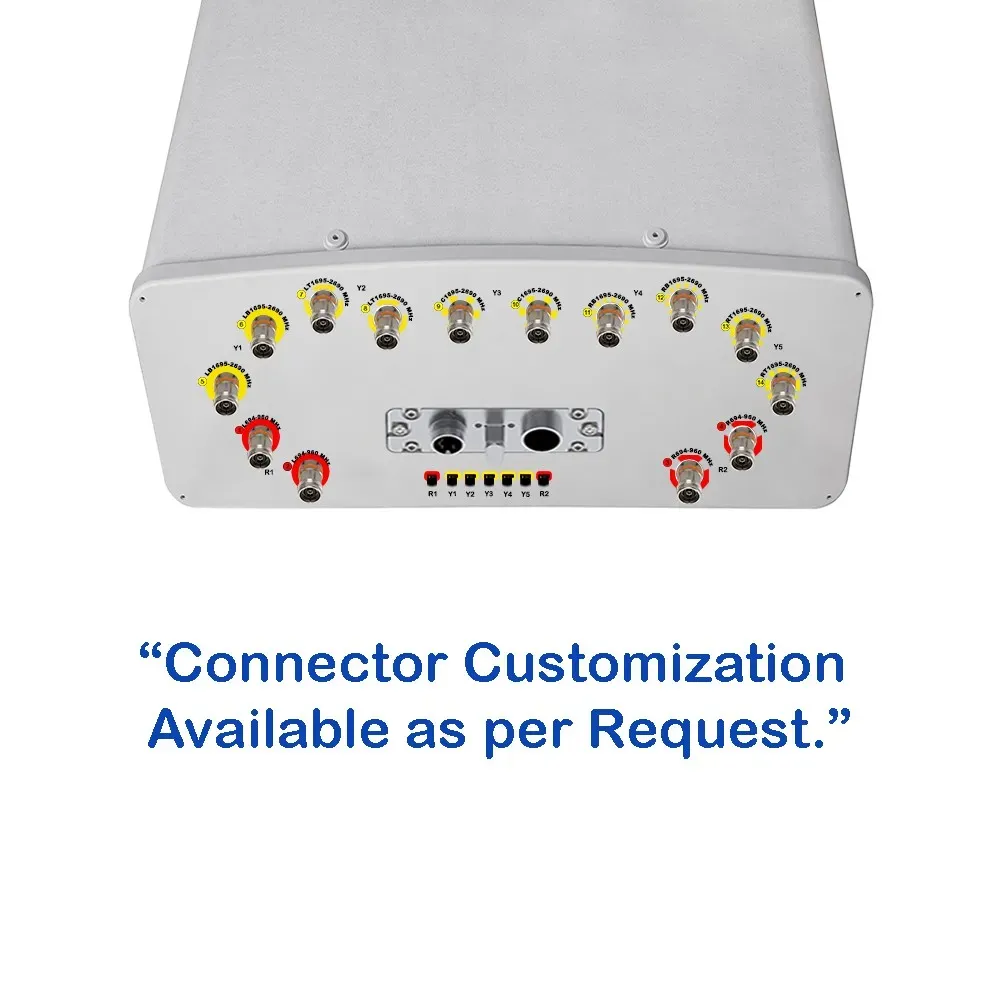

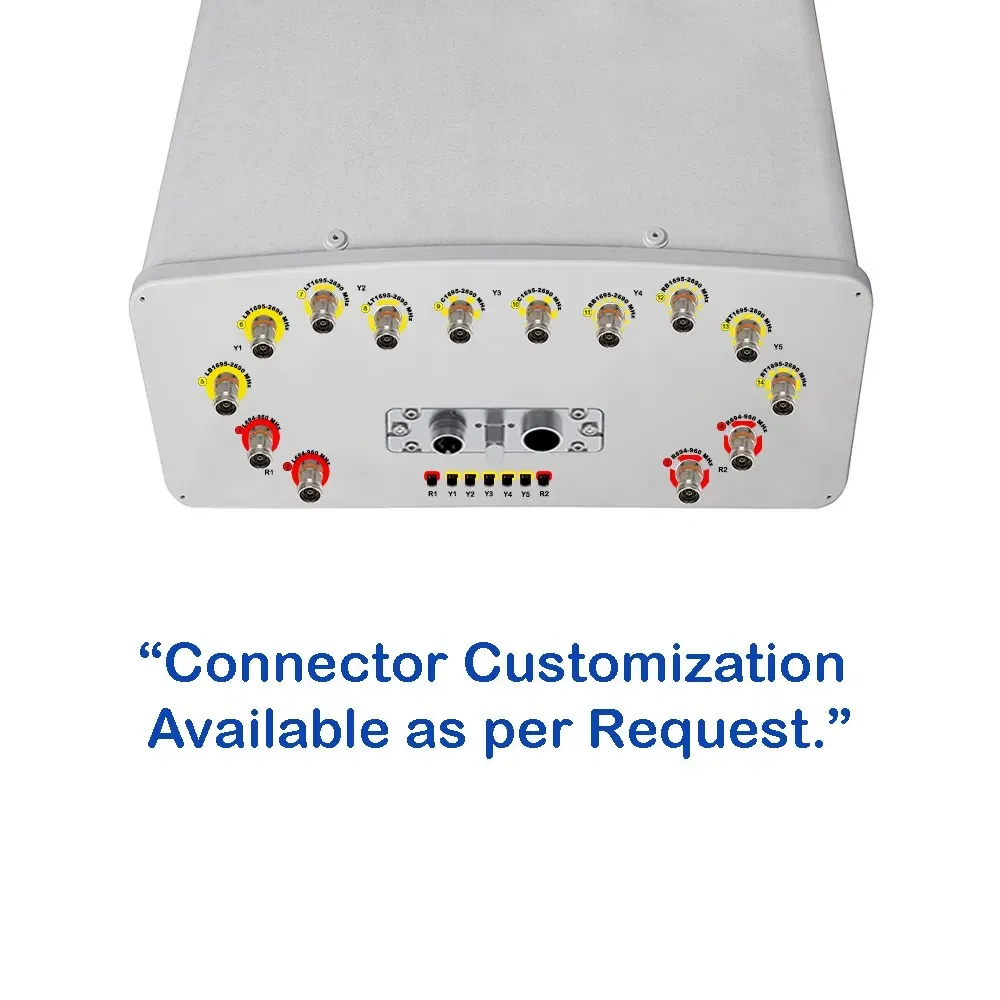

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
14P-698-2690F-14G-65H15V
Electrical & Mechanical Specification
Electrical Specifications
R1 / R2Y1 / Y3 / Y4Y2 / Y5
Frequency RangeMHz694-9601695-26901695-2690
MHz694-824806-896880-9601695-18801850-19901920-21702300-24002490-26901695-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°±45°
Gainat Mid TiltdBi1414.314.61414.314.614.915.113.814.114.414.714.9
Over All TiltsdBi13.8 ± 0.514.1 ± 0.514.4 ± 0.413.8 ± 0.714.1 ± 0.514.4 ± 0.614.7 ± 0.514.9 ± 0.613.6 ± 0.713.9 ± 0.514.2 ± 0.614.5 ± 0.514.7 ± 0.6
Horizontal Beamwidthdegree67 ± 4.565 ± 4.562 ± 4.569 ± 6.067 ± 6.065 ± 6.063 ± 5.063 ± 6.069 ± 6.067 ± 6.065 ± 6.063 ± 5.063 ± 6.0
Vertical Beamwidthdegree14.9 ± 1.113.6 ± 0.912.4 ± 0.812.5 ± 0.611.5 ± 0.610.7 ± 0.69.4 ± 0.58.5 ± 0.412.5 ± 0.611.5 ± 0.610.7 ± 0.69.4 ± 0.58.5 ± 0.4
Electrical Downtilt, Continuously Adjustabledegree2-122-122-12
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side Lobe SuppressionFirst Upper LobedB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Peak to 20°dB> 15> 15> 15> 14> 14> 14> 14> 14> 14> 14> 14> 14> 14
Front-To-Back Ratio ±30°dB> 22> 23> 24> 24> 24> 25> 26> 26> 24> 24> 25> 26> 26
Cross Polarat BoresightdB> 18> 18> 18> 16> 16> 16> 16> 16> 16> 16> 16> 16> 16
DiscriminationOver SectordB> 8.0> 7.0> 5.5> 6.0> 7.0> 7.0> 5.0> 2.0> 6.0> 7.0> 7.0> 6.0> 4.0
IsolationCross-PolardB> 25> 25> 25
Port-To-PortdB> 28 (R1,R2//Y1,Y2,Y3,Y4,Y5), > 25(R1//R2)> 28> 28
ImpedanceOhm505050
VSWR—< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -150< -150< -150
Lightning Protection—DC GroundDC GroundDC Ground
Maximum Average Input Power per Port, *at 50° C Ambient TemperatureWatts250250250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG
Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

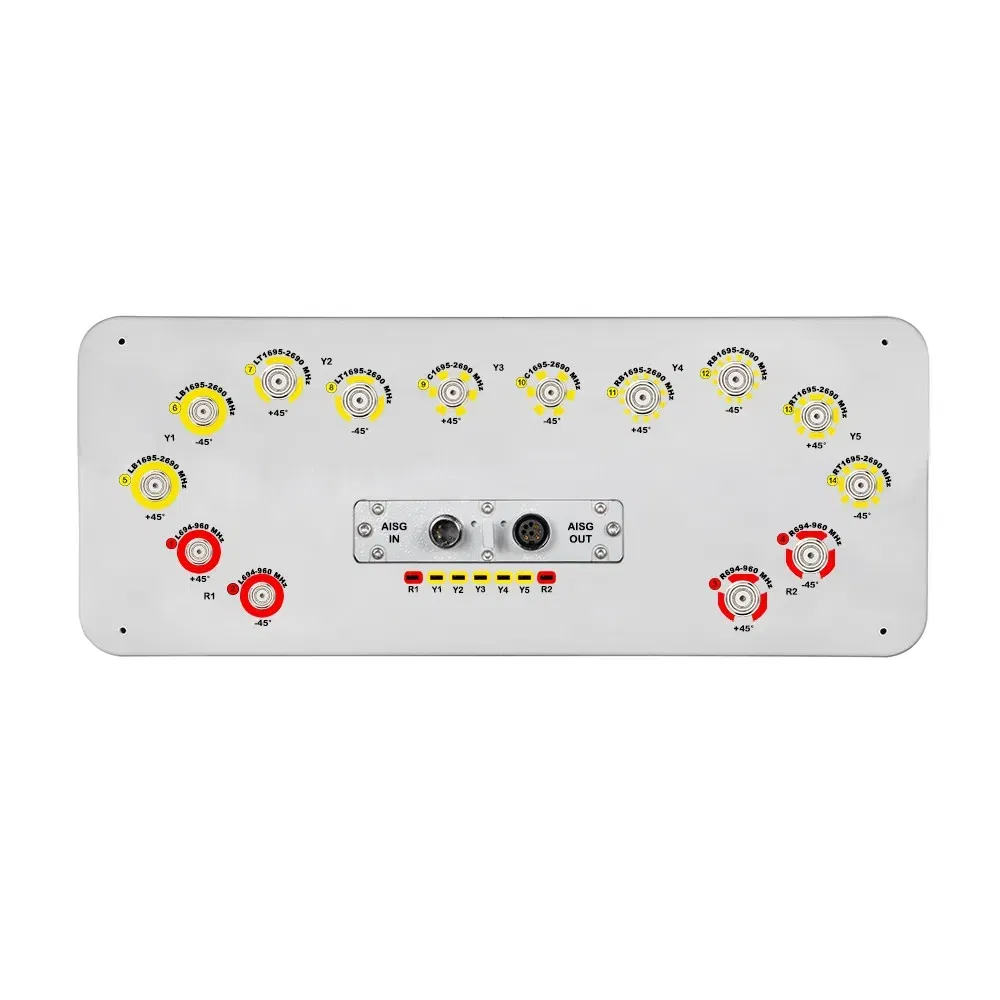

Connector Type—(14x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

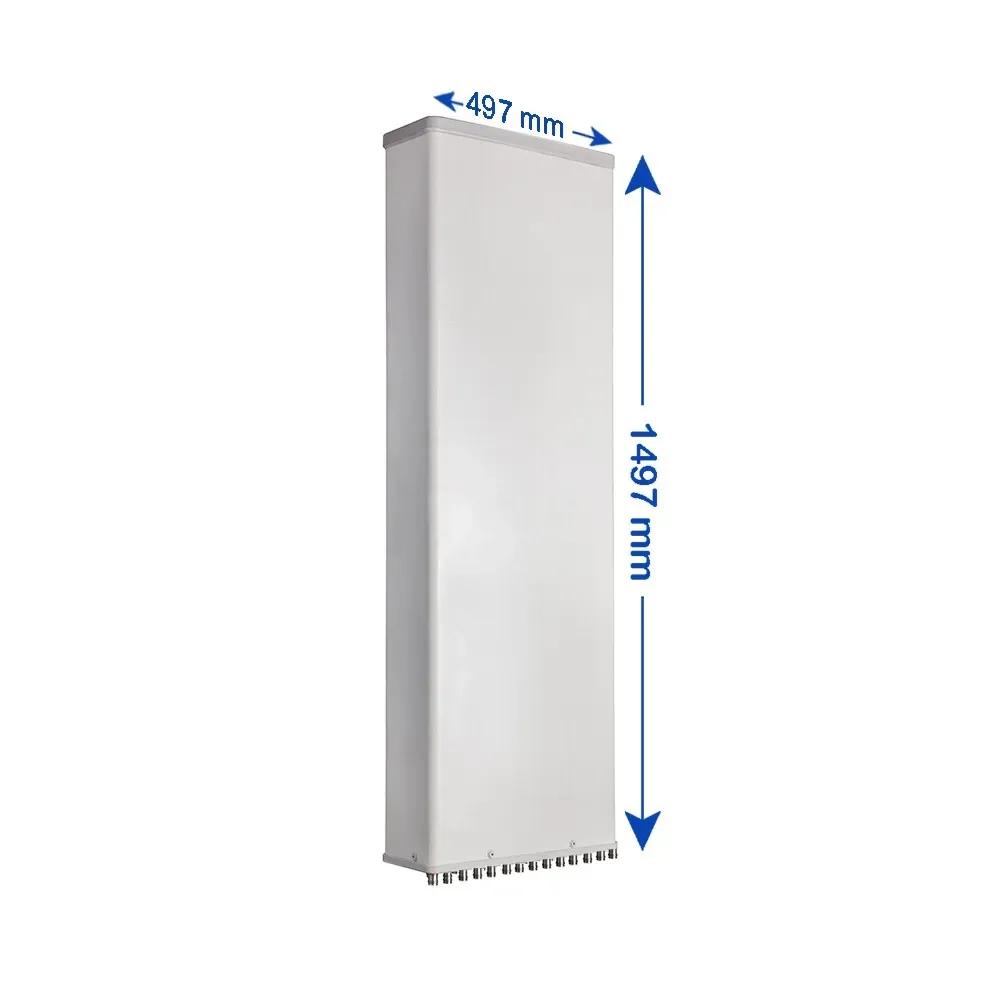

Antenna Dimensions (H x W x D)mm (in)1497 x 497 x 197 (58.9 x 19.6 x 7.8)
Antenna WeightAntenna Onlykg (lbs)29.5 (65.0)
with Clampskg (lbs)35 (77.2)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)690 (155.1)
RearN (lbf)780 (175.4)
LateralN (lbf)335 (75.3)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
