Product code: 14P-698-2690F-15G-65H17V

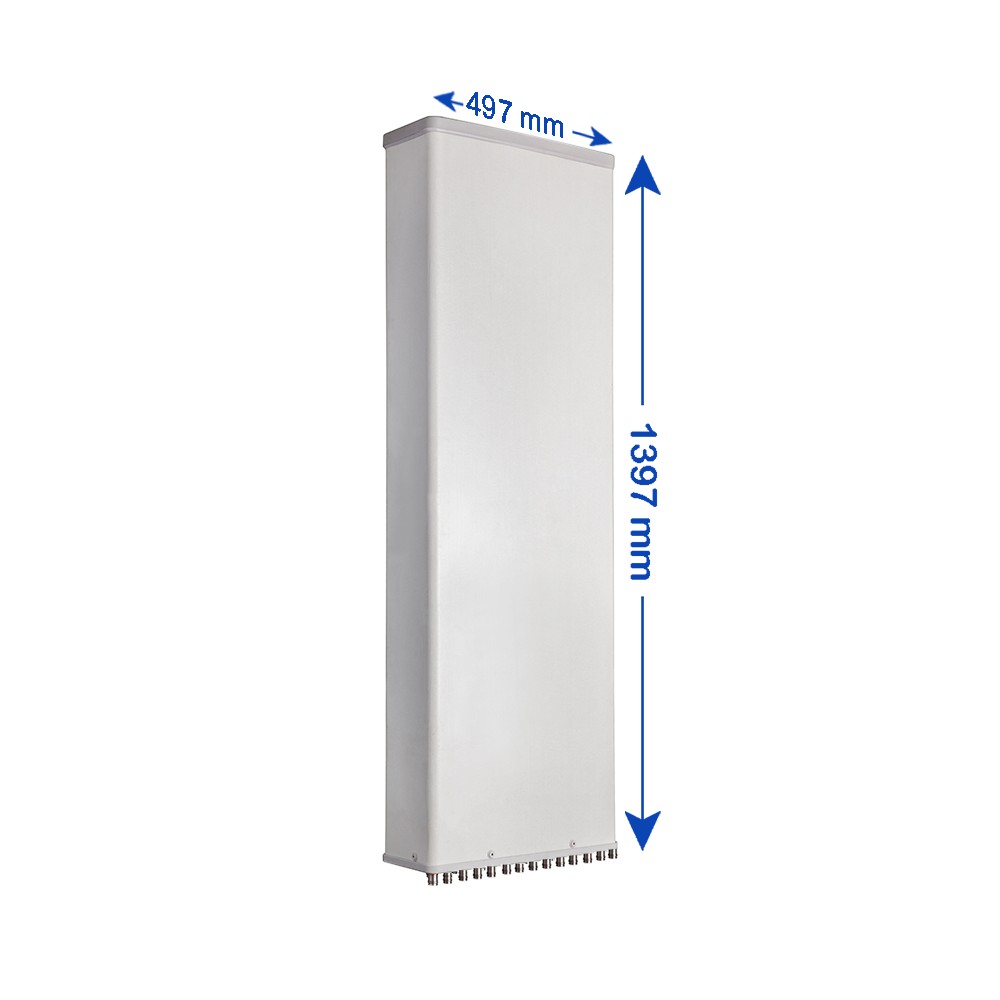

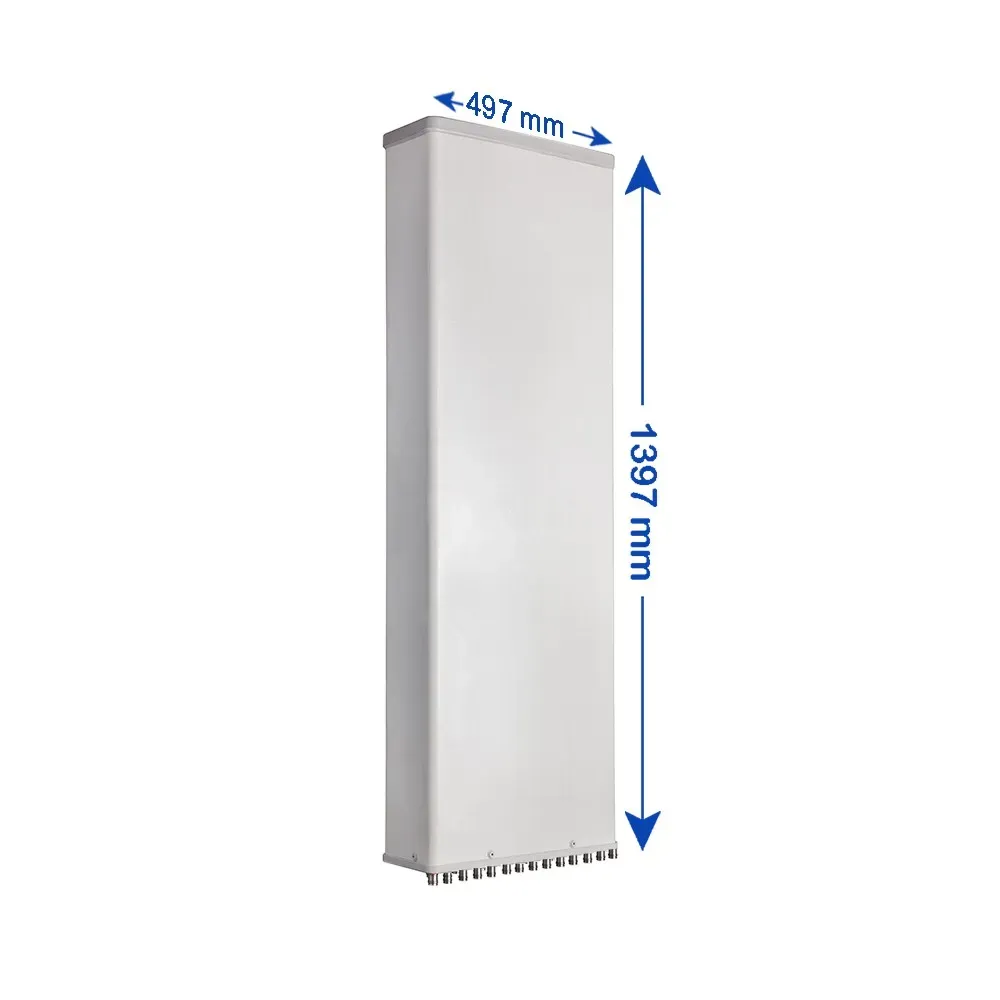

14-Port, Panel Sector Antenna, 65° HBW, 698-960/(2x) 1710-2170/(2x) 1710-2690/(2x) 2490-2690 MHz, 14.5/17.5/17.5/18/18/17.5/17.5 dBi, 2-12°T, 1.397 m

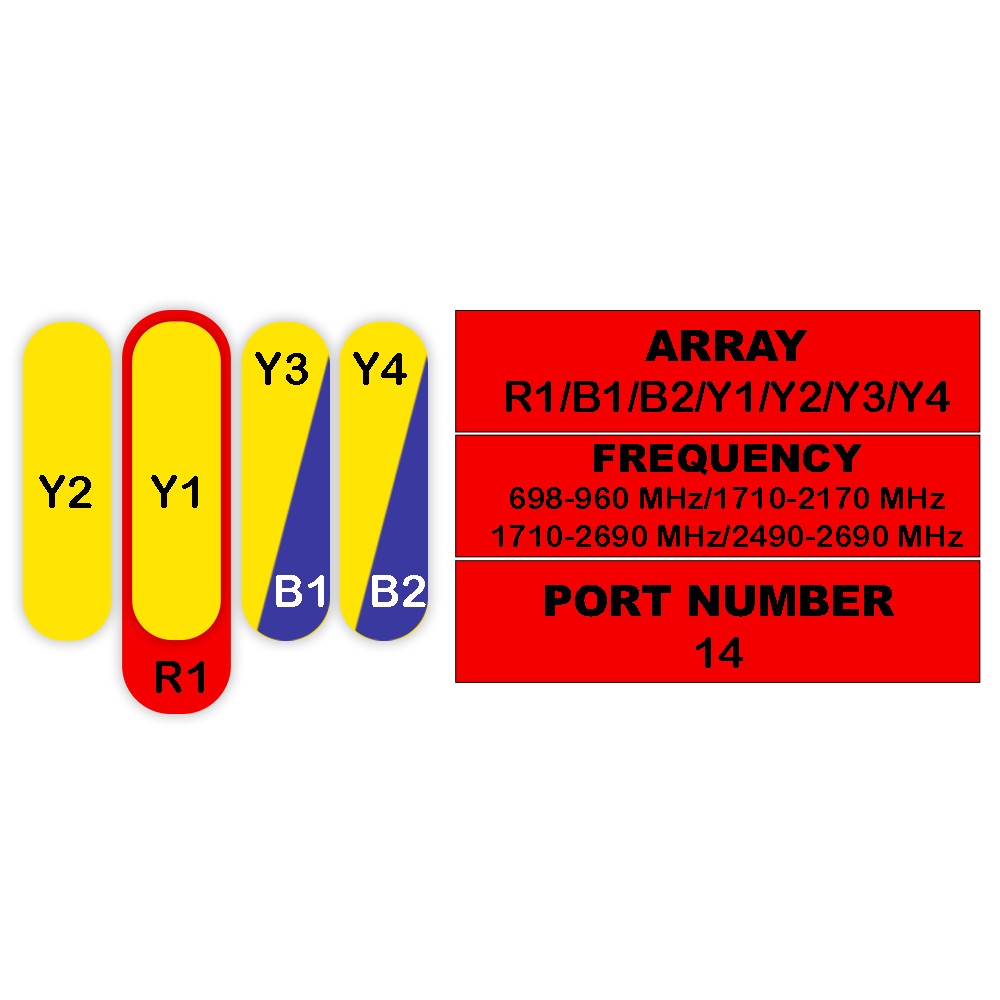

| 14-Port Antenna | R1 | B1 | B2 | Y1 | Y2 | Y3 | Y4 |
| Frequency Range (MHz) | 698-960 | 1710-2170 | 1710-2170 | 1710-2690 | 1710-2690 | 2490-2690 | 2490-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 14.5 dBi | 17.5 dBi | 17.5 dBi | 18 dBi | 18 dBi | 17.5 dBi | 17.5 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

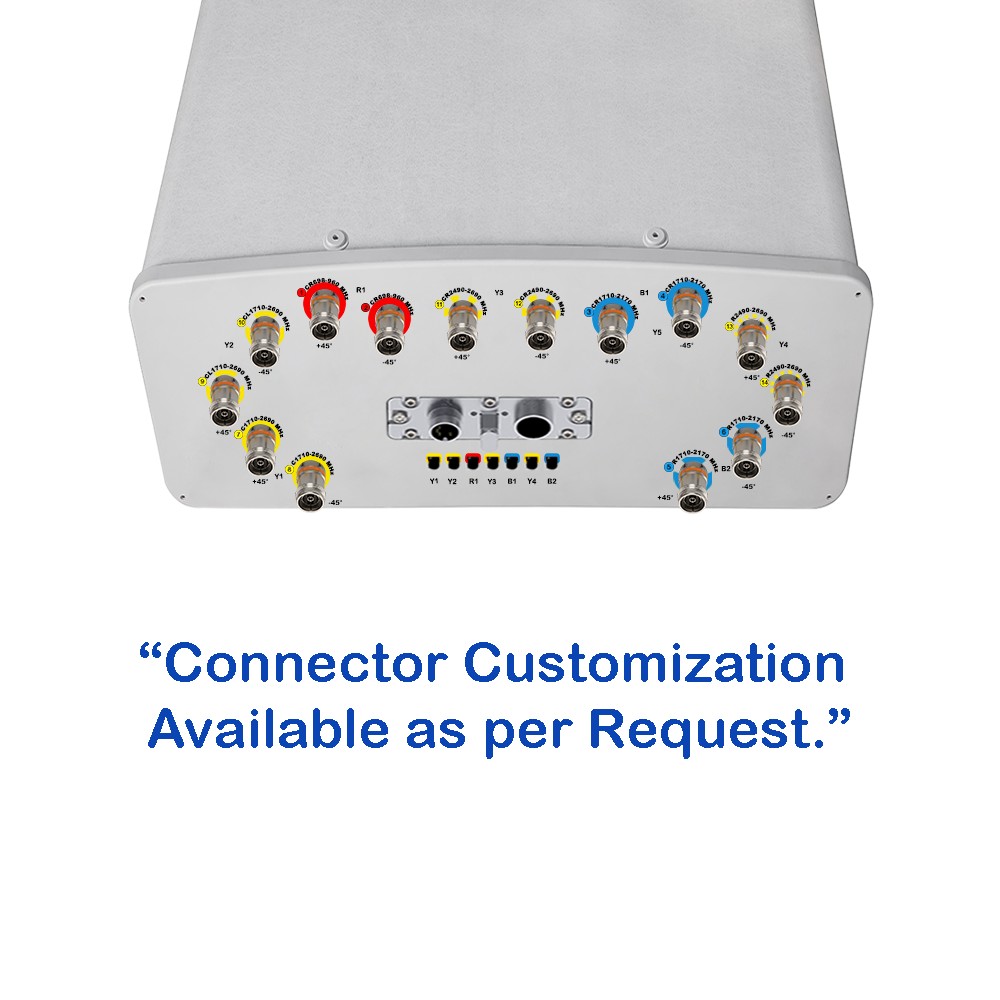

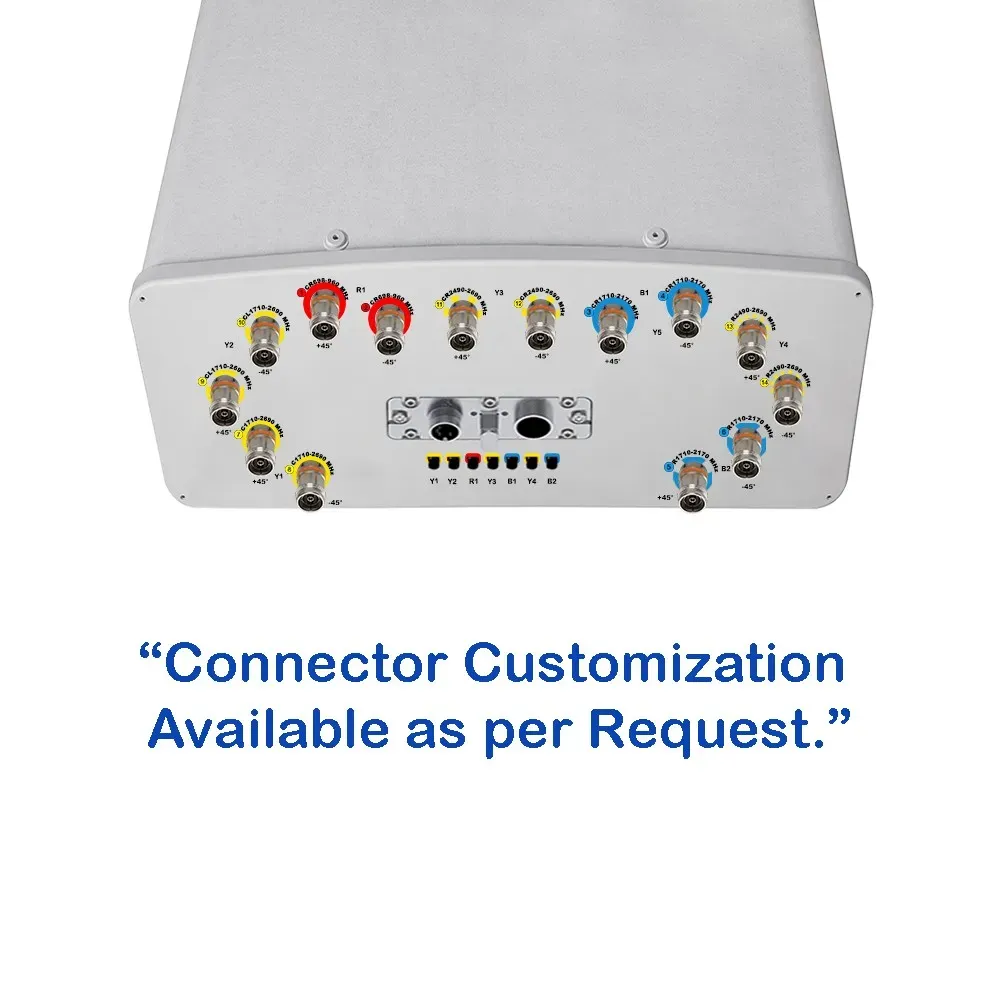

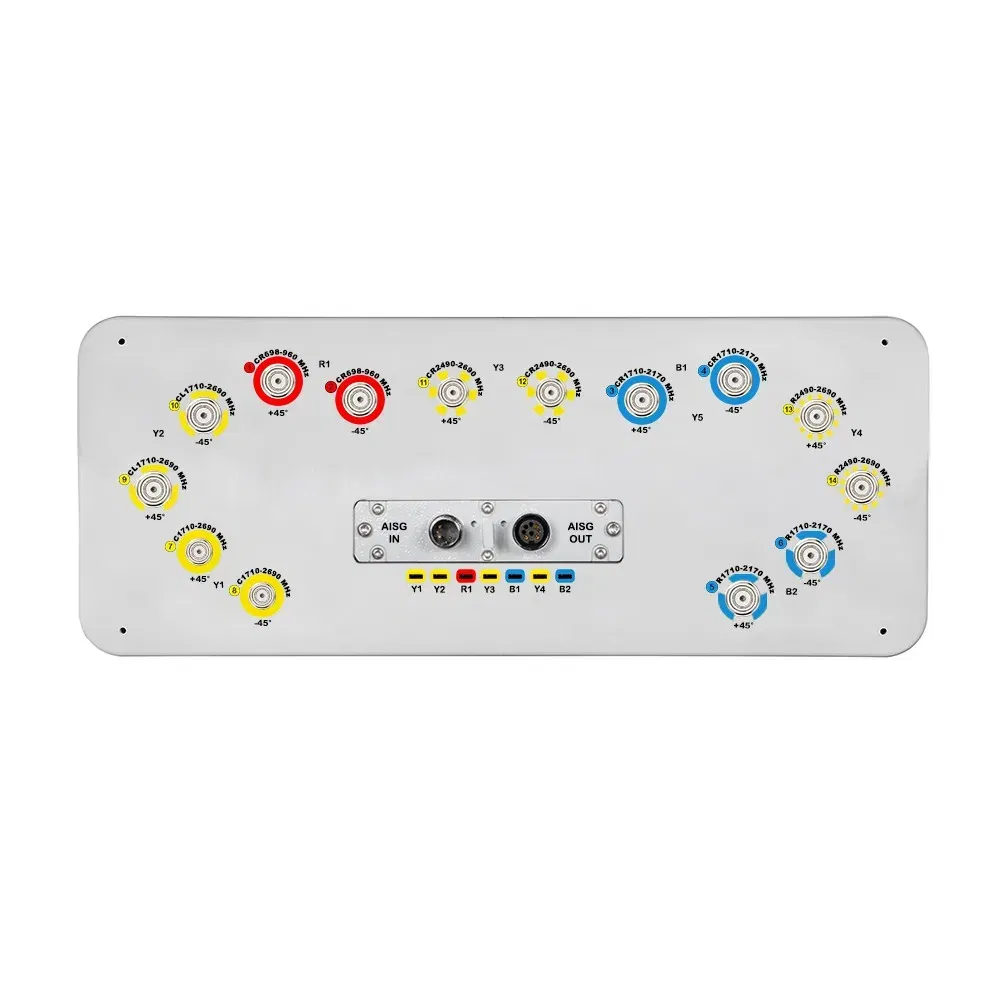

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
