Product code: 14P-698-3700F-17G-65H9V

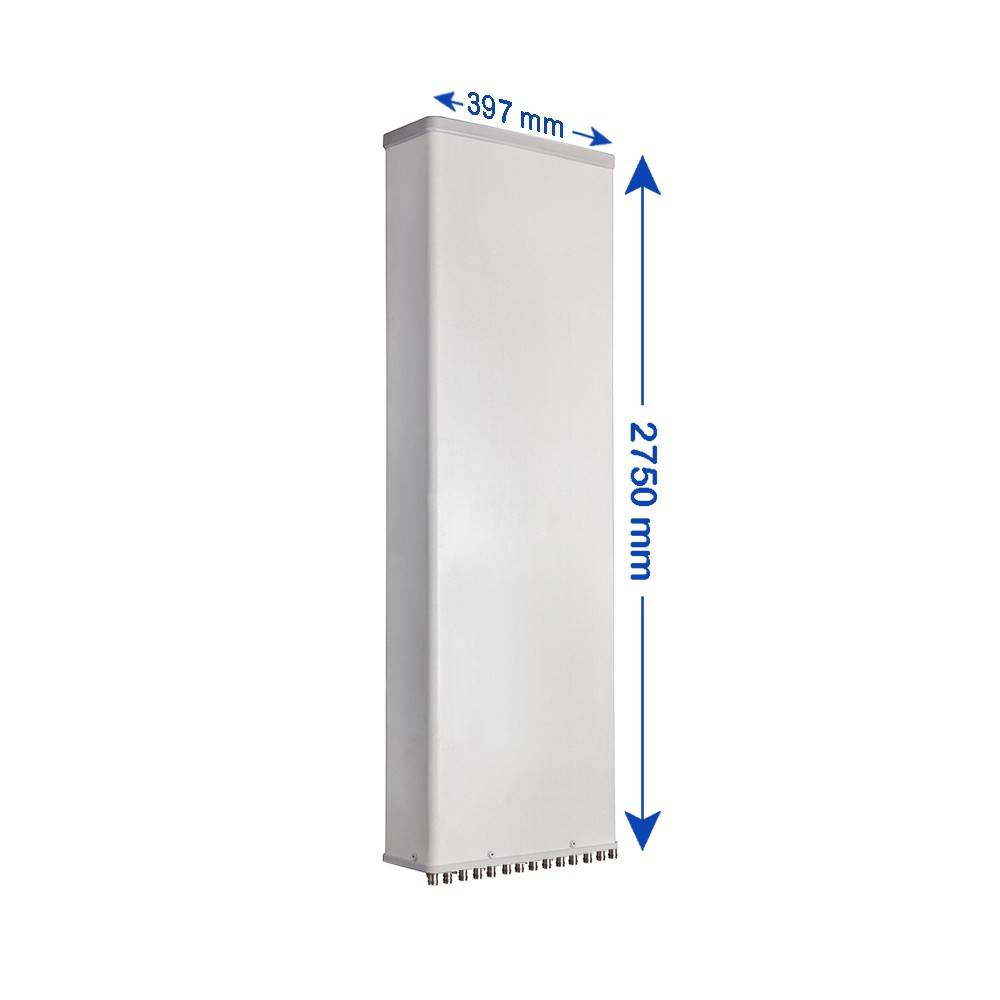

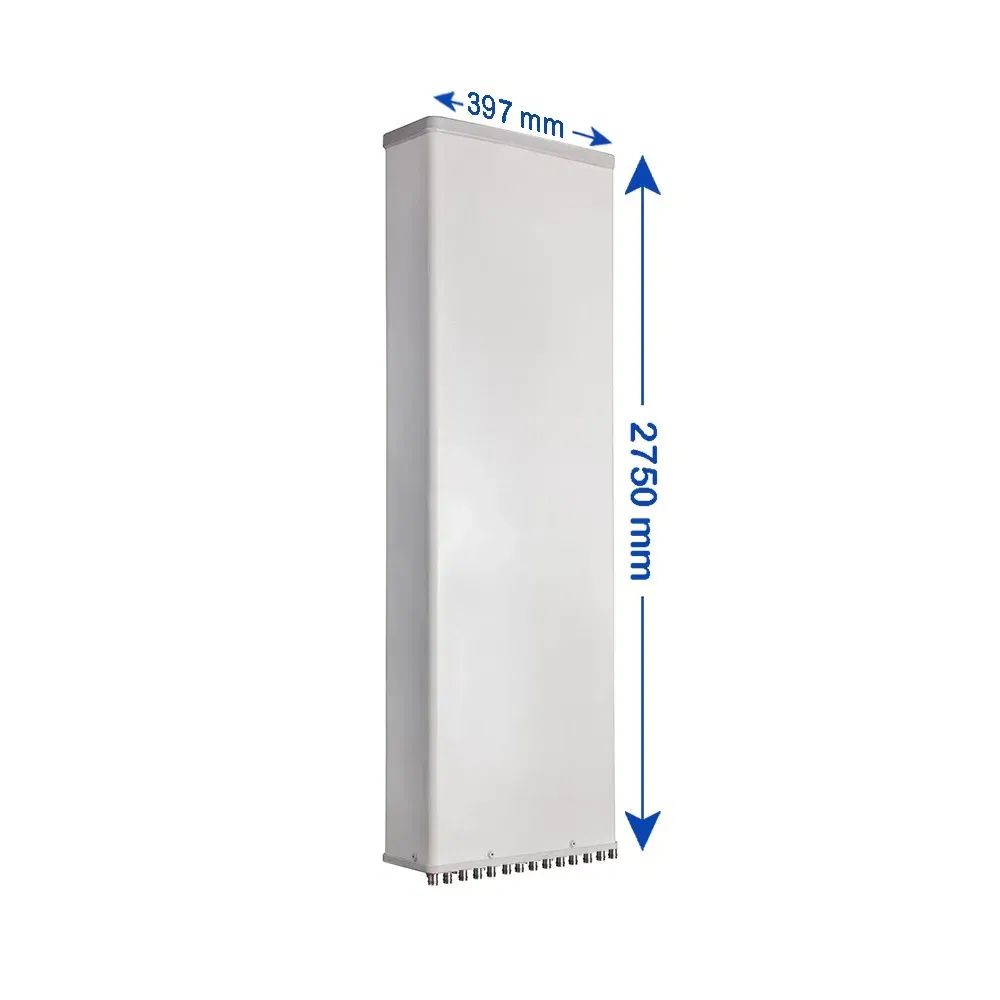

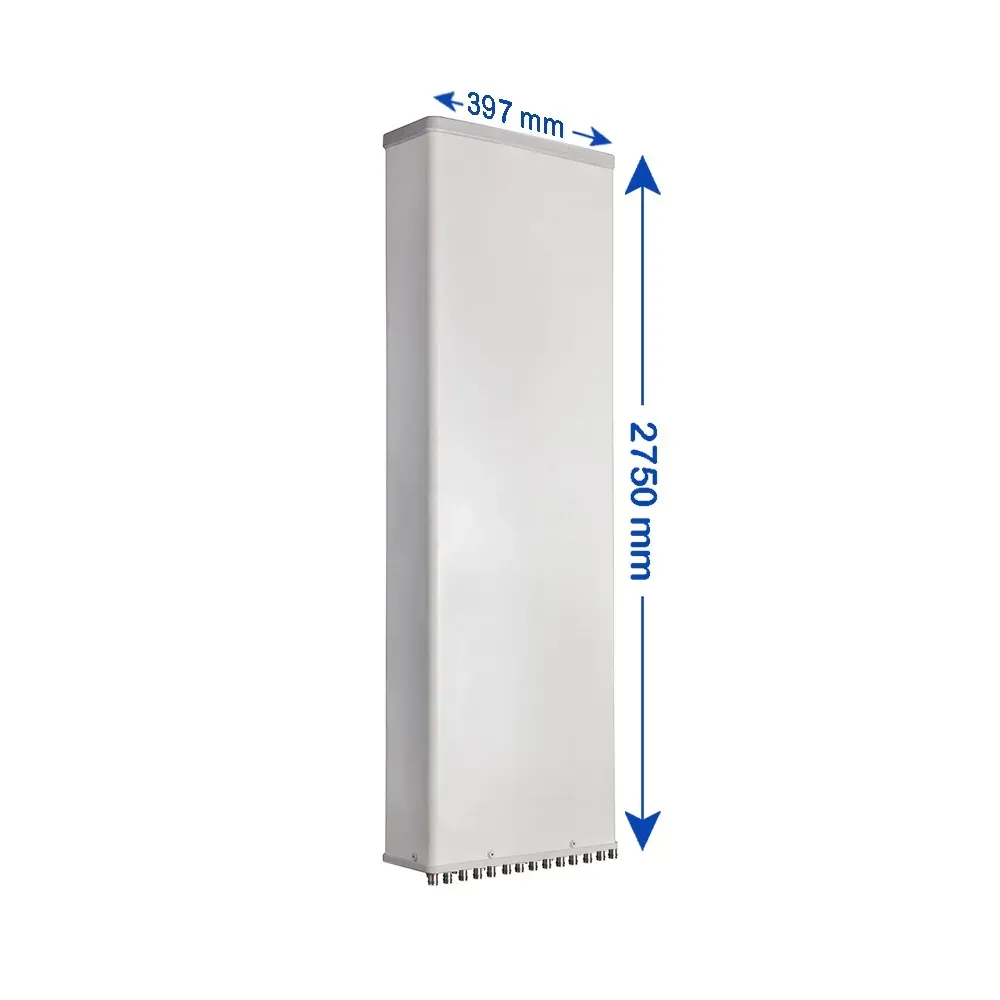

14-Port, Panel Antenna, 65° HBW, 698-960/(2x) 1695-2200/(2x) 1695-2690/(2x) 3300-3800 MHz, 17/17.5/17/17.5/17.5/18 dBi, 2-12° T, 2.750 m

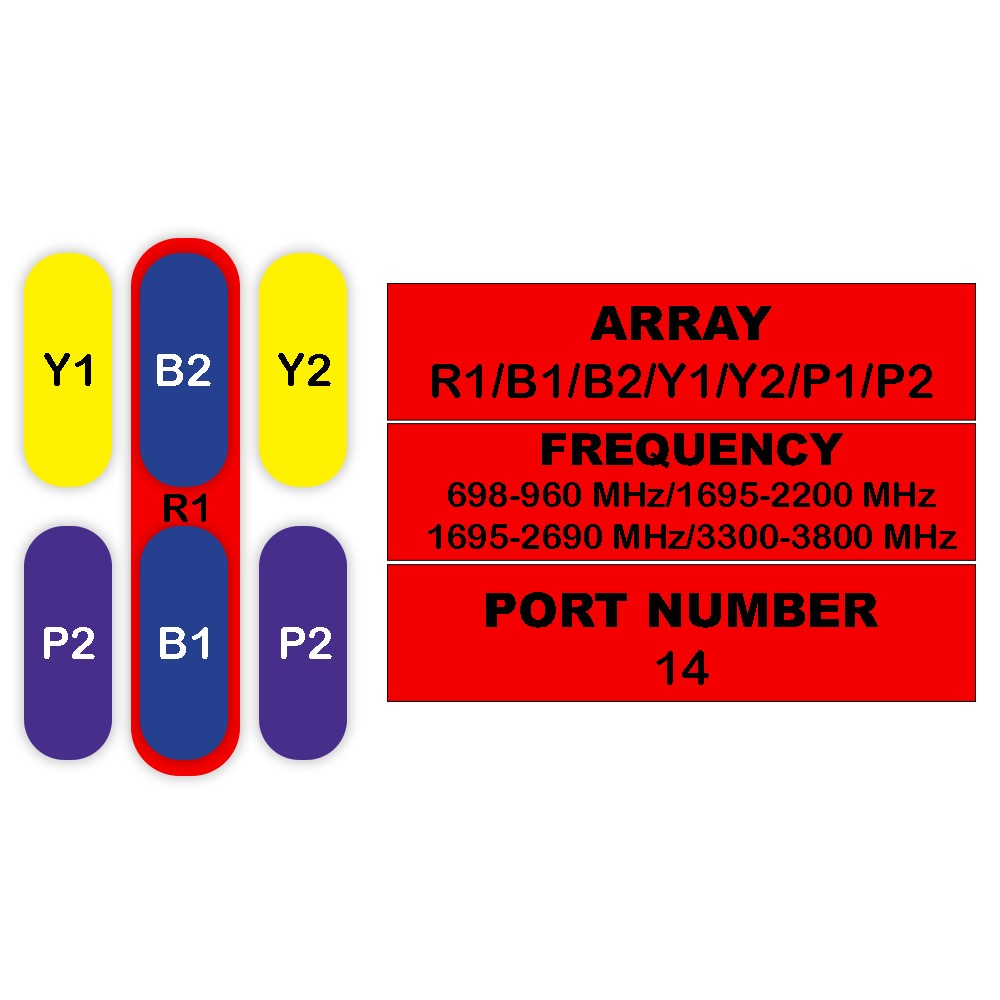

| 14-Port Antenna | R1 | B1 | B2 | Y1 | Y2 | P1 | P2 |
| Frequency Range (MHz) | 698-960 | 1695-2200 | 1695-2200 | 1695-2690 | 1695-2690 | 3300-3700 | 3300-3700 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 17 dBi | 17.5 dBi | 17 dBi | 17.5 dBi | 17.5 dBi | 18 dBi | 18 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |

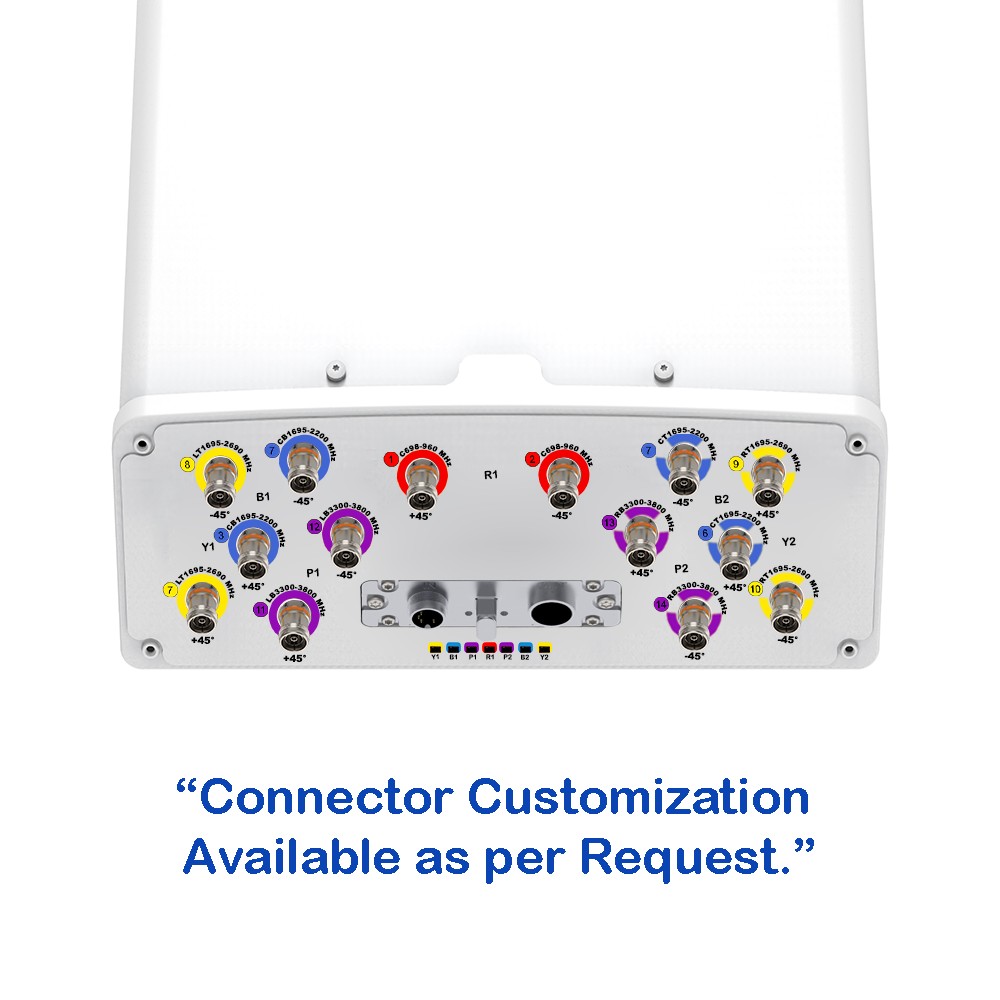

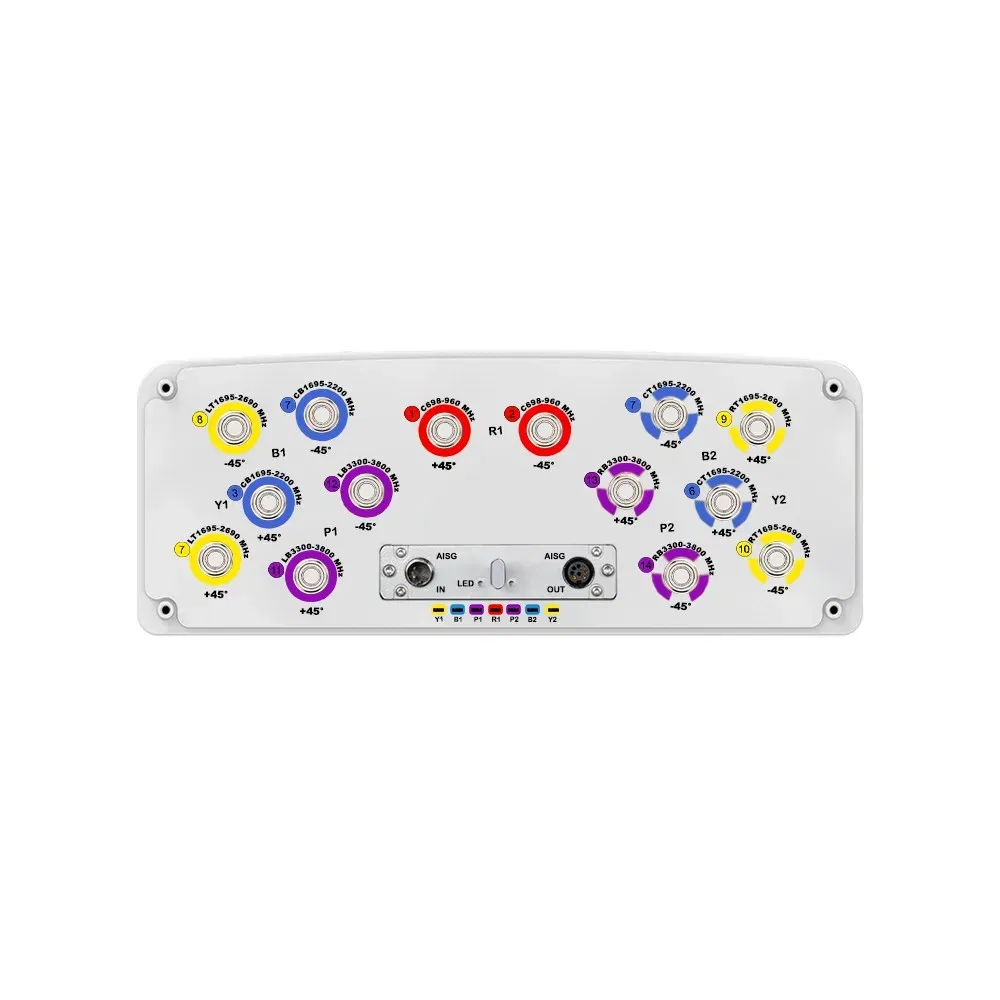

| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
