Product code: 14P-698-2690F-15G-65H15V

14-Port, Panel Sector Antenna, 65° HBW, 698-960/(6x) 1710-2690 MHz, 15/15/14.5/15/14.5/15/14.5 dBi, 2-12°T, 1.497 m

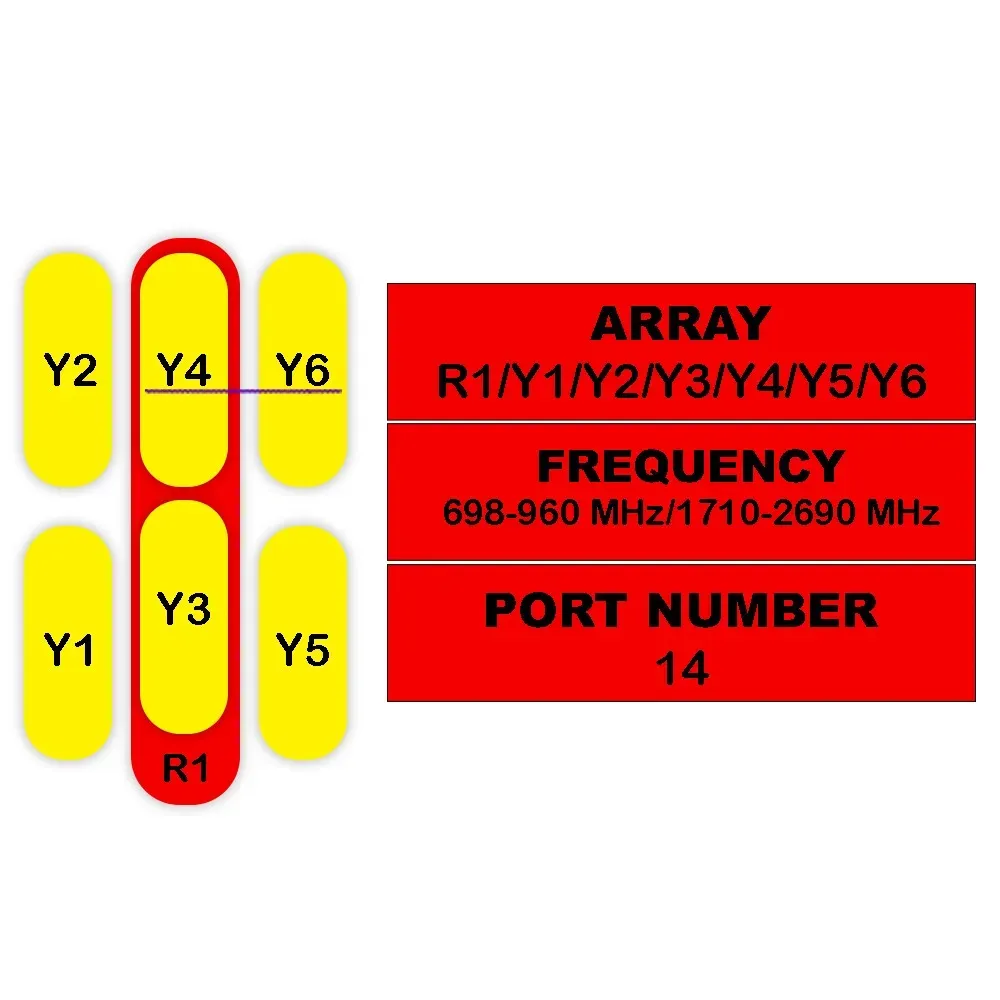

14-Port Antenna R1 Y1 Y2 Y3 Y4 Y5 Y6
Frequency Range (MHz) 698-960 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690 1710-2690
HBW 65° 65° 65° 65° 65° 65° 65°
Gain 15 dBi 15 dBi 14.5 dBi 15 dBi 14.5 dBi 15 dBi 14.5 dBi
Tilt 2-12° 2-12° 2-12° 2-12° 2-12° 2-12° 2-12°
Connectors

(other connectors by request)

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female

 (2x) 4.3/10

Female
WhatsApp Chat
Skype
Product Part Number
14P-698-2690F-15G-65H15V
Electrical & Mechanical Specification
Electrical Specifications
R1Y1 / Y3 / Y5Y2 / Y4 / Y6
Frequency RangeMHz698-9601710-26901710-2690
MHz698-806790-894880-9601710-18801850-19901920-21702300-24002490-26901710-18801850-19901920-21702300-24002490-2690
Polarization—±45°±45°±45°
Gainat Mid TiltdBi1414.414.81414.314.614.914.913.61414.314.614.6
Over All TiltsdBi13.8 ± 0.614.2 ± 0.514.6 ± 0.613.8 ± 0.614.1 ± 0.514.4 ± 0.614.7 ± 0.614.7 ± 0.613.4 ± 0.613.8 ± 0.514.1 ± 0.614.4 ± 0.614.4 ± 0.6
Horizontal Beamwidthdegree67 ± 4.565 ± 4.563 ± 4.168 ± 6.166 ± 6.163 ± 6.562 ± 6.062 ± 6.568 ± 6.166 ± 6.163 ± 6.562 ± 6.062 ± 6.5
Vertical Beamwidthdegree14.9 ± 0.913.4 ± 0.612.3 ± 0.614.1 ± 0.612.7 ± 0.512.2 ± 0.511.2 ± 0.410.3 ± 0.614.1 ± 0.612.7 ± 0.512.2 ± 0.511.2 ± 0.410.3 ± 0.6
Electrical Downtilt, Continuously Adjustabledegree2-122-122-12
Tilt Accuracydegree< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1< 1
Upper Side LobeFirst Upper LobedB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Suppression20° Sector Above Main BeamdB> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15> 15
Front-To-Back Ratio Co-Pol, ±30°dB> 23> 24> 25> 24> 24> 25> 26> 26> 24> 24> 25> 26> 26
Cross Polar Discriminationat BoresightdB> 17> 18> 17> 16> 16> 16> 17> 17> 16> 16> 16> 17> 17
Over SectordB> 7> 8> 8> 6> 7> 7> 4> 3> 6> 7> 7> 4> 3
IsolationCross-PolardB> 25> 26> 26
Port-to-PortdB> 28> 28> 28
InterbanddB> 28> 28> 28
ImpedanceOhm505050
VSWR—< 1.5< 1.5< 1.5
Return LossdB> 14> 14> 14
PIM3 (2×43 dBm Carrier)dBc< -153< -153< -153
Lightning Protection—DC GroundDC GroundDC Ground
Maximum Average Input Power per Port, *at 50° C Ambient TemperatureWatts250250250
Integrated RET Specifications
ProtocolsCompliant to AISG v2.0 and 3GPP
Supply Voltage Range10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0
PowerStandby< 2 W
ConsumptionIn Motion< 10 W
Connectors2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG
Daisy Chain In: Male; Daisy Chain Out: Female
Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return
Female Connector: 8 PINs; Male Connector: 4 PINs
Hardware InterfacesRS485 and Power
Adjustment Time≤ 90 sec (typical, depending on antenna type)
Adjustment Cycles> 20,000
Torque Maximum≥ 160 mN·m (@ 30RPM)
Lightning Protection RatingIEC 61000-4-5 Current Pulse Profile
Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions
Remote ControlCan manage from OMC, BTS/Node B
Daisy Chaining MethodReady for daisy-chaining
Safety StandardCompliant to EN 60950/UL 60950/RoHS, CE
Housing Material / ColorAluminum / Grey
Operating Temperature-40° to +70° C (-40° to +158° F)
Storage Temperature-55° to +75° C (-67° to +167° F)
HumidityUp to 95%
IP RatingIP65
Weight≤ 500 g
Mechanical Specifications

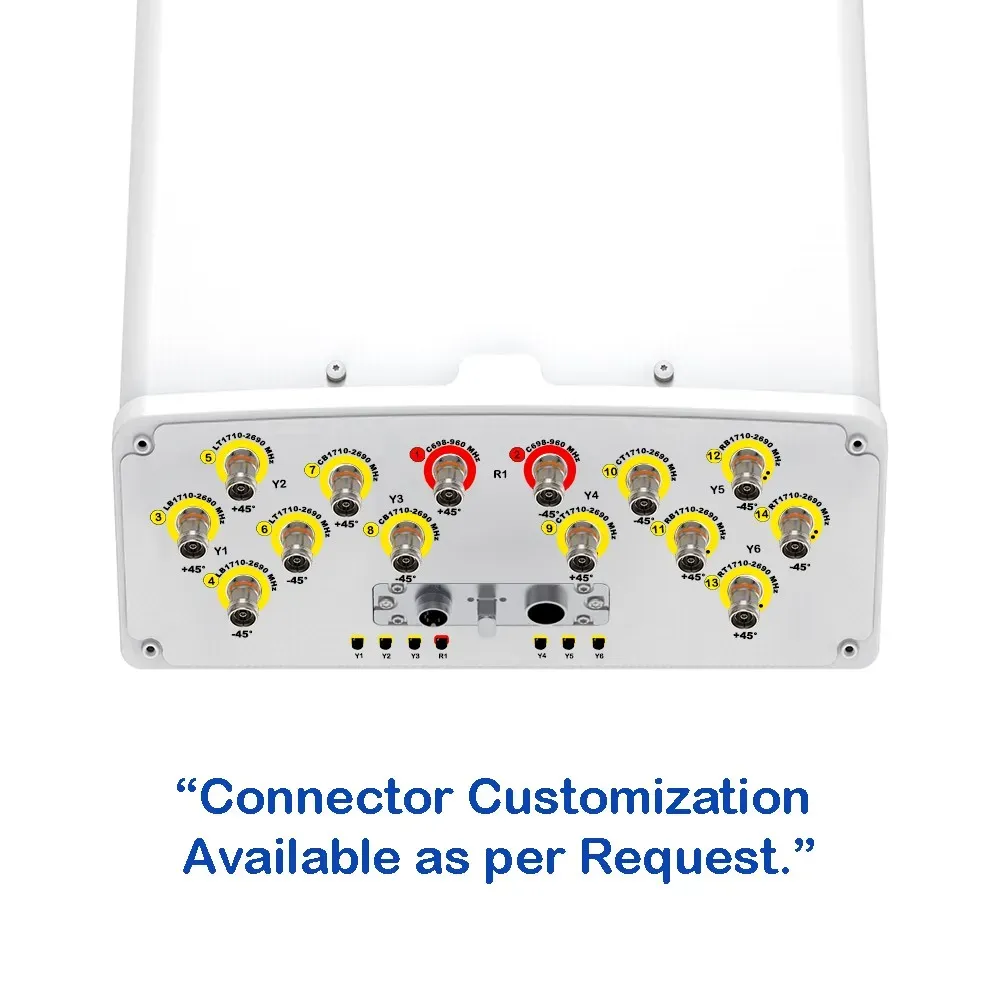

Connector Type—(14x) 4.3/10 Female
Connector Position—Bottom
Electrical Tilt Control—Integrated RET
Radome Material—Fiberglass

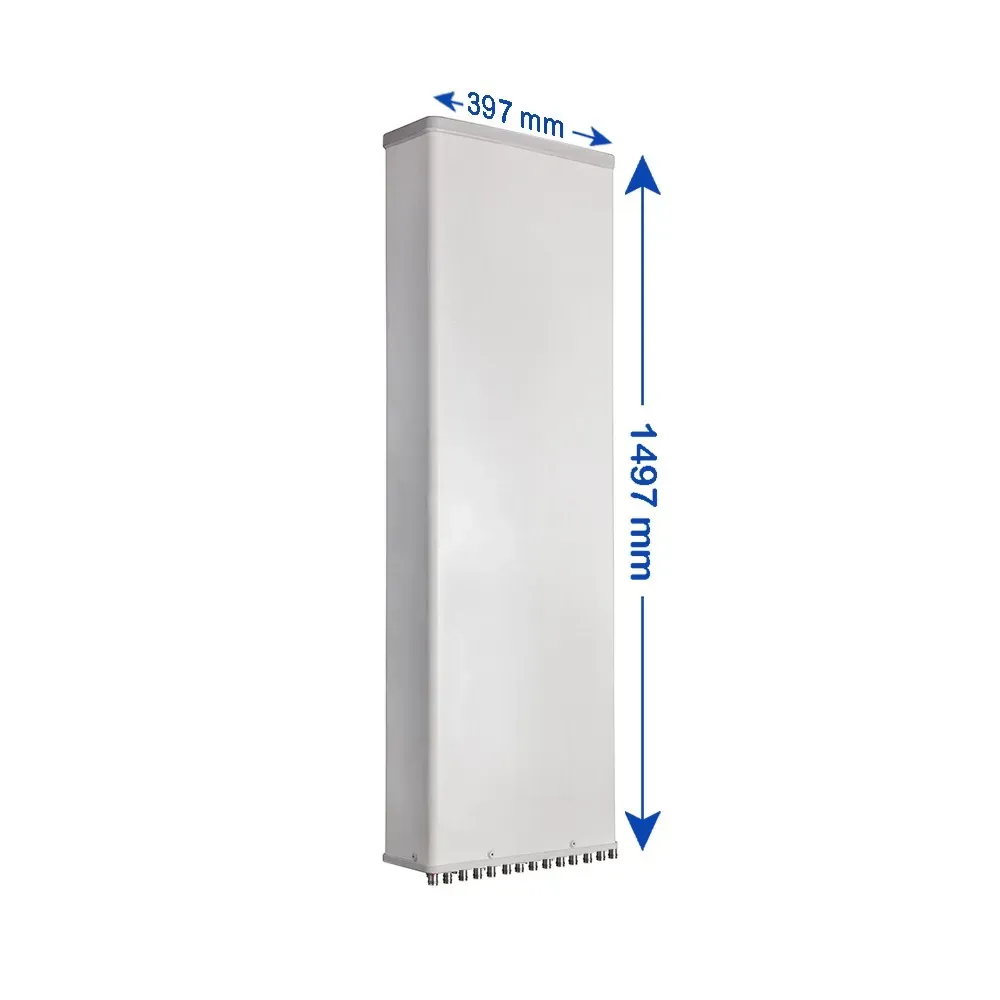

Antenna Dimensions (H x W x D)mm (in)1497 x 397 x 157 (58.9 x 15.6 x 6.2)
Antenna WeightAntenna Onlykg (lbs)25 (55.1)
with Clampskg (lbs)29 (63.9)
Maximum Wind Speedkm/h (mph)200 (124.3)
Wind Load at 150 km/hFrontalN (lbf)550 (123.6)
RearN (lbf)615 (138.3)
LateralN (lbf)270 (60.7)
Operating Temperature°C (°F)-40 to +60 (-40 to +140)
