Product code: 14P-698-2690F-16G-65H12V
14-Port, Panel Sector Antenna, 65° HBW, 698-960/(6x) 1710-2690 MHz, 16/16.5/16/16.5/16/16.5/16 dBi, 2-12°T, 1.997 m

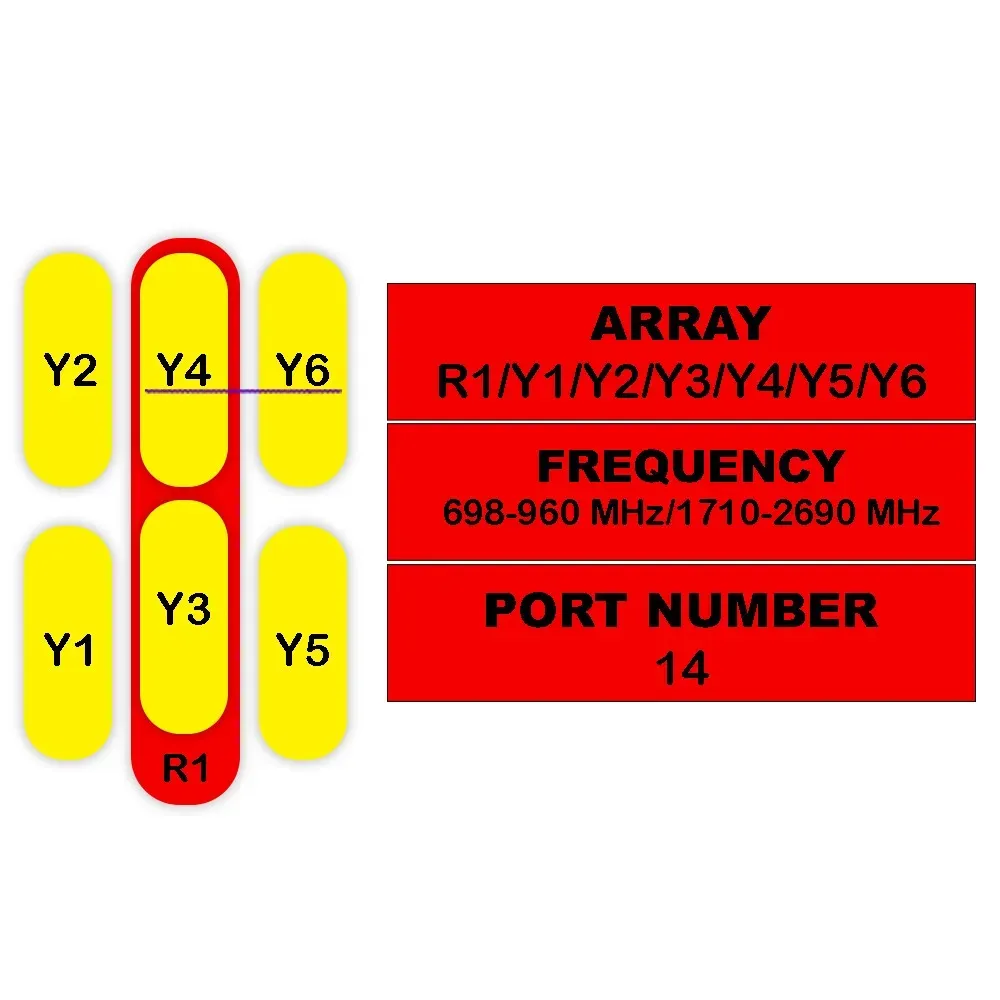

| 14-Port Antenna | R1 | Y1 | Y2 | Y3 | Y4 | Y5 | Y6 |
| Frequency Range (MHz) | 698-960 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 | 1710-2690 |
| HBW | 65° | 65° | 65° | 65° | 65° | 65° | 65° |
| Gain | 16 dBi | 16.5 dBi | 16 dBi | 16.5 dBi | 16 dBi | 16.5 dBi | 16 dBi |
| Tilt | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° | 2-12° |
| Connectors
(other connectors by request) |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
(2x) 4.3/10
Female |
Product Part Number
14P-698-2690F-16G-65H12V
Electrical & Mechanical Specification
| Electrical Specifications | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| R1 | Y1 / Y3 / Y5 | Y2 / Y4 / Y6 | |||||||||||||
| Frequency Range | MHz | 698-960 | 1710-2690 | 1710-2690 | |||||||||||
| MHz | 698-806 | 790-894 | 880-960 | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | 1710-1880 | 1850-1990 | 1920-2170 | 2300-2400 | 2490-2690 | ||
| Polarization | — | ±45° | ±45° | ±45° | |||||||||||
| Gain | at Mid Tilt | dBi | 15 | 15.4 | 15.8 | 15.5 | 15.8 | 16.1 | 16.4 | 16.4 | 15.2 | 15.5 | 15.8 | 16.1 | 16.1 |
| Over All Tilts | dBi | 14.8±0.6 | 15.2±0.5 | 15.6±0.6 | 15.3±0.5 | 15.6±0.5 | 15.9±0.5 | 16.2±0.5 | 16.2±0.5 | 15.0±0.5 | 15.3±0.5 | 15.6±0.5 | 15.9±0.5 | 15.9±0.5 | |
| Horizontal Beamwidth | degree | 67±4.5 | 65±4.5 | 63±4.1 | 68±6.1 | 66±6.1 | 63±6.5 | 62±6.0 | 62±6.5 | 68±6.1 | 66±6.1 | 63±6.5 | 62±6.0 | 62±6.5 | |
| Vertical Beamwidth | degree | 11.6±0.9 | 10.3±0.6 | 9.2±0.6 | 9.5±0.6 | 8.8±0.6 | 8.2±0.6 | 7.2±0.5 | 6.5±0.4 | 9.5±0.6 | 8.8±0.6 | 8.2±0.6 | 7.2±0.5 | 6.5±0.4 | |
| Electrical Downtilt, Continuously Adjustable | degree | 2-12 | 2-12 | 2-12 | |||||||||||
| Tilt Accuracy | degree | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | < 1 | |
| Upper Side Lobe | First Upper Lobe | dB | > 16 | > 16 | > 16 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
| Suppression | 20° Sector Above Main Beam | dB | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 | > 15 |
| Front-To-Back Ratio Co-Pol, ±30° | dB | > 23 | > 24 | > 25 | > 24 | > 24 | > 25 | > 26 | > 26 | > 24 | > 24 | > 25 | > 26 | > 26 | |
| Cross Polar | at Boresight | dB | > 17 | > 18 | > 17 | > 16 | > 16 | > 16 | > 17 | > 17 | > 16 | > 16 | > 16 | > 17 | > 17 |
| Discrimination | Over Sector | dB | > 7 | > 8 | > 8 | > 4 | > 6 | > 6 | > 5 | > 3 | > 4 | > 6 | > 6 | > 5 | > 3 |
| Isolation | Cross-Polar | dB | > 26 | > 26 | > 26 | ||||||||||
| Port-to-Port | dB | > 28 | > 28 | > 28 | |||||||||||
| Interband | dB | > 28 | > 28 | > 28 | |||||||||||
| Impedance | Ohm | 50 | 50 | 50 | |||||||||||
| VSWR | — | < 1.5 | < 1.5 | < 1.5 | |||||||||||
| Return Loss | dB | > 14 | > 14 | > 14 | |||||||||||
| PIM3 (2×43 dBm Carrier) | dBc | < -153 | < -153 | < -153 | |||||||||||
| Lightning Protection | — | DC Ground | DC Ground | DC Ground | |||||||||||
| Maximum Average Input Power per Port, at 50° C Ambient Temperature | Watts | 250 | 250 | 250 | |||||||||||
| Integrated RET Specifications | |||||||||||||||
| Protocols | Compliant to AISG v2.0 and 3GPP | ||||||||||||||
| Supply Voltage Range | 10-30 V DC; Compliant to AISG2.0 and 3GPP TS25.461 V6.0.0 | ||||||||||||||
| Power | Standby | < 2 W | |||||||||||||
| Consumption | In Motion | < 10 W | |||||||||||||
| Connectors | 2 x 8 Pin Circle Connector According to IEC 60130-9 and AISG | ||||||||||||||
| Daisy Chain In: Male; Daisy Chain Out: Female | |||||||||||||||
| Pin3: RS485B; Pin5: RS485A; Pin6: 10-30 V; Pin7: DC Return | |||||||||||||||
| Female Connector: 8 PINs; Male Connector: 4 PINs | |||||||||||||||
| Hardware Interfaces | RS485 and Power | ||||||||||||||
| Adjustment Time | ≤ 90 sec (typical, depending on antenna type) | ||||||||||||||
| Adjustment Cycles | > 20,000 | ||||||||||||||
| Torque Maximum | ≥ 160 mN·m (@ 30RPM) | ||||||||||||||
| Lightning Protection Rating | IEC 61000-4-5 Current Pulse Profile | ||||||||||||||
| Line to Ground: 8/20 µs @ 8 kA ≥ ±5 Repititions Line to Line: 8/20 µs @ 3 kA ≥ ±5 Repititions | |||||||||||||||
| Remote Control | Can manage from OMC, BTS/Node B | ||||||||||||||
| Daisy Chaining Method | Ready for daisy-chaining | ||||||||||||||
| Safety Standard | Compliant to EN 60950/UL 60950/RoHS, CE | ||||||||||||||
| Housing Material / Color | Aluminum / Grey | ||||||||||||||
| Operating Temperature | -40° to +70° C (-40° to +158° F) | ||||||||||||||
| Storage Temperature | -55° to +75° C (-67° to +167° F) | ||||||||||||||
| Humidity | Up to 95% | ||||||||||||||
| IP Rating | IP65 | ||||||||||||||
| Weight | ≤ 500 g | ||||||||||||||
| Mechanical Specifications | |||||||||||||||

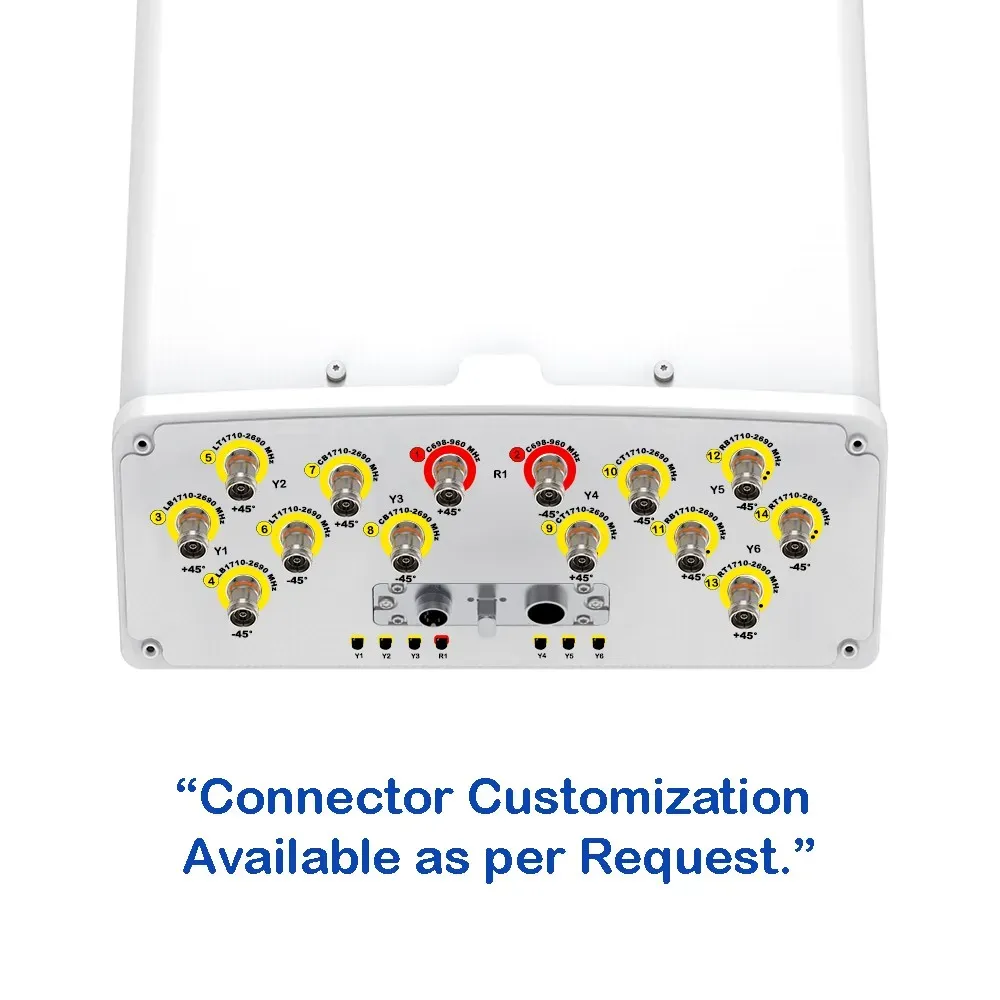

| Connector Type | — | (14x) 4.3/10 Female | |||||||||||||
| Connector Position | — | Bottom | |||||||||||||
| Electrical Tilt Control | — | Integrated RET | |||||||||||||
| Radome Material | — | Fiberglass | |||||||||||||

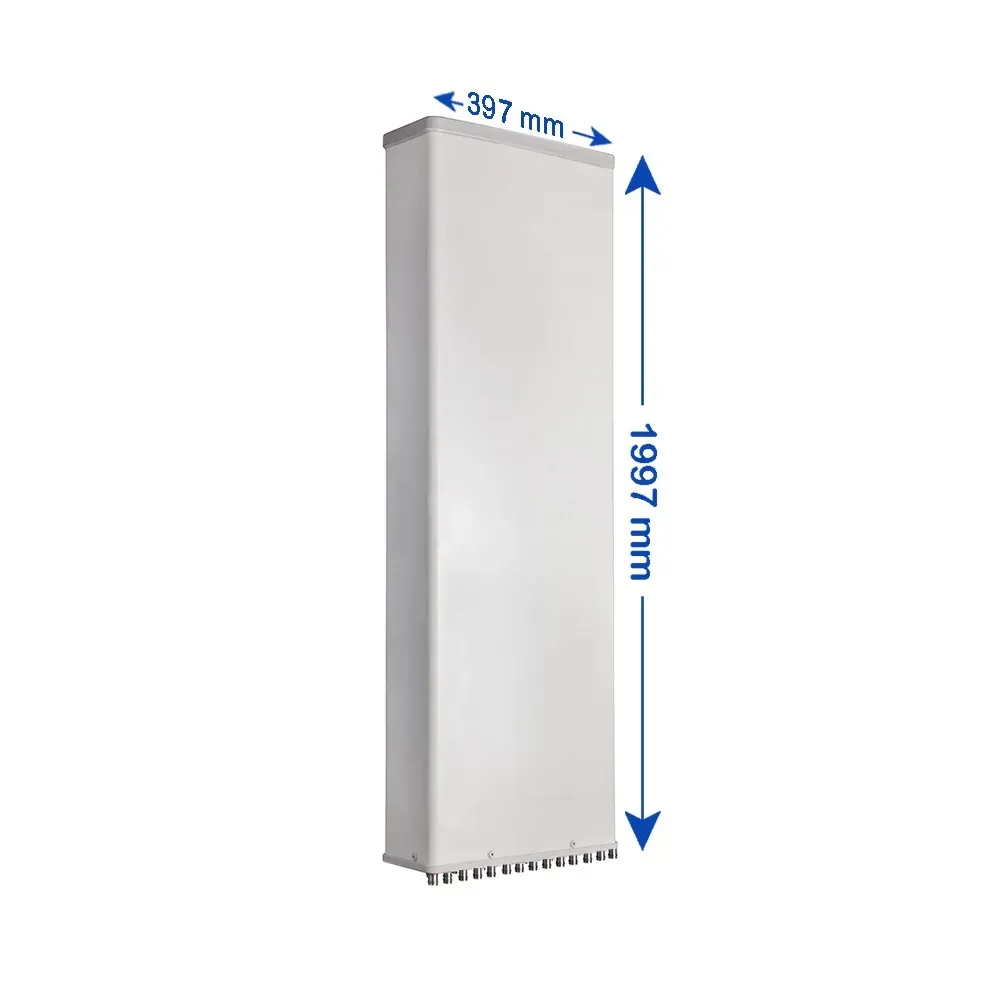

| Antenna Dimensions (H x W x D) | mm (in) | 1997 x 397 x 157 (78.6 x 15.6 x 6.2) | |||||||||||||
| Antenna Weight | Antenna Only | kg (lbs) | 31.5 (69.4) | ||||||||||||
| with Clamps | kg (lbs) | 35.5 (78.3) | |||||||||||||
| Maximum Wind Speed | km/h (mph) | 200 (124.3) | |||||||||||||
| Wind Load at 150 km/h | Frontal | N (lbf) | 735 (165.2) | ||||||||||||
| Rear | N (lbf) | 820 (184.3) | |||||||||||||
| Lateral | N (lbf) | 360 (80.9) | |||||||||||||
| Operating Temperature | °C (°F) | -40 to +60 (-40 to +140) | |||||||||||||
